Slitting Line Dealers in Indore

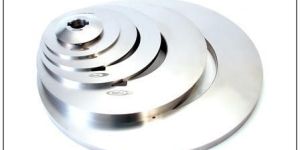

DeeTee offers a complete range of Slitting Line Tooling confirming to international standards - Rotary Metal Slitting knives, Metal Spacers, Rubber bonded spacers, stripper rings, Over arm Separator Discs , shims and other precision tools.Heat treated in salt bath furnaces, DeeTee’s slitting line tooling has the highest degree of hardness uniformity and the ideal metallurgical properties to slit any metal.  DeeTee manufactures slitting line tooling in Standard and Extra Precision tolerance grades with  lapping. Standard for slitting strips above 1mm thickness and Extra precision grade for foils up to .2mm thickness.DeeTee can manufacture Slitting Line tooling up to 600mm diameter.   SLITTING LINE TOOLING COMPRISES OF SLITTING KNIVES /  SLITTING CUTTERS / CRCULAR KNIVES      METAL SPACERS      RUBBER BONDED SPACERS    LOOSE RUBBER RINGS   SHIMS          SPACERS & SEPARATOR DISC FOR OVER ARM SEPARATORS   Rotary slitting knives are manufactured from the finest imported alloy steels. The knives are made from – AISI D2    SKD 11   1.2379 AISI D3 SKD 1 1.2080 AISI H13 SKD 61 1.2344/45 AISI S1   1.2550 AISI M2 SKH51 1.3343  SPECIAL 8% Cr High alloy tool steels and POWDER METALLURGICAL grades like ASP2023 are used for special applicationsSpacers are made of en31 / SUJ2 / 100Cr6 / SAE52100.    Rigid inspection at every stage ensures top Quality.   Keywords : slitting line tooling, slitting line tooling components, metal sliting tooling, Metal Slitter,Metal spacer,rubber coated spacers, shims,strip rings,metal rings,rubber spacers,metal washers,stripper rings, separator disc,overarm separator,slitting tools,rotary cutting knives,flat cutting knives,rotary shear knife

DeeTee offers a complete range of Slitting Line Tooling confirming to international standards - Rotary Metal Slitting knives, Metal Spacers, Rubber bonded spacers, stripper rings, Over arm Separator Discs , shims and other precision tools. Heat treated in salt bath furnaces, DeeTee’s slitting line tooling has the highest degree of hardness uniformity and the ideal metallurgical properties to slit any metal. DeeTee manufactures slitting line tooling in Standard and Extra Precision tolerance grades with lapping. Standard for slitting strips above 1mm thickness and Extra precision grade for foils up to .2mm thickness. DeeTee can manufacture Slitting Line tooling up to 600mm diameter.

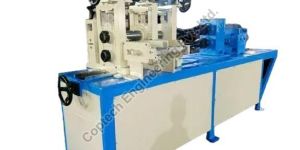

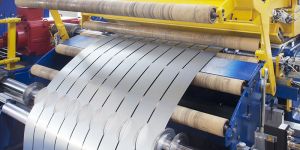

Our manufacturing unit provides a wide range of options and heads are available from 3" to 10" diameter arbours with standard or precision tolerances. Along with integrated multi staged gear boxes, powered out board housing, stationary or removable heads, entry tables, exit pinch rolls, integral scrap winders and re-winders. We offer Fully Automatic and Semi Automatic utility. The Lines are custom designed on the basis of material specification and required production capacity.High outputthroughput and flow rates by rigorous minimization of tooling times and high production speeds.High winding accuracy with increasing coil diameter by means of the movable braking unit for operation mainly without separating system at the coiler.
