Tunix Corporation R N T Marg, Indore, Madhya Pradesh

Accuracy : + - 2 %

Brand Name : Tunix

Feature : Hold function,Dual range

Material : MS Powder Coated

Display Type : Digital

Color : Black

Brand Name : Tunix

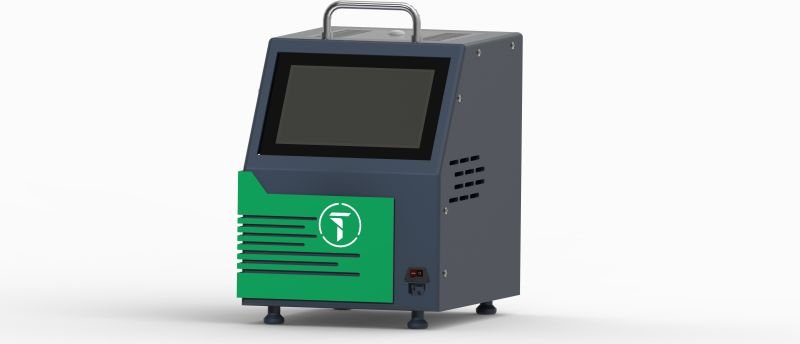

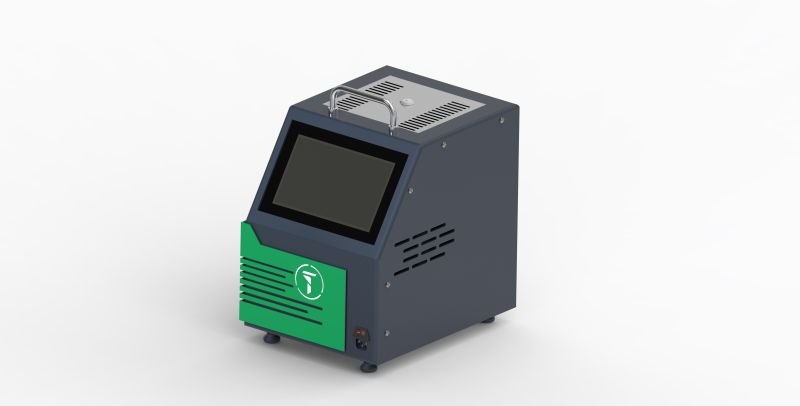

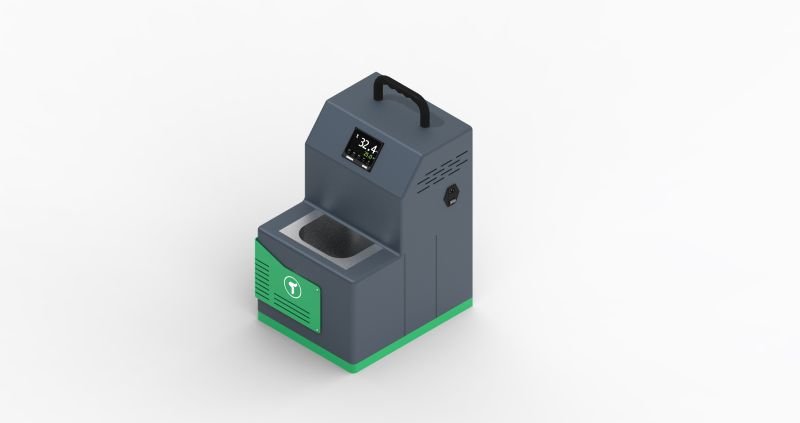

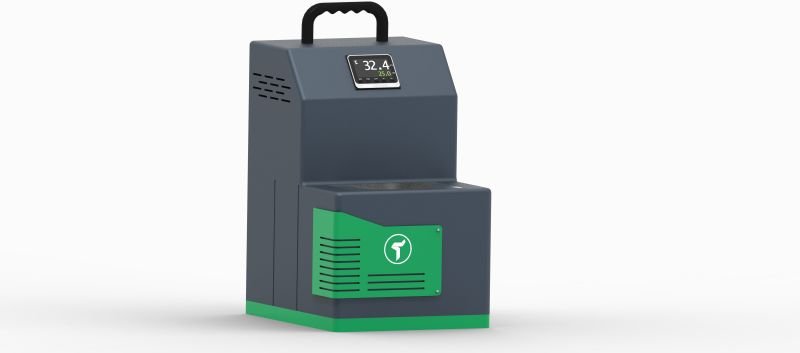

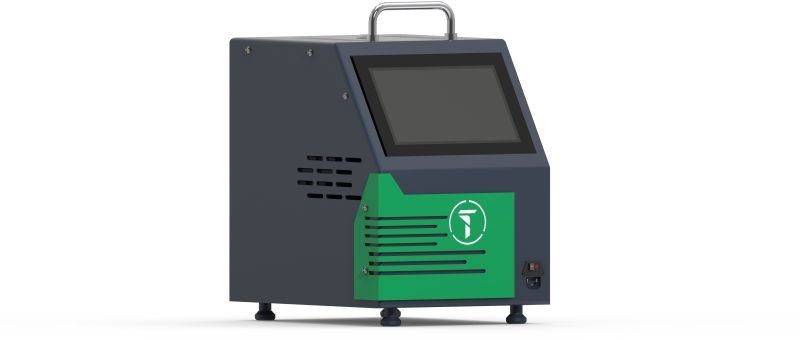

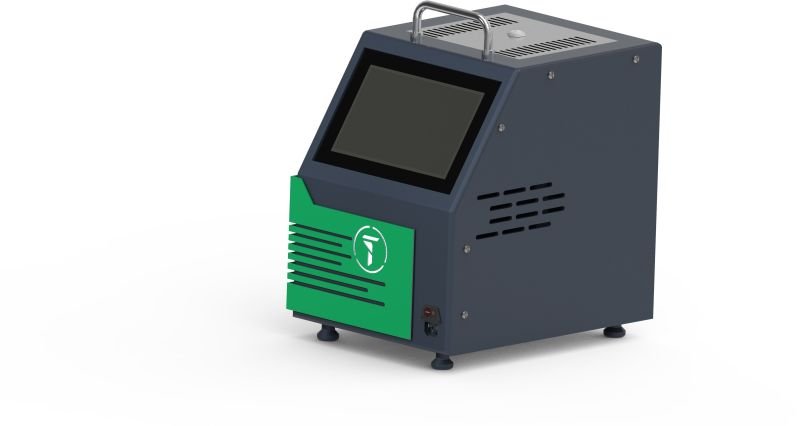

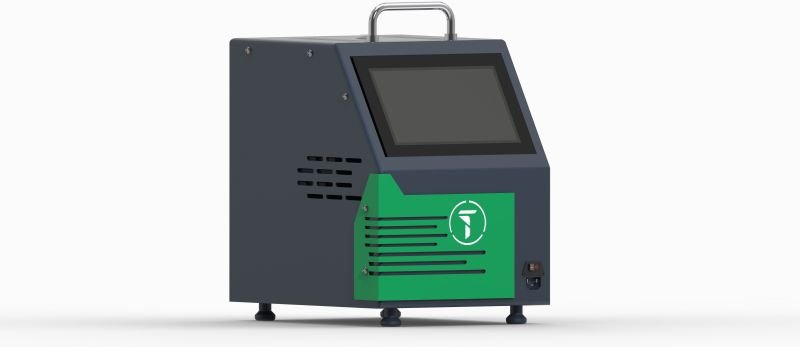

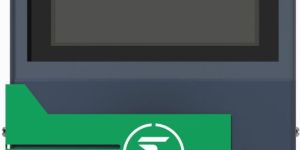

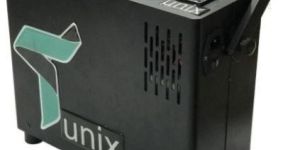

Negetive Dry Block calibrator Model: ED-27X Description : Fully Portable,easy to carry Calibration of thermometers, temperature sensors, temperature indicators. Proficient Temperature Calibration for Sub Zero Ranges. No Bulky Compressors. Technical specification Temperature Range: -30 ˚C to +100 ˚C @ 25 ˚C ambient temperature. Resolution: 0.1. Control accuracy: Set point ± 0.05 ˚C. Thermal stability ± 0.01 ˚C @100 ˚C (calculated after stabilization time of 10 minutes). ± 0.01 ˚C @ - 30˚C (calculated after stabilization time of 10 minutes). Thermal Nonuniformity (Radial): ± 0.15 ˚C @100 ˚C (calculated after stabilization time of 10 minutes). ± 0.10 ˚C @-30˚C (calculated after stabilization time of 10 minutes). Stabilization Time/settling time: 10 minutes after set point is achieved. Metal(SS) Sound: 30 dB Power Consumption: single phase 170 Watt maximum Current : 0.7 A Power supply: 100-240 VAC @50-60 Hz. Time to reach 100 ˚C (5 Minutes) from 25 ˚C ambient temperature. Power supply: 100-240 VAC @50-60 Hz. Current : 0.7 A Power Consumption: single phase 170 Watt maximum. Sound: 30 dB Enclosure Metal(SS) Weight: 13 Kg

Type : Dry Block Temperature Calibrator

Certification : CE Certified

Application : Block Temperature Reading

Color : Black

Condition : New

Frequency : 50Hz

Driven Type : Electric

Temperature Range : -30-100°C

Feature : Durable, High Performance, Stable Performance

Current Type : AC

Brand Name : Tunix Corporation

Application : RTDs, Thermocouple Calibration

Accuracy : ± 0.05 ˚C
