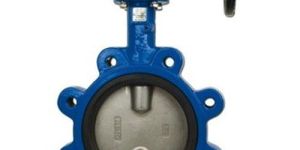

Butterfly Valves Dealers in Indore

• Size: 100-150mm, 150-200mm
• Material: Forged Steel
• Color: Grey
• Feature: Casting Approved, Durable, Good Quality
• Pressure: High, Low, Medium
• Usage: Industrial

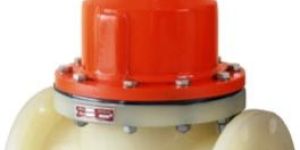

We are ranked amidst the well-reckoned names in the filed of exporting and supplying Manual Diaphragm Valves in all over the globe. The Manual Diaphragm Valves are available with us in a wide range that is strictly procured from the reputed vendors in the industry to ensure its reliability. Our Manual Diaphragm Valves are efficient, high in quality, and competitively priced.

Available M.O.C.: PP (POLYPROPYLENE) HDPE (HIGH DENSITY POLYETHYLENE) ISOTACTIC PP PVDF (POLYVINYLIDENE FLUORIDE)

• Material: Stainless Steel
• Brand Name: Sant
• Valve Size: 350mm to 600mm
• Connection Type: Wafer Type
• Pressure: PN-1.6
• Temperature Of Media: Medium Temperature
•  :

• 2" - 72": PN 6/PN 10/PN 16/Class 150
• Flanged / Lug / Wafer: Hand Lever, Gear Operator, Electrical Actuator, Pneumatic Actuator.

Features and Benefit:   Resilient seat seals bubble-tight against the disc, isolating the valve body and stem from the line media. Unique dovetail seat retention allows for convenient and economical field replacement. A primary stem seal formed by preloaded contact of the disc hub with the flatted seat surfaces and secondary stem seal formed by an interference fit of the stem through the seat provide bubble-tight shut-off to full valve pressure rating. Rounded polished disc and hub edges provide full 360 degree concentric seating, resulting in minimum flow restriction, lower seating/unseating torque and longer seat life. Molded-in, O-ring seat serves as flange seal, totally eliminating the need for gaskets between the flange and the valve. Superior one-piece through-shaft provides high-strength and positive disc control. Stainless steel taper pins are driven, sealed and locked for maximum torsional strength and resistance to vibration loads. Cast-in top mounting plate is an integral part of the body which is standardized to allow direct mounting of all kind of actuators. Each valve is factory tested to 110 percent of specified pressure rating, helping ensure bubble-tight shut-off to the full valve rating when bolted between flanges in either direction of media flow.   Product Standard   Design Standard AWWA C 504, API 609, BS 5155, IS 13095, ASME B 16.34, IS 13095 Testing Standard API 598 / BS 6755I / BS EN 12266-1 Face To Face AWWA C 504, API 609, BS 5155, IS 13095 , ASME B 16.34, IS 13095 End Connection ANSI B 16.5, BS 10 Table, AWWA C 207, IS 6392, ASME B 16.47, etc.     Valve Operation   OperatorSize Range Lever : 2"- 6" - PN 6/PN 10/PN 16/Class 150 Gear Operator : 6" Above - PN 6/PN 10/PN 16/Class 150     Material   Shell WCB, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu, Hastelloy, Inconel, Duplex Stainless Steel Trim WCB, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu, Hastelloy, Inconel, Duplex Stainless Steel

• Material: Mild Steel
• Media: Water
• Size: 4 Inch
• Operator: Lever
• Temperature: Up to 150 Degree C
• Working Pressure: 3 to 4 Bar

Pvc Butterfly Valve, Double Flanged Butterfly Valves

Butterfly Valves, Industrial Valves, Ball Valve, Check Valves

Triple Offset Butterfly Valve, Single Plate Valve

Butterfly Valve, Ball Valve, Tube Fittings, bend pipe fitting

Butterfly Valve, Ball Valve, Cast Iron Gate Valve, Check Valve, Globe Valve

Triple Offset Butterfly Valve

Butterfly Valve, Ball Valve, Centrifugal Pumps, Diaphragm Valve, Foot Valve
