Vibrating Fork Level Switch Dealers in Indore

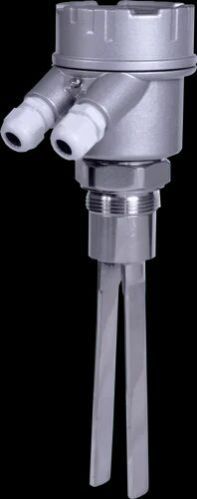

The vibrating fork level switches are specifically designed for sensing the presence of low-density dry powders or fine granular solids in bunkers and silos. It’s stainless steel symmetrical fork offers reliable operation with even very low-density materials. The operation of the instruments is unaffected by parameters such as changing material composition, changing moisture content and low specific gravity. application examples dry powders – cement, pulverized coal, coffee powder, milk powder, chemical powder fine grained solids – food grains, plastic pellets, wood.

• Max. Viscosity: 10,000 cStokes (= cPose/(g/cm3)), (Higher viscosity available on request)
• Ambient Temp.: -20°C ... 70°C (-4°F ... 158 °F)
• Process Temp.: -20°C ... 80°C (-4°F ... 176 °F)
• Extended Process: -30°C ... 200°C (-22°F ... 392 °F)
• Temperature: (extensions & heat sinks required)
• Process Pressure: absolute / max. 15 bar
• Wetted Parts: SS 316 or SS 316L, PTFE, PFA, TEFZEL, HALAR
• Process Connections: NPT / BSP / Hygienic ½", ¾", 1", 1¼", 1½", & Flanged ANSI/JIS/DIN/ASA/custom
• Vibration Test: As per IEC 60068 part 2-6 sinusoidal, 10-55Hz, 0.15mm
• Extensions Tube: SS 304, SS 316, SS 316L
• Material & Length: 50mm to 3,000mm

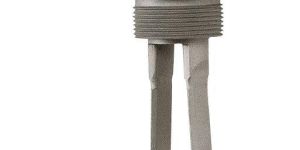

Pipe Fork is a compact level switch suitable for all kinds of fluids and is used in tanks, containers and pipelines. Pipe fork is used in all types of fluids having viscosity up to 10,000 cP & densities greater than or equal to 0.7 gm. cc.

• Extension: Pipe GI / SS
• Housing: Pressure Die cast aluminium
• Type: Electronics top mounted with fork
• Power Consumption: 400 kW Maximum
• Fork Frequency: 150 - 350 Hz

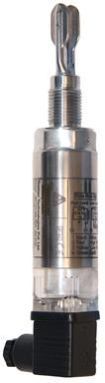

We are offering vibrating fork liquid level switch. Working principle electronics of lfv12 excites the piezo-electric-crystals inside tuning fork, which makes the fork tines vibrate at their natural resonance frequency in free air. when fork tines are immersed in liquid, the frequency of fork vibration falls due to the density of liquid. this change in frequency is detected by electronic circuit. liquid presence is thus detected.

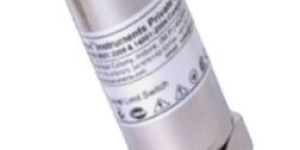

Elixir-T vibrating fork is a compact  level switch for liquids and is used in tanks, containers and pipelines. It comes with hygienic process connection and polished finish and is hence ideal for hygienic applications. This level switch detects the resonant frequency change and changes the output signal according to fail­safe mode selection. Typically, the output is fed to a PLC which then uses it to control the process.

Vibrating Fork Level Switch for Solids

Malema LD60 / LD61 Vibrating Fork Type Level Switch

Vibrating Fork Type Level Switches, High Rate Solid Contact Clarifiers
