Vinayakashot Pvt. Ltd. Old Palasia, Indore, Madhya Pradesh

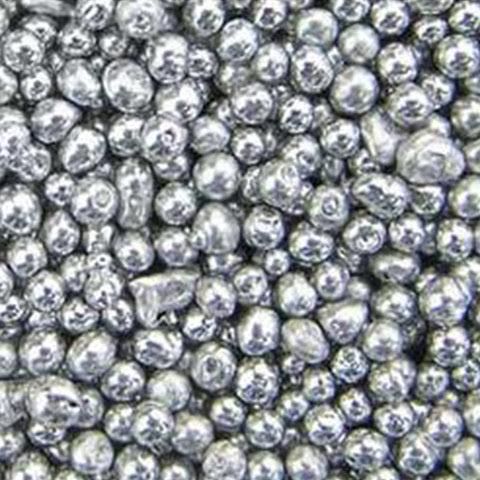

The softness of zinc shot is suitable for operation in deburring die castings, and removing impregnated sand from sand castings. It can remove coatings from soft alloy cast parts without damage, and leaves a thin film of zinc on the work pieces which provide corrosion resistance.Applications : De-burring aluminum die casting ( removing flash up to 0.20”),strapping paint and removing powder coatings without damaging substrates ( tooling,painthooks,etc.)fine film layer on works objects, zinc providesadditional corrosion resistance.Features:It is used for removing oxidation skin, burr, eliminating surface defect, removing stress, etching, unknit, strengthen, prevention rust before painting of metal die-casting, precision casting, hardware tool, machinery manufacturing, automobile spare parts, apparatus,pump valve industry.

Material : Zinc

Color : Silver, Bright Silver

Hardness : 20-30 B

Density : 7.1g/cm3

Purity : 99.9%

Brand Name : V.Shot

Features : Providing galvanic protection Suitable for de-burring as well as de-flashing of zinc or aluminum die cast parts Suitable for use in both wet dry operations Allow effective removal of impregnated sand from sand castings Help in reducing wear and tear on blast equipment as compared to other metallic abrasives.

Size : 0.3-2.5 Mm

Material : Zinc

Diameter : 0-10mm

Thickness : 0-5mm

Application : Industrial Use

Color : Metallic

Surface Finishing : Polished

Brand Name : V.Shot

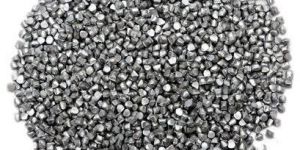

Features :- Made available in form of Steel Shot ( Cast Steel Shot) and Steel Cut wire shot Designed to provide 40-50% more life by reducing shot blasting machine wear & tear by more than 60% Crack resistant finish Ideal for general purpose de-scaling, de-burring, de-flashing as well as shot peening applications Can also be used in commercial cleaning of aluminum and zinc casting Produces low dust and delivers longer recycle life

Material : Cast Steel

Shape : Round

Color : Black

Application : Industrial

Finishing : Polished

Packaging Type : HDPE Bags

These cast steel shot are available in various sizes and Hardness. Steel shot are manufactured from steel scrap. Our furnace is Electric furnace. Steel Scrap is melted in the furnace then being atomized into shot by water JetSteel Shot Blasting is the most widely used process in sand  & Shot Blasting  industries for cleaning ,stripping  and improving a metal surface . The grade size of steel shots  will determine the finish achieved on the surface of the metal in shot blasting process.

Material : Steel

Shape : Round

Surface Finishing : Polished

Feature : Extra Stronger, Accuracy Durable

Application : Transmission Use

Abrasive Grain Sizes : 1.2mm

We have acquired an enviable position among the Manufacturers, Exporters and Suppliers of Steel Grits in Indore. The high quality Steel Grits, offered by us, are known for their strength and quality. The feature-studded Steel Grits range is available at the market leading prices with us.Details     Standard : Available as per IS 4606 : 1983, SAE J444     Available Sizes : G-200, G-120, G-80, G-50, G-40, G-25, G18, G-16 , G-14, G-12,     Chemical : C: 0.6-1.25% Mn : 1.2%Max, Si : 0.2-1.1, P&S : 0.05%max Features:     Strong     High in efficacy     Premium quality     Strong Nature

Size : 100-150mm

Material : Steel

Certification : ISI Certified

Application : Gas Fitting, Oil Fitting

Color : Grey

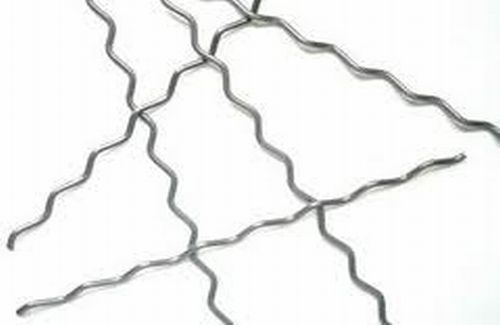

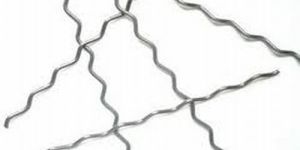

We have acquired a position of prominence in the global markets as a Manufacturer, Exporter and Supplier of Steel FibreS in Indore. The Steel Fibres, offered by us, are widely appreciated and demanded across the global markets owing to their quality and corrosion resistant properties. The Steel Fibre can be availed at the best prices on a timely basis.Highlights Of Steel Fibre : Quality assured Made using the best materials Strong and durable Corrosion resistant Available as per following Specifications : ASTM A820Available Shapes : Straight Steel Fiber Hooked ends Steel fiber Round Crimped Steel Fiber Flat corrugated Features : Rust resistance High tensile strength Fine finish  Applications : Electrical Industry Textile Industry Carpets Communication lines

Material : Stainless Steel, Steel

Color : Grey

Fiber Length : 10-50 mm, 10 - 15 cm

Weight : 10 - 20 g

Brand Name : V.Shot

Packaging Type : HDPE Bag

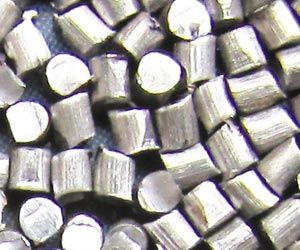

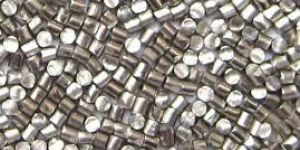

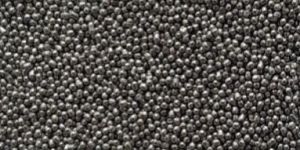

STAINLESS STEEL CUT WIRE SHOTS No Ferrous Contamination: Ideal for blasting or peening stainless steel, titanium, aluminum, or other non-ferrous work objects; Increased Production: High reusability Rate: over 800 operating cycles, perfect for Blasting Rooms; Certified Product: MIL-S 13165C, SAE J441, AMS 2431/4; No Dust. Available in conditioned form with certification to meet: MIL-S 13165C: Military Specification 13165C - Shot Peening of Metal Parts; SAE J441: Society of Automotive Engineers J441 - Cut Wire Shot; AMS 2431/4: Aerospace Specification 2431/4 - Peening Media (AWS), Conditioned Stainless Steel Cut Wire Shot; Stainless steel cut wire shot with bright surface that are used for shot blasting, shot peering and deburring in non-ferrous metal and stainless steel products surface. The surface of work-pieces are smooth, no rust and highlight metallic luster after process. Applications: Prevents ferrous contamination when blasting or peening stainless steel, titanium, aluminum, or other non-ferrous work objects. The economic case for using stainless cut wire shot in peening and blast cleaning operations is quite easy to make: cut wire does not fracture or break down during use because it is a solid piece. Stainless Steel Cut Wire is made by cutting stainless steel wire into pellets, the length equal to the diameter of the wire. SUPERIOR QUALITY PRODUCT Our stainless steel cut wire shots offer the following advantages: Produces very bright surfaces and dust free surfaces Stainless steel cut wire shot has a significantly longer life than cast abrasives and carbon cut wire shot Dust generation is significantly lower – blasting operations are much cleaner Stainless steel cut wire shot produces excellent results because of its uniformity and strength It will make you a “Greener” organization because disposal of spent media will be significantly reduced (you won’t need as much shot, inventory requirements will be lower, and inbound freight will cost less.) You will NOT introduce ferrous contamination to non-ferrous castings or work objects as occurs with the use of cast steel or carbon cut wire shot No hollow, splits or twins STAINLESS STEEL CUT WIRE SHOTS APPLICATION     .   Surface finishing Obtain profile pattern Shot peening Shot blasting Our stainless steel cut wire shots is used in all impact treatments: Grit removal Pre treatment Rust removal Blast cleaning

Color : Silver

Material : Steel

Color : Metallic, Shiny Silver

Brand Name : V.Shot

Brand Name : V.shot,V.SHOT

Material : Stainless Steel

Surface Finishing : Polished

Size : 0.3mm - 2.5mm

Feature : Accuracy Durable, High Quality

Type : Stainless Steel Shot

Country of Origin : India

Hardness : 40-50 HRC, 180-205 HV

Advantages Most economical and lowest consumption Consumption 3-4 times less compare to cast shot No dust formation Faster cleaning Environmental friendly Uniform hardness Stabilized grain size Increased fatigue life of blasted parts Stainless steel cut wire shot has a significantly longer Shots life than cast steel shot or grit and carbon cut wire shot . Dust generation is significantly lower – blasting operations are much cleaner Stainless steel cut wire shot produces excellent Surface results because of its uniformity and strength It will make you a “Greener” organization because disposal of spent media will be significantly reduced. (You won’t need as much shot, inventory requirements will be lower, and inbound freight will cost less.) Applications Surface finishing Obtain profile pattern Shot peening Shot blasting Grit removal Pre treatment Rust removal Blast cleaning Available as per following Specifications SAE : J441 As- Cut : Cylindrical Normal : Corners Pre Rounded Conditioned : Almost Spherical Semi Conditioned : Not Spherical Available Shapes As- Cut : Cylindrical Normal : Corners Pre Rounded Conditioned : Almost Spherical Semi Conditioned : Not Spherical

Material : Stainless Steel

Condition : Solid

Application : Automobile Industry

Size : 0-15mm, 15-30mm, 2.50 Mm - 3.00 Mm

Feature : Accuracy Durable, Corrosion Resistance, Extra Stronger, High Quality, High Tensile, Long Functional Life

Diameter : 0-10mm, 0.4mm To 2.5mm

Brand Name : V.Shot

The company has made a mark for itself as a Manufacturer, Exporter and Supplier of Stainless Steel Cut Wire Shots in Indore. The Stainless Steel Cut Wire Shots, offered by the company, are known or their quality and can be availed at the market leading prices. The Stainless Steel Cut Wire Shots are made using the best grade raw materials with the help of the advanced production techniques. Stainless Steel Cut Wire Shot available in grades 430,201,202,302,304,316,410. Stainless Steel Cut Wire Shot availables in 0.30mm to 2.50mm in AS-Cut & Condition.

Brand Name : STAINLESS STEEL CUT WIRE SHOT

We are manufacturer of ferrous and non ferrous precision balls manufacturer in HCHC Balls , SS-202, SS-302, SS-304, SS-316,SS-410 etc.Applications: Where material toughness and resistance to corrosion are more important than hardness. They have good corrosion resistance to the food environment, oxidizing solution and most organic chemicals,application are valves , aerosol and finger pumps, corrosions resistance is higher after annealing and passivation. Not resistant to sulphuric acids. International Equivalents : DIN X CR Ni 18.09, JIS SUS 304,Chemical Composition: GRADE AISI 302- 0.12%Max Cr - 17-19% Ni - 8-11% Si - 1.0%Max Mo -10%Max Mn - 2.0%Max P - 0.045%Max S - 0.03%Max

Size : 1mm To 100mm

Material : Stainless Steel

Shape : Round

Application : Bicycle Handle, Bicycle Wheel, Knobs

Color : Silver

Finishing : Polished

Feature : Compact Designs, High Strength, Optimum Quality, Perfect Shape

Brand Name : V.Shot

Diameter : 2mm to 150mm

We also manufacture, export and supply the superlative cut wire shots. Our cut wire shots are available in 0.4 mm to 2.5 mm sizes and in ss 202, 302, 316, 430  grades. The cut wire shots offered by us are useful in surface finishing through shot blasting and peeining. The life of our cut wire shots is more than 4 times then conventional cost which adds to its efficient feature. advantages : low dust generation low maintenance cost very economical range available : carbon high carbon aluminium stainless steel led copper

Size : 0-15mm

Type : Stainless Steel Wire Shot

Thickness : 0-5mm

Application : Industrial Use

Grade : IS

Color : Silver

Application : Shot Blasting

Surface Finishing : Polished

Feature : Hardend & Temper

Color : metalic

Because of its characteristic, it provides a perfect atomizing of materials size, density, hardness and durability. Hence, the efficiency of abrasive reduces the consumption rate and increases the productivity as well as non-toxic environment status. PS Ball is an inexpensive material when we compared to other mineral materials. PS Ball can be recycled up to 3-4 times based on its surface toughness.Being processed with SAT, ions dissociated in ion form can be as stable oxide compound in Spinel Structure. Spinel Structure with general chemical formula AB2O4 is octahedron shaped structure as illustration in which oxygen atom is almost filled with cube clise packed packing that is the structure with B atom surrounding 6 oxygen atoms in octahedron and with Atom surrounding 4 oxygen atoms.There is Spinel as typical example in this Spinel Structure. Such as this crystal generally has solidity 5.5~8, luster like glass and high index of reflection.Colorless and transparent one is very solid, weathering proof and corrosion proof to the extent that could be used as gem.As the surface of this is formed with an oxide compound in Spinel Structure, ion or electron moving required in chemical reaction become difficult and therefore it forms stable compound and very strong resistance to chemical, physical cause as weathering. So, Spinel particles transformed from convert reactor slag with SAT doesn’t break out pollution problem.PS Ball is the noble product of slag atomizing process. We named if Precious, since it is converted from valueless waste into new born material with good value added.It is an environment-Friendly material with stable status of Spinet Structure by rapid air & mist cooling system, proven by authorities.ApplicationPS Ball has excellent physical properties such as spherical shape, high strength and low abrasive rate. Using these characteristics, the excellent performance was proven in use of Repair and Reinforcing Material, Abrasive Blasting Material, Roof Material, Non-slip Material etc. Furthermore, PS Ball has been applied widely to the substitute for river sand after acquirement of “Construction Mark”.

Shape : Round

Pattern : Plain

Condition : New

Feature : Durable, Good Quality, Pure Leather

Application : Decoration

Features: High quality Long functional life Excellent Quality Material 1 Nickel cut wire shot 2 Nickel Shot

Material : Nickel

Performance : Optimum

Color : Silver

Surface Finishing : Polished

Application : Industrial

Features: Long durability Uniform size Uniform hardness

Size : 0-15mm, 0.6-2.5 Mm

Material : Carbon Steel

Diameter : 0-10mm

Application : Rust Removal

Surface Finishing : Polished

Brand Name : V.Shot

Other applications such as : Stress testing Providing variable weights in strength-of-materials stress-testing systems. Hydrometers use a weight made of Lead balls Split Balls a larger type of lead balls where each pellet is cut partway through the diameter. The heads of some dead blow hammers are filled with balls to minimize rebound off the struck surface. Shot belts scuba diving, cycling and swimming. Model rocketry to add weight to the nose of the rocket, increasing the stability factor. Lead balls are used for a regenerator in Stirling engines and thermo acoustic crycoolers. Lead balls for wall construction suitable for radiation shielding applications. It is used to attenuate radiation, especially X-rays and gamma rays in Medical and nuclear industry. For free casting steel / free machinery steel. Ballast for counter balance, bridge construction & building Cored Wire Manufacturing Advantages : Most economical and lowest consumption Available in various sizes as per requirement More Life Span, till completely reduced to smallest tiny particle Increase the fatigue life of the blasted components No possibility for dust formation during shot blasting Cleans the products faster Cuts down the maintenance cost of shot blasting machine No dust or health hazard during operation

Material : Lead

Shape : Round

Application : Industrial

Packaging Type : HDPE Bags

Packaging Size : 25 Kg

Brand Name : V.Shot

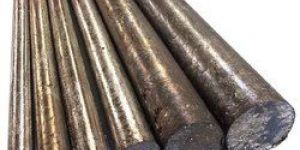

We are offering lead roll.

Material : Lead

Surface Finishing : Non Polished, Polished

Shape : Round

Application : Manufacturing

Length : 1Ft, 2Ft, 3Ft, 4ft, 5Ft

Brand Name : Vinayaka

Features: Long durability Uniform size Uniform hardness

Size : 0-15mm

Material : Carbon Steel

Application : Rust Removal

Surface Finishing : Polished

Brand Name : V.Shot

Diameter : 0-10mm, 0.60mm -2.50mm

Grade : I,II,III,High Carbon

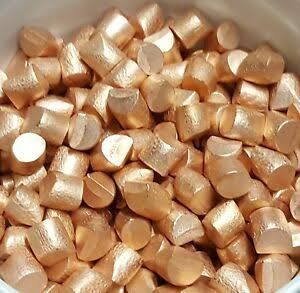

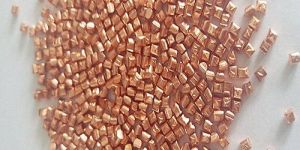

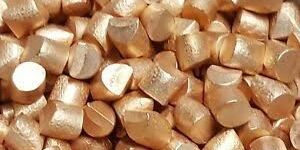

Is made through commercial or virgin grade copper wire 99.9%Application : 1Copper Cut Wire Shot used primarily to clean or peen parts and components where conductivity is important and can’t be interfered.2 Also used for paint removal on electrical components and tooling 3it is used for paint removing oxidization, eliminating surface defect, remove stress, etching, strengthen, prevention rust before painting of metal die casting, precision casting, hardware tool, machinery manufacturing, automobile spare parts, pump valve industry and jewelry making etc.

Conductor Type : Solid

Application : Industrial

Material : Copper

Shape : Round

Feature : Durable, Eco Friendly, Fine Finishing, Good Quality

Application : Decoration

Material : Copper

Application : Communication, Cryogenic refrigerator compressors

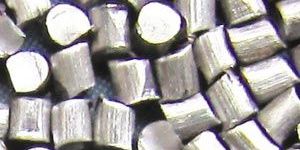

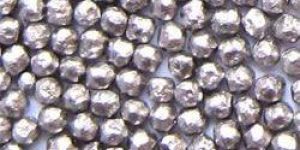

it is manufactured from high quality wire in which each particle is cut to a length about equal to its diameter. if required, the particles are conditioned (rounded) to remove the sharp corners produced during the cutting process. condition shots available in various range given below • normal : corners pre rounded (vsc1) • conditioned : almost spherical(vsc3) • semi conditioned : not spherical(vsc2)
