Aluminium Alloy Conductors Dealers in Jaipur

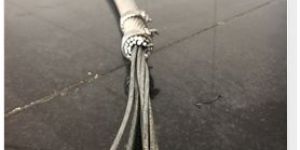

Aluminum Alloy Conductor (AAAC) manufactured out of this aluminum alloy 6201 (minimum conductivity 54%), have a better corrosion resistance and a better strength to weight ratio. On an equal diameter basis AAAC conductors possess higher electrical conductivity than ACSR conductors.These conductors are designed to get better strength to weight ratio and offer improved electrical properties, excellent sag-tension characteristics, and superior corrosion resistance when compared with ACSR. As compared to a conventional ACSR conductor, the lighter weight, comparable strength & current carrying capacity, lower electrical losses and superior corrosion resistance have given AAAC a wide acceptance in the distribution and medium & high voltage transmission lines..     Features of All Aluminum Alloy Conductors     High current carrying capacity Excellent resistance to corrosion Ideal for use in coastal area Suitable for low & medium voltage lines in urban area

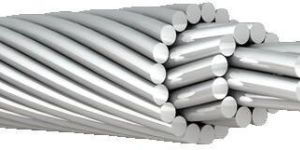

Is made up of one or more strands of hard drawn 1350 aluminum. These conductors are used in low, medium and high voltage overhead lines. The EC grade Alloy Conductor has a minimum conductivity of 61.2% IACS. AAC has seen extensive use in urban areas where spans are usually short but high conductivity us required. The excellent corrosion resistance of aluminium has made AAC a conductor of choice in coastal areas. Because of its relatively poor strength to weight ratio, AAC had limited use in transmission lines and rural distribution because of long spans utilized. FEATURES: · High current carrying capacity. ·         Suitable for low and medium voltage lines in urban area Excellent resistance to corrosion ·         Ideal for use in coastal area

• Material: Aluminium
• Application: Electrical Use
• Country of Origin: Made in India
• Shape: Round
• I Deal In: New Only
• Thickness: Silver
• Usage/Application: Earthing

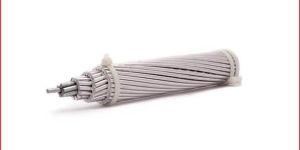

Aluminum Alloy Conductor (AAAC) manufactured out of this aluminum alloy 6201 (minimum conductivity 54%), have a better corrosion resistance and a better strength to weight ratio. On an equal diameter basis AAAC conductors possess higher electrical conductivity than ACSR conductors. These conductors are designed to get better strength to weight ratio and offer improved electrical properties, excellent sag-tension characteristics, and superior corrosion resistance when compared with ACSR. As compared to a conventional ACSR conductor, the lighter weight, comparable strength & current carrying capacity, lower electrical losses and superior corrosion resistance have given AAAC a wide acceptance in the distribution and medium & high voltage transmission lines.

We offer all aluminum alloy conductors (aaac) is made from aluminiummagnesium-silicon alloy. These alloys ensure high electrical conductivity containing sufficient magnesium silicide to provide it superior mechanical properties after conduction.

• Material: Aluminium
• Diameter: 23.25 mm
• Packaging Type: Jumbo roll
• Mass: 888 Kg
• Breaking Load: 48.74 KN

all aluminium alloy conductor, Fence Pole, indoor vcb, epc

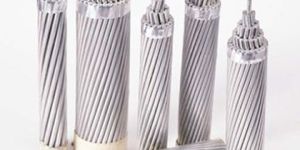

We are offering all aluminium alloy conductor aaac are made from high strength aluminium-megnesium-sillicon alloy wires. Aaac are light in weight, better tensile strength & current caring capacity, lower electrical losses and superior corrosion resistance as compared to acsr conductors. Aaac are widely accepted in distribution and transmission lines.
