Block Dressing Machine Dealers in Jaipur

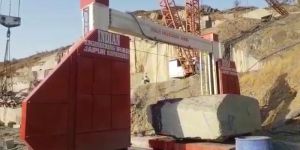

Mono Block Dressing Machine

Get Price Quote

• Main Motor: 20HP
• Feed Motor (up & down): 3HP (D.C)
• Motor for Trolley: 2 HP (D.C)
• Length of Wire: 18 mtrs.
• Speed of Wire: 24 mtrs./sec.
• Feed Motor: 1HP (D.C)
• Up & Down fast: 2 HP (D.C)
• Strokes: 163/MINUTE
• Stroke Length: 400mm
• Blade Length: 4000mm

Diamond Wire Block Dressing Machine

Get Price Quote

• Main Motor: 20HP
• Feed Motor (up & down): 3HP (D.C)
• Motor for Trolley: 2 HP (D.C)
• Length of Wire: 18 mtrs.
• Speed of Wire: 24 mtrs./sec.
• Tension Device: HYDRAULIC
• Cutting Position: VERT.& HORZ. ( four side)

This is the fixed plant for squaring the blocks of granite and other similar type of stone with diamond wire. After cutting has been started the machine can work without an operator since the down feed control is automatic and safety device will stop the machine in case of break of wire. The machine uses large flywheels thus reducing wire fatigue and allowing the wire to rotate on its own axis during cutting, this in turn prevents the diamond beads from developing an oval shape due to uneven wear. The hydraulic tensioning of wire prevent vibrations of wire thus increasing the accuracy of cutting. The rigidity of the structure together with the down feed control system and the absence of vibration allows the machine to produce surfaces of the maximum precision and planarity. There is possibility of using the diamond wire in length of 18,19 meter, thanks to the take up device on the tensioning flywheel. The machine can be operated on variable speeds as per the hardness of stone. ● Revolving trolley.● Cutting feed with A.C. Drive.● Control of flywheel motor by means of A.C. Drive; this allows for slow starting and the possibility of matching the    linear speed of the wire to the type of material being cut. TECHNICAL SPECIFICATIONS Option OptionOption   OptionOption

mono blade marble dressing machine

Get Price Quote

We have compartmentalized our facility into different units and one of them is packaging unit in which we meticulously pack our products to ensure safe and swift deliveries. Only high quality raw materials have been used for the production of our entire range. We check the raw materials against varied quality parameters before procurement.

block dressing machine

Get Price Quote

Block Dressing Machine (mono Blade)The main structure of the Machine consist of pillars, Guide frame Connecting rod, tie beam etc. are manufactured from heavy steel plates, machined & Ground to tolerance limits. Balanced from high accuracy along with precise alignment of various mating parts ensures smooth operation of the Machine. Feed rate of the machine is shown by the digital feed meter. Hydraulic tensioning device is ensures that machine starts only when the blade is preset to the tension required. The main motor is interlocked with water pump and does not start in case water is insufficient or not available at the blade. Proper safety device ensure high dependability of the machine

block dressing machine

Get Price Quote

block dressing machine, Mining Equipment, Line Polishing Machine

block dressing machines

Get Price Quote

block dressing machines, Diamond Wire Saw, Gang Saw Machine, Gantry Crane

block dressing machine

Get Price Quote

block dressing machine, Material Handling Systems, Industrial Cranes

block dressing machine

Get Price Quote

block dressing machine, Gantry Crane, machine spares, Hand Polishing Machine

marble block dressing machine

Get Price Quote

marble block dressing machine, Hydraulic Press, rim plate

Mechanical Block Dressing Machine

Get Price Quote

Mechanical Block Dressing Machine, Diamond Wire Saw

block dressing machine

Get Price Quote

block dressing machine

block dressing machine

Get Price Quote

block dressing machine

block dressing machine

Get Price Quote

block dressing machine, Edge Cutting Machine, radial polishing machine

Mono Blade Block Dressing Machine

Get Price Quote

Mono Blade Block Dressing Machine, Wire Saw Machine

block dressing machine

Get Price Quote

block dressing machine, derrick cranes, Slewing Cranes, Edge Cutting Machine

block dressing machine

Get Price Quote

block dressing machine, diamond gang saw machine
