Core Assemblies Dealers in Jaipur

• Feature: Longer Life, Optimum Quality
• Material: CRGO
• Thickness: 0.23 - 0.30 mm
• Technique: Cold Rolled
• Surface Finish: Coated
• Core Structure: Toroidal

Based in Jaipur (Rajasthan), Farraday Lamination is a name to reckon as a CRGO core Assembly Supplier across the nation. Our company has gained a lot of honor and respect for our high-quality Crgo cut core assembly for its performance and durability. The core structure of our Crgo cut core assembly is Toroidal and comes in a thickness of about 0.23 - 0.30 mm. We are also providing the products in massive quantity as well as in retail quantities to our customers. With our vast distribution channel, we guarantee timely and safe delivery of our consignment right at our client's doorstep at an affordable price.

• Application: Transformers
• Weight: 1000-2000Gm
• Power: 0-2500kVA
• Feature: Fine Design, Optimum Quality
• Phase: Double Phase
• Packaging Details: Wooden Case Export Packing

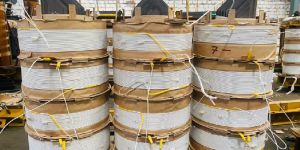

Being a well-established organization, we are engaged in offering a distinguished range of Core Coll Assembly.   Details : • The “active” part of the transformer consists of the magnetic core with winding and accessories. The windings are placed over the core limbs and necessary connections and made as per the trappings and vector group. • Sufficient ducts are provided between the coils to ensure heat dissipation through circulation of oil. Best quality insulation is provided at all joints and gaps. • The optimum design of core-coil assembly is achieved by considering the required technical particulars including cooling, size compactness and tapping arrangement. • All leads and conductors are rigidly supported by a special clamping arrangement

• Material: CRGO, Cold Rolled Grain Oriented Steel,Cold Rolled Non Grain Oriented Steel,Amorphous,Cold Rolled Grain Oriented Steel,Amorphous
• Condition: New
• Power: 0-2500kVA, 2500-5000kVA
• Application: Transformers
• Length: 0-100cm, 100-200cm
• Feature: Fine Design, Longer Life, Optimum Quality, Precise
• Type: Core Assemblies, core Coil Winding,core Coil Winding
• Thickness: 0-5mm, 5-10mm
• Weight: 0-1000Gm, 1000-2000Gm, 2000-4000Gm
• Phase: Double Phase, Single Phase, Three Phase
• Country of Origin: India,India
• Brand: Mangal Electrical Industries Pvt. Ltd.
• Warranty: 5 Years
• Brand: Mangal Electrical Industries Pvt. Ltd.

• Country of Origin: India
• Type: Core Assemblies
• Application: Transformers
• Feature: Longer Life, Optimum Quality

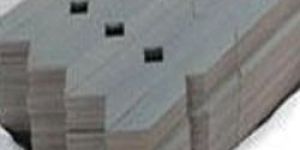

Our expertise lies in designing and fabricating Transformer Lamination Core Assemblies. We use industry grade metal sheet to manufacture the Transformer Lamination Core Assembliess. The Transformer Lamination Core Assemblies Configuration is checked by experts for density, no-load loss reduction, etc. We can make available Transformer Lamination Core Assembliess in specific configuration to meet varied requirements of industries. Get in touch with us for placing orders. We are well known as Transformer Lamination Core Assemblies Manufacturer and Supplier.

The "active" part of the Transformer consists of the magnetic core with windings and accessories. The laminations are stacked in steps, resulting in a circular core shape which gives the windings optimum radial support, especially during short-circuit conditions. The core is clamped using structural steel clamps which provide high strength under both static (lifting and clamping) and dynamic (short-circuit) mechanical loads. The clamps are very lightweight for their strength and provide a smooth surface facing the winding ends, eliminating regions of high local electrical stress. Optimum dielectric strength is achieved via processing in accordance with rigorous in-house quality procedures.

• Material: MS
• Country of Origin: Made in India
• Weight: 10 Kg
• Packaging Type: Bubble wrap with cardboard box
• Usage/Application: Heavy Commercial
• Brand Name: Holset
