Dry Type Transformers Dealers in Jaipur

• Type: DRY
• Brand Name: CHOUDHARY TRANSFORMERS UDYOG
• Color: WHITE
• Packaging Type: STEEL BODY

We are an eminent Manufacturer, Supplier and Exporter of Dry Type Transformers. The Transformers offered by us are easy to use and maintain. We manufacture the Transformers using the latest technology. Courtesy our brilliant logistics network.

• Country of Origin: India
• Type: Power Transformers
• Frequency: 50/60 Hz
• Voltage Class: 3.3, 6.6, 11, 22, 33 KV or any Specific.
• No of Phases: 3 Phase
• Vector Group: Dyn 1 or Dyn 5 or Dyn 11 or any specific.
• Insulation: Insulating Fiber glass epoxy and epoxy resin.

Industrial, Substation & Distribution purpose manufacturing range upto 2MVA. 11KV, 22KV naturally air cooled. A dry type transformer has an iron core, vacuum pressure resin impregnated high voltage windings and low voltage windings. The Low voltage winding is constructed with conductors. Depend nomex insulating material includes and apparatus to secure the windings in place during a vaccum and pressure resin impregnation process. The result is a coil that exhibits high short circuit protection due to the tightly bond conductors comparable to completely resin encased molded transformers at a substantially reduced cost. Transformers at a substantially reduced cost.   Application Areas Of Dry Type Transformers These Transformers are suitable where safety, reliability and low noise level are of the prime concern like: Airports  Electronics Industries  High Rise Buildings  Metro Railways  Nuclear Stations  Power Plants  Steel Plants  Stadiums  Textile Plants Chemical Plants  Hospitals Hotels  Material Handling  Oil Plants  Ports Ships Software Parks Schools Theaters & Multiplexes etc.   Advantages Of Dry Type Transformers These Transformers are safe, eco-friendly, fire-resistant, explosion proof, easy to install and easy to maintain beside being better in appearance. Moisture ingress resistant & immune to polluted atmosphere. Resistance to temperature fluctuations. Good impulse withstand strength. High dynamic short circuit & mechanical strength. Less space and civil work needed. Special safety features are not required. Longer transformer life due to low thermal and dielectric ageing   Standard Fittings Rating & Diagram Plate Lifting Lugs Earthing Terminals LV & HV Side Cable Box   Details : Off circuit tap changer to provide ±5% in 5 Step, ±7.5% in & Step taps in step of 2.5% and customer requirement. Winding Material Aluminum or Copper with multi paper covering (MFGC). Painting Epoxy, Polyurethane or customer specific.

• Capacity: 63 KVA to 5 MVA
• Phase: Three Phase
• Cooling Type: Dry Type/Air Cooled
• Primary Voltage: Up to 33 KV
• Primary Connection Type: Delta
• Secondary Connection Type: Star or Wye

Dry Type Transformers require minimum maintenance to provide many years of reliable trouble free service. Unlike liquid fill transformers which are cooled with oil or fire resistant liquid dielectric, Dry Type Transformer utilize only environmentally safe, CSA and UL recognized high temperature insulation systems. Dry Type Transformer provides a safe and reliable power source which does not require fire proof vaults, catch basins or the venting of toxic gasses. These important safety factors allow the installation of dry type transformers inside buildings close to the load, which improves overall system regulation and reduces costly secondary line losses. Our Dry Type Transformers are a rather mature product and technology but, of all the components in a power system, a transformer replacement can be a physically challenging event, extended delivery of a replacement or repair unit and expensive transportation costs. These are transformers whose core and coils are not immersed in insulating oil. Fire-resistant dry type or "cast resin" transformers are well suited for installation in high-rise buildings, hospitals, underground tunnels, school, steel factories, chemical plants and places where fire safety is a great concern. Hazard free to the environment, dry type transformers have over the years proven to be highly reliable. �Dry type� simply means it is cooled by normal air ventilation. The dry type transformer does not require a liquid such as oil or silicone or any other liquid to cool the electrical core and coils. Dry type transformers are voltage changing (Step-up or Step-down) or isolation device that is air cooled rather than liquid cooled. The transformer case is ventilated to allow air to flow and cool the coil (coils).

We offer dry type transformer.danish manufactures oil filled distribution transformers in wound or stack core using crgo steel or amorphous metal.

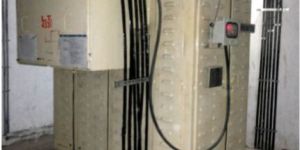

With proven design and performing well in western countries, dry type Transformers are now widely used in Indian market as well. vardhman make vacuum pressure impregnated dry type Transformers are engineered with precision to perform well and efficiently. Salient Feature : Maintenance Free. No Fire hazard therefore suitable to use in indoor applications. Self-extinguishing and hence very safe. High resistance to temperature fluctuations. High impulse and short circuit strength. Environmental friendly. Low partial Discharge. Cable drop can be reduced as can be placed near to load center. Capable of withstanding vibration condition hence high performance in earth quack prone areas.

We offer Dry Transformer use in electrical use.

RUNTHALA Dry Type Transformer are fitted in enclosure for Indoor installations and are totally maintenance free and safe from fire as the material used is metal, ceramic, NOMEX and resin. It is environment friendly as there is no oil, hence handling becomes easier and there are no chance of spillages and leakage and there is minimal nontoxic smoke in case of fire.
