House Wires Dealers in Jaipur

Superior raw materials are essential for the development of a quality product. Thus, we obtain these materials only from the dependable sources available in the market. We are one of the respected names engaged in the process of supplying quality PVC House Cables at nominal rates. PVC House Cables High Conductivity annealed stranded or solid copper conductors to SANS 1411 Details : Part 1. Insulated with general purpose grade PVC in plain colours to SANS 1411 Part 2. Installation Information For the wiring of  -  Industrial Control Panels Light Fittings Housing Appliance Communication Panels Properties Specification : SANS1507-2 Temperature Range  -  100C to 700C Voltage Rating  -  600 / 1000 V Core Identification  -  Blue, Black, Brown, Yellow/Green, Orange, Pink, Violet, Grey, White Red Packaging  -  100m Shrink-wrapped coils up to 70mm2

• Country of Origin: India
• Type: Pvc Insulated Wires
• Color: Available In Different Colors
• Application: Electric Conductor, Heating, Lighting
• Conductor Material: Copper
• Insulation: PVC

• Size: 0.75 sqmm, 1 sqmm, 1.5 sqmm, 2.5 sqmm, 4 sqmm, 6 sqmm

These wires and cables are used in the electrification of houses and other buildings, since these are to be put in pipes and then buried in the walls of the buildings so they need to be of highest quality as they cannot be replaced time and again. These are manufactured using special grade fire resistant PVC which would prevent the wire from catching fire in time of a short circuit, etc. Our team of experts take care of this fact and hence manufacture wires and cables having long lasting properties. Theses are then subjected to intense stress tests to reaffirm their quality Insulation: The bunched conductors are insulated with specially formulated FR PVC compound with a high insulation resistance value. The insulation process is carried out on modern high speed extrusion lines, which ensures high accuracy and consistency in performance. Flame retardant properties enable the cable to withstand overloads. The insulation is resistant to boiling water, steam and vapours. This prevents ageing and cracking in kitchens, bathrooms, damp walls and chemical industries.

• Brand Name: Milan Power

Milan Power Brand insulated copper conductor multistrand wire confirm to IS:694-1990   Nominal Area (in sq mm) - 0.75, 1.0, 1.5, 2.5, 4.0, 6.0, 10.0, 16.0, 25.0   Available in 5 colors - Red, Blue, Green, Black, White

• Voltage Rating: 300/500V
• Temperature Range: -30°C to + 70°C

These cables are used in high rise buildings, commercial complexes, schools and educational institutions, hospitals, etc. for the connection with security systems like smoke detectors, emergency lightings, exit signboards and fire command center. These cables are used where the fire safety is utmost important.

Our company has made its mark as the distinguished Manufacturer, Exporter and Supplier of PVC Insulated Unsheathed Single Core Cables from Rajasthan, India. Our professionals fabricate the PVC Single Core Cables in adherence to international quality norms. We package the Domestic Wire Cables in high-grade materials in order to ensure customers obtain a defect-free order. We are offering P.V.C Insulated Unsheathed Single Core 1100V at nominal rates Details : Packing - 90 Mtrs. Conductor - Plain Annealed High Conductive Copper Conductor Conforming to is : 8130 Insulation - Pvc Type a of Is: 5831 (general Purpose) Specification - Is: 694/1990

• Country of Origin: Made in India
• Voltage: 1100V
• Current Rating: 7A
• Roll Length: 90 m
• Color: Blue
• Suitable For: Homes, Buildings
• Number Of Cores: Single Core

We are offering single core flexible home wire. house fitting wires & cables rex pvc single core flexible cables make a big difference wherever they are installed. They don�t merely deliver power, they do so with maximum efficiency and security, with stronger materials, surer conductors and safer insulation, rex cables have minimised loss while imparting electricity transfer and transient. Making it possible is the company�s management of manpower, machines and materials, since its inception and modern methods of manufacturing and marketing have welded technology and teamwork with quality control and professionalism to produce the better cable. Right from raw materials, built-in quality control systems check every stage of production. Indian and international standards are met even before the cables emerge from advanced facilities. The finished products are then measured by the most critical test of all the highly competitive market place. Success in that super changed environment is the ultimate proof of the quality of rex cables. single core flexble home wires rex flexible wires are made of bright, plain multi-standard annealed copper conductor, as per class 5 of is: 8130-1984 with pvc insulation. These wires are used for all industrial wiring applications and we are available in single and multicores in standard lengths of 90 meter and 270 meter coils. single unsheathed cable (flexible) voltage grade 1100v conforming to is: 694- 1990

• Wire Size: 1.5 sqmm
• Color: Blue
• Insulation Material: FR
• Country of Origin: Made in India
• Roll Length: 90 m
• Conductor: Copper
• Voltage: 1100V
• Number Of Cores: Single Core
• Certifications: IS 694, RoHS Compliant
• Suitable for: Buildings, Homes

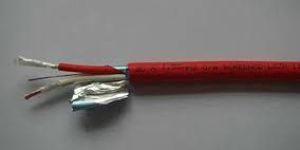

Cables TP FIRECEL are designed to work also during the fire. The emission of smoke in this situation is free from corrosive gas and they have low density to guarantee people safety and protection for equipments. Applications Hotels Theatres and cinemas Museums Hospitals Shopping centres Skyscrapers Offices Schools Airports Undergrounds and tunnels Railways stations Computer centres Alarm systems Traffic control systems Fire fighting systems Standards Cables are designed, manufactured and tested acordin to the following standards: BS IEC And others if required. Laboratory for fire test Cavicel has an equipped laboratory to carry out all fire tests. They can be as follows: Fire resistance Fire and water resistance Fire and mechanical shocks resistance Smoke density Gas evolved during combustion Fire and flame propagation Oxygen index Applicable Standards Fire resistant : EN50200 (class PH120)BS8434-2 (120 min) Flame retardant : EN 60332-1-2 Acid gas emission : EN 50267-2-1 Smoke density : EN 61034-2 Opertaing temperature I-40°C to +90°C. Minimum bending radius 6 times the outer diameter. Conductors Plain annealed copper wire, solid class 1 or standard class 2 according to EN60228.   Insulation Mica/Glass fire resistant tape covered by high performance fire resistant silicone rubber type EI2 to BS 50363-1. Cabling Insulated cores are cabled together. Overall screen Aluminium/polyester tape. Circuit Protective conductor Uninsulated tinned copper conductor of the same section and class as the insulated conductors in the 2-, 3- and 4-core cablesDrain wire of 0.5 mm2 tinned copper conductor is provided in cables with more than 4 conductors. Outer sheath LSZH thermoplastic material type LTS3 to BS7655-6.1.Colour red or white (other colours on request).

• Wire Size: 1.5 sqmm
• Color: Green
• Insulation Material: FR
• Number Of Cores: Single Core
• Features: Less power consumption, High Accuracy, Longer working life, High Stability , Reliable and Powerful ,Economical
• Roll Length: 90 m
• Conductor: Copper
• Current Rating: 5A
• Voltage: 220V
• Certifications: IS 694, RoHS Compliant
• Suitable for: Homes

• Brand Name: Hi Tech Cable
• Condition: New
• Flame Retardant: Yes
• Is It Armoured: Armoured
• Color: Green

• Material: Copper
• Application: Overhead, Lighting, Industrial

House Wiring, RO Maintenance

Our wires have special polymers which emits very low density & non suffocating smoke. So be safe and use safe-x. Features non suffocating low density safe smoke flame resistant moisture resistant ozone resistant radiation and heat resistant high thermal stability resistant to chemicals, oils & soil.

single core aluminum cable, cooper wire, Multi Strand Wire

Rex Group of Industries - We take the liberty of introducing ourselves as one of the leading manufacturers and supplier of house wire in India.

Pvc Insulated Power Cables, Lt Control Cables, Copper Flexible Wires

Housing Wire, auxiliary cable, Ribbon Cables, Shielded Cables

House Wire, Cctv Cables, Energy Cables, quad communication cables

zhfr wires, elastomer cable, fan grill, Cross Flow Fan, Dc Energy Meter

House Wire, Cables

2.5 Sq. mm. Single Core Aluminium Cable, 6 Sq. mm. Twin Flat Aluminium Cable
