Strain Gauges
190 Per Piece
10 Piece(s) (MOQ)
Strain gauge: modified phenolic backing, constantan and evan, karma foil gages, fully encapsulated, simultaneous compensation of self-temp. And self-creep, high accuracy, good stability and easy to use, good for grade 0.02 transducers. Temp.range:-30 to +80 deg c strain limit:2.5% fatigue life:10000000 times available adhesive:sg-bond type: aa: single gages; ha: 45âºgages; gb: half-bridge gages; fg: full-bridge gages; ka: wafer gages nominal resistance(î©): 120,175,350,500,700,1000,1500 material code: alloy steel:11; aluminum:23; stainless steel:16,concreat creep from minus to positive
...more

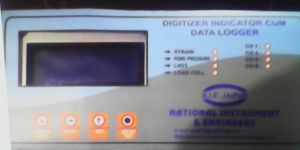

Strain Gaugecivil Construction
We offer strain gaugecivil construction. Strain gauge details: modified phenolic backing, constantan and evan, karma foil gauges, fully encapsulated, simultaneous compensation of self-temp. And self-creep, high accuracy, good stability and easy to use, good for grade 0.02 transducers. Temp. Range:-30 to +80 deg c strain limit : 2.5% fatigue life : 10000000 times available adhesive : h type: aa : single gauges ; 45ºgauges; half-bridge gauges; full-bridge gauges; wafer gauges nominal resistance (ω) : 120,175,350,500,700,1000,1500 ω material code : alloy steel ; aluminum ; stainless steel creep from minus to positive strain gauges are designed to electrically detect "strain", minute mechanical changes occurring in response to applied force. they are used not only for machinery and moving objects but also in various fields including electrical equipment, civil engineering, building construction, chemicals and medicine. strain gauges enable detection of imperceptible elongations or shrinkages occurring in structures. measurement of such elongations or shrinkages reveals the stress applied to the structure. Stress is an important factor to confirm the strength and safety of structures.
...more
STRAIN GAUGE CONCRETE
90 Per Piece
10 Piece(s) (MOQ)
Foil type resistance strain gauge ,concrete strain gauge model: sg-350120-c base materials: phenolic sensitive gate material: high-quality constantan specification: 4cm silver plated copper wire suitable temperature: -40c~80c the sensitivity coefficient and dispersion: 2.1+-2% the room temperature strain limit: more than 20000umm the fatigue life of >10000000 the length of 4cm has good welding wire.
...more
Strain Gauge
Strain gauges used to apply electrical measurement techniques to the measurement of mechanical quantities. As their name indicates, they are used for the measurement of strain. As a technical term, “strain” is comprised of tensile and compressive strain, distinguished by a positive or negative sign. Thus, strain gauges can be used to detect expansion as well as contraction. The strain of a body is always caused by an external influence or an internal effect. Strain can be caused by forces, pressures, moments, heat, structural changes of the material and the like. If certain conditions are fulfilled, the amount or the value of the influencing quantity can be derived from the measured strain value. In experimental stress analysis, this feature is widely exploited. Experimental stress analysis uses the strain values measured on the surface of a specimen or structural part to determine the stress in the material and also to predict its safety and endurance. Special transducers can be designed for the measurement of forces or other derived quantities, e.g., moments, pressures, accelerations, displacements, vibrations and others. The transducer generally contains a pressure-sensitive diaphragm with strain gauges bonded to it. Prime strain gauge selection considerations • gauge length • number of gauges in gauge pattern • arrangement of gauges in gauge pattern • grid resistance • strain-sensitive alloy • carrier material • gauge width
...more
Strain Gauge
190 Per Piece
10 Piece(s) (MOQ)
Cff series fully encapsulated constantan foil strain gauges with modified phenolic backing. Offers both self-temperature (or elastic modulus) and creep compensation simultaneously. Has high accuracy and excellent stability but only at room temperature. Especially suitable for accuracy class 3 transducers. Easy to use and available in a resistance range of 60 up to 1000ω. Linear single grid pattern with both tabs on one side(bottom or top) of the grid for standard applications constantan measuring grid material modified phenolic backing material working temperature -30 ~ +80 celsius rated resistance: 350 ohm g-factor 2.00~2.20 cycles: > 1 million
Type : Strain Gauge
...more
LVDT transducers
01 Piece(s) (MOQ)
Full stroke range: 1 to 1000 mm linearity up to 0.2% ac lvdts in 4 or 6 wire termination dc lvdts with voltage or 4-20 ma output 24 v dc operated models general purpose, slim-line, precision gageheads, large bore lvdts ss housing -- 9.5, 12.7, 16, 22 & 32 mm diameter custom designed ac & dc lvdts lvdt instrumentation: +-15 v, 24 vdc or mains operated voltage or current, 4-20 ma output single and multiple channel digital indicators usb linked pc interfaces tubular housed cable mounted signal conditioners product code: lst minimum order quantity: 1 piece port of dispatch: jaipur production capacity: 1000 pcs per month delivery time: 1 to 2 weeks packaging details: lvdt with attached cable or cable with connector, accessories as ordered, calibration certificate, user manual, packed in carton.
...more

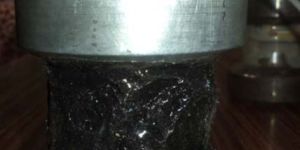

Load Cell Sensors
01 Piece(s) (MOQ)
Avail from us an affordable range of Load Cell Sensors. Our Load Cell Sensors are specially designed to suit different industrial applications. Our Load Cell Sensors are highly appreciated for their flawless design and accuracy and are used in several industrial applications. The range of our Load Cell Sensors includes different models like S type, compression type, tensile type, impact type, crane type, torque, dynamometer, pressure transducer based, mounting kits, etc. Features : Accurate Reliable Reasonably priced
...more
Draw Wire Transducers
We are offering a wide range of Draw Wire Transducers in the market. Our Draw Wire Transducers are majorly used in the shock absorber performance testers, crimp force measurement and spring performance tester. The Draw Wire Transducers are designed for measuring torque transmitted from the pneumatic tools and power tools. Our Draw Wire Transducers are designed to suit the global markets and are widely demanded in the markets. Features : Flawless design Wide usage Easy to use
...more
data scanner

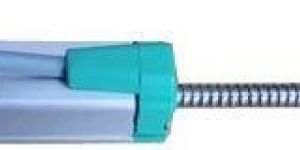

Aluminium Linear Scale
2,500 Per Piece
Material : Aluminium
Brand Name : NIE
Strain INDICATER /Data Logger
We are a reliable company engaged in the manufacturing, exporting and supplying of Strain Gauge Data Logger. The range of Strain Gauge Data Logger is carefully tested by our quality controllers against diverse parameters in order to deliver a defect-free product. Our Strain Gauge Data Logger can be availed at very attractive prices. Features : 16 differential input analog channels with fixed gain and filters 2 bridge signal conditioning channels with programmable gain and filters accommodate1, 2 or 4 active bridge arms 2 additional frequency measurement channels 10baset ethernet connectivity to your pc or laptop for setup, data display and processing Wireless ethernet available 16-bit analog-to-digital converter resolution Aggregate sampling rate of up to 32k samples second Simple user interface allows quick setup for data collection and storage Local data storage via compact flash™ module Auto-configuration on power-up for stand-alone applications External trigger input provided Minimum 8 channel to100 channel available.
...more
Data Logger
We offer accurate Wireless Data Logger Systems in the market. Our Wireless Data Logger Systems can be efficiently used to measure and record temperature, humidity and other parameters. Our Wireless Data Logger Systems are made in compliance with the industrial standards. We offer different models and specification in Wireless Data Logger Systems suiting the demands of different customers. Features : Easy to use Wide variety Precise
...more
Thermocouple Data Loggers
We are offering an extensive range of Thermocouple Data Loggers. Our Thermocouple Data Loggers are known for their reliability and efficient performance. The Thermocouple Data Loggers are offered to our customers at the very attractive prices. Our Thermocouple Data Loggers are used for recording the temperatures accurately and precisely. Features : -200 to +1300o C Measurement Range (K-type) -130 to +900o C Measurement Range (J-type) -200 to +350o C Measurement Range (T-type) USB Interface for Set-up and Data Download 2 User-Programmable Alarm Thresholds Bright Red and Green LED Indication Replaceable Internal Lithium Battery Supplied with basic K-type thermocouple rated from 0 to 110o C (32 to 230o F)
...more
Pressure Data Logger
We are a prominent Manufacturer, Exporter and Supplier of Pressure Data Logger. Our Pressure Data Logger is developed using the latest technology by our team of highly skilled professionals. We offer our Pressure Data Logger in various models and specifications as per the requirements of the customers. Moreover, our products are highly demanded in market due to their reliability and high performance.Features : Reliable performance Fine quality Long life
...more
Thermocouple
Load Cell
data scaner
industrial instrument
lab trainer kit
Electronic Items
toe load measuring devices
indicator
load cell sensor
measurement instrument

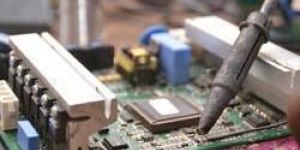

STRAIN GAGUGE INSTOLATION
We have made a mark in the industry for offering reasonable and timely Repairing Services to our customers. We offer the Repairing Services the instrument & engineering products that we supply. We have a team of highly skilled and trained professionals to perform the Repairing Services. Besides, we provide our Repairing Services as per the specification of the products ensuring a long lasting performance.Features Efficient Reliable Cost effective
...more
Electronic Toe Load Measuring Device
01 Piece(s) (MOQ)
we are offering efficient electronic toe load measuring device to our customers at the affordable price range. Our electronic toe load measuring device operate on electricity and considered very much useful in the maintenance and repair of the railway tracks. The electronic toe load measuring device are used to determine the amount of load a railway track can receive while a heavy train passes over it. features : accurate tested reasonable price
Type : Load Measuring Device
Certification : CE, ISO 9001:2008 Certified
...more
Strain Gauges
We are providing STRAIN GAUGES used to apply electrical measurement techniques to the measurement of mechanical quantities. As their name indicates, they are used for the measurement of strain. As a technical term, “strain” is comprised of tensile and compressive strain, distinguished by a positive or negative sign. Thus, strain gages can be used to detect expansion as well as contraction.The strain of a body is always caused by an external influence or an internal effect. Strain can be caused by forces, pressures, moments, heat, structural changes of the material and the like. If certain conditions are fulfilled, the amount or the value of the influencing quantity can be derived from the measured strain value. In experimental stress analysis, this feature is widely exploited. Experimental stress analysis uses the strain values measured on the surface of a specimen or structural part to determine the stress in the material and also to predict its safety and endurance. Special transducers can be designed for the measurement of forces or other derived quantities, e.g., moments, pressures, accelerations, displacements, vibrations and others. The transducer generally contains a pressure-sensitive diaphragm with strain gages bonded to it. PRIME STRAIN GAUGE SELECTION CONSIDERATIONS • GAUGE Length • Number of Gauges in Gauge Pattern • Arrangement of Gauges in Gauge Pattern • Grid Resistance • Strain-Sensitive Alloy • Carrier Material • Gauge Width
...more
copper heating element repairing services
draw wire transducers repairing services
electronic toe load measuring device repairing services
engineering products repairing services
load cell sensors repairing services
pressure data logger repairing services
Repairing Services
strain gauge data logger repairing services
strain gauges repairing services
thermocouple data loggers repairing services
wireless data logger repairing services
survey instruments Repairing services
repair service and calibration
