Pap-Tech Engineers & Associates Sanganer, Jaipur, Rajasthan

Description   This instrument is designed for determining the penetration time of oil and other liquids through paper and other similar materials by the Surface Resistance Time (SORT) taken for 75% of the surface covered by oil through Photo Electric Digital Timer. Cooling system is provided along with constant temperature regulator. Used for Writing / Printing and Absorbent Kraft Paper.   Technical Specification: The instrument chamber has an orifice for holding the liquid medium and a clamping device for holding the material. Penetration time after oil comes in contact with paper is noted by stop watch or electronic timer. Suitable range thermometer also provided.   Standards: As per TAPPI, SCAN & ISO.

Description: The water and soil analysis kits which are used to accurately analyze the given water & soil samples. We have different variants of this product. These instruments areThe water and soil analysis kits which are used to accurately analyze the given water & soil samples. We have different variants of this product. These instruments are successfully serving the specific soil and water analysis requirements of the clients, and offer a cost effective solution to their needs. successfully serving the specific soil and water analysis requirements of the clients, and offer a cost effective solution to their needs. Features : Temperature Sensor: Semi Conductor Type TDS Range: 0-20 ppt TDS Accuracy: ±0.5 % FS ± 1 Digit DO Range: 0-20 ppm DO Resolution: 0.1 ppt DO Accuracy: 0.5 ppm ± 1 Digits DO Sensor: Gold / Silver Aerometric Turbidity Range: 0-1000 NTU Turbidity Resolution: 1 NTU Turbidity Accuracy: ±3 % ± 1 Digits Sample System: 30 mm Clear Glass Salinity Range: 0-50 ppt

Display Type : Digital

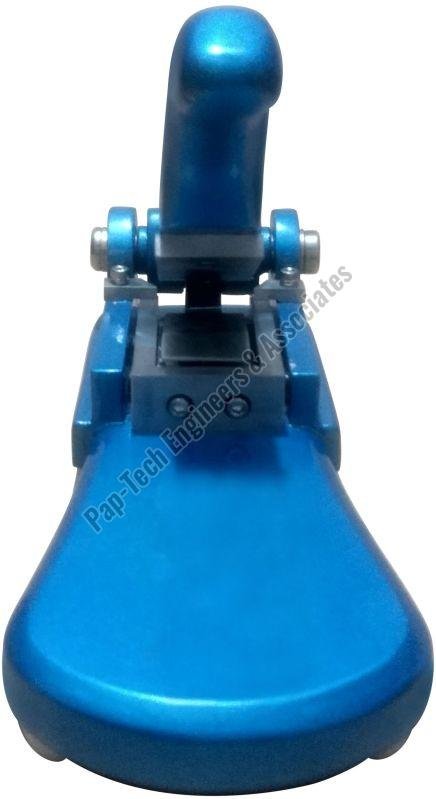

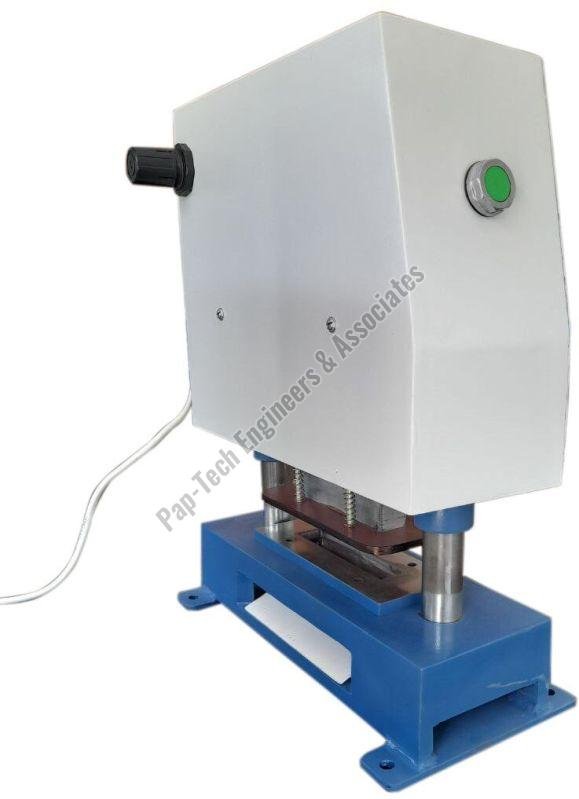

Description:   The first step towards the testing of any physical property of material is preparing its test sample. The accuracy and precision in the test result also depends on the efficiency in the preparation of the test samples. For that, we require the different cutters to facilitate the testing and prepare the quick and sharp samples. Sometimes problems with these cutters are also associated. Such as, it doesn’t work properly after the preparation of some samples only or the blade of cutter loses its sharpness. But Pap-Tech Engineers’ Precision Triple Sheer Cutter without any inadequacy or glitch gives you the test sample with perfect dimensions.   As per TAPPIT:   535, Scan P-38

Country of Origin : India

Color : Blue

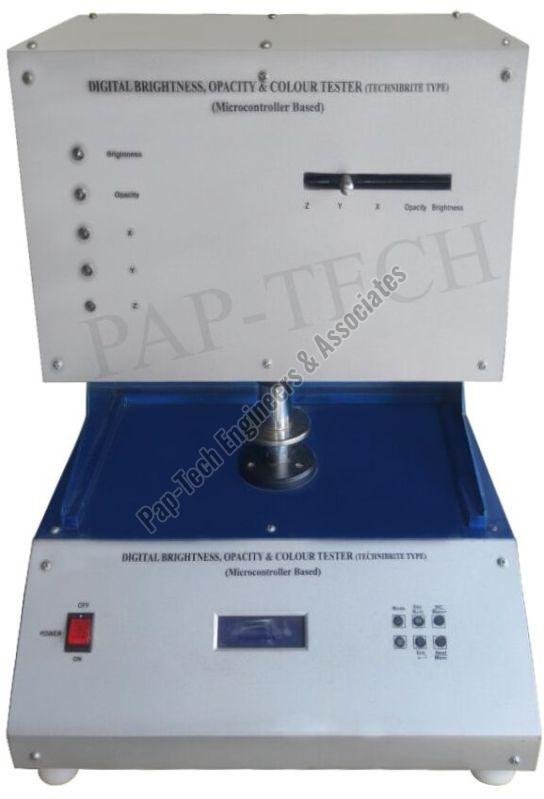

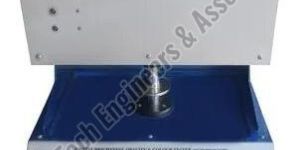

Description Reflectance Meter instrument measures brightness, opacity and colour by diffused reflectance according to relevant ISO standards. It gives an instantaneous digital readout, which shows the colour value (XYZ) of pulp, paper, and paperboard, coating agents, filler and other similar materials.   Additional - Specification: Specimen Area Measured : 30 mm dia Light Source : Quartz Tungsten Halogen Lamps Flashes per measurement : 4.0 Lamp Life (No. of measurements) : 5,00,000 Illuminator : C Type Colour Scales : X, Y, Z; R(X), R(Y), R (Z), ; LUM. x, y, z Whiteness : ASTM / CIE Yellowness : ASTM APPLICATION STANDARDS TAPPI, ASTM, ISI, ISO

Power : 200 Wt, 220 V 50 C/s

Description: Digital Bursting Strength Tester determines the Bursting Strength for the Quality Control and Research & Development of paper, board and corrugated board. A test piece is clamped between two concentric plates each having circular opening in the center. Pressure is applied to the under side of a test piece by a rubber diaphragm, which is expanded by hydraulic pressure.   It has heavy cast-iron block & aluminum body, strain gauge pressure transducer, microprocessor system for sample, built-in hydraulic system for the diaphragm, quick connector for calibration, built-in electronics and exclusive. You can also store 250 readings in your memory card   Process You can check Bursting Factor of the Paper/Board without any manual calculation. Feed GSM of the test paper and you will get bursting strength and burst factor of the test paper/board in Decimal by Microprocessor System.   Technical - Specification: Measuring results : Individual Bursting Strength values in Kpa or Kg/cm². Clamping force : 2700 N or extra clamping force adjustable by means of precise pressure regulator. A solenoid valve actuates the raising and lowering of the upper clamp. Accuracy : 0.1 of readout values. The effect of the diaphragm must however be taken into considerations.

Power Supply : 1-phase 220 V+-10% AC, 50 Hz

Description It is used for drying the lab pulp hand sheets of paper samples . The process helps to prevent wrinkling and shrinkage in the dried samples.It also permits convenient and rapid insertion of the sheets.   The Sheet Drying Cylinder is intended for Drying Laboratory Sheets. The Drying Cylinder Permits convenient and rapid insertion of these sheets since the cloth is mounted in practical reeling device.

Material : Stainless Steel

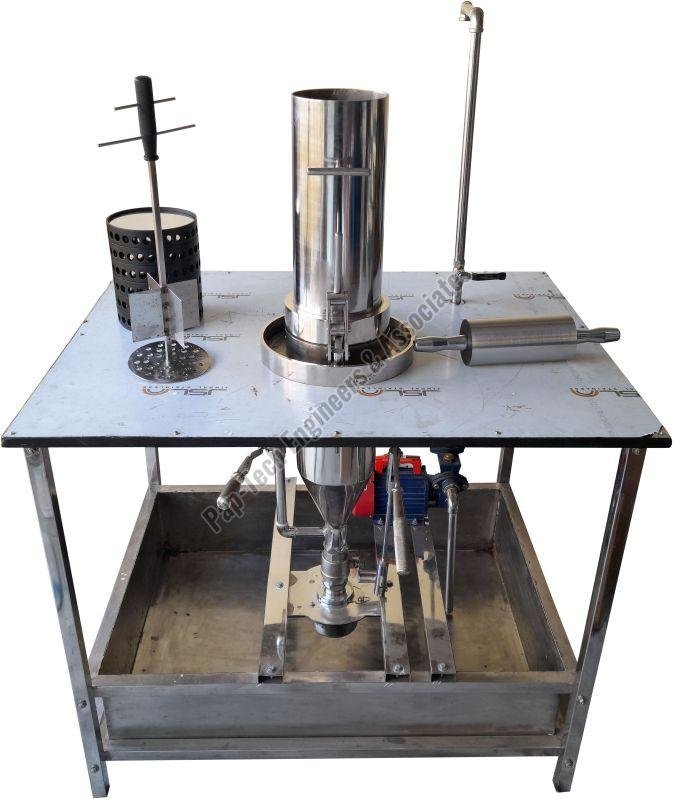

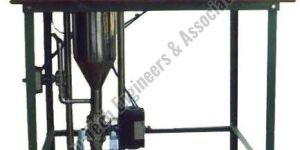

Description Offered sheet former is developed employing quality-proven material and high-end technology in conformation with current market standards. Our sheet former is high on demand in various industries due to its accuracy & superior quality. Customers can avail the offered sheet former from us in various specifications in a given time frame. It is used for production of laboratory pulp sheets rapidly for physical tests. It reduces the time factor comparitively, increases the output, reduces the operator's influence and improves the reproducibility. In this instrument couching is effected by means of pneumatic fixture through compressed air and stirring in the apparatus.Semi-Automatic Sheet Former is used for production of pulp sheet rapidly for physical strength tests. It increases the output, reduces the time factor comparatively, reduces the operator’s influence and improves the reproducibility. Stirring in the apparatus is an automatic function by use of, whilst In this instrument couching is effected by means of pneumatic fixture through compressed air and stirring in the apparatus. Features: Easy to use Low maintenance Reliability

Sheet Size : 160 / 165 / 200 Mm Diameter

Model No : PAP-3053-B

Wire Screen support : 20 Mesh

Trimmed Size : 200 Cm Square

Suction Height : 800 Mm

Wire Screen upper : 150 Mesh (TAPPI Std.)

Brand Name : Pap-Tech

Power Supply : 250 V, 50Hz AC

Features : Easy to use, Low maintenance, Reliability

Description: We specialized in offering a premium quality range of Scuff Tester. Offered Scuff Tester is developed employing quality-proven material and high-end technology in conformation with current market standards. Our scuff tester is used to measure or evaluate color transfer from printed / coated surface during rubbing. Customers can avail the offered scuff tester from us in various specifications in a given time frame. Scuff tester is used to evaluate the Rub Proofness of Prints on Paper or Board.It can also be used to evaluate colour transfer from printed/coated surfaces during rubbing. Standard: As per BS 3110. Features: User friendly control Very low noise level Low maintenance

Automatic Grade : Semi-Automatic

Brand : Pap-Tech

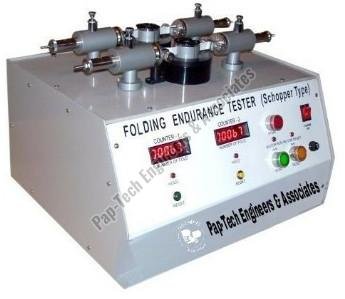

Description: In schopper type tester loading clamps of spring type gives standard load of 1000gm during the test provided along with FIVE FIGUR COUNTER having hold and zero setting.    Standards:   As per TAPPIT-833,ISO-5626 Additional - Specification: Working Unit : Two separately working folding units for quicker test. Stretching force : Maximum 9.81 N and Minimum 7.55 N Folding Roll Diameter : 6 mm Distance Between folding rolls : 0.5 mm Deflection on either side : 10 mm

Phase : 3

Type : Round Cylindrical

Description Our Research digester is a complete pulping unit to produce pulps by cooking wood chip similer to a Research Digester. it is easy to operate and it has precise control of pulping variables to ensure accurate results. A sampling line with cooling attachments allows simples to be with drawn safely during the cooking process and a control valve determines the circulation rate of cooking chemicals.

Brand Name : Pap Tech

Description Rapid Dryer is intended for shortening the drying time of wet pulp or paper samples before determining the dry weight or moisture content. It is provided with Flat heating Elements.It is suitable for Sheet Size: Max width 250mm, Max length 300mm. Temperature adjustment is done over a wide range up to maximum of 180 ° ± 10 ° c.

Voltage : 220 V

Phase : Single Phase

Frequency : 50 Hz

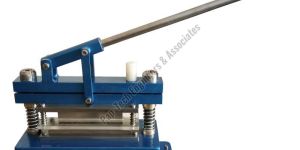

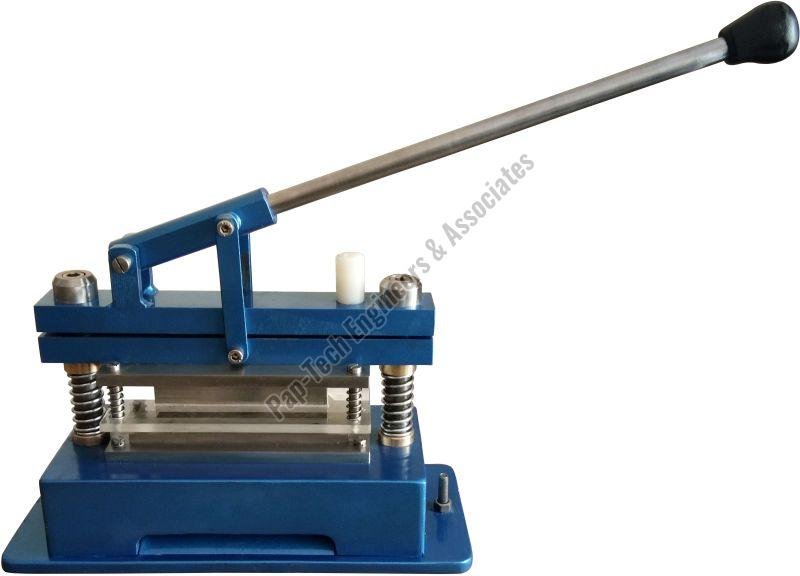

Description: We are Making, Exporting and Supplying wide range of Punch and Die Cutter  from Jaipur, Rajasthan, India. The Punch and Die Cutter for Gsm Test are intended for accurate and rapid preparation of test pieces for use for gsm testing. As per TAPPIT: 489, Scan-38.   Strip Punch: For preparation of test pieces towards use in Internal Ply Bond test size 1"x12"

Model Number : PAP-2060-C-1

Brand Name : Pap Tech

Country of Origin : India

Type : Die Cutter, Punch & Die Cutter

Brand Name : Pap- Tech

Material : Cast Iron

Warranty : 1 Year

Test Size : 1x12 Inch

Item Weight (Kgs) : Up to 15 kg

Description The Instrument is designed for standardized disintegration of pulp to a homogeneous suspension. Pivoted drive unit with stainless steel propeller and shaft. The propeller is driven by electric motor via stepped timing belt, which ensures a direct drive without slippage. Electronic Revolution counters with digital display. Option: Mechanical Preset impulse counter on front panel for setting desired number revolution. Digital Preset Pulse Counter on front panel for setting desired number of revolution. Pulp container with Heating Elements and Thermostat control

Power : 0.5 KW

Capacity : 2 Litres

Phase : 3 Phase

Voltage : 440 V AC

Model No : PAP-3062

Description We are the leading supplier of Paper INK Proofing Kit made available to our clients at competitive prices. It is used for visual assessment of color under different lighting conditions.   Features: Cabinet is made out of Powder Coated M.S. Sheet, Inside Color Munsell neutral grey. All tube lights are operated separately by electronic ballast. The electrical circuit is on a tray & is totally separate from the cabinet. Imported Hour Meter is for totalizing the time for Tube Lights.

Material : Metal

Color : Yellow

Brand Name : PAP-TECH

Description It is used for pressing and watering and sheet quickly made on sheet making machine.   Standards: As per TAPPIT 205,SCAN C26/M5,ISO 5269/1.   Pneumatic Type: Sheet Press Control panel with 12 & 6 minutes pressing with adjustable timing.

Automation Grade : Semi-Automatic

Brand Name : Pap-Tech

Description: Pneumatic Single Head Bursting Strength Tester with printer determines the Bursting Strength for the Quality Control and Research & Development of paper, board and corrugated board. A test piece is clamped between two concentric plates each having circular opening in the center. Pressure is applied to the under side of a test piece by a rubber diaphragm, which is expanded by pneumatic pressure in two heads.   It has heavy cast-iron block & aluminum body, strain gauge pressure transducer, microprocessor system for sample, built-in pneumatic system for the diaphragm, quick connector for calibration, built-in electronics microprocessor and printer and exclusive.     You can also store 250 readings in your memory card   Process You can check Bursting Factor of the Paper/Board Feed GSM of the test paper and you will get bursting strength and burst factor of the test paper/board in Decimal by Microprocessor System and with print   Technical - Specification: Measuring results : Individual Bursting Strength values in Kpa or Kg/cm² and burst factor for paper Pump flow rate : 95 ± 5 ml/min. Measuring range : 0-7 kg/cm² or 0-35 kg/cm2

Brand Name : Pap-Tech

Item Code : 2056-G

Origin : India

Grade : A

Display Type : Digital

Net Weight (Kg) : 70-80

Description: Our Internal Ply Bond Tester is designed for determining the Internal Bonding Strength of Paper, Paperboard and Laminates, by measuring the average energy, in thousands of foot pound required to delaminate the specimen in two piles, as described by the TAPPI Routine Control Method RC-308.   It is made of heavy cast iron base with built-in leveling device pressure senditive tape dispenser intergral with base. It works with Pneumatic Air supply for auto clamping of samples through air pressure. It is newly made upgraded model which saves time and gives more accuracy for samples.

Power Source : Electric

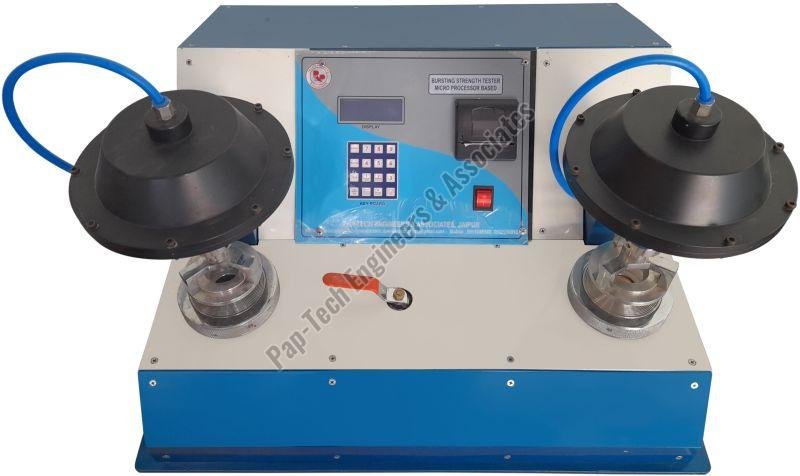

Description: Pneumatic Double Head Bursting Strength Tester with printer determines the Bursting Strength for the Quality Control and Research & Development of paper, board and corrugated board. A test piece is clamped between two concentric plates each having circular opening in the center. Pressure is applied to the under side of a test piece by a rubber diaphragm, which is expanded by pneumatic pressure in two heads.   It has heavy cast-iron block & aluminum body, strain gauge pressure transducer, microprocessor system for sample, built-in pneumatic system for the diaphragm, quick connector for calibration, built-in electronics microprocessor and printer and exclusive.   You can also store 250 readings in your memory card. Process You can check Bursting Factor of the Paper/Board Feed GSM of the test paper and you will get bursting strength and burst factor of the test paper/board in Decimal by Microprocessor System and with print   Technical - Specification: Measuring results : Individual Bursting Strength values in Kpa or Kg/cm² and burst factor for paper Pump flow rate : 95 ± 5 ml/min. Measuring range : 0-7 kg/cm² or 0-35 kg/cm2

Brand Name : Pap-Tech

Display : 4-1/2 digit with high bright LED display

Origin : India

Description: Pneumatic Bursting Strength Tester with printer determines the Bursting Strength for the Quality Control and Research & Development of paper, board and corrugated board. A test piece is clamped between two concentric plates each having circular opening in the center. Pressure is applied to the under side of a test piece by a rubber diaphragm, which is expanded by pneumatic pressure. It has heavy cast-iron block & aluminum body, strain gauge pressure transducer, microprocessor system for sample, built-in pneumatic system for the diaphragm, quick connector for calibration, built-in electronics microprocessor and printer and exclusive. You can also store 250 readings in your memory card.   Process You can check Bursting Factor of the Paper/Board Feed GSM of the test paper and you will get bursting strength and burst factor of the test paper/board in Decimal by Microprocessor System and with print   Technical - Specification: Measuring results : Individual Bursting Strength values in Kpa or Kg/cm² and burst factor for paper Clamping force : 2700 N or extra clamping force adjustable by means of precise pressure regulator. A solenoid valve actuates the raising and lowering of the upper clamp. Accuracy : 0.1 of readout values. The effect of the diaphragm must however be taken into considerations.

Power : 250 W

Display Type : 4-1/2 Digital

Brand Name : Pap-Tech

Origin : India

Description: Accessories: White Enamel Standard. Polished Black Glass. Cavity represents a sample of zero reflectance   Additional – Specification: Sensor : Selenium Photocell. Brightness Search Unit : Consist of deep blue gelatine filter #49, between photo voltaic cell, Infra-red absorbing glass and source of light. Opacity Search Unit : Consist of green filter of the set of tristimulus filters. Gloss Search Unit : Consist Glass filter and measures gloss as specular reflectively at 75º angle of incidence.

Light Source : 6V, 1 A. Tungsten Lamp

Description: Laboratory Oven: It is used for moisture determination of pulp,paper,and paperboard etc. Double walled & heavily insulated. Tempreture range : 50 C to 2500 C Accurancy ±0.5 C. Standard size :24”×24”×24” Option: Digital Temperature indicator cum controller. Features: Easy to maintain Elevated performance Corrosion resistance

Temperature Range : Room Temp To 250 Degree Celcius

Number Of Shelves : 2

Application : Laboratory Uses

Brand Name : Pap-Tech

No Of Chamber : One

Material : Mild Steel

Material : Mild Steel

Display Type : Digital

Model Number : PAP-5053

Accuracy Of Thermostat : +/- 1 Deg C to 2 Deg C or less.digita

Feature : Easy to maintain, Elevated performance, Corrosion resistance

Origin : India

Description: Manual Core/ Cone Compression Tester is an equipment to test paper tubes/ cores & cones for:   Radial Compression/ Crush. Flat Horizontal Compression /Crush. Flat Vertical/Crush.   Salient Features: Machine designed on proven principle of pneumatics. Easy and safe to operate. Skilled manpower is not required. Zero maintenance machine. Provides in – house quality control system at affordable price. Highest degree of consistency and reliability    Application Standards ASTM D 3654: Option 50/100 Kg Cast iron weight Regular / Deluxe / Digital Model

Brand Name : Pap Tech

Weight : 75kg

Display : Digital

Model : PAP- 4062

Capacity : 500-2000 (Newton per ton cm)

Features : Good Perfomance

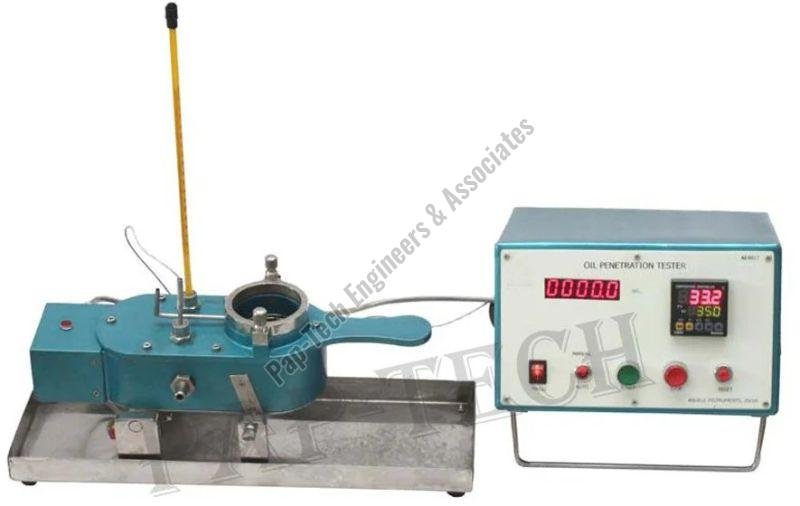

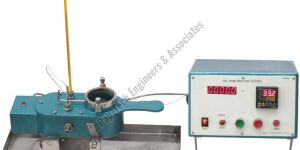

Description The Instrument is designed for the determination of the oil absorption resistance of the surface of paper and paperboard.Along with photo electric digital timer. As per TAPPI,SCAN,ISO
