Tensile Testing Machine Dealers in Jaipur

• Type: Tensile Strength Tester
• Application: Strength Testing
• Voltage: 220V
• Power: 1-3kw
• Driven Type: Electric
• Country of Origin: India
• Weigth: 0-20kg
• Brand Name: Global Engineering Corporation

• Voltage: 220V
• Country of Origin: India
• Power Supply: 1 Phase
• Brand Name: Pap-Tech
• Analog Output: Force Value 0-10 V
• Clamps: 15mm or 25 mm.
• Model No: PAP-2065
• Pulling Speed: 1-99 mm/ min (0-04-4.0/min)

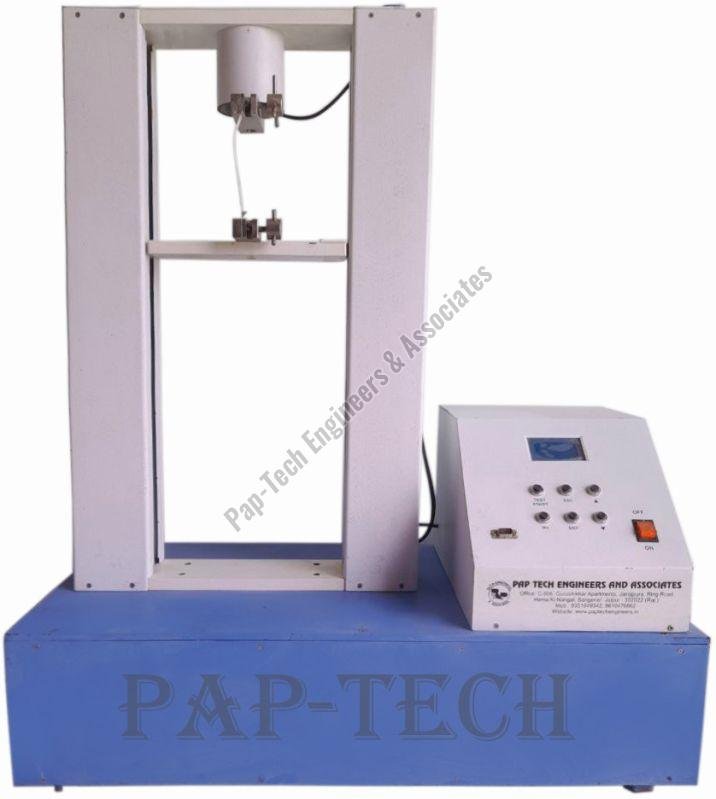

Description: Vertical Tensile Strength Tester With Digital display of Tensile Strength & Stretch of Paper, Paperboard and similar materials complete with memory for retaining peak value, automatic or normal zero setting, overload and over travel protection facilities. With imported load cell & imported DC motor.   The Microprocessor Based Tensile Strength Tester is used for determining the tensile strength and stretch of sheet materials.     Technical - Specification :   Measuring Result : Individual results of Tensile Strength, Stretch, TEA, Tensile Stiffness, Breaking Length, Breaking time mean value & Standard Deviation. Clamping Length : Selected. Accuracy :  1% of reading down to 10% of the load cell capacity. Resolutions : 0.025% of nominal load cell range and 0.1 mm in elongation measurement. Computer Output : 1. RS 232 C & Printer port Model C 2 interface with pc having a specification a Pentium & specially developed software.   Application Standards: SCAN P-38 ISO 1924/4, TAPPI 494, , APPITA/ AS 1301.448, BS 4415, CPPA D 34, DIN 533112, TEILL 1
