Tirupati Plastomatics Pvt Limited Vishwakarma Industrial Area, Jaipur, Rajasthan

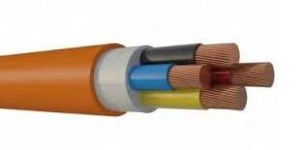

GEMINI TRAILING CABLES Gemini manufactures flat and round trailing cable for lift, elevtar, hoist and crane application. Ingeniously developed extra soft and flexible PVC helps cable to retain its original mechanical and physical properties even after prolong use. This PVC also gives Gemini trailing cable minimum turning radius and bending radius, and hence making it suitable for application which require repeatedly bending and folding of cable. CONSTRUCTION Conductor :Flexible/Stranded bare/Tinned copper Insulation : Special Grade PVC/FR/FRLS PVC Outer Sheath : Special Grade PVC/FR/FRLS PVC/TPE Size : 0.5/0.75/1.0/1.5 Sq mm2 core to 24 core, flat and round Standard : IS 6380 & JIS C 3401 APPLICATION For lift, hoist, and crane applications and applications which require frequent bending and folding of cable. SALIENT FEATURES Bright annealed electrolytic grade copper having 99.99% purity and maximum conductivity to ensure minimum power losses. Cores are insulated in modern & precise machines and on 100% self generated power to minimize faults due to voltage fluctuations. Indigenous PVC compound provides better agine properties higher operating temprature & enhence insulation characteristics. Specially formulated outersheath polymer to give maximum flexibility and elasticity with minimum bending radius for prolong as well as freuent bending and folding.

TP OGP Cables Application Shipboard energy, control and instrumentation cables for fixed installation on vessels and oil rigs Main Characteristics No flame propagation Fire resistant Watertight Oil resistant Mud resistant Flexible

  Fire Resistant / Fire survival – Applicable Standards British Codes and Specifications BS 8519:2010 :Code of practice for Selection and installation of fire-resistant power and control cable systems for life safety and fire-fighting applications.BS 5839-1:2008 :Code of practice for system design, installation, commissioning and maintenance – Fire Detection / Fire Alarm systems for buildings.BS 5839-8:2008 :Code of practice for the design, installation, commissioning and maintenance of Voice alarm systems.BS 5839-9:2011 :Code of practice for the design, installation, commissioning and maintenance of Emergency voice communication systems.BS 5266-1:2005 :Code of practice for the emergency lighting of premises.BS 7629-1:2008 :Specification for thermosetting insulated, unarmoured, screened fire-resistant cables of rated voltage 300/500V, having low emission of smoke and corrosive gases when affected by fire.BS 7846:2009 :Specification for thermosetting insulated, armoured, fire-resistant cables of rated voltage 600/1000V, having low emission of smoke and corrosive gases when affected by fire.BS 8491:2008 :Method of assessment of fire integrity of power cables with diameter greater than 20mm (as per BS 8519:2010). Retain Circuit integrity at 600/1000V under Simultaneous application of constant Flame at 850°C, Direct Mechanical Impacts & High Pressure Water Jet. The test duration is expressed in minutes depending on the required time duration of the application as follows: Category 1 :30 minute Category 2 :60 minute Category 3 :120 minute BS 8434-2:2009 :Fire performance “Enhanced Test” as per BS 5839 Part 1, 8 & 9 (For conductor size upto and including 4sq mm) Method for assuessment of fire integrity of small cables for use in emergency Circuits. Retain Circuit Integrity at 930°C.Duration of test is 120 mins. Initial 60 mins. with Fire and Impact followed by an additional 60 mins. with Fire, Impact and Water Phase.

Thermocouple Extension and Compensating Cables are used for connecting the thermocouple to the control and measurement devices (pyrometers etc.) that may be some distance away from the thermocouple in the control room. Conforming to standard specifications like IS 8784, ANSI MC 96.1, DIN 43714, 43, ENI-0163, BS 4937 (Pt-30) CONSTRUCTION ConfigurationSingle Pairs / Multiple Pairs usually upto 24 pairs. Higher pairs on customer request.ConductorAs per Cable Codes KX, KK(A), JX, TX, EX, SX/RX, BX. 16,18 & 20 AWG, other Conductor sizes on request.InsulationPVC / HRPVC.ScreeningIndividual or overall Aluminium Mylar tape screened with ATC Drain wire.RipcordFor easy removal of sheath.ArmouringGI Round Wire/Flat Strips.Inner and Outer SheathPVC/HR PVC/FRLS PVC/FR PVC.

Copper Conductors to SANS 1411 Part 1, PVC insulated to SANS 1411 Part 2, laid up with a bare tinned copper earth wire in contact with a longitudinal aluminium/olyethylene laminate, UV stable PVC sheathed to SANS1411 Part2. INSTALLATION INFORMATION Complies with SANS 10142/2001 Code of Practice for the wiring of Premises” Section 6h. Surface Wiring Under- plaster wiring Wiring in hollow walls Wiring in roof spaces PROPERTIES Specification : SANS1507-2 Temperature Range : -10°C to 70°C Voltage Rating : 300 / 500 V Sheath Identification : 2 Core- Red & Black3 Core- Red, Yellow, Blue4 Core- Red, Yellow, Blue, Black Core Identification : 3 Core – Red, Yellow, Blue4 Core – Red, Yellow, Blue, Black Packaging : Available on 500 metre wooden drums

High conductivity bunch plain flexible copper conductors to SANS 1411 Part 1.. Cores insulated and bedded with Flexible PVC Grade. Final protection is given by a flexible PVC outer sheath. INSTALLATION INFORMATION Power supply of mobile and portable submersible pumps as used in : Quarries Farms Cleaning and Sewerage extraction plants De-watering Boreholes PROPERTIES Specification : SANS154 Temperature Range : -10°C to 70°C Voltage Rating : 600 / 1000 V Sheath Identification : 3 Core – Blue4 Core – Green Insulation & Sheath : Flexible grade waterproof PVC Core Identification : 3 Core – Red, Yellow, Blue4 Core – Red, Yellow, Blue, Black Packaging : Available on 500 metre wooden drums

CONSTRUCTION Conductor : Standard bare annealed electrolytic grade copper Insulation : Specially formulated FR PVC Outer Sheath : Specially formulated PVC Size : 1.0 to 95.0 sq. mm three core in both flat and round shape.(round submersible cables can be specially asked for.)Standard : IS 695 APPLICATIONS PVC insulated multistrand annealed bare copper conductor, three core flat cable SALIENT FEATURES   Bright annealed electrolytic grade copper having 99.99% purity and maximum conductivity to ensure minimum power losses. Cores are insulated on modern & precision machines using specially formulated PVC compound having very high thermal properties. Indigenous PVC compound provides better aeging properties, higher operating temperature & enhance insulation characteristic. Outersheath for submersible cable is designed to fit closely, maintain flexibility, resist water absorption, abrasions, oil, grease and other environmental. effects.

Galvanised steel wire in mild steel, medium corbon and high steel are available with Eritech as individual wires & also in stranded forms . Individual wires are supplied in each coil weighing 70 to 135 kg or as prescribed by the customer. STRANDED CABLE Are Produced As :- Overhead Ground wire or static wire for earthing of the electrical power Transmission lines. Stay or Guy wire strands are produced for use with poles, towers or any other form of guying and can be used for telephone, power & CATV sets. Stranded wires are packed in steel drums if required by the customer , otherwise in coils wrapped and palletized for exports. These Wires Are Available As Per ASTM-A- 475 & BS-183 Specification

Single wall HDPE corrugated sheathing ducts Used in internal bonded post tensioning of tendons in prestressed concrete SINGLE WALLED CORRUGATED PIPES are being used as Sheathing Ducts for internal bonding in post tensioning of tendons in Prestressed concrete in projects such as bridges, flyovers, offshore platforms, Via ducts, tunnels, underpasses etc.   Corrosion is a great threat to the reinforced concrete structure. The metallic sheathing ducts in spite of galvanizing invariably gets corroded in few days. In most of the seminars and workshop, the experts have already confirmed this and deliver endless speeches on corrosion threat. SWC pipes and HDPE sheathings ducts manufactured by us have already been used successfully in various projects in India and approved / specified to be used in almost all the major projects including Delhi Metro Rail Corporation (DMRC) & Konkan Railways in place of Metallic duct sheathings.

High Conductivity Bunched Plain flexible copper conductors to SANS 1411 Part 1. 2 Core insulated with general purpose flexible grade PVC to SANS 1411 Part 2. INSTALLATION INFORMATION For the wiring of all types of : Light Household Appliance Lamps Intercoms Alarm Systems Audio and Visual Equipment Sola Industry PROPERTIES Specification : SANS1574 Temperature Range : -10°C to 70°C Voltage Rating : 300 / 300 V Core Identification : Standard Colours – White, Brown, Grey, Black, Transparent and Red with Back Stripe Other Colour available on request Packaging : 100m Shrink-wrapped coils500m lengths available on request

As a result of incessant technical research we have developed a comprehensive design capability based on sound engineering practices to help the customer meet his technical requirements. Tirupati Plastomatics is the largest supplier of specialized cables to Indian Railways.Tirupati Plastomatics takes pride in having developed and designed wide varieties of cables to various international and customers specifications. We developed a totally new cable with very advanced design features viz. 4 Quad Axle Counter Cables for the Indian Railways with extremely low capacitance unbalance and reduction factor values, in view of the stringent usage and safety requirements.Tirupati Plastomatics is among the few Cable companies who manufacture the following types of cables for Indian Railway. Underground Railway signalling Cables. Underground Railway Quad Axle Counter Cables. Power Cables. Specialized Instrumentation cables for underground and elevated Metro Projects. For details, specifications, quotes please visit our contact us page and place your enquiry.

Flexible Corrugated Polyamide Conduits Gemini pipes also manufactures of Nylon corrugated conduits in 6 diffderent sizes. Flexible corrugated conduit made of special modified Polyamide PA6 (Popularly Known as nylon). Features- Available in various sizes. Self extinguishing & free of Halogen, Phosphorus, Sulphur and Cadmium. Temperature range -40 degree C to +120 degree C Mecahnical/ shock/ Abrasion/ impact resistant according to EN-61386-1/23 Available in UV Resistant (Black version) and other assorted colours Free from any hazardous or toxic chemicals, solvents and oils.       Advantages-   Prevents damage of inside cables from corrosion/ abrasion/ Flame propogation/ Changing weather/ hard impact/ etc. Reduces capital expenditure. Light weight & high Flexibility. Easy to join with each other. Minimizes installation time & cost. More robust, durable & Provides long lasting life. Chemical inert & environmental safe.       Accessories-   1. Metal (Nickel Plated Brass) straight connectors Connectors are manufactured using special grade polyamide material which offers high impact strength. Metal offer extremely high connection strength ensuring safety & reliability.       Characteristics-   Material : NBR Elastomer Temp : -30 degree C to +105 degree C Colour : Black Offer IP68 Protection Conduits & Connectors       2. Sealing rings 3. Metal (Nickel Planted) Hexagonal Locknuts- Nickel Plated Brass hexagonal locknuts designed to offer high strength and reliable connections.   Group Companies Tirupati Plastomatics Pvt. Ltd.(Pipe div.) Tirupati Plastomatics Pvt. Ltd.(Cable div.) Kanhha Cable Pvt. Ltd. Kiran Infra Engineers Ltd. Kiran Infra Ispat Ltd. Kiran Infra tech Ltd. Blog updates Our product is FIRST ONE to be pre-qualified & supplied QUALITY material in Mumbai International Airport Ltd. We are the only company who had supplied Kms. Pipes & Fittings for

High conductivity bunched plain flexible copper conductors to SANS 1411 Part 1. Insulated with general purpose flexible grade PVC in all colours to SANS 1411 Part 2. PROPERTIES Specification :SANS 1504 Temperature Range :-10°C to 70°C Voltage Rating :300/500Vand 600/ 1000 V Core Identification :Blue, Black, Brown, Yellow/Green, Orange, Pink, Violet, Grey Packaging : 100m Shrink-wrapped coils500m lengths available on request5000m lengths down coiled in cardboard boxes avilable on request

GEMINI Mining Cables (SPECIALLY DESIGNED FOR STONE MINES ) Cables in stone mines are subjected to servers opetating conditions such as scorching sun,rugged surfaces, from stones and other hard objects, possibility of getting crushed under heavy objects.Tirupati Plastomatics is specially designed and tested to perform under such conditions, result of rigorous R & D process, indigenously designed and widely acclaimed, is able to survive rough & tough working conditions.It’s unique interlinked grooves in innersheath increases mechanical strength by many times, without loosing its flexibility and bending radius. CONSTRUCTION Conductor :Stranded / Flexible bare copper Insulation : PVC InnerSheath : PVC Middle Sheath : Natural PVC Outer Sheath : PVC/FR/HR Size : 10 Sq. mm to 120 sq. mm 4 core Standard : Reference IS : 1554 (Part -1) APPLICATION For stone mines application SALIENT Features Specially designed interlinked grooves to provide additional strength with same flexibility. Bright annealed electrolytic grade copper having 99.99% purity and maximum conductivity to ensure minimum power losses. Cores are insulated in modern & precise machines and on 100% self generated power to minimize faults due to voltage fluctuations. In – house manufactured PVC with better thermal and stress capacities.

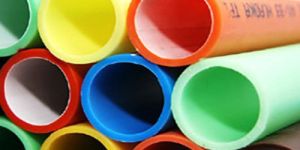

Micro Duct For FTTH Works Pipes: Features and Specifications KIEL Micro Duct for Fiber To The Home Network (FTTH) KIEL Micro Duct is a concept for the installation of fiber optic distribution networks in all types of buildings i. e. multi-storey apartment blocks, office blocks, or factory premises. These are very small aperture HDPE ducts with Ribbed Inner wall. Micro Duct is a nonmetallic flexible raceway manufactured from High Density Polyethylene (HDPE) for use in underground and inner duct applications. KIEL Micro Duct with ribbed inner wall offers superior protection, increases pathways of existing duct systems, allowing extra channels for future cabling needs, and is ideal for jetting cable. Ribbed inner wall aids in easier blowing & jetting of micro ducts & allows longer pulling distance resulting in quality installation at lower cost. Ribbed Inner wall of ducts withstand typical pulling loads and is highly resistant to crushing forces. KIEL Micro Duct is the only cable management system you need. These ducts can be bunched & blown in various combinations & colors thus allowing extra channels for future cabling requirement needs & increased pathway. KIEL Microduct Pipe are available in various sizes, colors, and options, Future Path Provision: Future Path is a bunch of Micro Ducts sheathed together, providing multiple (future) pathways. Micro Cable(s) can be blown / pulled anytime in the individual Micro Ducts, as the network grows, without the additional cost of constructing a new duct route. Anti-Rodent Properties: Ducts are generally installed by direct burial method. At many places rodents are present even at depth of more than one meter below ground level. KIEL anti rodent ducts provides the best solution to such problems by incorporating Anti Rodent properties in the pipe to dissuade rodents from chewing it. Antirodent ducts are tested at CAZZRI Jodhpur for Toxicological Studies.

LT – Power Cables Power cables with PVC/XLPE insulation for Power Transmission. Voltage grade 650/1100 Volts (Uo/U) provided with ISI marking IS:1554(Pt-1),with or without HR/FRLS properties. Screening can be provided if desired. Conforming to standard specifications like: IS 1554 (Pt.1),IEC 502,BS 6436/87. Construction ConfigurationSingle core upto 1000 sq mm. Multi-core upto 400 sq mm x 3½ cores. Aluminum / Copper, Solid / Stranded, Circular / Compacted / Sector-shaped conductor. InsulationPVC/XLPE ( Heat Resistant PVC on request )Mechanical Protection Galvanized steel wire or strips or double helical steel tape. Aluminum wire armouring for single core cable. Inner and Outer Sheath PVC Black/ Grey. LT – AB Cable Main Features AB Cables are highly reliable and insulation has been developed to withstand head cold and intense sunlight. Disturbance and faults occur five to ten times more often in open wires lines than in AB Cable lines. There is no risk in touching the live cable and the insulation reduces the number of short circuits and over-voltage faults in overhead cables during thunderstorms. Few hardware accessories are needed as each one can be used with different sizes of cables. This makes installation and storage easier. Streets can be lit only at little extra cost by using the AB Cable that have an extra conductor for lighting. The low voltage power cable can be supplied with one or two insulated conductors for street lighting. LT – XLPE Cable Main Features LT-XLPE Cables have longer life as compared to conventional PVC Cables. LT-XLPE Cables have a higher conductor temperature rating i.e. 90C. LT-XLPE Cables have a higher emergency overload capacity 120C. Max. temperature limit under short circuit conditions for LT-XLPE Cables is 250C. Hence these have higher short circuit rating. Insulation resistance of LT-XLPE Cable is excellent & superior to identical PVC Cables. LT-XLPE Cables have high corrosion resistance in polluted atmosphere. LT-XLPE Cables have better properties of resistance to chemical and corrosive gases. LT-XLPE Cables have low installation cost because of light weight, dimensions and are far more flexible. LT-XLPE Cables have better properties to withstand vibrations, hot impacts. Jointing of LT-XLPE Cables is easier and quicker.

GEMINI INSTRUMANTATION CABLES Tirupati Plastomatics manufactures special cable catering to needs of process control and instrumentation field. Process instruments, equipments, transducers require to transmit low level signals to different places in plant, these places can have adverse conditions such as boiler and turbine where temperature is well above 100°C or chemical reactors with toxic fumes and liquids. Gemini Instrumentation Cables are designed, manufactured and tested for such conditions. Gemini Instrumentation Cables assures signal transmission with negligible signal loss, minimum distortion and free from effects or external noise. Specially ordered instrumentation cables are also manufactured as per customer requirements and specification. CONSTRUCTION Conductor :Electrolytic Grade Tinned / Bare solid / Stranded / Flexible Copper conductorInsulation :PVC / HR PVC / FR / FRLS / ZHFR PVC / PolyethyleneElements : Pairs / triad / quads with color coded or number printed on every meterShield :Aluminum Polyester tape Screen with copper wire, copper wire braidingInner Sheath :PVC / HR PVC / FR / FRLS PVC / ZFHRArmouring :Galvanized Steel wire /stripOutersheath :PVC / HR PVC / FR / FRLS PVC / ZFHRSize :As per customer requirementStandard :BS : 5308, IEC – 189, ENI 0181.00 SALIENT FEATURES Complete customized solution for process instrumentation wiring available, to suit all type of standards and instrumentation systems. Bright annealed electrolytic grade copper having 99.99% purity and maximum conductivity to ensure minimum signal deterioration. Cores are insulated on modern & precise machine and on 100% self generated power to minimize faults due to voltage fluctuations. In – House manufactured PVC with better thermal and stress capacities. Outer Sheath polymer specifically developed to suit working conditions in indian industries.

GEMINI INSTALLATION CABLES Cables for internal exchange installations,connection between selector racks,distribution frames etc. The cable can be unarmoured or galvanized steel wire/strip armoured if required.Conforming to standard specification like: G/WIR-06/02 MAY’94,G/WIR-09/02.DEC’95, G/WIR-04/01.FEB’93,S/WS-114D, CW1251, CW1271, CW179A,CBL7000, TC-24/91, BS 3575/90, IEC:189 H-2, IEC:753.

HT CABLES- MEDIUM VOLTAGE ELECTRIC CABLE Voltage Range- 3.3 KV to 33 KVMedium voltage cables to IEC 60502-2 (Design and Consideration)+   A high voltage cable (HV cable) is a cable used for electric power transmission at high voltage. A cable includes a conductor and insulation, and is suitable for being run underground or underwater. This is in contrast to an overhead line, which does not have insulation.ConstructionSingle core or Three core cables consist of the following components: ConductorConductors are made of copper or aluminium. Conductor design is usually circular stranded, and compacted. Our conductor design is in compliance with the requirements of IEC 60228 and BS 6360 Specification.Insulation Triple extrusion of inner semi-conductor (conductor screen). XLPE insulation, and outer semi-conductor (insulation screen) is applied. XLPE insulation is water cured. XLPE insulation is as per the requirements of IEC 60502-2 or as per customer’s requirements. Metallic screenThe metallic screen is usually made of copper wires or copper tape. Radial water sealing such as AL-pe laminate and longitudinal water sealing may be applied upon customer’s request. AssemblyAll cables cores are laid up together with usage of non hygroscopic filler material. These fillers are temperature compatible with all different cable layers such insulation, bedding and sheath. ArmouringArmour material can be either aluminium for single core cables or steel for multi core cables. Armour can be either wires or tapes. Our cable armouring is in compliance with the requirements of IEC 60502-2 and BS 6622. Outer sheath/ JacketOur cables sheaths are made of an extruded layer of PVC or PE material and are in compliance with the requirements of IEC 60502-2 and BS 7655 Specification. We are also capable of providing cable sheaths with special requirements to be. Oil & Gasoline retardent Ozone/ acid/ alkali retardent Flame retardent and in compliance with requirements of IEC 60332-1 and IEC 61034-2 Termite retardent Low smoke halogen free and in compliance with requirements of BS 7211 and BS 6724 Testing of Medium Voltage Power CablesWe Tirupati Plastomatics Cable Company, are capable of performing all standard routine tests and sample tests that are normally carried out in accordance to IEC 60502-2 standards. We have all necessary equipment for such tests such as high voltage labs and special ovens.We are also capable of performing tests in accordance with international or national requirements as agree upon with customers. Routine Tests Measurements of the Electrical Resistance of Conductors Partial Discharge Test High Voltage Test Sample Tests   Conductor Examination Check of Dimensions Hot Set Test for XLPE Insulations In Ht Cables mainly two type of cables are available Single core XLPE Cable Three cores XLPE Cable Characteristics High tensile strength Resistant to chemical and corrosive gases Excellent Electrical and Physical properties Good Ageing Excellent Resistance to Thermal Deformation Not Affected by Vibration Advantage Capability of Carrying Large Currents Free from Height Limitation and Maintenance Ease Of Installation Higher Current Rating Higher Short Circuit Rating Longer Service Life Low Dielectric loss Application For Installations Outdoor in Ground, in Ducts and Indoor on trays Electric power transmission at high voltage Transmission of high voltage in various industrial and commercial applications Transmission and Distribution Instruments, ignition systems, and AC and DC power transmission Power Sector Industrial sector We are also manufacturing High Voltage Cables to IS: 7098 (Part-2).

GEMINI HR CABLES The voltage fluctuation is very common phenomenon. Due to this, the current in the wire increases abnormally which causes over heating of wire and subsequent damage to wire may occur. Our Heat Resistant wires can withstand up to 105° operating conductor Temperature.Tirupati Plastomatics HR wires have 30% more current carrying capacity in comparison to FR wires. CONSTRUCTION Conductor : Bare/annealed tinned copper Insulation : Double layer HR grade PVC insulation. Sizes : 0.5 sq.mm to 50sq.mm MAIN FEATURES OF GEMINI HEAT RESISTANT (105°C) WIRES : Higher operating temperature. Higher current carrying capacity. Excellent insulation resistance & high di- electric strength. Excellent heat resisting properties. APPLICATION HR wires are required when the operating temperature is on higher side :

High conductivity solid copper conductor to SANS 1411 Part 1. Insulated with D5 High temperature PVC 1050C to SANS 1411 Part 2. INSTALLATION INFORMATION For the wiring of: Capacitor Tails Ballasts for Fluorescent Lights PROPERTIES Specification : SANS1507-2 Temperature Range : -10°C to 70°C Voltage Rating : 300/500 V Core Identification : White, Yellow, Black, Brown, Red, Orange, Tan, Light Blue and White with a choice of either Yellow, Orange, Red, Black, Blue, or Brown Stripes. Packaging : 100m Shrink-wrapped coils500m lengths available on request

Gemini Household Cables Gemini Multi CoreCables are ideal for power supply application to electrical and electronic equipments and devices. Gemini Multi Core Cable are used and acclaimed all over india by many OEMs ( original equipments manufactures). Outersheath (Jacket) meterial is specially formulated to provide resistance againest, oil, and moisture and provide mechanical strength with out losing its flexibility. Construction Conductor : Flexible / Solid / strandard / bare annealed copper Insulation ; PVC/FR PVC /HR PVC/FRLS PVC Inner Sheath : PVC/ FR PVC / FRLS PVC /HRPVC Outer Sheath : PVC/FR PVC //FRLS PVC/TPE Application For Panel Wrings, Battery, UPS, Machine Tools / Internal and External industrial wiring Salient Features Electrolytic Gragde copper, which is purest, form of copper available. Manugfactured on 110% self generated power, to avoid even minutest weak point in insulation, sheating or unenenness in conductor laying. In-house developed and manufactured polymers with the best available, high quality ingredients and plasticizers. Specially Formulated Outersheath polymer for oil and chemical resistance and added flexibility Insulation ; PVC/FR PVC /HR PVC/FRLS PVC Inner Sheath : PVC/ FR PVC / FRLS PVC /HRPVC Outer Sheath : PVC/FR PVC //FRLS PVC/TPE

High conductivity annealed stranded copper conductors to SANS 1411 Part 1. Insulated with PVC and skin coloured in plain colours to SANS 1411 Part 2. Cable is manufactured to SANS 1507 Part 2. INSTALLATION INFORMATION For the wiring of Industrial Buildings, Housing, Control Panels it will be easier to pull through conduit, than standard housewire particularly on long and difficult runs. PROPERTIES Specification : SANS 1507-2 Temperature Range : -10°C to 70°C Voltage Rating : 300/500Vand 600/ 1000 V Core Identification : Complete range of colours Packaging : 100m Shrink-wrapped perforated coils A specially developed low friction PVC compound which is used in the insulation of House wire for supply to the South African market.The decreased coefficient of friction is the result of the migration of the slip additives to the cable surface due to the defined incompatibility of the slip additive with the polymer. (“Slip is a term used to describe the sliding of parallel film surfaces over each other or the sliding of film surfaces over. WHAT ARE THE BENEFETS OF THIS PRODUCT SOLUTION COMPARED TO STANDARD HOUSEWIRE ? The following benefits are relevant : The pulling force required to pull the product through conduit, is significantly reduced, as the cable-to-conduit and cable to cable friction is lower than on the standard product. The product is neatly and accurately coiled on automatic coilers, which reduces the risk of entanglement. The heat-shrunk plastic used in the packaging, keeps the coil in a sturdy, compact form until such.

Produced out of quality Polyethylene raw material strictly confirming to FIB 7 and IRC 18:2000 requirements.Material Tests carried out both at Raw material producer and in house lab. Sizes suitable for most of anchorage systems used by premium PT agencies.
