Apex Industries Industrial Area, Jalandhar, Punjab

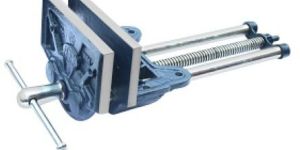

Features : Accurately machined housing assure smooth sliding movement. Vice jaws equipped with a "TOE - IN" feature. When fully closed, the jaws meet only at the top to provide even clamping on the whole depth of the work piece. Square body seating provides easy fitment under the bench top so that jaws are flush with the bench top. Body and sliding jaw have provision for attaching wooden liners to protect the vice, work piece and working tools. Construction : These are manufactured from close-grained grey cast iron for long trouble free service. Accurately fitted solid steel guide rods reduce wear and tear giving the vices a smooth and true parallel action, free of side or cross deflection. The Steel main screw has buttress threads for smooth, accurate and responsive adjustment. Finish : Enameled oxford blue.

Features : Vices are equipped with an adjustable front dog which when used in conjunction with a bench stop allows oversize work pieces too large to be held between the jaws, to be securely held. This useful addition provides a normal vice and a tail vice in one tool. Finish : Hammer tone mid grey

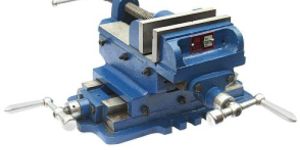

Features : The T-Slots are machined from Solid. Equipped with two axis positioning. Dovetailed slides have adjustable steel gibs to compensate for wear. The surface table can swivel all round and 0° is marked to show the angular movement. Base have bolt slots for machine mounting. Application : These precision built standard slide tables are essential for accurate boring drilling, grinding, and milling operations Construction : Casting are the close Grey Iron dully stress relieved accurately machined and ground surface provide tolerance well within 0.01 MM / 100 MM. Precision ACME feed screw is running in a hot stamped phosphor Bronze Nut thrust color for smooth operation and minimum back lash. Designed to fit on any Lathe, will enable you to mill slots, Key ways, grooves, flats, squares, also drilling at any angle. Finish : Amazon Green

Size : 7x10"

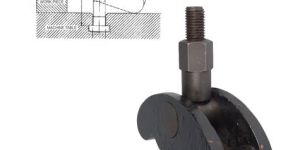

Universal Strap Clamp (With T-bolt & Special Nut) (For Power Presses, Milling, Drilling, Shaping, Boring Machines Etc.)   Features : Useful for job clamping on "T" slot table of Drilling, Milling, Shaping, Boring and Power Press etc. No support is required at the rear of the clamp. Since the body of the clamp is self-positioning. The body positions itself with the help of swivel hinge according to the thickness of the workpiece.

SG701A : Universal Precision Machine Vice SG720 : Precision Machine Vice (Swivel Base) he most versatile of all machine vices with all degrees of freedom, the Universal Vice allows the work piece to be set at any desired angle. The specific advantage of this Vice is its ability to be set perpendicular to the base, thereby allowing right angle machining on the same machine setting. Allows for the job to be set at low heights, particularly suitable for the most complicated grinding applications. Fully graduated 360° swivel base allows complete rotation along the vertical axis. The third angular side with a moving axis allows for any setting in the 3D plane. Sliding jaw runs on accurately ground surfaces fitted with hardened steel keep strips ensuring perfect alignment and rigidity. All swivelling movements have positive locking. "Hold Down" slots allow for secure clamping of the vice on the work table. Application : Primarily designed for use on Surface, Universal and Tool and cutter Grinding Machines. Its sleek and slender design has endeared it to many engineers who look for precision and versatility. Construction : S.G.Ductile Iron Frame Jaw plates are hardened steel with accurately ground surface. Use of hi tensile grade 10.8 fasteners provides strength and rigidity to these vices. Supplied complete with steel handle. Supplied Complete with Steel Handle. SG720 : S.G. Ductile Iron Frame Finish : Hammer tone metallic blue.

Dividing head can divide in any angle by the direct, in-direct, or differend methods. The ratio between the warm and the warm gear is 1:40. The body is made of close grained cast iron precisely machined to close accuracies. The swivel clamping pad is made from aluminium which helps eliminate any damage to the measuring device.

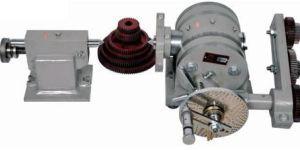

Dividing head can divide in any angle by the direct, in-direct, or differend methods. The ratio between the warm and the warm gear is 1:40. The body is made of close grained cast iron precisely machined to close accuracies. The swivel clamping pad is made from aluminium which helps eliminate any damage to the measuring device. Universal Dividing Head Size - 115mm, 127mm, 140mm, 165mm, 190mm   Features : Dividing head can divide in any angle by the direct, in-direct, or differend methods. The ratio between the warm and the warm gear is 1:40. Construction : The body is made of close grained cast iron precisely machined to close accuracies. The swivel clamping pad is made from aluminium which helps eliminate any damage to the measuring device. Finish : Powder Coated

Size : 115mm, 127mm, 140mm, 165mm, 190mm

Features : Use these Vices on your Drilling machines for cutting Key-ways, doing light jobs, making milling attachment for your lathe, making cross-sides for your wood lathes and numerous other uses. Vice fits on any Drilling Machine. Finish : Amazon Green Specifications :

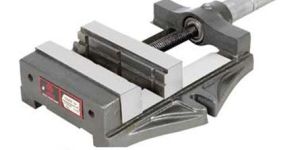

Small compact and indispensable Vices with steel jaws. On the face of which are grooved horizontal and vertical notches for holding, round, square, thin & irregular work for drilling & light milling. Vices are equipped with a convenient unigrip mechanism. Spindle moves inside the hollow hand grip allowing the vice to be used at a location away from table edge. This feature increase the scope of application of the range of vices. Finish : Hammer tone mid grey. Code SG710 : SG Ductile Iron Body Finish : Hammer tone metallic blue.

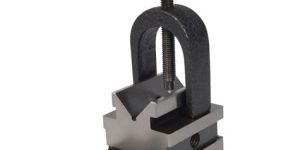

Features : Capable of being used on base, on end flat on either sides as the clamp is within the outside width of the block. Adjustable side screw with cap in the clamp supports the block and prevents tilting during drilling, milling or grinding operations. Four 3/8"-16 tapped holes, two in the base and one on each side allow attachment to an angle iron which can then be attached to a lathe face plate or held by a magnetic chuck Grooves at the stepped end, right angled to the base, provides handy means for holding shouldered stud, round Pins etc. Construction : Manufactured from Selected Steel, Vee Blocks are fully hardened and ground.

Split second clamping & unclamping of job. Most versatile application. Ideal & efficiency booster for mass production.

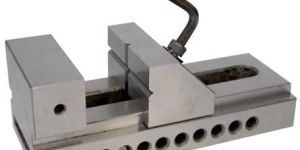

Features : The rapid positioning notches allow the vice to be locked in any position by means of an allen key provided with the vice. Vee grooves in the sliding jaw, both horizontal and vertical, facilitate holding of round jobs. Jaw pressure on work piece is forward and downward for repeatable positioning and maximum holding power Application : The vices are particularly suitable for erosion work. Construction 772 : Manufactured from Selected Carbon Steel, these soild one piece vices are fully hardened (45-50 HRC) and tempered to ensure stability and durability. Accuracy : Parallelism : within (15 Microns) Perpendicularity : within (15 Microns) Construction 772T : Manufactured from Tool Steel Body, these soild one piece vices are fully hardened (52-60 HRC) and tempered to ensure stability and durability. Accuracy : Parallelism : within 8 microns Perpendicularity : within 12 microns

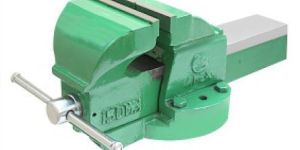

Tool Maker's Bench Vice ( Fixed Base   Features : The whole mechanism is designed for safety in depth so that the handle will bend before the body is over stressed. Amargin of safety which we build into every Apex Vice. Construction : Nut : Bronze Acme Thread. Finish : Enameled Opaline Green

Features : Special design for angle setting on various machine tools. Low profile for larger working space. The table is set manually to the required Tilt and is locked in the set position by means of two locking clamps held through bolts. Can be adjusted by 45° on both right-hand and left- hand side. The angle marking are accurate and easy to read. Application : Useful accessory for setting work at an angle for milling or other operations. Construction : Cast Iron Stress Relieved Tilting Table. The unique design on Connecting Plate and 360° Graduated Swivel Base, making it possible for the Angle Plate to do rotation at any angles. Finish : Hammer tone mid grey.

Size : 5x7", 7x10", 10x15"

  APEX Code 723 Tilting Table ( Size : 5x7", 7x10", 10x15" )   Features : Special design for angle setting on various machine tools. Low profile for larger working space. The table is set manually to the required Tilt and is locked in the set position by means of two locking clamps held through bolts. Can be adjusted by 45 degree on both right-hand and left- hand side. The angle marking are accurate and easy to read. Application : Useful accessory for setting work at an angle for milling or other operations. Construction : Cast Iron Stress Relieved Tilting Table. Finish : Hammer tone mid grey.

Size : 5x7", 7x10", 10x15"

Features : Manufactured to consistent accuracy to give prolonged reliable service. Bearing Surface Precision ground. Flatness within 0.0012" (30 microns) Once locked impossible to shift. Totally enclosed acme screw with three point location of operating in Manganese Bronze Nut. Tenon Slot machined in back as standard for CNC use. Swivel base graduated through 360° Vertical Tilting Capacity 90° Application : Suitable for Milling - Grinding - Shaping- Drilling and Jig Boring. Construction : These Vices are manufactured from close grained Hi Tensile seasoned Cast Iron. Jaws : Fully hardened (50±3 HRC) and ground tool steel jaws with parallelism within 0.0012" (30 microns) Spindle : Precisely cut ACME threads with pitch most suitable for firm gripping and smooth operations. Nut : Hot stamped manganese bronze nut contained in totally enclosed sliding jaws. Fasteners : All fasteners used in the vices are grade 10.8 which provide extended strength and rigidity to these vices Supplied Complete with Steel Handle. Finish : Amazon Green Code SG701 : SG Ductile Iron Body Finish : Hammer tone metallic blue

Tilt Lock Machine Vice Unbreakable Ductile Iron Cast Body Features : Tilt Lock Machine Vice design is beamlike with two vertical and horizontal rails connected to the base. You can hold piece parts in the most immobile state possible. Flame Hardened Bed. All parts interchangeable and available as spares. Three Basics in precision Clamping That the movable jaw does not lift off the bed. That the body is rigid, and that a minimum amount of bending stresses are created in the clamping area. That deflection of the stationary jaw is minimized. Totally enclosed toughened Screw. Accuracy in Parallelism & squareness within 0.02 mm. Construction : Unbreakable ductile iron cast body. Die Steel (EN-31) hardened & ground jaws. In addition to the rigid design charactereristics, a large heavy nut is drawn up againest the machined ways on the inside vice as the movable jaw is drawn down. This creates a heavy mass of material under compression and extremely resistant to bending stresses. 4 Jaws Plate positions allowing extra capacity with the jaw plates in the outside position. Tilt Lock Machine Vice Unbreakable Ductile Iron Cast Body (735 - Swivel Model) (735P - Plain Model)

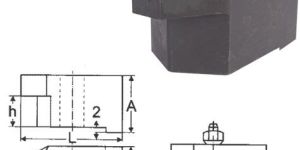

Low height side clamps which leave the entire surface free for machining. Improved design of the clamping jaw applies wedge type action thereby exerting equal side & downward pressure with maximum clamping force. The compound movement of the two jaws creates the drawing action. This clamp is more useful than flat clamp Code 902 due to full serration of the jaws to clamp thin material. Effective & rigid clamping of flat job is done irrespective of the size of job. Application : Used on milling, planing & where high clamping force is required. Construction : Made of Hardened steel. Finish : Black Oxidized.

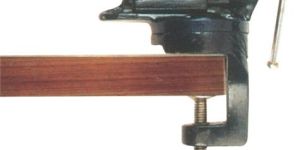

Features : With integrated clamp which permits easy filing to work on bench or table. Applaication : CRAFTSMAN'S VICES Ideal for use by WATCH MAKERS GOLD SMITHS MODEL MAKERS AND DYE ENTHUSIASTS for any light duty jobs. Construction : Manufactured from high quality Grey iron casting, these are machined to close to tolerance resulting in smooth operation and reliablity. Screw, handle & guide rods of high quality steel in Chrome Plated finish. With Swivel Base Finish : Metallic Silver & Silver Grey.

Size : 1.1/4", 1.5/8", 2", 2.3/8", 3"

Features : Hobbyist Vice for application that involve working in confined spaces. With Swivel Base. Finish : Metallic Silver & Steel Grey

Size : 1.1/4

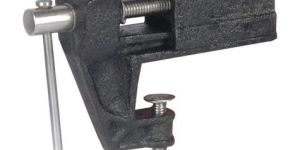

Features : Hobbyist Vice for application that involve working in confined spaces. Finish : Metallic Silver & Steel Grey

Size : 1.1/4", 1.5/8", 2", 2.3/8", 3"

Features : With integrated clamp which permits easy filing to work on bench or table. Applaication : CRAFTSMAN'S VICES Ideal for use by WATCH MAKERS GOLD SMITHS MODEL MAKERS AND DYE ENTHUSIASTS for any light duty jobs. Construction : Manufactured from high quality Grey iron casting, these are machined to close to tolerance resulting in smooth operation and reliablity. Screw, handle & guide rods of high quality steel in Chrome Plated finish. Finish : Wrinkle Black

Size : 1

features : Material : Carbon Steel, hardened & tempered to 24-32 HRC hardness, chemically blackened. Application : For tool plate holding and as holding element in jigs & fixtures

T-Slot Nut IS 2015-1977 (In accordance with DIN 508 Standard) Application : Useful of the machines having 'T' Slots, jig fixtures, hydraulic elements, assorted setting elements and adopters. For use along with studs for work holding fixtures etc. Construction : Hardened and tempered steel Class 8.8 (8G) R=80/90 kg/mm2 . Finish : Burnished

Type : T-slot Nut

Material : MS, SS

Color : Black
