Single Phase Induction Motor
Get Price Quote
10 Piece (MOQ)
CONSTRUCTIONAL DETAILS : Pump Casing :- It is made of graded casting FG 200 of IS:210 to withstand both working pressure as well as sudden Impact. Impeller :-It is made of Bronze Grade LTB2 of IS : 318 to withstand wear and tear, having vanes machined to smooth finish for highrt efficiency. Shaft :- The shaft is made from alloy steel, accurately finished to microns to ensure Long Life of the bearing and Pump. Machanical Seal :- Rotary Seal of Stainless steel spring, with fine lapped surface is used. Motor Frame or Enclosure :- It is made of graded casting of high tensile strength also available in alm, extruded body and is totally enclosed fan cooled type. Cooling ribs are provided both on Cl and alm. Body to facilitate heat dissipation thus improving motor life. Bearing :- High speed or equivalent Imported bearings are used and mounted on shaft by press for smooth running, low noise and loge life. Non-Return Value :- The monoblock pump is fitted with specially designed spring loaded non-return valve, which doe not allow water to return in the suction line and helps in priming when pump is switched on. Starting ;- Motor is of capacitor Start & Run design. No centrifugal switch is required, Winding :- Motors are manufactured with insulation class’B’ Modified polyster enameled Copper wire which is tested as per IS : 13730 is used for winding of motors. Additionally high quality and mechanical strength material is used for slot insulation. Stator Varnished in vaccum empragnated plants. Packing :- Monoblock pump is packing in corrugated box with polythene lamination with durable adjustable packing inside for prevent the to and fro in transpotation. Warranty :- Pumps are warranted or a period to 12 months from the date of despatch against any manufacturing defects in material, workmanship under normal use and service. After Sale Service :-Efficient after sale service is provided through dealer network and all spare parts are ready made available.

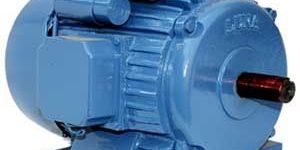

Induction Motor
Get Price Quote
We are a reckoned as a chief Induction Motor Manufacturer, Exporter & Supplier from India. The Induction Motors offered by us are manufactured using premium quality of raw materials and known in the market for their smooth performance and longevity. Moreover, our Induction Motor can be customized as per the requirements of the clients. Available In Single phaseCapacitor startcapacitor run of ratings : 0.18 KW to 2.2 Kw in 2,4 & 6 Poles 0.18 kw to 15 kw in three phase, 2,4,6 & 8 poles Features Excellent torque performanceNoiseless OperationHigh operating efficiencyRobust, sturdy and maintenance free designsEasily mounting frameDesigned for wide voltage variationsDynamically balanced rotorRotors are of squirrel case, aluminium die cast Oil seals are provided to ensure IP-55 protectionThe motors are supplied with keys duly fitted over shaftMotor shafts made of 40 CS/EN-8 material, The shafts made of other materials such as AISI-304, 316, 431 can also be supplied on requestAll standard motors are fitted with deep groove ball bearings. These antifriction bearings capable to withstand axial loads in both the directions in addition to the radial loads. Applications Domestic flour millsWet grindersMachine toolsFloor polishersSewing machinesWood working machinesCompressorsDomestic, Vacuum & surgical pumps Technical Specifications Single Phase induction motors conform to IS 996 and three phase to IS 325Version : 180-240 V AC, 50 Hz-1ph & 380-440 V, 50Hz- AC-3PhDegree of protection : IP 44 / IP 55Type of Duty : Continuous [S1]Insulation Class : ‘B’ & ‘F’High Speed or Equivalent bearingsStampings made of electro grade steel sheetModified polyester enameled electro grade copper winding wireMotor enclosures and covers made of graded cast iron / steel sheetMotor assembly is carried out on hydraulic press
Best Deals from Induction Motor
squirrel cage induction motors
Get Price Quote
KALSI’ T.E.F.C. squirrel cage Three phase Energy-efficient induction motors are ISI marked as per IS 12615 : 2011 having insulation class B in 2, 4 and 6 pole design with Efficiency level IE2. These motors are tested to strict quality control for routine and Type tests at every stage of production and are ideally suitable for various industrial applications. Constructional Details MOTOR FRAME : Motor frame is made from robust cast iron of high tensile strengh with integral feet and is totally enclosed fan cooled type. Cooling ribs are provided on all faces to ensure equal dissipation of heat. STANDARDS : Performance characteristics of Three Phase motors conform to IS 12615 : 2011. The foot-mounted motors have standard dimensions as per IS : 1231 while dimensions of flange-type motors conform to IS : 2223. VOLTAGE AND FREQUENCY : Three-phase motors are designed for 415V ± 10%, 50 Hz ± 3%, A.C. Supply, Duty S1. PROTECTION : Motors have IP 44 degree of protection and confirm to IS : IEC 60034-5. Motors having IP 55 degree of protection are also available on demand. RATING : Motors are rated for continuous duty S1 with an ambient temperature of 40°C and altitude up to 1000m above mean sea-level. STATOR : Induction type stators built of hydraulically compressed high silicon steel insulated laminations, rigidly cleated, wound with super enamelled copper wire, impregnated with best quality stoving vanish and provided with high class insulating materials. ROTOR : The motors are provided with high-pressure aluminium die-cast rotors to ensure improved reliability. All rotors are dynamically balanced on dynamic balancing machines for vibration and noise-free running. TERMINAL BOX : Standard motors are provided with terminal box positioned at right-hand side when looking at the driving end. Terminal box is of adequate size for easy connection & maintenance. INSULATION : The motors have Class B insulation. Motors of insulation Class F also available on demand. COOLING & VENTILATION : Type of cooling is IC41 as per IS: IEC 60034-6. All motors have external fans for cooling, ensuring dissipation of heat. TESTING : All electric motors are tested for electrical and mechanical tests at intermediate and final stages of production as per Scheme of Testing and Inspection for relevant B.I.S. Standard.
Induction Motor
Get Price Quote
Submersible Pumpset, high flow monoblock pump
Induction Motor
Get Price Quote
electrical stamping, actuator motor, Monoblock Pump, carriage fans
