Milling Table Dealers in Jalandhar

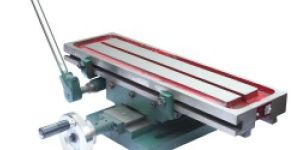

Profiling Milling & Slotting Slide

Get Price Quote

• Size: 18*5
• Specifications: Size in inches
• 18 x 5: Size of Table (in mm )
• 450 x 125: Length of Stroke (in mm)
• 115: Longitudinal Travel (in mm)
• 230: Cross Travel (in mm)
• 135: Working Area of Table (in mm)
• 400 x 90: Size of T-Slot (in mm)
• 10: Height of Centre (in mm)
• ...: Between Centre (in mm)
• ...: Direct Dividing Plate Division
• ...: Wheel calibration (in inches)
• .001: Height Overall (in mm)
• 140: Weight (app. in Kgs.)

ROTARY MILLING TABLE HORIZONTAL CUM VERTICAL

Get Price Quote

Direct reading to 2 minute for size 6",8" and 10" on hand wheel scale. . Direct reading to 1 minute for size 12",15",18" and 20" on hand wheel scale. . ACCURACY:- Maximum error 4 minutes of circular division using hand wheels. . Table flat to within 0.01 mm / 100 mm. . Working surface rotates in its own plane to within 0.030 mm. . Horizontal and Vertical supporting surface square with 0.01mm/100 mm. . Centre bush bore is true to table axis within 0.03 mm. . rotation of table is .025 mm . . The Base is provided with two bolt slots and both Horizontal & Vertical mounting on Machine Table.

ROTTARY MILLING TABLE (Horizontal

Get Price Quote

Direct reading to 2 minutes for size 6", 8" and 10" on hand wheel scale.* Accuracy : Maximum error 4 minutes of circular division using hand wheels* Working surface rotates in its own plan to within 0.03mm* Horizontal and Vertical supporting surface square with 0.01mm/100mm* Direct reading to 1 minute for size 12" on hand sheet scale & Table flatness within 0.01mm/100mm & Center bush bore is true to table axis within 0.03mm

Rotary Milling Table

Get Price Quote

Features : High accuracy, easy reading of all dias clear & functional of all operating elements, sturdy yet good looking practical design. These are widely used for circular cutting, angle cutting, boring and spot facing with a milling machine. Works as an index center in the vertical position, as well as conventional Rotary Table, graduated 360° Provision for fine adjustments when settings work piece. Efficient lock provided. Worm drive disengagement is quick and precise. An eccentric sleeve with thrust Bearing races encases the worm shaft. End play in worm shaft is adjustable. Application : ROTARY TABLES have a sturdy design to suit many machining operations on Milling Machines including circular cutting, setting angles and indexing. They are available in a range of sizes to suit various machines and machining applications. Construction : The table and base is manufactured from close grain shock resisting Cast Iron dully stress relieved Worm & center table bush made of selected steel. Inspection : Direct reading to 2 minute for size 6",8" and 10" on handwheel scale. Direct reading to 1 minute for size 12",15",18" and 20" onhand wheel scale. ACCURACY:- Maximum error 4 minutes of circulardivision using hand wheels. Table flat to within 0.01 mm / 100 mm. Working surface rotates in its own plane to within 0.030mm. Horizontal and Vertical supporting surface square with0.01mm/100 mm. Centre bush bore is true to table axis within 0.03 mm. Maximum parallelism error through 360° rotation of tableis .025 mm . The Base is provided with two bolt slots in 1115E : Both horizontal slots in & Vertical mounting on machine table. Finish : Hammer tone mid grey

Rotary Milling Table

Get Price Quote

Rotary Milling Table, garage jack, Compound Sliding Table

Rotary Milling Table Horizontal & Vertical

Get Price Quote

Rotary Milling Table Horizontal & Vertical, Drill Chuck
