Pressure Reducing Valve Dealers in Jalandhar

• Brand Name: Jainsons
• Feature: Long service life and high efficiency
• Place Of Origin: Jalandhar
• Maximum Inlet: 15 Bars
• Outlet Range: 0.5 - 6 Bars, Tested at 20 Bar
• Body: Forged brass
• Seal: Stainless steel, "O" Ring
• NBR Ends: Screwed BSP female ends
• Sizes: 1/2" to 1"
• Suitable For: For controlling the outlet pressure of water in various applications, such as, sanitary,domestic etc

Being a distinguished Manufacturer, Exporter and Supplier of Forged Brass Pressure Reducing Valve, we attempt to accomplish 100% customer satisfaction. Our wide range is manufactured using first-rate raw material. We meet the highest standards and parameters of quality set by the industry. Designs are made keeping different Specifications in mind. Its optimum performance, efficient design and longer service life is available for economical prices. Get the impeccable quality on offer delivered at your doorstep.Specification : Size Range Forged Brass - 15mm to 25mm Gun Metal - 15mm to 88mm Spring Loaded Piston Type Maximum Inlet Pressure – 15 Bar Hyd., Out Let Pressure Range – 0.5 to 6 Bar Material of Construction - Forged Brass / Gun Metal End Details - Screwed

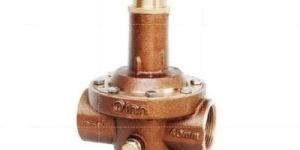

• Brand Name: Qinn
• Material: Bronze
• Product Details: Self Acting Spring Operated Pressure Reducing Valve
• End Details: Screwed Female To Bs:21
• Body: 18 Bar
• Seat: 16 Bar
• Reducing Pressure Range: 0.8 Bar To 8 Bar

• Material: Cast Steel
• Application: Water Fitting
• Color: Silver
• Pattern: Plain
• Pressure: Medium Pressure
• Feature: Light Weight, Non Breakable

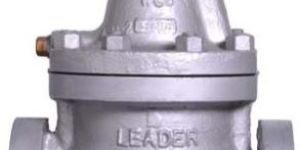

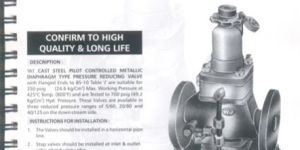

We deal in assorted range of Cast Steel Pressure Reducing Valve in India as well as in other countries like Africa, America and many more. Our Pilot Controlled Metallic Diaphragm Type Valve is accurately dimensioned by our experienced engineers. We offer different designed and sizes of Pressure Reducing Valve to meet the different requirements of our valued clients. We are one of the reliable Manufacturer, Exporter and Supplier to provide superior quality Cast Steel Pressure Reducing Valve at such lower prices. Technical Details : WJ' Cast Steel Pilot Controlled Metallic Diaphragm Type Pressure Reducing Valve with flanged ends to BS – 10 table 'J' are suitable for 350 psig (24.6 kg / cm2 Maximum working pressure at 425oC Temp. (800oF) and are tested to 700 psig (49.2 kg / cm2 ) Hyd. Pressure These valves are available in three reduced pressure ranges of 5 / 60, 20 / 80 and 40 / 125 on the downstream side. Instructions for installation : The Valves should be installed in a horizontal pipe line. Stop valves should be installed at inlet & outlet sides of reducing valve. A safety valve should be installed on the down stream side of reducing valve. A steam trap & a strainer should be installed on the upstream side just before the reducing valve. Clean all scale and jointing material from the pipe line before installing the reducing valve.  Testing and Certification : All Reducing valves are tested at double the max. Working Pressure. Each valve is supplied with IBR Test Certificate in Form C issued by the director of boilers, Punjab.

Salient Features Screwed Female Ends to IS 554 / BS 21 / ISO 7. Most ideal for sensitive and a consistent fluid regulation. Diaphragm-less, Piston Type. Piston-operated, hence more reliable than conventional diaphragm type PRV. Rugged body, compact-sized, easy to install. Provided with Premium Quality Nitrile Rubber ‘O’Rings. Demands low maintenance and virtually noiseless. Most of the critical working components have a distinct edge of being hot brass forged. Facility provided to install a Pressure Gauge of 1/4″ BSP size to gauge the critically relevant Outlet Pressure. Designed to suit every application requiring accurate pressure ratings. All ‘O’ rings are of superior food grade material, hence ensuring absolute zero health hazard. Test Pressure (Hydrostatic) : Shell : 35 bar Maximum Upstream Pressure : 25 bar Maximum Working Temperature : 80°C NOTE : At maximum inlet pressure 25 bar, the minimum outlet pressure will be 5.5 bar.

Integral Stainless Steel Strainer Fine Outlet Pressure Adjustment Long Spring Life Pressure Reduction Ratio up to 20:1 Easy Maintenance All Internal Components made of Stainless Steel APPLICATION   Steam Compressed Air Industrial Gases

• Material: Forged Brass
• Brand: Leader Valves
• Item Code: FLB 00255
• End: Screwed Female to BS:21
• Description: Diaphragm Type With Inbuilt Strainer
• Compliesto: Manufacturer Std
• Size Range: 80 mm
• Rating: PN-20
