Safety Valve Dealers in Jalandhar

• Type: Valve
• Brand Name: QINN
• Country of Origin: Jalandhar

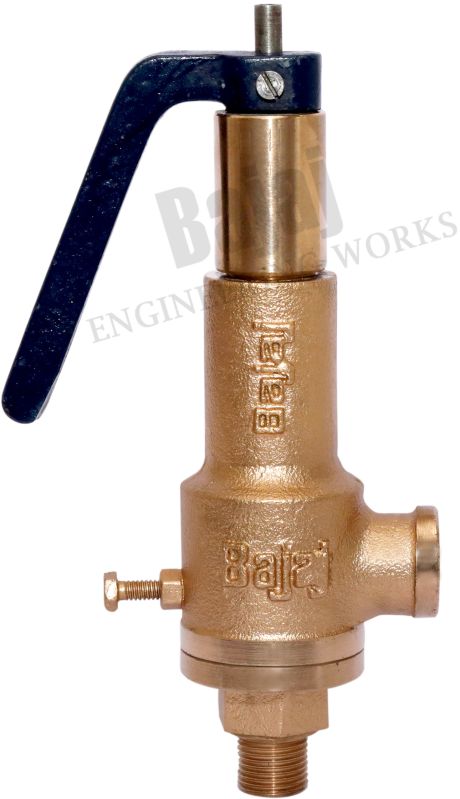

• Product Name: Bronze Safety Valve Open Discharge(Q-12)
• Model: (Q-12)
• Condition: Good
• Min. Order Value: 10,000

Description of Article Size inch.mm. QINNITEM1/23/411¼1½2152025 324050Bronze Safety Valve Open Discharge PRODUCT DETAILS :- SPRING LOADED WITH METALLIC DIAPHRAGM FLANGED ANSI B 16.1:- (FLANGES ALSO AVAILABLE AS PER DIN, ISI CLASS 125, 150, 250, 300) PRICES TO BE QUOTED ON DEMAND, UNDRILLED(CAN BE DRILLEDAS PER CUTOMER REQUIREMENT PRICES EXTRA) END DETAILS :-SCREWED MALE INLET BSP TAPER & FEMALE OUTLET BSP PARALLEL THREADS TO BS : 21 SEAT TEST PRESSURE : 300 psig. HYD

• Material: Cast Steel
• Feature: Durable, Good Quality
• Max. Pressure of 250 Psig: 17.58 kg / cm2
• Max. Temp.: 800oF (425oC)
• Inlet Flange to BS: 10 Table (J)
• Outlet Flange To BS: 10 Table (D)

We offer a comprehensive range of Cast Steel Safety Valves in Jalandhar, Punjab. Our Safety Valves are highly efficient and suitable for pressure vessels. Cast Steel Safety Valves, we provide, are fabricated with high-grade stainless steel to ensure durability and high performance. Our Safety Valves are designed in a single post full lift design but we can also modify it as per the requirement of clients. Salient Features : These Safety Valves are designed in such a way that instantaneous full lift of the seat is achieved. Each Safety valve is provided with an easing lever. To Avoid unauthorised alteration to the set pressure the adjusting screw and check nut are consealed by a cap which is attached to the valve spindle by fork and pin. Testing and Certification : All Safety Valve Bodies are Tested at 500 pisg (35, 15 kg/cm2) hyd. All valves are set at Max. Steam Pressure of 250 psig (17.58 kg / cm2). Each Valve is supplied with IBR test Certificate in Form III-C issued by the Director of Boilers, Punjab.

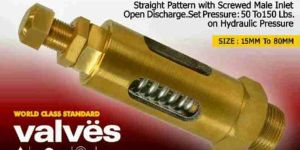

• Set pressure:50 to 150lbs on hydraulic pressure: Straight pattern with screwed male inlet Open discharge

We are offering Spring Safety Valve. straight pattern with screwed male inlet open discharge set pressure:50 to 150lbs on hydraulic pressure size: 15mm to 80mm.

We are counted in one the best Spring Safety Valve Manufacturer, Exporter and Supplier in worldwide market. We supply Spring Safety Valves in a wide range of sizes and designs. You can also place order for customized Spring Safety Valve as per your requirements. We are known for delivering all orders of various sizes in the set time frame. You can purchase best Spring Safety Valves in very reasonable price.

• Structure: Other
• Power: Hydraulic
• Place of Origin: India
• Media: Other
• Standard or Nonstandard: Standard
• Port: Mumbai

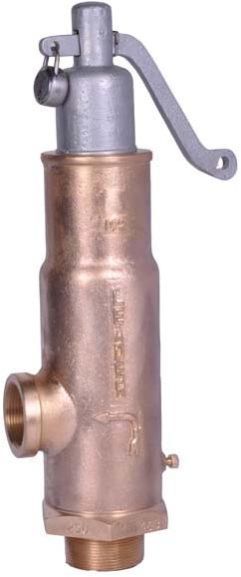

With our expertise in the industry, we are engaged in offering the best range of Safety Relief Valve. Being an excellent Manufacturer, Exporter and Supplier, we strive to live up to our reputation. It is cherished for its high performance. Its excellence is tallied to the quality as required by industrial standards. We make it available in protective packaging to keep it safe for a long time. Get in touch to avail it at pocket friendly price.Specification : Hi-Lift Type, Pop Type, Enclosed Discharge/Open Discharge Size Range - 15mm to 80mm Working Pressure - Max-150 psig Material of Construction - Cast Iron, Carbon Steel, GM End Details - Screwed/ Flanged

• Body design condition: PN 16
• Max. Allowable pressure: 10barg @225˚C
• Max. Allowable Temp: 225˚C
• Max. Operating pressure: 10barg @180˚C
• Max. Operating temp.: 200˚C
• Set Pressure Range: 0.5 barg to10 barg
• Max. Hydraulic Body Testing: 24 barg
• Connections: Screwed & Flanged ends

The Cr-V spring & novel disc & seat design provide reliable bubble – tight seal. Excellent re-seating ability. It features heavy-duty hood & lever mechanism, and a short tuned blow-down which adjusted with a       single ring to meet specific requirement. It can be used for ASME section VIII application at 150psig pressure rating. APPLICATION Boilers, piping lines and vessel protection, including fired and unfired pressure vessels. Power plants and heat exchangers cycles. Pressure reduction & air system. Chemical and pharmaceutical plants & food industry too. Refineries and pulp & paper mills. Pressure booster systems of water & air.

Spring Loaded Safety Valve Bronze / Stainless Steel ENCLOSED DISCHARGE WITH SG IRON CHAMBER. SCREWED MALE INLET AND FEMALE OUTLET TO BSP THREADS.

spring loaded high lift safety valve, bronze heavy globe steam stop valve

Safety Relief Valves, Cartridge Butterfly Valve

Safety Valve, Check Valves, feed accessible check valve, pipe valves

Safety Valves, Sluice Valves, Relief Valves, Reflux Valves, reducing valves
