Steel Gate Valves Dealers in Jalandhar

We as a Manufacturer, Exporter and Supplier of Forged Steel Gate Valve take pride in being the one stop destination in market. It is fit for use for various purposes across the industries. It is sturdy and durable as it is made of first-rate raw material. For our customers, we make it available in different sizes to match their demands. Get the impeccable quality on offer delivered at your doorstep.Specification : Bolted/ Welded Bonnet Size Range - 15mm to 50mm Product Standard - API - 602 /BS - EN ISO15761/ASME B 16.34 Pressure/Class Rating - Class - 800 to 2500, Material of Construction - CS, SS, AS & Duplex Steel, Monel etc. Ends - Screwed/ BW / Flanged / Socket Weld

• Material: Cast Steel
• Application: Water Fitting
• Color: Silver
• Pressure: Medium
• Feature: Corrosion Proof, Good Quality
• Finishing: Polished

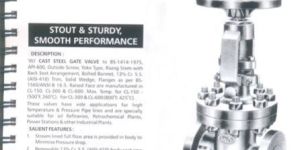

We are prominent Manufacturer, Exporter and Supplier of Cast Steel Valves in Jalandhar. We deal in stout and sturdy Gate Valves, which are fabricated using high grade steel to ensure high performance. We have experience of more than two decades and therefore we are able to provide flawless Gate Valves. Our Cast Steel Gate Valves have wide application for high temperature & pressure pipelines, oil refineries and many others. Our Gates Valves are available at reasonable prices. Technical Details : W' Cast Steel Gate Valve to BS - 1414-1975, API-600, Outside Screw, Yoke type, Rising Stem with back Seat Arrangement Bolted bonnet, 13% Cr. S.S. (AISI – 410) Trim, Solid Wedge, Flanges as per BS – 15060/ANSI-B 16.5 Raised Faces are manufactured in CL – 150, CL – 300 & CL – 600. Max. Temp. For CL – 150 – (500oF, 260oC) For CL – 300 & CL – 600 (800oF, 425oC) Salient Features : Stream Lined Full Flow Area is provided in body to minimise pressure drop. Renewable 13% Cr. S.S. (Aisi-410) body Seat ring and disc have at least 50 HB difference in hardness. Bolted Self aligning two piece gland. Back-Seat provision is provided to facilitate on line replacement of gland packing under pressure when value is fully open. Ample Depth of stuffing box. Sturdy hand wheel is provided for easy operation of valve. Testing and Certification : If required these valves can be supplied with IBR test Certificate in Form C issued by the director of Boilers, Punjab.

  Specification & Features:Conforming to BS : 1414 / ANSI B16.34 / API 600Flanged ends to ANSI B16.5 CL-150 RFOutside screw, yoke type, rising stem, bolted bonnet.Renewable S.S 13% Cr. (AISI - 410) Working Parts.Handwheel operated.

Salient Features Design Standard BS EN ISO 10434 / API 600. Bolted Bonnet, Outside Screw, Yoke Type, Rising Stem. Renewable 13% Cr. Stainless Steel (S.S 410) working parts. Handwheel Operated. Flanged Ends as per ASME B 16.5 Class-150. Test Pressure (Hydrostatic) : Shell : 31 kg/cm²g (425 psig) Seat : 21kg/cm²g (313 psig) Seat (Steam) : 10.55 kg/cm²g (150 psig) Maximum Working Temperature : 425°C

Bolted Bonnet, Outside And Yoke Type, Rising Stem

Bronze Check Valve, Pressure Balanced Plug Valve

flanged pipes, Double Flange Tee, Eccentric Reducer, Flange Spigot
