Taping Machine Dealers in Jalandhar

We are offering tapping machine.

Our company is a prominent Drilling & Tapping Machine Manufacturer. The Drilling & Tapping Machine offered by us is made from excellent quality basic materials including Metal Components and Metal Fasteners. Developed as per the current market requirements, these Drilling & Tapping Machines are chiefly designed with robust composition and easy to operate features. Our Drilling & Tapping Machines find great application in industries like Mechanical, Machine Development, Construction, etc. The Drilling & Tapping Machines offered by us are quality tested and ensures high performance. Salient Features Model S-Itco DM-TM is a heavy duty machine having drilling capacity in Steel 20mm, CI 22mm andTapping capacity in Steel 12mm, CI 16mm and has 8 spindle speedsHighly versatile for Tapping, Drilling, Reaming and screwing at preset depthSimple to install, simple to operate, no extra skill requiredDual operation of Tapping and Drilling without any extra attachment. The mere flick of switch sets the machine from Tapping to Drilling and vice-versaAutomatic reversal of spindle at preset depth and changes the direction of spindle automatically back to normalSimple back gear arrangement facilitates 8 spindle speeds to suit the cutting speedsEmergency reversing foot switches to avoid tap breakageBeing an electrical switch gear unit no wear and tear and hence no maintenance is requiredMachine Accuracy as per IS 2425 Technical Specifications Drilling capacity in Steel20mm Drilling Capacity in Cast Iron22mm Tapping Capacity in Steel12Tapping Capacity in Cast Iron16Morse Taper in SpindleMT-2Spindle Travel125Pillar Diameter72Piller Length1065Distance BTW Centre of Spindle & Pillar Front206Max Distance BTW Spindle & Table410Max Distance BTW Spindle & Base785Table Working SpaceRound - Ø 325Square - 280 x 280Base Working Surface (Machined)265 x 290Overall Size of Base571 x 310No of spindle speeds8Range of spindle speeds (rpm)80-150-250-430-510-920-1590-2850 V BeltA 45 Motor1H.P, 1400rpm, 3 Phase Net Weight120kgSpace Occupied (LxBxH) 710 x 530 x 1350

Itco INDIAN ENGG CORP is manufacturing, exporting & supplying state of art Drilling cum Tapping Machine in INDIA & abroad. These Tap Drill machines are custom designed and fitted with special best quality bearings. Reliable branded electrical components are fitted in tapping attachment / electrical panel for economical high precision production of drilling and tapping operation. This Universal Tapping machine is suitable to tap any type of thread inside a vertical hole. One can do threading in Metric or BSW threads, Left Hand (LH) or Right Hand (RH) threads depending upon the machine tap selected. Tapping Drill sizes are selected from drill and tap chart. Working of this electric tapping machine is very simple. There are two limit switches operated by means of an adjustable cams which are used for Tapping in blind holes. While tapping through holes foot control switch is provided. These are semi automatic tapping machine i.e. the operator has to bring the tap towards the hole by manual action and once few threads are cut (1 to 2 nos) no further hand feed is required and the tap automatically advances towards the depth set and withdraw back successfully to home position. To switch between drilling and Tapping process mode a selector switch is provided. Machining of External threads is also possible by using a special purpose tapping tool. These Vertical Tapping machines are simple to operate, very accurate and offers a unique combination of drilling & tapping operation suitable for mass production/ tool room jobs. SALIENT FEATURES Drilling cum Tapping machines are Highly versatile for Tapping, Drilling, Reaming and Screwing at preset depth. Simple to install, simple to operate, no extra skill required. Dual operation of Tapping and Drilling without any extra attachment. The mere flick of switch sets the machine from Tapping to Drilling and vice-versa. Automatic reversal of spindle at preset depth and changes the direction of spindle automatically back to normal. Simple back gear arrangement facilitates 8 spindle speeds to suit the cutting speeds. Emergency reversing foot switch to avoid tap breakage. Being an electrical switch gear unit no wear and tear and hence no maintenance is required Machine Accuracy as per IS 2425

• Country of Origin: Made in India
• Usage/Application: Indutrial
• Spindle Travel: 75mm
• Table Working Surface: 145*145mm
• Approx. Weight: 50KG
• Cap. In Brass: 7mm
• Cap. In M.S: 6 mm
• Column Diameter: 47mm
• Spindle Center To Column: 82 mm
• Distance Chuck To Table: 82 mm
• Tapping Depth: 30 mm
• Overall Heightr Front Width: 26.1*20" * 9.3/4
• V- Belt Section: A/38
• Electrical Motor: 0.50H.P

• Type: Tapping Machine
• Usage: Drilling
• Weight: 100-1000kg, 1000-2000kg, 2000-3000kg
• Color: Black, Brown, Grey, Light White, Sky Blue, White
• Voltage: 110V, 220V, 380V, 440V
• Condition: New, Used
• Operating Mode: Automatic, Fully Automatic, Semi Automatic
• Power: 0-5Kw, 5-10Kw
• Driven Type: Electric, Hydraulic, Mechanical, Pneumatic
• Warranty: 1year, 2years

• Functions: Drilling , Tapping, Boring
• Automation Grade: Semi-Automatic, Manual

In case of blind holes tolerance is required between bottom surface and tap depth. The tap tool is held in tap sleeve which fits in the spindle Morse taper of these machine taps. ITCO tapping machine is very accurate and productive machine which successfully passes the thread gauge test.

In Tapping Machine, tapping or threading operation is done along with drilling. This machine is most suitable in areas where operator needs to perform drilling and tapping operations without opening the job such as using a quick change chuck. The tapping attachment is fitted on the motor plate that is fixed on the machine body. The tap when completes the desired depth is reversed automatically by the limit switch. The tapping attachment has a toggle switch with options of limit control and foot control. When the tapping is done for a blind hole then we move the toggle switch upwards to ‘limit control’ and set the depth with two small stoppers fitted on the main rod. For the tapping in a though hole then you move the toggle switch to ‘foot control’ option and complete the tapping using the foot switch. Here the stoppers and limit switch is not used. The tapping operation starts by engaging the tap to the hole and the tapping tool itself takes its own movement to complete the depth of thread. So no effort is needed during the tapping cycle.

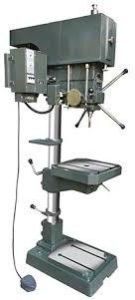

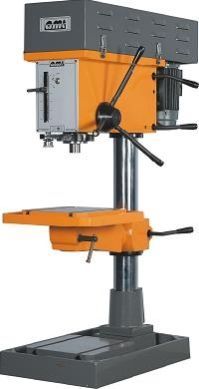

Drilling Cum Tapping Machine, Bench Drilling Machine

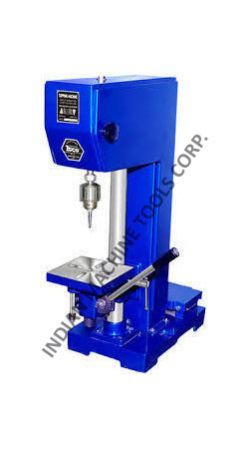

Tapping Machine, Packaging Equipment, Shrink Tunnel Machine
