Distribution Transformers Dealers in Jalandhar

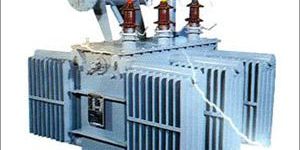

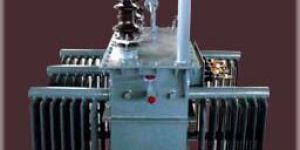

We are offering distribution transformer. We offer our clients with electricity transformer which are designed for quite operation. These power distribution transformer are available in a wide range of output voltage as per customer requirements. These are easily installable and efficient quality distribution transformer. The cores are well laminated so that transforming ratio may be perfect. These distribution transformer have been specially designed to bear heavy loads. Proper insulations have been provided so that safety can be provided to all workers and electricians working around the transformer.

Main Features 1) Magnetic circuit - Lamination CRGO M3 to M5, MOH and ZDKH type 2) Electric circuit - Electrolytic grade 99.9% pure copper 3) Dielectric circuits - Electric grade press paper, boards and mineral oil 4) Thermal circuit - ONAN through natural convection for effective cooling through axial and radial ducts Specific Features 1) Designed for trouble-free performance 2) Design conforms to IS 2026, BS171, IEC76 and other relevant standards 3) Low power loss and low noise 4) Designed to withstand electrical impulses and thermal and dynamic stresses 5) Optimum utilization of active materials for compactness 6) Modern manufacturing techniques ensure cost effectiveness, reliability and a long trouble-free performance Specifications 1) 3 phase, 50 Hz in voltages of 11kv, 22kv, and 33kv 2) Off-circuit tap changer to provide +5% to -10% taps in steps of 2.5% 3) Class A insulated 4) Vector group Dyn 11 5) Continuous duty 6) Copper wound as per relevant standards 7) Paintings as per IS-5 specification 8) Both HV & LV side cable boxes Standard Fittings 1) Rating & Diagram plate 2) Earthing terminals 3) Lifting lugs 4) Thermometer pocket 5) Off-circuit tap switch 6) Air release hole with plug 7) Oil conservation with drain plug 8) Pressure relief valve 9) Jacking lugs 10) Inspection cover 11) Oil level indicator 12) Drain-cum-bottom-filter valve 13) Top-filter valve with plug 14) Uni-directional rollers 15) Silica gel breather 16) Cooling radiators Optional Accessories on request 1) Bucholtz relay with alarm and trip contact 2) Oil temperature indicator with alarm and trip contact 3) Winding temperature indicator with alarm and trip contact 4) Magnetic oil level gauge with alarm contact 5) Marshalling box to house O.T.I. and W.T.T. 6) Neutral C.T 7) Shut-off valves
