Shri Krishna Welding & Engg. Works Kalpi, Jalaun, Uttar Pradesh

we are offering three roller mill. we are counted amongst the well-reputed three roller mill machine manufacturers in india. the three roller mill is designed using the advanced technology to make the mill a perfect match to the international quality norms. the three roller grinding mill is used for applications like grinding, separating and conveying. shri krishna roller mill with integral separator provide an automatic dust free complete system for medium to fine grinding and classification of wide variety of mineral and chemicals as well as simultaneously removing surface moisture from many products while they are being ground. principals of operation the grinding operation in “shri krishna” roller mill is performed on the principal of attrition and compression, which results due to the centrifugal force generated from the suspended rollers inside a stationary bull ring. the material to be pulverized enters the grinding chamber through an automatic feeder and falls over the mill floor. there it is scooped up by steel ploughs in to the nip space between the rollers and bull ring where grinding takes place. a constant quantity of air is circulated through the mill and system. the air from blower enters the mill through a series of tangential ports round the bases of grinding chamber and sweeps the fine and medium fine materials to the classifier above the grinding chamber leaving no ground material in the chamber and allowing the rollers to work efficiently crushing coarse material. the classifier separates pulverized material and coarser particles return to grinding chamber for further size reduction. fine material is carried by air to the cyclone air separator where air and ground material are separated and collected. the clean air is returned to the blower for close circuit operation. dustless operation for providing dustless operation, the mill is operated under negative pressure and is equipped with a dust collector system where any surplus air in the circuit is vented and fine dust is collected in dust collector bags. salient features grinding chamber : fitted with a main vertical shaft carrying a cast steel spider from which roller assembly are suspended. these alloy steel rollers run on their own antifriction bearing while travelling around the rind. steel ploughs are firmly attached near the bottom end of this shaft. the base of roller ills is of heavy duty cast iron and provided with tangential ports through which are enters the mill. a replicable bull ring of alloy steel is fitted in this base against which rollers revolve. the main shaft is driven by an internal bevel gear box having horizontal drive shaft fitted with a pinion. the automatic feeder is also driven by the same driven shaft through a chain sprocket or a belt pulley arrangement. blower : - suitably designed m. s. fabricated type or c. i. casted having independent drive. classifier : - shri krishna rollers mills are equipped with double drive cone or whizzer type classifier depending on the type of material to be pulverized. the fineness of ground powder can be controlled in both types. arrangement is built in to return oversize material for re-grinding. the selection of type of classifier is governed by the duty they have to perform viz. desired fineness and the type of material. cyclone air separator : cyclone air separator is made of mild steel sheet with supporting structure and flanges. automatic feeder : rotary type of cast iron body. it is designed to take care of quantity and size of feed material and provided with pawl and ratchet mechanism.

We are counted amongst the well-reputed Three Roller Mill Machine Manufacturers in India. The Three Roller Mill is designed using the advanced technology to make the mill a perfect match to the international quality norms. The Three Roller Grinding Mill is used for applications like grinding, separating and conveying. Shri Krishna Roller Mill with integral separator provide an automatic dust free complete system for medium to fine grinding and classification of wide variety of mineral and chemicals as well as simultaneously removing surface moisture from many products while they are being ground. Principals of Operation : The grinding operation in �Shri Krishna� Roller Mill is performed on the principal of attrition and Compression, which results due to the centrifugal force generated from the suspended rollers inside a stationary bull ring. The Material to be pulverized enters the grinding chamber through an automatic feeder and falls over the mill floor. There it is scooped up by steel ploughs in to the nip space between the rollers and bull ring where grinding takes place. A constant quantity of air is circulated through the mill and system. The air from blower enters the mill through a series of tangential ports round the bases of grinding chamber and sweeps the fine and medium fine materials to the classifier above the grinding chamber leaving no ground material in the chamber and allowing the rollers to work efficiently crushing coarse material. The classifier separates pulverized material and coarser particles return to grinding chamber for further size reduction. Fine material is carried by air to the cyclone air separator where air and ground material are separated and collected. The clean air is returned to the blower for close circuit operation. Dustless Operation : For providing dustless operation, the mill is operated under negative pressure and is equipped with a Dust Collector system where any surplus air in the circuit is vented and fine dust is collected in dust collector bags. Salient Features : Grinding Chamber : Fitted with a main vertical shaft carrying a cast steel spider from which roller assembly are suspended. These alloy steel rollers run on their own antifriction bearing while travelling around the rind. Steel ploughs are firmly attached near the bottom end of this shaft. The base of roller ills is of heavy duty cast iron and provided with tangential ports through which are enters the mill. A replicable bull ring of alloy steel is fitted in this base against which rollers revolve. The main shaft is driven by an internal bevel gear box having horizontal drive shaft fitted with a pinion. The automatic feeder is also driven by the same driven shaft through a chain sprocket or a belt pulley arrangement. Blower : - Suitably designed M. S. Fabricated type or C. I. Casted having independent drive. Classifier : - Shri Krishna Rollers Mills are equipped with Double Drive cone or Whizzer type classifier depending on the type of material to be pulverized. The fineness of ground powder can be controlled in both types. Arrangement is built in to return oversize material for re-grinding. The selection of type of classifier is governed by the duty they have to perform viz. desired fineness and the type of material. Cyclone Air Separator : Cyclone air separator is made of mild steel sheet with supporting structure and flanges. Automatic Feeder : Rotary type of cast iron body. It is designed to take care of quantity and size of feed material and provided with pawl and ratchet mechanism. Applications : Rock PhosphateActivated CarbonKaolineMagnesiteSulphurBarytesOrganic Insecticides (BHC DOT)GypumSynthetic ResinsDolomiteLime StoneChina ClaysAsbestosGraphiteHyderated LimeTaic PhosphatesCalcium OxideSilicatesPigmentsSoap � Stone, MarbleCoalBauxiteMagnesium OxideBentonite Specifications : SizeOutput MT/HPower ConsumptionMain MillBlowerClassifierAuto feed10.1 to 0.257.5102120.25 to 0.615203230.5 to 1.5253032 The above figures are only indicative and will vary from material to material. Other motors required 3 HP to 6 HP.

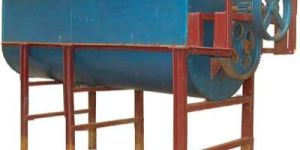

We offer the premium Ribbon Blenders of simple design and efficient working. They are known for their trouble free working because of their simple design. They are highly used in the various industries. Features : Made from mild steel plates/stainless steelTwo inlets on the topOne main overflow spout on the sideOne discharge outlet on the bottomThe body is fitted with shaft having M.S. SpidersRibbons and anti directional fins are fitted on M.S. SpidersThe driving is provided through reduction gear box Ideal to be used : For thoroughly mixing two pulverised dry powdersFor mixing small quantity of chemical in large volume of pulverised material Applications : Insecticide and Pesticide industryCattle & Poultry feedDyes & Paints Pigment industryChemical Industry

Our company is listed at the apex in the list of the most staggering high speed pulverizer machine exporters from india. The pulverizer machine is a multi-purpose machine that performs applications like grinding, blending, separating, conveying and drying. High durability, efficiency and economical have made pulverizer grinding machine the foremost choice of various industrial sectors. our pulverizer is a high swing type grinding mill pulverization is achieved by the impact of the grinding chamber. The fine powder is swept by the blower suction from the grinding chamber via whizzer cone. The function of whizzer cone is to check the oversize particles and thus to regular fineness sand is separated out from material from the grinding chamber by a special arrangement at an extra cost. the blower delivers the pulverized powder in the cyclone air separator. The powder is discharged from the cyclone spout. Lastly, the separated air returns to the grinding chamber to complete the air circle. The excess air is bled off through dust collector filter bags. The extra fines are collected there. our pulverizer is an ideal unit for grinding non-abrasive soft medium and hard minerals and also gram dal, tamarind seed. The pulverizer is manufactured from best raw material. The main body of the grinding chamber whizzer chamber and the blower are made of heavy duty cast iron every portion which comes in contact with the materials is lined with heavy duty steel plates. The striking face of the grinding chamber is lined with hard iron replaceable plates. Thus protecting the machine from wear and ensuring it for long life. The grinding chamber is provided with a pocket in which small pieces of iron nuts and bolts are trapped. The main drive shaft is run on two double row self aligning heavy duty ball or roller bearings.

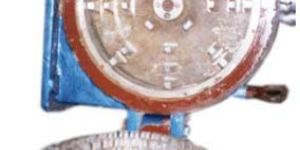

The Pin Mill Grinding offered by us gives maximum output with the consumption of minimum energy. Moreover, it undergoes a strict quality control check that ensures its premium quality. Hence it is the popular choice of a large number of customers. Features : Easily adjustedOffers range from a coarse granulation to finely ground powderGives close particle size for a similar productThe material can be ground is fed automatically in the centre Specifications : Feed Size Up to 6.00 mm is permissibleFineness Up to 40 mesh is achievableHardness Up to 3 MOH's scale is permissibleBrittleness Medium to High is permissibleMoisture Up to 3% is permissible Fitted with : Feed HooperSet of Fixed Beater PlateSet of Rotor PlateScreen Drum with Screen�V� Pulley for Machine Application Areas : Food processing industryDye and color industryPharmaceutical industryMining industryRare earth metallic ore

We are reckoned as one of the preeminent Vegetable Disintegrator Manufacturers in India. The array of the Disintegrators also includes Metal Disintegrators to meet the specifications of the respective applications. Moreover, the Disintegrators have received loads of appreciation in the worldwide market due to its durability, efficiency and economical. Description of Design and Working : Shri Krishna Disintegrators are well designed hammer mills of simple and sturdy construction. They are ideally suited where coarse grinding of soft and medium hard minerals and of vegetable products is required. The main shaft is the only revolving part, which requires no adjustment. This main shaft runs on ball / roller bearings and it contain fix / swing type hammers. The fineness of the finished products is controlled by the replaceable screens fitted on the lower half of the disintegrator body. The screens of desire mesh can be easily changed. All portions of the body where wear and abrasion is expected are lined with replaceable hard alloy liners. The grinding (or disintegration) is achieved by the impact of hammers against the liner fitted in the body, and the fine products passes through the screen of desired fineness. Range of Sizes : Shri Krishna Disintegrators are available in eight sizes of different production capacities and power consumption. Beaters : The beaters are of steel alloy forged and heat treated. Their tips are coated with hard alloy. Screens : There are two kinds of screens � Steel Screens : Having steel bars welded in steel frame for heavy work.Perforated Steel Plate Screens : Held in M. S. iron frame suitable to Fibrous materials and light works. Selection of Machine : It should be noted that for finer and of average heavy work, the medium size disintegrator is more suitable for coarse grinding. It is better to install coarse screen and shift in rotary shifter afterwards (if necessary) to separate fine mesh powder. Extremely finer screens, if used, continuously restrict the out-put, hence they should be avoided. The Disintegrators are supplied & fitted with one set of hammers and one pair of screens fitted in the machine. Specifications : SizeRPM'V' Belt Drive PulleyPower Required in HPODNo of Grover12350043B3 to 518300054B7.5 to 1022250054B10 to 1530220074C15 to 2036200085C20 to 25421800105C30 to 35481600105C35 to 40541400105C40 to 45 Technical Specifications : MaterialScreen Opening in inchesCapacityKgCwfArrowroot1/32 50010Bark1/4 75015Bones (Steamed) 1/870014Fish Manure, dried 1/83006Mica1/82004Myrabolam 1/321503Salt dried 1/1675015Soorkhi1/8100020Sugar1/163507Lime Stone 1/1675015 Capacity for other sizes : Capacity of size 12� is half, that of 18� about 3/4th of 30� about twice and of 36� about three times and of 42� about four times & of 48� about five times & 54�about six times than that of 22� size.

Shri Krishna Crusher is the product of long experience and skilled workmanship. We are recognized as one of the most dependable Jaw Crusher Manufacturers and Suppliers in India. The use of mild steel for the fabrication of the body makes the Industrial Jaw Crusher highly durable, efficient and economical. Further, Jaw Crusher is also available in the array loaded with all the advanced features. The Crushing is achieved between the fixed jaw held in the body and the swing jaw held in the jaw stock. The main driving shaft-which is eccentric, gives elliptical-to and fro motion to the jaw stock. The discharge opening is adjustable hence the size of the end product can be controlled by the control lever. The two heavy cast iron flywheels are provided to ensure steady running. Drive arranged either direct through the flywheels or through a suitable Pulley. Salient Features : Jaw Stock made of heavy duty cast iron/mild steel with provision to hold the swing-jaw.Swing Jaw are made of manganese alloy iron or steel and are replaceable, can be used both ends.Fixed Jaws are made of manganese iron alloy or steel and are replaceable, can be used both ends.Check Plates have two fold purposes. First it holds the fixed jaw with the body and secondly it protects the sides of the body from the wear.Tie rod made of steel. Meant for holding the jaw stock.Toggle Plate is made of cast iron. It imparts the Rolling motion to the jaw stock.Fly Wheels made of heavy duty cast iron for ensuring the smooth running and providing reserved power to the jaws. Bearing all bearings are heavy duty Ball Bearing and Roller bearing.Control Lever to adjust the discharge opening of the crusher. Technical Details : Size of MachineProduction Capacity in M Tons of Granite/Hour at discharge SettingRPMHP0.50.7511.522.536x30.250.50.71.0---3503 - 56x40.250.6 0.81.1---3503.59x50.751.001.252.0---2755-7.512x61.11.31.72.52.75--2257.5-1014x41.01.251.52.0---2257.5-1014x61.11.41.82.753.0--2257.5-1016x52.02.754.55.0---17515-2016x62.253.05.05.56.0--17515-2016x9-3.05.56.57.07.5-17520-2520x12--7.08.010121415030-3524x12--8.09.011131615035-4024x16---10.012151812535-40

We offer the economic unit of Hammer Mill Machine that is designed by our experts which works efficiently with the minor changes of Screen, hammers and liners. Our Hammer Mill Machine effectively crushes the various materials into fine powder. Ideal for Crushing : BrittleMedium-hard material Combination of : Different hammer stylesLiner platesSieve insertsWear resistance technology Applications : MiningCementCoalMetallurgicConstruction materialRoad buildingPetroleum & Chemical Industries, etc

We are counted amongst the leading manufacturers, suppliers and exporters of the premium quality Grinding Pulverizer. Our Grinding Pulverizer is made keeping in mind the needs of the customers, hence they are highly useful in the various industries. Features : Sturdy constructionFree from MaintenanceDurableExcellent efficiencyLow power consumption Applications : RefineriesConstruction industryPharmaceutical industryFood processing machine

We offer Eccentric Sieve Machine that has high quality vibration exciter and partial block that helps in the adjustment of amplitude. Our Eccentric Sieve Machine is made as per the needs of the users. Composed of : Main frameScreen webElectric motorEccentric shaft Features : ReliableSturdy exciterExcellent efficiencyMinimum noiseDurableEasy maintenanceEnsures safetyMulti layersEasy change of screen plates because of Eccentric type systemMaximum screening capacityScreen body resistant to vibration Applications : MiningConstruction industryTransportationEnergy plants, etc

We are engaged in offering the best quality Double Drive Pulverizer that is made from the best quality raw materials that ensure its durability. Our engineers have especially designed it give better efficiency. Features : Robust constructionMaintenance freeLong functional lifeHigh efficiencyLow power consumption Applications : Food processing machineRefineriesConstruction industryPharmaceutical industry

We are reckoned as one of the preeminent Vegetable Disintegrator Manufacturers in India. The array of the Disintegrators also includes Metal Disintegrators to meet the specifications of the respective applications. Moreover, the Disintegrators have received loads of appreciation in the worldwide market due to its durability, efficiency and economical. Description of Design and Working Shri Krishna Disintegrators are well designed hammer mills of simple and sturdy construction. They are ideally suited where coarse grinding of soft and medium hard minerals and of vegetable products is required. The main shaft is the only revolving part, which requires no adjustment. This main shaft runs on ball roller bearings and it contain fix swing type hammers. The fineness of the finished products is controlled by the replaceable screens fitted on the lower half of the disintegrator body. The screens of desire mesh can be easily changed. All portions of the body where wear and abrasion is expected are lined with replaceable hard alloy liners. The grinding (or disintegration) is achieved by the impact of hammers against the liner fitted in the body, and the fine products passes through the screen of desired fineness. Range of Sizes Shri Krishna Disintegrators are available in eight sizes of different production capacities and power consumption. Beaters The beaters are of steel alloy forged and heat treated. Their tips are coated with hard alloy. Screens There are two kinds of screens – Steel Screens : - Having steel bars welded in steel frame for heavy work. Perforated Steel Plate Screens : - Held in M. S. iron frame suitable to Fibrous materials and light works. Selection of Machine It should be noted that for finer and of average heavy work, the medium size disintegrator is more suitable for coarse grinding. It is better to install coarse screen and shift in rotary shifter afterwards (if necessary) to separate fine mesh powder. Extremely finer screens, if used, continuously restrict the out-put, hence they should be avoided. The Disintegrators are supplied & fitted with one set of hammers and one pair of screens fitted in the machine.

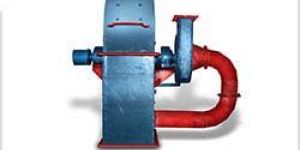

We are engaged in offering the premium quality Cool Grinder that is highly used in the various industries. Our Cool Grinder is made using the advanced technology that takes care to the needs of the customers in the best possible way. Features : Time savingAvailable in various models depending upon production capacity & hp requiredParticles size of the ground material can be variedAir balloon separates clean air & dustGrinding operation carried out in a cool atmospheric temperature Advantages : Smooth operationMaintenance freeLow power consumptionExcellent efficiencyLong functional life
