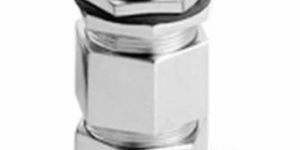

Double Compression Cable Gland Dealers in Jamnagar

• Size: 20-40mm, 40-60mm, 60-80mm, 80-100mm
• Type: Brass Cable Glands
• Color: Golden, Light Yellow, Yellow
• Condition: Good, New
• Finishing: Non Polished, Polished
• Feature: Durable, Easy To Fit, Fine Finished, Good Quality, Heat Resistance, Light Weight, Rust Resistance
• Material: Brass
• Plating: Nickle Plated Standard – (Chrome also available)
• Entry Threads: BSC Standard – (PG / Metric / NPT / BSP / also available)
• Sealing Rubber Ring: Nitrile / Neoprene
• Gland Standard: BS 6121
• Ingress Protection: IP 66 as per IS 12063
• Name: Double Compression Weatherproof Cable Gland

We are manufacturer & exporter of all types of brass electrical components.

We offer wide range of Brass compression cable glands. These are fabricated from top quality of material by help of high tech equipment and techniques. Ideal for accurate sizes, these are appreciated for their outstanding features like durability, reliability and uninterrupted. Our range is widely popular cause of its quality. These are available as per specifications of clients at reasonable market prices Features: Rust proof finish Light weight Sturdiness

We offer Weatherproof Double Compression Glands. The company is engaged in the process of making available a high quality of Weatherproof Double Compression Cable Gland. Our range of double compression cable glands is designed to be durable, efficient, and low on maintenance requirements. These Weatherproof Double Compression Cable Glands are sourced from the best quality of raw materials, for the maximum client satisfaction.Qmm & core mm inch 1.5 x 2 10 38 1.5 x 2 12 12 2.5 x 2 16 58 1.5 x 4-5-6-7 2.5 x 4 19 34 4 x 3-4-6 22 78 2.5 x 7-10-12 10 x 4 25 1 16 x 3-4 28 1.18 25 x 3.12 - 4 35 x 3.12- 4 32 1.14 50 x 3.12 - 4 35 1.38 70 x 3.3.12 3 x 95 38 1.12

We are offering Double Compression (flameproof Indoor Cable Glands for Single Wire Armored Cable ). Material: brass (is-319) standard plating: nickle plated standard (tin/cadmium/chrome also available) entry threads: et"/bsc-standards (in pg/metric/npt/bsp also available) sealing rubber ring: nitrile / neoprene gland standard: bs 6121 protection class: ip 66 as per is 13947 application: generally used in flammable gas/vapour area (gas I ,iia,iib).

• Brand Name: ROSTER™
• Price: Approx. Rs 40 / Piece(s)
• Standard: BS 6121

The high-strength Roster Double Compression Cable Gland offered by us are popular cabling accessories in the commercial and residential sectors. Though predominantly used indoors, these products if sheathed in PVC can be used for outdoor cabling as well. These products are widely appreciated for their dimensional accuracy and ability to endure adverse climate. We offer these products at competitive market rates.   Specifications : Application : Weather Proof Double Compression Glands are weather proof and dust proof (IP-66) which can be used in normal climatic condition. Also when protected by PVC shrouds it can be used in corrosive atmosphere. Accessories : PVC Shroud, Earth Tag, Stopping Plug, Reducer, Adaptor, etc. are available with specified dimensions in accordance to the Gland separately.

• Size: all size
• Material: Brass

We supply non-corroding Brass Double Compression Cable Gland, which is antimicrobial and known for its durability. Being a blue-chip firm in this arena, we have set strong tie-ups with the leading e-commerce merchants who work for us and guarantee safe and secure transactions. As we are instrumental in supplying excellent quality Brass Cable Gland Double Compression, we are named amid the celebrated names in the industry.

The company is a prominent Manufacturer, Exporter and Supplier of Double Compression Brass Cable Glands. The Double Compression Brass Cable Glands, offered by us, are available in different sizes and are suitable for all cables up to 1000 sq. mm. and control cables up to 61 cores. Our Double Compression Brass Cable Glands are weather and dust proof. Also, when Double Compression Brass Cable Glands are protected by PVC shrouds, it can be used in corrosive atmosphere.Features Sturdy construction Durable Anti-corrosive

• Material: Brass (IS-319) Standard – (Al. / S.S. / M.S. also available)
• Material of Construction: Brass
• Plating: Nickel plated
• Plating: Nickle Plated Standard – (Chrome also available)
• Entry Threads: BSC Standard – (PG / Metric / NPT / BSP / also available)
• Sealing Rubber Ring: Nitrile / Neoprene
• Gland Standard: BS 6121
• Ingress Protection: IP 66 as per IS 12063

By offering highly durable Double Compression Cable Gland, our company GIE Cable Glands has turned out to be one of the Best Brass Cable Gland Suppliers in India. The nickel plating ensures complete protection from rust, which ensures durability as well.   Application of Double Compression Cable Gland: Weather Proof Double Compression Glands are weather proof and dust proof (IP-66) which can be used in normal climatic condition. Also when protected by PVC shrouds it can be used in corrosive atmosphere.   These glands are available in different sizes and are suitable for all cables upto 1000 sq.    How Many Types of Cable Gland? 1. Brass Indoor Type Gland 2. Brass Outdoor Type Gland 3. Brass Straitening Unarmored Cable Gland 4. Brass Weather Proof Gland 5. PG Threaded Gland: 6. Industrial Type Gland 7. Single Cable Glands 8. Double Compression Cable Glands     Difference Between Single and Double Compression Cable Gland About Single 1. No Cone and Cone Ring 2. Used in every motors 3. Provide extra support to the light armored cables entering. 4. Parts : A. Gland body B. Gland body Nut C. Neopen Rubber seal. D. Rubber Washer E. Check Nut F. Flat washer Double Compression Cable Glands 1. In Double – only cone and cone ring 2. Double compression Cable glands used in FLP motors for intrinsic safety 3. Double compression glands provide extra support to the heavy armored cables entering. 4. Parts of Double compression Cable glands: A. Gland body B. Gland body Nut C. Cone D. Cone Ring E. Neopen Rubber seal. F. Rubber Washer

Size :16mm to 115mm & ½" to 3 ½" Standard :BS 6121:Part-1:2005, EN 50262: 1999 Ingress Protection :IP66 Material : Brass BS 2874 Thread :Metric, BSP Operating Temp. :20°C to +80°C Cable Type :Steel Wire (SWA) Cable

• Size: 20-40mm
• Material: Stainless Steel
• Color: Silver
• Feature: Durable, Easy To Fit
• Finishing: Polished
• Range: E1W

• Material: Brass (IS-319) Standard (Al. / S.S. / M.S. also available)
• Plating: Nickle Plated Standard (Chrome also available)
• Entry Threads: BSC Standard (PG / Metric / NPT / BSP / also available)
• Sealing Rubber Ring: Nitrile / Neoprene
• Gland Standard: BS 6121
• Ingress Protection: IP 66 as per IS 12063

We offer wide range of high quality Double Compression Weatherproof Cable Gland as per customers needs and requirements. Our products are developed by our experienced team members so they produce accurate design and error free products so our glands highly appreciated by worldwide. Our Double Compression Glands provide Extra Support to the heavy armoured cables which entering or exiting in panel. In it mechanical support create by only cone and cone ring so it provide lock for shell. In Double Compression Glands, the compression happens both at the cable shell as well as at the inner cover. So it reduce moisture r vapour in it. Hence these cable glands known as dust proof, flame proof and weatherproof and also used in normal climatic conditions and with PVC shrouds it can be use in corrosive atmosphere. Our Double Compression Glands are mostly used in oil and gas sector and many more industry as per its requirements. Types of Double Compression Cable Gland Double Compression Weather Proof Cable Gland Double Compression Flame Proof Cable Glands (Gas Group I, IIA & IIB) Double Compression Flame Proof Cable Glands (Gas Group IIC) DoubleCompression Medium Duty Cable Glands DoubleCompression Dust Proof Cable Glands

• GLAND SIZE: W01SS,W01S
• THREAD SIZE BS Cond. (ET): 3/4", 3/4"

Ref. Standard : BS 6121 : Part 1, IS IEC 60529 : 1989, Application : Gland for Single Wire Armoured & Strip Armoured Cables, suitable for use in safe area. Function : IP65 seals grip inner & outer sheath of cable, Cone & Ring clamps the armour. MOC : Gland - Nickel Plated Brass, Seals - CR. Accessories : Earth Tag, Shroud available on request.

• Brand Name: OSWAL

We are offering double compression brass cable gland-d.c.

We have gained prominence as the Manufacturer, Supplier and Exporter of CW-3 Double Compression Cable Glands from Gujarat, India. Made using high grade components, our Double Compression Cable Glands are easy to install, highly efficient and low on maintenance requirements. We ensure customer satisfaction by checking the glands on stringent quality parameters before the final delivery. Customers can avail CW-3 Double Compression Cable Glands from us at nominal rates.

We are offering double compression type cable gland suitable for swa cable available sizes are : 38" to 4".

• Type: DOUBLE COMPRESION
• Material: Brass
• Brand Name: Secure
• Usage/Application: INDOOR AND OUTDOOR
• Part Number: SDC
• IP Rating: IP 688
• Model Name/Number: SDC 12 MM TO SDC 100 MM
• Packaging Type: BOX
• Coating: NICKEL PLATED
• Standard: IS/IEC 60529 2001 & BS 6121
• Thread Type: ET METRIC PG BSP NPT
• Surface Finishing: NICKEL PLATED
• Operating Temperature: 30 C TO +100 C
• Temperature: 30 C TO +100 C
• Series: SDC SERIES
• Thread Size: 12 MM TO 100 MM
• Ingress Protection: IP 66
• Seal Material: NEOPRENE NITERILE SILICON EPDM
• Armour Clamping: YES
• Accessories: SHROUD EARTH TAG REDUCER ADAPTOR
• Minimum Order Quantity: 500 Piece
