S P Enterprises Jugsalai, Jamshedpur, Jharkhand

We offers Wet Mix Macadam Plant (Soil Stabilization Plant) to produce homogenous mixture of sand, cement and water with aggregates / gravels for pavement base & sub base construction. Wet Mix Plants are manufactured as per the international market standard to produce best quality mix material at low power consumption. They are fully automatic as per modern technology and operated by user friendly electronic control panel. Modular construction ensures ease of operation & maintenance.   Main components of Wet Mix Plant :-   Aggregate Four Bin Feeder   Single Deck Scalping Screen   Slinger Conveyor   Pugmill Mixer   Load Out Conveyor   Storage Silo   Control Panel   Control Cabin   Water Tank (Optional)   Cement Silo (Optional)

Insulated Asphalt tank of 2500 ltrs. with burner,Powered by 10 H.P., Single cylinder Air Cooled Diesel Engine,Bitumen Pumping System Comprising of positive displacement Gear type Bitumen pump,Air Compressor,Hand spray bar fitted with 3 nos. nozzles,Mounted on trolley with 4 nos. tyres & tow bar,Air Hose for cleaning road surface with compressed air prior to bitumen spraying

Suitable to be mounted on standard truck chassis.  Insulated Asphalt Tank of 4000 ltrs. to 10000 ltrs. Capacity. Suitable for Asphalt & Emulsion spraying. Foldable spray bars with basic width 2.5 mtrs. (min) to 4.2 mtrs. (max). Flexible Hand spraying attachment. Powered by 25 H.P., two cylinder, air cooled diesel engine. Spray nozzles valve operated pneumatically. Positive displacement type Asphalt Pump. Twin Cylinder Air Compressor of 3 HP.

S. P. Enterprise offers Hydraulic & Mechanical Road Broomer machine for cleaning of surface before application of tack coat or laying of new Hot Mix Asphalt.   The unit is having two nos. pneumatic tires and tow bar from traction. It can be easily attached to the tractor or similar vehicle for operation. It is raised or lowered manually and the broom rotates as it gets coupled to the two wheels on which the unit is mounted. When in operation; it is lowered and the Broom shaft is coupled to its own wheel drive and the broom works to collect all the dust, debris and waste material in to the dust bin behind it. This Broom is carried to a pit where the dust bin is opened and the waste collected is disposed in the pit with the operating the manual lever.

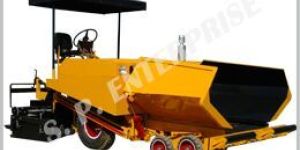

Drive to traction wheels, conveyor chain & augers transmitted mechanically by chain, sprockets, heavy duty gearboxes & friction clutches. Asphalt Paver Offers superb visibility, excellent mobility, quick set up and comfortable operating environment. Four speed gear box offers working & traveling speeds in forward & reverse direction. Hopper operations, Screed lifting and vibration are controlled hydraulically. Left and Right feeding conveyor chains in addition to left and right augers are controlled independently to meet the paving width demand. Fully floating hydraulically extendable telescopic heavy duty screed with LPG burner for screed heating and hydraulic motor for screed vibration. Operator console strategically located for operator’s comfort.

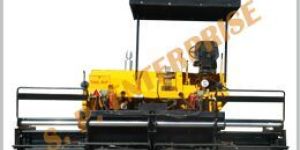

Drive to traction wheel, feeder conveyor chain, augers, steering unit, compaction & temping unit powered by German make hydraulic pump & motor.Asphalt Paver Offers superb visibility, excellent mobility, quick set up and comfortable operating environment. European make electronic Grade & Slope control with remote controller .Hopper operations, Screed lifting and vibration are controlled hydraulically.Left and Right feeding conveyor chains in addition to left and right augers are controlled independently to meet the paving width demand.Fully floating hydraulically extendable telescopic heavy duty screed with LPG burner for screed heating and hydraulic motor for screed vibration.Operator console strategically located for operator’s comfort. Hydrostatic drive eliminates many mechanical drive train components.

Reversible Concrete Mixer S.P. Enterprise offers Reversible Concrete Mixers to produce quality concrete mix at construction sites. Available in output capacity of 10 m3/hr. (600 ltrs. unmixed capacity & 400 ltrs. batch capacity ) Hydraulically operated loading hopper fitted with load cell for weighing aggregates & sand. Mixer drum with charging & discharging blades is rotating on well align heavy-duty dust proof three bearing rollers for smooth rotation. Drum mixer serves the dual purpose of mixing as well as discharging of mixed concrete, rotation of drum in one direction charges the raw material for mixing and reversing the rotation direction discharges the mixed material. With inbuilt water & additive tanks. Control Panel with individual digital display of Aggregates, Cement, Sand & Water. Frame and chassis fabricated from heavy duty structural steel. With four nos. pneumatic tyres and tow bar

S. P. Enterprise offers fully automatic stationary, skid mounted & truck mounted Concrete Batching Plants to produce homogenous mixture of aggregates, sand, cement, water, additive etc. for construction projects.   Available in out put capacity ranging from 15 to 30 m3/hr.   Concrete Batching Plants features Pan type mixers that are lined with wear resistant plates and driven by planetary gear box. Standard plant includes aggregate hoppers, pan mixer, cement hopper, conveyors, water tank, additive tank, operating & controlling console. PLC based control panel with touch screen LCD display offers powerful recipe management & storage .   Skid Mounted Concrete Mixing Plant Plant is built on single heavy duty chassis constructed from structural steels.   The plant is installed on a level ground on five mechanical jacks with wooden block.   No foundation is required. Complete plant is pre-wired & only needs to connect main supply cable in the panel & the plant is ready for use.

The Chip Spreader is constructed from pressed steel with square and rectangular section. The unit is driven by pneumatic tire which transmits the drive from the road surface to a dog clutch mounted on a lay shaft. Further the drive to the feed roller is transmitted through chain and sprocket mechanism.A metered application results by using spring loaded drive wheel, that automatically contacts the road surface as the body is tipped to the working position, and rotates the feed roller relative to ground speed through an operator controlled dog clutch.

Drive to traction wheels, conveyor chain & augers transmitted mechanically by chain, sprockets, heavy duty gearboxes & friction clutches,Asphalt Paver Offers superb visibility, excellent mobility, quick set up and comfortable operating environment,Four speed gear box offers working & traveling speeds in forward & reverse direction,Hopper operations, Screed lifting and vibration are controlled hydraulically,Left and Right feeding conveyor chains in addition to left and right augers are controlled independently to meet the paving width demand

It is recognized manufacturers of Asphalt Drum Mix Plant that produces best quality Hot Mix Asphalt for flexible pavement construction. Our Continuous type Parallel Flow Drum Mix Asphalt Plants are available in Stationary and Mobile (Portable) versions with output capacities ranging from 25 TPH to 150 TPH.     Asphalt Drum Mix Plants are manufactured as per the international market standard to produce best quality hot mix material with low dust emission and at low fuel consumption.   Asphalt Mixing Plants are fully automatic as per modern drum mix technology and operated by user friendly electronic control panel.   Simple design and robust construction ensures ease of operation & maintenance.   Main Components of Asphalt Drum Mix Plant :-   Multiple Cold Aggregate Feeder Bins   Single Deck Scalping Screen   Slinger Conveyor   Drying & Mixing Rotary Drum   Dryer Burner   Multi cyclone Primary Dust Collector   Load Out Conveyor   Asphalt Tank   Mineral Filler Unit   Fuel Service Tank   Control Panel   Control Cabin   Wet Scrubber Secondary Dust Collector
