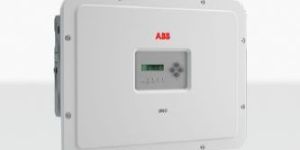

6 kW ABB String Inverter
The new UNO-DM-6.0-PLUS singlephase inverter is an upgrade of the proven UNO family and is an optimal solution for residentialinstallations.High power densityThe new design wraps ABB’s quality and engineering into a lightweight and compact package thanks to technological choices optimized for installations with different orientation. The inverter allows high performance in a minimum space and has a dual Maximum Power Point Tracker (2 MPPT).Easy to install, fast to commissionThe featured easy commissioning routine removes the need for a long configuration process, resulting in lower installation time and costs. Improved user experience thanks to a build in User Interface (UI), which enables access to features such as advanced inverter configuration settings, dynamic feed-in control and load manager, from any WLAN enabled devices (smartphone, tablet or PC).Smart capabilitiesThe embedded logging capabilities and direct transferring of the data to Internet (via Ethernet or WLAN) allow customers to enjoy the whole Aurora Vision® remote monitoring experience. The advanced communication interfaces (WLAN, Ethernet, RS485) combined with an efficient Modbus (RTU/TCP) communication protocol, Sunspec compliant, allow the inverter to be easily integrated within any smart environment and with third party monitoring and control systems. A complete set of control functions with the embedded efficient algorithm, enabling dynamic control of the feed-in (i.e. zero injection), make the inverter suitable for worldwide applications in compliance with regulatory norms and needs of the utilities. The future-proof and flexible design enables integration with current and future devices for smart building automation.Highlights Wireless access to the embedded Web User Interface Easy commissioning capability Future-proof with embedded connectivity for smart building and smart grid integration Dynamic feed-in control (for instance “zero injection”) Remote Over The Air (OTA) firmware upgrade for inverter and components Modbus TCP/RTU Sunspec compliant Remote monitoring via Aurora Vision® cloud Dual input section with independent MPPT
Warranty : 5 Years
...more

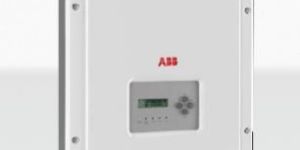

3.3 to 5.0 kW ABB String Inverter
The new UNO-DM-PLUS singlephase inverter family, with power ratings from 3.3 to 5.0 kW, is the optimal solution for residentialinstallationsOne size fits allThe new design wraps ABB’s quality and engineering into a lightweight and compact package thanks to technological choices optimized for installations withdifferent orientation. All power ratings share the same overall volume, allowing higher performance in a minimum space, and have a dual Maximum Power Point Tracker (2 MPPT).Easy to install, fast to commissionThe presence of plug and play connectors, both on the DC and AC side, as well as the wireless communication, enable a simple, fast and safe installation without the need of opening the frontcover of the inverter. The featured easy commissioning routine removes the need for a long configuration process, resulting in lower installation time and costs. Improved user experience thanks to a build in UserInterface (UI), which enables access to features such as advanced inverter configuration settings, dynamic feed-in control and load manager, from any WLAN enabled devices (smartphone, tablet or PC).Smart capabilitiesThe embedded logging capabilities and direct transferring of the data to Internet (via Ethernet or WLAN) allow customers to enjoy the whole Aurora Vision® remote monitoring experience.The advanced communication interfaces (WLAN, Ethernet, RS485) combined with an efficient Modbus (RTU/TCP) communication protocol, Sunspec compliant, allow the inverter to be easily integrated within any smart environment and with third party monitoring and control systems.A complete set of control functions with the embedded efficient algorithm, enabling dynamic control of the feed-in (i.e. zero injection), make the inverter suitable for worldwide applications incompliance with regulatory norms and needs of the utilities.The future-proof and flexible design enables integration with current and future devices for smart building automation.Highlights Wireless access to the embedded Web User Interface Easy commissioning capability Future-proof with embedded connectivity for smart building and smart grid integration Dynamic feed-in control (for instance “zero injection”) Remote Over The Air (OTA) firmware upgrade for inverter and components Modbus TCP/RTU Sunspec compliant Remote monitoring via Aurora Vision® cloud Dual input section with independent MPPT
Output Type : 220V
Frequency : 50hz
Automatic Grade : Automatic
Driven Type : Solar
Warranty : 2year
Input Voltage : 1000V
...more

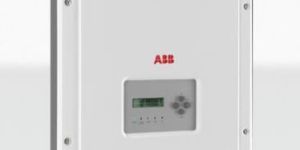

1.2 to 3.0 kW ABB String Inverter
The new UNO-DM-PLUS singlephase inverter family, with power ratings from 1.2 to 3.0 kW, is the optimal solution for residential installations. One size fits allThe new design wraps ABB’s quality and engineering into a lightweight and compact package thanks to technological choices optimized for installations with a uniform orientation. All power ratings share the same overall volume, allowing higher performance in a minimum space.Easy to install, fast to commission The presence of plug and play connectors, both on the DC and AC side, as well as the wireless communication, enable a simple, fast and safe installation without the need of opening the front cover of the inverter. The featured easy commissioning routine removes the need for a long configuration process, resulting in lower installation time and costs. Improved user experience thanks to a build in User Interface (UI), which enables access to features such as advanced inverter configuration settings, dynamic feed-in control and load manager, from any WLAN enabled devices (smartphone, tablet or PC). Smart capabilitiesThe embedded logging capabilities and direct transferring of the data to Internet (via Ethernet or WLAN) allow customers to enjoy the whole AuroraVision® remote monitoring experience. The advanced communication interfaces (WLAN, Ethernet, RS485) combined with an efficient Modbus (RTU/TCP) communication protocol, Sunspec compliant, allow the inverter to be easily integrated within any smart environment and with third party monitoring and control systems. A complete set of control functions with the embedded efficient algorithm, enabling dynamic control of the feed-in (i.e. zero injection), make the inverter suitable for worldwide applications in compliance with regulatory norms and needs of the utilities. The future-proof and flexible design enables integration with current and future devices for smart building automation. Highlights Wireless access to the embedded Web User Interface Easy commissioning capability Future-proof with embedded connectivity for smart building and smart grid integration Dynamic feed-in control (for instance “zero injection”) Remote Over The Air (OTA) firmware upgrade for inverter and components Modbus TCP/RTU Sunspec compliant Remote monitoring via Aurora Vision® cloud
...more

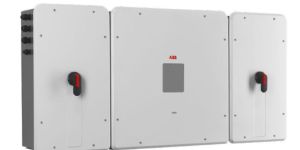

TRIO-TM 50 to 60 kW ABB String Inverter
The TRIO-TM-50.0/60.0 is ABB’s latest three-phase string solution for cost efficient large decentralized photovoltaic systems for both commercial and utilityapplications. This new addition to the TRIO family, with 3 independent MPPT and power ratings of up to 60 kW (480 V version), has been designed with the objective to maximize the ROI in large systems with all the advantages of a decentralized configuration for both rooftop and ground-mounted installations.Modular designThe TRIO-TM-50.0/60.0 has a modular design to guarantee maximum flexibility, thanks to the different versions available. The separate and configurable AC and DC compartments increase the ease of installation and maintenance with their ability to remain separately wired from the inverter module inside the system. The TRIO comes with the most complete wiring box configurations available including up to 15 DC inputs with fast connectors, string protection fuses, AC and DC switches and type II AC and DC surge arresters. Design flexibilityThe double stage conversion topology offers the advantage of a wide input voltage range for maximum flexibility of system design. The TRIO-TM comes with a forced air cooling system, used also in the previous TRIO products, designed for a simple and fast maintenance, allowing a maximum flexibility of plant design. The inverter comes with mounting supports for both horizontal and vertical installations, which allow for the best use of space available beneath the solar panels.Embedded multi communication interfaces (WLAN, Ethernet, RS485) combined with a Sunspec compliant Modbus protocol (RTU/TCP) allow the inverter to be easily integrated with any third party monitoring and control systems.Improved commissioning and maintenance Thanks to the build-in Web User Interface (WUI) the installer can commission the inverter wirelessly and change advanced parameters by using any standard WLAN enabled device (smartphone, tablet or PC). Integrated logging capability allows remote monitoring of the plant without the need of any additional external loggers. Remote firmware update of the inverter system andcomponents via Aurora Vision®. Highlights Up to 3 independent MPPT Transformerless inverter Double stage topology for a wide input range Large set of specific grid codes available which can be selected directly in the field Separate AC and DC compartments are available in different configurations Both vertical and horizontal installation 2 available sizes, 50 and 60 kW with 400 and 480 Vac of output voltage, respectively Wireless access to embedded user interfaces Ethernet daisy chain enabled Modbus TPC/RTU Sunspec compliant Remote monitoring and firmware update via Aurora Vision® (logger free)
Noise Consumption : 50 dB
Output Frequency : 50 Hz
Input Voltage : 24 V
...more
TRIO 50 to 60 kW ABB String Inverter
The TRIO-50.0/60.0 inverter is ABB’s three-phase string solution for cost efficient large decentralized photovoltaic systems for both commercial and utilityapplications.The TRIO-50.0/60.0 inverter has been designed with the objective to maximize the ROI in large systems with all the advantages of a decentralizedconfiguration for both rooftop and groundmounted installations.Modular designTRIO-50.0/60.0 has a landscape modular design to guarantee maximum flexibility. The separate and configurable AC and DCcompartments increase the ease of installation and maintenance with their ability to remain separately wired from the inverter module inside the system. The TRIO-50.0/60.0 comes with the most complete wiring box configurations available including up to 16 DC inputs with fast connectors, monitored fuses, AC and DC switches and monitored type II AC andDC surge arresters.Flexibility of installation The forced air cooling system, designed for a simple and fast maintenance allows for the maximum flexibility of installation. The inverter comes with mounting supports for both horizontal and vertical positions which allow for the best use of space available beneath the solar panels. Design flexibilityThe double stage conversion topology offers the advantage of a wide input voltage range for maximum flexibility of the system design. Highlights Transformerless topology Each inverter is set on specific grid codes which can be selected directly in the field Separate AC and DC com partments are available indifferent configurations Wide input range Both vertical and horizontal installation New 60 kW version available (480 Vac)
Feature : Easy To Oprate, Fast Chargeable, Trolly Structure
Output Type : 220V
Input Voltage : 380V
Automatic Grade : Fully Automatic
Warranty : 2year
Power Capacity : 3kv
...more
5.8 to 8.5 kW ABB String Inverter
The all-in-one residential threephase TRIO-5.8, 7.5 and 8.5 kW inverters deliver performance, ease of use and installation, monitoring and control. With their 98% peak efficiency andwide input voltage range, the residential TRIO inverter means flexible installations and powerful output.Commercial grade engineering at residential scale The topology of the larger, commercial TRIO inverters has been redesigned to ensure that the TRIO- 5.8/7.5/8.5 models also enjoy high conversion efficiency across a wide range of input oltages. Optional integrated dataloggers and smart grid functionality, remote firmware updating and elegantly simple sliding front covers make these all-in-one devices easy to install and maintain. In short, they are commercial grade engineering at residential scale. Inverters packed with powerful featuresThe double maximum power point tracker (MPPT) gives maximum installation flexibility for an optimal energy production (TRIO-7.5/8.5 models). This line of inverters can integrate power control, monitoring functionalities and environmental sensor inputs, without requiring external components. A compact Ethernet expansion card provides data logging functionality for monitoring the main parameters of the plant as well as advanced O&M operations both locally (with the integrated webserver) and remotely (with the AV Plant Portfolio Manager portal), via a LAN connection.The outer cover with its natural cooling mechanism qualifies at IP65 environmental protection level for external use. It provides maximum reliability and ease of installation, with a sliding front panel giving access to the connection and configuration area without requiring the complete removal of the cover.Highlights Three-phase bridge topology for DC/ AC output converter Transformerless topology Two independent MPPT channels for TRIO-7.5/8.5 allow optimal energy harvesting from two subarrays oriented in different directions (one MPPT channel for TRIO-5.8) Flat efficiency curves ensure high efficiency at all output levels enabling consistent and stable performance across the entire input voltage and output power range Wide input voltage range Remote inverter upgrade Reactive power management DC switch version available (-S) Natural convection cooling for maximum reliability Outdoor enclosure for unrestricted use under any environmental conditions (IP65) Sliding cover for the easiest installation and maintenance Data logger and smart grid functionalities integrated on expansion cards: -- PMU expansion card option, with external sensor inputs for monitoring environmental conditions and additional RS-485 for Modbus protocol -- Ethernet expansion card option with integrated web server and remote monitoring capability via web portal (Modbus/TCP supported) Availability of auxiliary DC output voltage (24 V, 100 mA)
Application : Industrial
Feature : Easy To Oprate, Suitable For Indoor And Outdoor
Output Type : 220V
Input Voltage : 380V
Frequency : 60hz
Automatic Grade : Automatic
Driven Type : Solar
...more
Somera Grand 1500v Series Solar Panel
Features 10% Higher Power Output compared to industry average poly crystalline module Range- 340-370W Efficiency up to 19.07% Extremely Narrow Power Binning Tolerance of +2.5 Wp to reduce current mismatch loss in single string Using highly efficient Passivated Emitter Rear Contact Technology (PERC) cells resulting in Excellence Low Light and Longer Wavelength Response Maximum System Voltage Increased to 1500VDC (IEC & UL), increased string length, low BOS cost Designed for large scale utility applications with 27 Years of Linear Performance Warranty Certified Salt mist and Ammonia resistance Certified for PID resistance Length × Width × Height : 1956 × 992 × 36 mm (77.01 × 39.06 × 1.42 inches) Applications On-grid large scale utility systems On-grid rooftop commercial and residential systems Off-grid residential systems Caution: Read Safety And Installation Manual Before Using The Product. Specifications included in this datasheet are subject to change without notice. Electrical data without guarantee. Please confirm your exact requirement with the company representative while placing your order.
...more
Solar Dc Cables
Condition : New
Outer Material : PVC
SMA SOLAR INVERTERS
Datasheet for more popular models Single phase - Sunny Boy - 3-5 KW string inverter Three phase - Sunny Tripower - 5-12 KW string inverter Three phase - Sunny Tripower - 15-25 KW string inverter Three phase - Sunny Tripower Core 1 - 50 KW string inverter (2018 model) Three phase - Sunny Tripower - 60 KW string inverter Special features Maximum efficiency of 97% Shade management with OptiTrak Global Peak Fast connection without tools
Application : Industrial
Feature : Easy To Oprate, Suitable For Indoor And Outdoor
Output Type : 220V
Automatic Grade : Fully Automatic
Driven Type : Solar
Warranty : 2year
Power Capacity : 1kv
...more
Single MC4 Connector
Application : Solar Power system
Gender : Male-Female
Rated Voltage : 1500
Rated Current : 30
Warranty : 5 Years
...more
Delta RPI-M6A Solar Inverter
With Delta's cutting-edge technology, the commercial series Solar Inverters are with efficiencies as high as 98.3%. These inverters are compact in size with durable quality to ensure smooth PV system operation. IP65 enclosure provides higher level of protection and enhances its durability in a harsh outdoor environment. Product Features Transformerless Inverter Dual MPP Trackers Peak Efficiency up to 98.3% Wide Voltage Range (200~1000Vdc) Reactive Power Control Ergonomic Grip Design Ultra Compact Size Built-in Energy-logger IP65 Protection Level Built-in AC/DC Switch Note : Product image shown above is indicative only. The inverter has only two pairs of MC4 connector input. If PV Module is grounded (Negative / Positive Grounding), separate Isolation Transformer is required at the Grid interface of Inverter Parallel Operation of Inverters is possible for large Power Plants Installing SPDs for PV and AC circuit is recommended Refer to Delta's Standard Warranty Terms and Conditions for more details.
Output Frequency : 50 Hz
...more

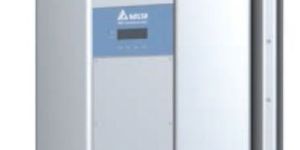

Delta RPI-M50A Solar Inverter
Product Features Transformerless Inverter Dual MPP Trackers Peak Efficiency up to 98.6% Connects up to 12 Strings Ergonomic Grip Design Ultra Compact Size Built-in Energy-logger IP65 Protection Level Built-in AC/DC Switch The smallest & lightest 50 kW string inverter in the world.Delta’s latest revolutionary design “RPI-M50A” transformerless PV inverter is the lightest,smallest, and first wall mount-able 50KW string inverter in the world. With such compact size and light weight, RPI-M50A offers more design flexibility for all sizes of PV plants. IP65 enclosure provides higher level of protection and enhances its durability in a harsh outdoor environment. Thoughtful Grip DesignErgonomic grip design gives more convenience while moving the inverter during installation. With special handle protection design, RPI-M50A can be easily placed down on the flat ground vertically without damaging various connectors at the bottom. Built-in SPD & String FusesThe RPI-M50A comes with built in PV fuse on both the positive and negative strings for alltwelve inputs. Also the inverter has Type-2 SPD's (Surge Protection Device) for both theDC (One for each MPPT) and AC inputs. Boththe PV fuse and SPD's can be replaced. Thiscan bring down the overall PV system costing. Outstanding PerformanceRPI-M50A comes with a peak efficiency of 98.6 %, guaranteeing better yields and returns on capital cost. The dual MPPT trackers ensure no compromise over shading losses and can accommodate PV arrays with different orientations. Protection Features : AC / DC Safety SwitchIntegrated AC/DC switch makes maintenanceand trouble shooting easy. Savings with RPI-M50A Saving on System Cost : Holistic design with built-in AC/DC switch, PV fuse and SPD's. Saving on Space Cost : Thanks to the IP65 rating of the RPI-M50A, it can be mounted outdoors thereby reducing costs associated with control rooms for central inverters. Saving on DC Cable Cost : The RPI-M50A can be mounted close to the PV panels which brings down the associated DC cable costs and DC cable losses which improves overall system efficiency. Dual MPPTs : Two independent trackers ensure maximum yields even during partial shading of a string. This also helps in accommodating different string orientations within a system. Notes If PV Module is grounded (Negative / Positive Grounding), separate Isolation Transformer is required at the Grid interface of Inverter Parallel Operation of Inverters is possible for large Power Plants For Cos phi = 1 (VA=W); 55 kVa is Possible with: DC Input Voltage 600V; Symmetrical Loading; Ambient Temperature <34o C Refer to Delta's Standard Warranty Terms and Conditions for more details.
...more

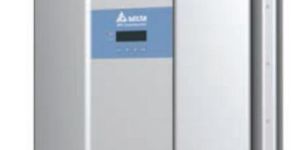

Delta RPI-M30A Solar Inverter
Product Features Transformerless Inverter Dual MPP Trackers Peak Efficiency up to 98.5% Wide Voltage Range (200~1000Vdc) Reactive Power Control Ergonomic Grip Design Ultra Compact Size Built-in Energy-logger IP65 Protection Level Built-in AC/DC Switch With Delta's cutting-edge technology, the commercial series Solar Inverters are with efficiencies as high as 98.5%. These inverters are compact in size with durable quality to ensure smooth PV system operation. IP65 enclosure provides higher level of protection and enhances its durability in a harsh outdoor environment.
...more

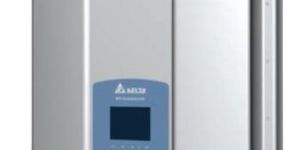

Delta RPI-M15A Solar Inverter
Product Features Transformerless Inverter Dual MPP Trackers Peak Efficiency up to 98.3% Wide Voltage Range (200~1000Vdc) Reactive Power Control Ergonomic Grip Design Ultra Compact Size Built-in Energy-logger IP65 Protection Level Built-in AC/DC Switch With Delta's cutting-edge technology, the commercial series Solar Inverters are with efficiencies as high as 98.3%. These inverters are compact in size with durable quality to ensure smooth PV system operation. IP65 enclosure provides higher level of protection and enhances its durability in a harsh outdoor environment. Notes If PV Module is grounded (Negative / Positive Grounding), separate Isolation Transformer is required at the Grid interface of Inverter Parallel Operation of Inverters is possible for large Power Plants Installing SPDs for PV and AC circuit is recommended Refer to Delta's Standard Warranty Terms and Conditions for more details.
...more

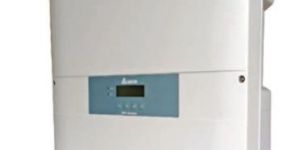

Delta RPI-M10A Solar Inverter
Product Features Transformerless Inverter Dual MPP Trackers Peak Efficiency up to 98.3% Wide Voltage Range (200~1000Vdc) Reactive Power Control Ergonomic Grip Design Ultra Compact Size Built-in Energy-logger IP65 Protection Level Built-in AC/DC Switch With Delta's cutting-edge technology, the commercial series Solar Inverters are with efficiencies as high as 98.3%. These inverters are compact in size with durable quality to ensure smooth PV system operation. IP65 enclosure provides higher level of protection and enhances its durability in a harsh outdoor environment. Notes If PV Module is grounded (Negative / Positive Grounding), separate Isolation Transformer is required at the Grid interface of Inverter Parallel Operation of Inverters is possible for large Power Plants Installing SPDs for PV and AC circuit is recommended Refer to Delta's Standard Warranty Terms and Conditions for more details.
...more

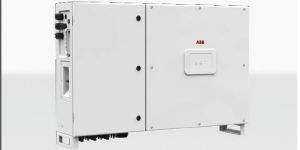

PVS 50kw to 60 kw ABB String Inverter
The PVS-50/60-TL is ABB’s cloud connected three-phase string solution enabling cost efficient large decentralized photovoltaic systems for both commercial and utility applications.This new addition to the PVS string inverter family,with 3 independent MPPT and power ratings of up to 60 kW, has been designed with the objective to maximize the ROI in large systems with all the advantages of a decentralized configuration for both rooftop and ground-mounted installations. Compact design Thanks to technological choices aimed at optimizing installation times and costs, the product design features the power module and wiring box enclosed in a single compact chassis thus saving installation resources and costs. The inverter comes in multiple versions also allowing the possibility to connect to third-party DC string combiners. Ease of installation The horizontal and vertical mounting possibility creates flexibility for both rooftop and ground mounted installations. Moreover the cover is equipped with hinges and locks that are fast to open and reduce the risk of damaging the chassis and interior components when commissioning and performing maintenance actions. Advanced cloud connected features Standard wireless access from any mobile device makes the configuration of inverter and plant easier and faster. Improved user experience thanks to a built-in User Interface (UI) enables access to advanced inverter configuration settings. The Installer for Solar Inverters mobile app and configuration wizard enable a quick multi-inverter installation, saving up to 70% commissioning time.Fast system integrationIndustry standard Modbus (RTU/TCP)/SUNSPEC protocol enables fast system integration. Two ethernet ports enable fast and future-proof communication for PV plants. ABB plant portfolio integration Monitoring your assets is made easy, as every inverter is capable to connect to ABB cloud platform to secure your assets and profitability in long term.Highlights Up to 3 independent MPPT - 50/60 kW power ratings Horizontal and vertical installation Easy access to wiring box thanks to hinges and cam latches positioned on cover Power module and wiring box in one compact chassis Wi-Fi interface for commissioning and configuration Reactive power management capability Remote monitoring and firmware upgrade via ABB Cloud platform (logger free) Provides 10% more power in case of reduced ambient temperature Improved operating altitude. Can work up to 4000 mt. Built-in dynamic feed-in control algorithm
Application : Industrial
Feature : Easy To Oprate, Low Voltage Indication, Suitable For Indoor And Outdoor
Output Type : 220V
Input Voltage : 380V
Frequency : 60hz
Automatic Grade : Fully Automatic
Warranty : 2year
...more

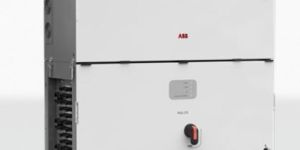

175 kw ABB String Inverter
The PVS-175-TL is ABB’s innovative three-phase string inverter, delivering a six-in-one solution to enhance and optimize solar power generation for ground mountedutility scale applications.High power densityThis new high-power string inverter, with the largest high power density within the 1500 Vdc segment, delivers up to 185 kVA at 800 Vac and can achieve an ultra-high-power density of 1.3 kW/kg. This not only maximizes the ROI for ground-mounted utility-scale applications but also reduces Balance of System costs (i.e. AC side cabling) for small to large scale, free field ground mounted PV installations.Design flexibilityThe inverter comes equipped with 12 MPPT, the highest available in the market, assuring maximum PV plant design flexibility and increasing yields also in case of complex installations.Installer friendly design Quick and easy installation, thanks to plug and play connectors, as the existing PV module’s mounting systems can be used to install the inverters, thus saving time and cost on site preparation and hire of plant.The fuse and combiner free design eliminates the need for external components, such as separate DC combiner boxes and AC first level combiners, thanks to the integrated DC disconnect and AC wiring compartment with optional AC disconnect.The Advanced Cooling Concept preserves the lifetime of the system and minimizes O&M costs thanks to internal heavy-duty inverter cooling fans. These can be easily removed during scheduled maintenance cycles whilst the power module can be easily replaced without removing the wiring box. Advanced communication for O&MStandard wireless access from any mobile device makes the configuration of inverter and plant easier and faster. Improved user experience thanks to a built-in User Interface (UI) enables access to advanced inverter configuration settings. The Installer for Solar Inverters mobile APP and configuration wizard enable a quick multi-inverter installation and commissioning thus reducing the time spent on site.Fast system integrationIndustry standard Modbus (RTU/TCP)/SUNSPEC protocol enables fast system integration. Two Ethernet ports enable fast and future-proof communication for PV plants. Protect your assetsMonitoring your assets is made easy, as every inverter is capable to connect to ABB cloud platform and thanks to the state-of-the-art cybersecurity and Arc Fault Detection option, your assets and profitability are secure in the long term.Highlights Up to 185 kW power rating, highest in class All-in-one combiner and fuse free design Separate power module and wiring compartment for fast swap and replacement Easy access to consumables for fast inspection and replacement 12 MPPT and wide input voltage range for maximum energy yield Wi-Fi interface for commissioning and configuration Remote monitoring and firmware upgrade via ABB cloud platform (logger free) Free of charge standard access to Aurora Vision® cloud Note Multicontact MC4-Evo2. Cable couplers may accept up to 10mm2 (AWG8) Performance in line with the relevant requirements of the Draft IEC 63027 standard The AC voltage and frequency range may vary depending on specific country grid standard as per IEEE 802.11 b/g/n standard, 2.4 GHz Cannot operate simultaneously when installed in conjunction with the DC link recharge circuit
Application : Industrial
Feature : Fast Chargeable, Low Maintainance, Trolly Structure
Frequency : 60hz
Automatic Grade : Automatic
Warranty : 2year
Power Capacity : 3kv
...more

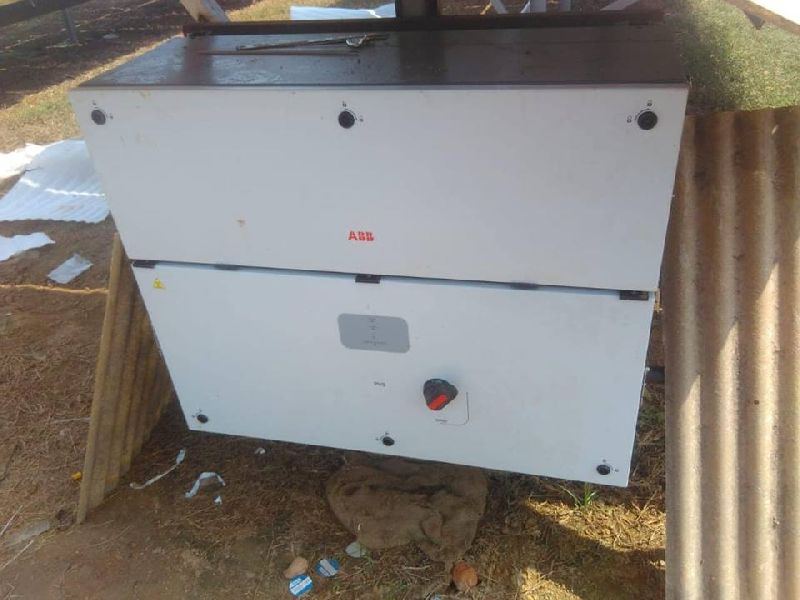

100kw to 120kw ABB String Inverters
The PVS-100/120-TL is ABB’s cloud connected three-phase string solution for cost efficient decentralized photovoltaic systems for both ground mounted and large commercial applications.This platform, for extreme high power string inverters with power ratings up to 120 kW, maximizes the ROI for decentralized ground mounted and large rooftop applications. With six MPPT energy harvesting is optimized even in shading situations.Extreme power with high integration levelThe extreme high power module up to 120 kW saves installation resources as less units are required. Due to its compact size further savings are generated in logistics and in maintenance. Thanks to the integrated DC/AC disconnection, 24 string connections, fuses and surge protection no additional boxes are required. Ease of installationThe horizontal and vertical mounting possibility creates flexibility for both ground mounted and rooftop installations. Covers are equipped with hinges and locks that are fast to open and reducethe risk of damaging the chassis and interior components when commissioning and performing maintenance actions.Standard wireless access from any mobile device makes the configuration of inverter and plant easier and faster. Improved user experience thanks to a build in User Interface (UI) enables access to advanced inverter configuration settings. The installer mobile APP, available for Android/iOS devices, further simplifies multi-inverter installations.The design supports both copper and aluminum cabling even up to 185 mm2 cross section to minimize the energy losses.Fast system integrationIndustry standard Modbus/SUNSPEC protocol enables fast system integration. Two ethernet ports enable fast and future proof communication for PV plants.ABB plant portfolio integration Monitoring your assets is made easy as every inverter is capable to connect to ABB plant portfolio manager to secure your assets and profitability inlong term. Design flexibility and shade toleranceThe double stage conversion topology and six MPPT guarantee maximum flexibility for the system design on rooftops or hilly ground. With this technological choice energy harvesting isoptimized even in shading situations.Highlights 6 independent MPPT Transformerless inverter 120 kW for 480 Vac and 100 kW for 400 Vac Wi-Fi as standard for configuration Two ethernet ports for plant level communication Large set of specific grid codes available which can be selected directly in the field Double stage topology for a wide input range Both vertical and horizontal installation Separate wiring compartment for fast swap and replacement IP66 Environmental protection Maximum efficiency up to 98.9% Notes : Maximum number of opening 5 under overloading Please refer to the document “String inverters – Product manual appendix” available at www.abb.com/solarinverters for information on the quick-fit connector brand and model used in the inverter Maximum fuse size supported 20A. Additionally two strings input per MPPT supports 30A fuse size for connecting two strings per input. The AC voltage range may vary depending on specific country grid standard Frequency range may vary depending on specific country grid standard Remark. Features not specifically listed in the present data sheet are not included in the product
Application : Industrial
Feature : Easy To Oprate, Low Maintainance, Trolly Structure
Input Voltage : 220V
Frequency : 60hz
Automatic Grade : Fully Automatic
Warranty : 2year
Power Capacity : 10kv
...more

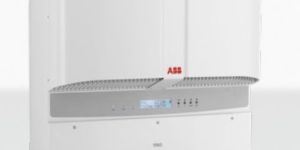

10 to 12.5 kW ABB String Inverter
Designed for commercial usage, the PVI-10/12.5, three-phase inverter is highly unique in its ability to control the performance of the PV panels, especially during periods of variable weather conditions.The high speed and precise Maximum Power Point Tracking (MPPT) algorithm provides real-time power tracking and improved energy harvesting.Two independent MPPTs and efficiency ratings up to 97.8% This transformerless device has two independent MPPTs and efficiency ratings of up to 97.8%. Flat efficiency curves ensure high efficiency at all output levels ensuring consistent and stable performance across the entire input voltage and output power range. The wide input voltage range makes the inverter suitable for low power installations with reduced string size. Highlights • True three-phase bridge topology for DC/AC output converter Transformerless topology Each inverter is set on specific grid codes which can be selected in the field Wide input voltage range Dual input section with independent MPPT allows optimal energy harvesting from two sub-arrays oriented in different directions Integrated DC disconnect switch in compliance with international standards (-S and -FS versions) Natural convection cooling for maximum reliability Outdoor enclosure for unrestricted use under any environmental conditions RS-485 communication interface (for connection to laptop or datalogger) VSN300 Wifi Logger Card as optional for adding Wifi radio, Modbus TCP/Sunspec features as well as access to all Aurora Vision functionalities Lifetime free of charge access to Aurora Vision
Application : Industrial
Feature : Low Maintainance, Low Voltage Indication
Frequency : 50hz
Automatic Grade : Fully Automatic
Warranty : 2year
Power Capacity : 1kv
...more

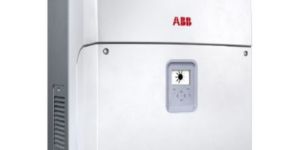

33 Kw ABB String Inverters
ABB string inverters cost-efficiently convert the direct current (DC) generated by solar modules into high quality three-phase alternating current (AC) that can be fed into the power distribution network (i.e. grid). Designed to meet the needs of the entire supply chain – from system integrators and installers to end users – these transformerless, three-phase inverters are designed for decentralized photovoltaic (PV) systems installed in commercial and industrial systems up to megawatt (MW) sizes. A three-phase inverter from the world’s leading power technology company ABB, a global leader in power and automation technologies, brings decades of experience, technology leadership and application know-how from renewable energies to this new string inverter. Such experience and technology ensures high quality, safe and reliable solar inverters are delivered every time. High power package for decentralized PV systems ABB’s three-phase PRO-33 string inverter is designed for medium and large decentralized PV systems either on large-scale commercial and industrial rooftops or ground-mounted PV plants. The inverter offers cost-efficiency in a high power, wall-mountable package with very high conversion efficiency. The all-in-one design with built-in and monitored PV plant protection devices reduces the need of costly external devices. The single maximum power point tracker (MPPT) and optimized MPPT window are suitable for uniformshaped PV plants with long strings connected to the inverter. The high maximum DC input voltage of up to 1100 V gives PV plant designers extra flexibility and allows more PV modules to be connected in series to reduce cabling costs. Highlights Compact, high power wall-mountable package High maximum DC input voltage of up to 1100 V Configurable all-in-one design Advanced grid support functions Safe and intuitive user interface Robust enclosure, with IP65 rating suitable for outdoor installation Configurable all-in-one design The ABB PRO-33.0 string inverter comes in three product variants. The standard model with or without DC switch is designed for use with an external string combiner box. The all-in-one model with built-in string combiner box includes a DC switch, string current monitoring with alarm, PV fuses, monitored surge protection devices and tool-less solar quick connectors. The inverter’s all-in-one design, with built-in and monitored PV plant protection devices, reduces the need of costly external devices. High total efficiency maximizes return on investment The PRO-33.0 inverter offers a high conversion and MPP tracking efficiency in all conditions. A flat efficiency curve provides high revenues in low and high radiation conditions. Fast and easy commissioning Fast PV plant commissioning is enabled via preprogrammed country grid code settings that are easily selectable. Extensive certification ensures wide grid code compatibility. Plug and Play DC and AC connectors enable fast and safe cabling. A touch protected installation area provides additional safety and comfort for inverter installation and maintenance.
Type : String Inverter
Certification : CE Certified
Application : Home, Industrial
Feature : Easy To Oprate
Frequency : 50hz
Automatic Grade : Automatic
Warranty : 1year
Color : Available In Many Colors
...more
Multi-crystalline 72 Cells 1500V Solar PV Module
Highlights More power/m2 compared to industry average Higher specific energy yield (kwh/kwp) due to superior cell + module engineering Superior performance at NOCT and PCT conditions Superior low light irradiation performance 200w/m2 5BB modules offer better performance against microcracks compared to 4BB & 3BB modules Triple EL checking to ensure defect free modules Note : The specifications included in this datasheet are subject to change without notice. The electrical data given here is for reference purpose only. Please confirm your exact requirements with the sales representative while placing your order. All models sold will be as per MSPVL MQAP. Warranty : Please read Adani Solar warranty documents thoroughly. Caution : Please read safety and installation instructions before using the product. Warranty and certifications Product warranty - 12 years of linear power warranty Performance guarantee - Power degradation <- 2.5 % in first year <- 0.68 % / year in 2-25 years Approvals and certificates : IEC 61215 Ed2, IEC 61730, IEC 61701, UL 1703, MCS, JET, CEC, CEC-Aus, IEC 62716, IEC 62782, IEC 60068-2-68, IEC 61853
...more
Multi-crystalline 72 Cells 1000V Solar PV Module
Highlights More power/m2 compared to industry average Higher specific energy yield (kwh/kwp)due to superior cell + module engineering Superior performance at NOCT and PCT conditions Superior low light irradiation performance 200w/m2 5BB modules offer better performance against micro-cracks compared to 4BB & 36B modules Triple EL checking to ensure defect free modules Note : The specifications included in this datasheet are subject to change without notice. The electrical data given here is for reference purpose only. Please confirm your exact requirements with the sales representative while placing your order. All models sold will be as per MSPVL MQAP. Warranty : Please read Adani Solar warranty documents thoroughly. Caution : Please read safety and installation instructions before using the product. Warranty and certifications Product warranty - 12 years of linear power warranty Performance guarantee - Power degradation <- 2.5 % in first year <- 0.68 % / year in 2-25 years Approvals and certificates : IEC 61215 Ed2, IEC 61730, IEC 61701, UL 1703, MCS, JET, CEC, CEC-Aus, IEC 62716, IEC 62782, IEC 60068-2-68, IEC 61853
...more

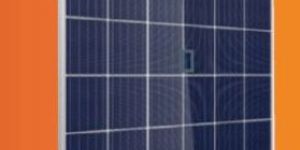

Multi-crystalline 60 Cells Solar PV Module
Highlights More power/m2 compared to industry average Higher specific energy yield (kwh/kwp)due to superior cell + module engineering Superior performance at NOCT and PCT conditions Superior low light irradiation performance 200w/m2 Resistant to PID, salt mist and Ammonia Triple EL checking to ensure defect free modules. Note : The specifications included in this datasheet are subject to change without notice. The electrical data given here is for reference purpose only. Please confirm your exact requirements with the sales representative while placing your order. All models sold will be as per MSPVL QAP. Warranty : Please read Adani Solar warranty documents thoroughly. Caution : Please read safety and installation instructions before using the product. Warranty and certifications Product warranty - 12 years of linear power warranty Performance guarantee - Power degradation <- 2.5 % in first year <- 0.68 % / year in 2-25 years Approvals and certificates : IEC 61215 Ed2, IEC 61730, IEC 61701, UL 1703, MCS, JET, CEC, CEC-Aus, IEC 62716, IEC 62782, IEC 60068-2-68, IEC 61853
...more

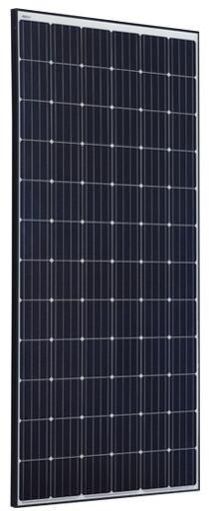

Mono-crystalline PERC 72Cells 1000V Solar PV Module
Highlights 7% higher power output compared to industry average poly-crystalline module Higher performance at longer wavelengths of light (1100-1200 nm) Superior temperature co-efficient and performance at NOCT, PTC ratings Excellent performance at low light irradiation (200W/m2) LIR treated cells with least LID effect 5 Bus bar cells offering better reliability against microcracks Triple EL checking to ensure defect free modules Note : The specifications included in this datasheet are subject to change without notice. The electrical data given here is for reference purpose only. Please confirm your exact requirements with the sales representative while placing your order. All models sold will be as per MSPVL QAP. Warranty : Please read Adani Solar warranty documents thoroughly. Caution : Please read safety and installation instructions before using the product. Warranty and certifications Product warranty - 12 years of linear power warranty Performance guarantee - Power degradation <- 2.5 % in first year <- 0.68 % / year in 2-25 years Approvals and certificates : IEC 61215 Ed2, IEC 61730, IEC 61701, UL 1703, MCS, JET, CEC, CEC-Aus, IEC 62716, IEC 62782, IEC 60068-2-68, IEC 61853
...more

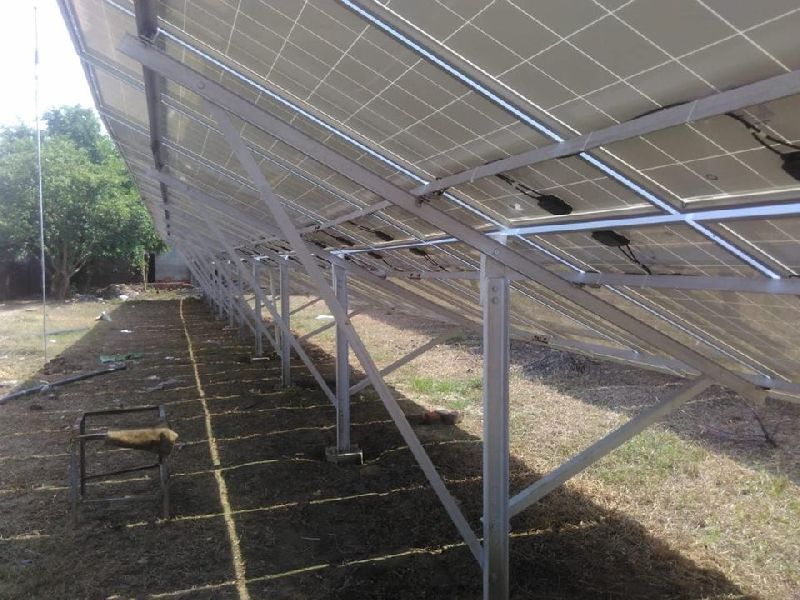

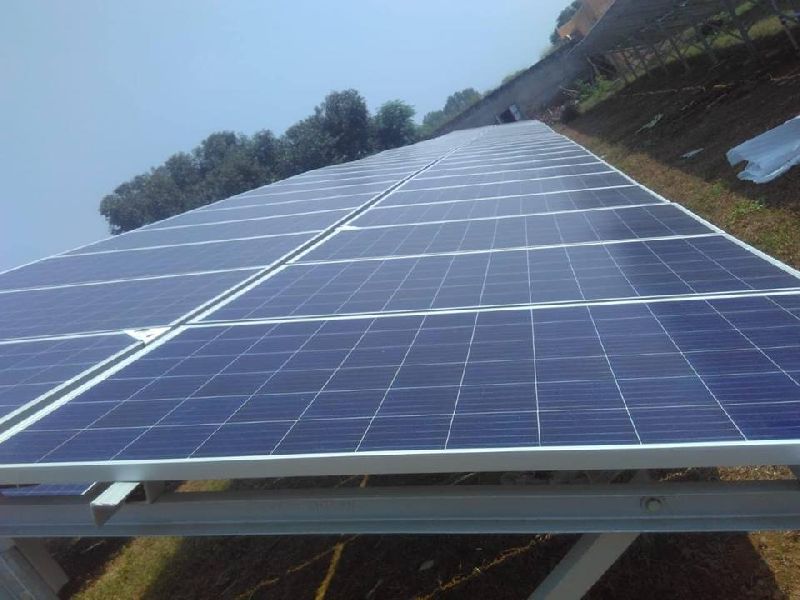

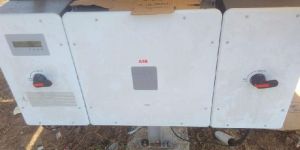

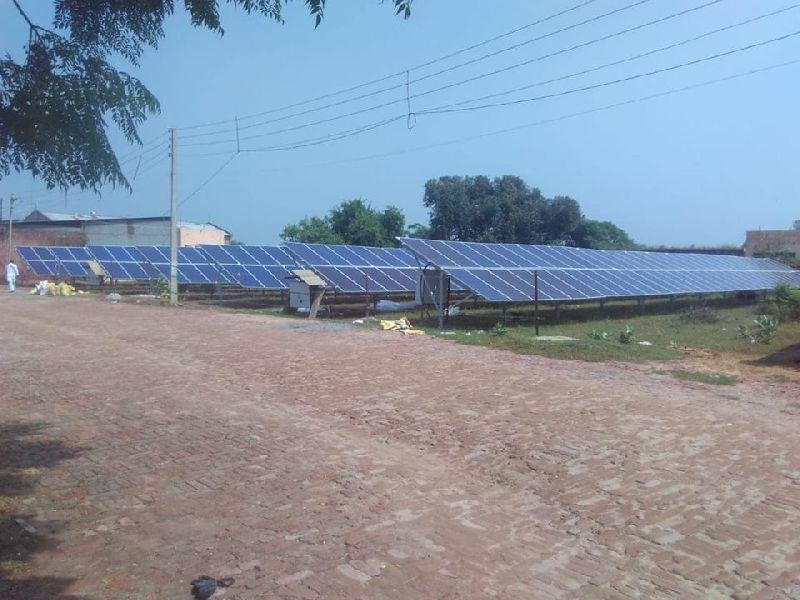

EPC projects
We are a Jind (Haryana) based company, engaged in handling engineering procurement construction - EPC projects for our valued industrial clients. Under the EPC contracting arrangement, we act for the clients to streamline a host of activities related to design, procurement, construction, commissioning and delivery of the project. The name of Arya Electric Company is trusted in the market for its commitment, timeliness, and vigilance in completing the EPC projects with sincerity. We are capable of looking after big-sized and mid-sized EPC projects across the country.
...more
