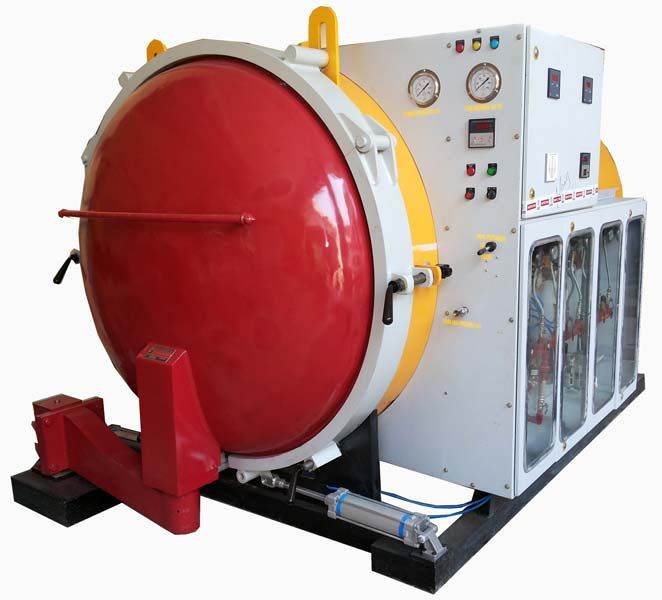

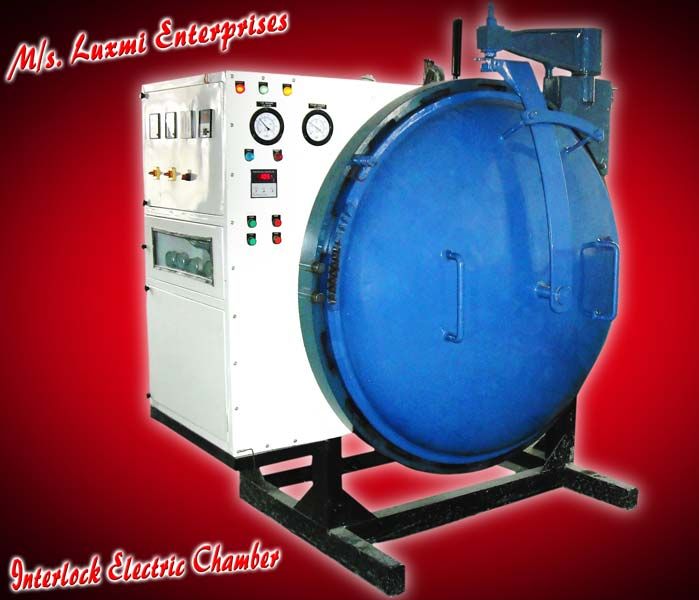

Electric Curing Chamber
Get Price Quote
We are a reputed Manufacturer & Supplier of Electric Curing Chamber. We offer energy efficient Electric Curing Chamber that is designed with fully automatic thermo coupled heater system and electrically controlled panel board that guarantees high performance consuming minimum electricity. The Electric Curing Chamber is fully equipped with pneumatic control valves and safety valves which ensure safe and easy operations. The Electric/automatic Curing Chamber adopts PLC to control curing time, temperature and pressure simultaneously, especially to monitor and control the differential pressure among tube, chamber and envelope. Salient Features : Driver Motor located externally for uninterrupted operation Finned kind of Heaters for quick heat transmission Pin type as well as pneumatic door design available for more secure and safe operation Provided with Mounting & Accessories like thermometer, safety valve, etc. for chamber safety Individual tyre pressure indicator for maintaining pressure at desired level Provided buzzer to inform completion of cycle Friendly with environment (No Pollution & Noise) Efficiently approved due to low power consumption

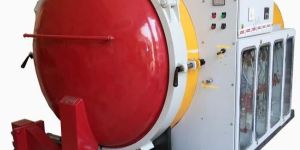

tyre curing chamber
Get Price Quote
Clients can avail from us Tyre Curing Chamber that is required to serve different automobile purposes. Luxmi Enterprises have acquired vast experience as Manufacturer, Supplier of Tyre Curing Chamber in Narwana, Haryana. The Tyre Curing Chamber that Luxmi Enterprises offer is made by utilizing the latest techniques. In addition, we use the finest grade parts and components in the making of Electric Tyre Curing Chamber. Our Tyre Curing Chamber is available in different models and capacities. Model No. LE # 0051 Delivery Time 2 Month Capacity of Tyre Curing Chamber Up to 14.00-20 tyre Size 3tyres of 10.00-20 Specifications Of Tyre Curing Chamber Insulated inside & outside Outside fan motor Auto differential pressure control For fast heat dissipation finned type heaters Pin type door design Fitted with Thermometer Overheat safety controller with digital temperature display 999 mins timer for auto exhaust & indication through hooter for completion of curing cycle Interlocking of heaters with fan motor & chamber pressure Overall weight : 1800 kilograms Overall Dimensions : 6'x7'x6' Air pressure : 8kg/cm2 Air consumption required 27cfm at 150psi. Connected load : 11.20 KW
Best Deals from Curing Chamber

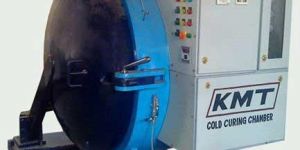

Cold Curing Chamber (KCCI-7-11.20)
Get Price Quote
Our Cold Curing Chamber (KCCI-7-11.20) is insulated on inside & outside for ensuring lesser power consumption. The product has 999 minutes timer for auto exhaust & indication through hooter for completion of curing cycle. Model- KRI-CCC-7-10.20 KRI CCC 4 - 10.20 : up to 4 tyres of 10.00 - 20 KRI CCC 5 - 10.20 : up to 5 tyres of 10.00 - 20 KRl CCC 7 - 10.20 : up to 7 tyres of 10.00 - 20 KRI CCC 11 - 10.20 : up to 11 tyres of 10.00 - 20 KRl CCC 14 - 10.20 : up to 14 tyres of 10.00 - 20 Features Outside fan Motor Finned type heaters for fast heat dissipation Pneumatic door design for more safety & easy operation Air ducting for streamlined air flow & equal temperature distribution Fitted with thermometer and overheat safety controller Auto differential Pressure control Interlocking of heaters with fan motor & chamber pressure Provided with high chamber Optional Differential pressure curing (DPC) system Alarming systems against any leakage from envelop, tube, inflation, or exhaust lines Pressure Recorder for Chamber & tyre pressure Temperature Recorder for recording of temperature through complete cycle
curing chamber
Get Price Quote
Curing Chamber 1420 Model # KCCI – 7 – 1420 Capacity upto 14.00 – 20 tyre size, 7 tyres of 10.00 – 20 KCCI -7-1420 : upto 7 tyres of 10.00 – 20 KCCI -11 1420: upto 11 tyres of 10.00 – 20 KCCI-4-1420: upto 4 tyres of 10.00-20 KCCI-3-1420 upto 3 tyres of 10.00-20 Inside & outside insulated. Inside fan motor. Hydraulically tested at 12 Kg/cm Finned tyre heaters for fast heat dissipation. Lug type door design for more safety & easy operation. Air ducting for streamlined air flow & equal temperature distribution. Fitted with thermometer, overheat safely controller with digital temperature display. 999 mins timer for auto exhaust & indication through hooter for completion of curing cycle. Auto differential pressure control. Interlocking of heaters with fan motor & chamber pressure. Temperature recorder for recording of temp through complete cycle. Overall weight: 2800 Kgs. Overall Dimensions: 11'x7'x6' Air pressure required: 10 kg/cm Air consumption required: 60 cfm at 150 psi. Connected load: 22.0KW Optional: Differential pressure curing (DPC) system. Alarming system against any leakage from the enevlop, tube, inflation or exhaust line. Pressure recorder for chamber & tyre pressure.
0.0
View Profile

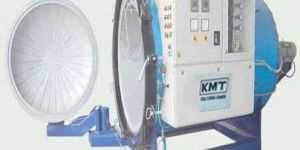

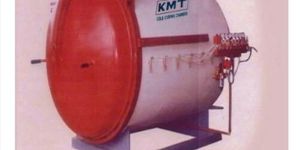

tyre electric curing chamber
450,000 Per Piece
