Allied Engineering Solutions Saraswati Nagar, Jodhpur, Rajasthan

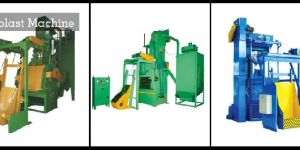

TumBlast comes with motorized tumbler fitted to endless belt in blast chamber, to form a cupped shaped tumble. It runs at a constant speed through gear assembly. Job is loaded on the belt manually or automatically through automatic loader (optional). Now, blasting is done through centrifugal blast wheel mounted on top of blast cabinet. Blast media id transferred through the perforated belt to the hopper and further to the bucket elevator via screw conveyor. Media separation unit is deployed to separate dust and usable media, which is fed again to the blast wheel. Optional Accessories : Automatic Loader (Auto-Mechanic/Hydraulic) Programmable Logic Controller (PLC) Time Control/Time Clock/Auto Sequence Control System Complete Manganese lined cabinet. Sound Reducer etc. Rotary Screen Separation Unit

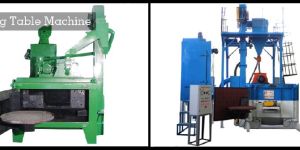

AES offers Airless range of Swing Table Type Shot Blasting Machine, which is widely used in Casting and Forging industries for descaling or cleaning of sand and burr from the castings. It has gained wide application in shot Peening of heavily stressed components and removal of heat treated scale in various heat treatment shops. Swing Table Shot Blasting Machine consists of a Cabinet with a Turn Table mounted on the Hinged Door moving with a constant speed through a gearbox. Job’s are kept on the table and a Centrifugal Blast Wheel mounted on the top of the cabinet throws the abrasive on the part to clean it. Spent abrasive is transferred from the hopper of the cabinet to the bucket elevator and then through a media separation unit to the blast wheel again, and the cycle is repeated for the continuous working of the machine. A Common Dust Collector for the machine, bucket elevator & media separator keeps the system & surrounding clean and free from dust. Various Options are available for upgrading the machine with double door, rotary screen separation unit, fully Mn-Lined Cabinet, various dust collector and PLC controlled operation or single button operation depending upon need. Optional Accessories : Table Size viz. 30″, 36″, 48″ & 60″. PLC Operated Sequential Control or Auto Sequence Operation. Accessories like Abrasive Replenisher & Electronic Brake System. Application in Casting, Forging & Heat Treatment Shops.

We offer Shot Blasting Machine. Our company is counted amongst the well-reputed Shot Blasting Machine Exporters from India. The array of the Shot Blasting includes Hanger Type Shot Blasting Machine as well as Continuous Shot Blasting Machine to meet the specific requirements of the clients. High grade materials are used in the manufacturing of the Shot Blasting Machines ensuring high durability, tensile strength and resistivity to adverse conditions. Additionally, customers are eased with the availability of the Shot Blasting Machines loaded with all the advanced fractures required for easy operation and low maintenance.

This machine is probably the smallest in the family of Airless Machines, and miniature version of Tumblast Machine (power consumption is very low 5 HP only). Specially designed for cleaning of Small/Medium size Iron, Steel, Alloy, and Non-Ferrous Casting, Forging, Heat treated Parts etc. Hence it is ideal for foundries, forging unit and small job shops where less space is required and economic production is concerned. The Machine has rotatory barrel type (Size: 649 mm Dia x 625 mm Length) with thick perforated rubber sheet. The door is opened and components are fed into the machine. The barrels rotate at low rpm and tumbling action, which also ensures the safety of the components. The powerful Blast wheel fires shots on the components and uniform blasting is done. The machine is controlled by control panel and electronic timer. Also, abrasive Recollection System along with Dust Collector (dry type) is also provided as standard fitment.

Pinch valve is a control valve which uses pinching effect to obstruct abrasive media flow. The valve is fitted with a rubber sleeve and on top of the pinch valve body a manual hand wheel is provided for customised regulation. It is fabricated from Cast iron. Rubber Sleeves can be easily and economically replaced when they wear out. On special request, we supply pinch valves with cast aluminium body

It is used for automatic tank sealing. When the switch is in ON position, it automatically seals the pot and thus maintaining pressure. Also, when machine is on off state it depressurize the tank and facilitate refilling of abrasive media. They are used in both portable abrasive blasting machine and pressure blasting cabinets. For portable blasters, we use high quality MS and for PB machines we use aluminium body. Available in following sizes 19mm, 25mm.

It is located at the bottom of the machine where it is used for adequate mixing of air-abrasive media to facilitate free flow of media. The air abrasive mixture is carried to the nozzle through blasting hose. It is fabricated from Cast iron. They are used both in portable blaster and pressure blaster machines (Steel Cross Mixing Tube). The assembly consists of mixing tube, abrasive nipple, air nipple and union. Available in following sizes 19mm, 25mm, 32mm

We are offering Machine Abrasive. The company is the well known manufacturer, exporter, and supplier of abrasion testing machine in india. Our abrasion testing machine with abrasive charge is used for determining the resistance to wear off small size coarse aggregates and crushed rock. The abrasion testing machine consists of a hollow cylinder, mounted on a sturdy frame on ball bearing. A detachable shelf which extends throughout the inside length of the drum catches the abrasive charge and does not allow it to fall on the cover. The drum is rotated at a speed of 30-33 rpm by an electric motor through a heavy-duty reduction gear. Our abrasion testing machine is supplied complete with a tray for collection of the material.

Brand Name : AES

Weight : 5 Kg

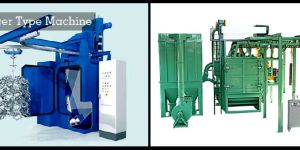

We offer Airless range of Hanger Type Shot Blasting Machine, which are precisely used where job can be hanged and rotated. Hangers are generally mounted on the doors or through the top of the cabinet of the machine and blast wheels mounted on the side of the cabinet throws the abrasive in such a pattern that the number of jobs loaded on the hanger are blasted throughout. In Hanger Shot Blasting Machine the number of blast wheels varies according to the job type and size for thorough blast cleaning. Various options for job handling in are available depending upon the need and planning is available. These arrangements are used extensively where the job handling time is to be reduced through atomization and carrying out blast cleaning within the process line manufacturing of the job. Other then these all the basic parts like duly Mn Lined cabinet, Screw Conveyor, Bucket Elevator, Media Separation Unit, Dust Collectors and Blast Wheels and blow off arrangements prior to the transferring of the job to the next in the process line of painting / coating are available. Optional Accessories: Various Options viz. Indexing Hanger, Monorail, Y-type; Closed Loop Hanger. PLC operated or Auto Sequential Control for the machine. Optional Rotary Screen Media Separation & Electronic Brake for Blast Wheels. Applied precisely where job can be hanged & rotated.

Heavy duty grit valve; cast iron body withstands harsh site conditions.Suitable for medium, and coarse expendable abrasives, and aggressive metallic blast media. i.e.chilled iron, steel shot, & aluminium oxide. Metering hand wheel allows for a wide range of flow rates.It embraces, replaceable long lasting rubber liner.

We are offering Glass Beads. Available with us is an exclusive assortment of artistically designed Glass Beads that is primarily used as embellishments on your clothes or decorative items or for fashion accessories. These bright glass beads are highly in demand in the market and are very competitively priced. Praised for : Impressive appearance Fine polishing Complete finishing Light weight Dimensional accuracy Types of Glass Beads Available : Plain glass beads Glass pony beads Frosted glass beads White heart beads Various glass mix beads.

When blasting is stopped, the valve opens automatically and the air is vented out. Thus, the machine is instantly depressurized through the exhaust valve. They are fabricated from either Cast Iron or Aluminium, depending upon the usage.Due to their flawless performance, robust quality and compact design, our valves are preferred over others.

We are listed at the apex in the list of the preeminent dust collectors suppliers in india. The company extends its expertise for right selection of dust collectors as choice of the correct model of dust collector is integral to any closed blasting system. It is very essential to remove dust and fine abrasive particles from the environment of the blast chamber to maintain the efficient operation. we supply 3 latest varieties of industrial dust collectors of different capacities of international product quality cyclone type dust collectors fabric bag type dust collectors reverse pulse jet type dust collectors

We are recognized as one of the reliable coke injection machine exporters from india. Various national as well as international clients are placing bulk orders for the rotor type coke injection machine due to the unmatched quality and unsurpassable performance. High durability, tensile strength and resistivity to adverse condition have also made the coke injection machine ideal for respective industrial applications. Additionally, coke injection machines are also designed meeting the international quality standards.

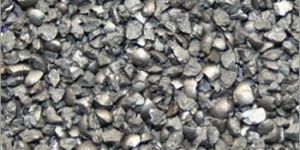

We are offering chilled iron grit. Allied engineering solutions is a prominent manufacturer, exporter and supplier of minerals in the international market. The wide range of our minerals offered by us includes calcite, limestone, dolomite and calcium carbonate powder.our products are known for high purity that is more than 98%, high calcium content i.e. More than 39 %, low silica less than 0.5%, low iron content that is less than 100 ppm. We use raw material such as limestone, calcite and dolomite to manufacture premium quality minerals. Our products are used in diverse industries such as animal nutrition, pharmaceutical, calcium supplement, paper, chemical, steel etc.

We are reckoned as one of the prominent blast room system manufacturers in india. The airless blast room system is ideally designed to effectively blast clean big components. The blasting room system is equipped with proper light, dust collector, main door with louvres and portable blasting machine. The recovery system of the blast room can be mini hopper type where in the abrasives falling in to the hopper are carried to the cyclone with suction air current. These abrasives get cleaned during the process & re-circulated. the other type of recovery system is mechanical recovery system with screw conveyors & bucket elevators. The system also conveys the material to the blasting machine through screw conveyor & bucket elevator system and the abrasives get cleaned in the course of movement to the portable blasting machine.

TumBlast comes with motorized tumbler fitted to endless belt in blast chamber, to form a cupped shaped tumble. It runs at a constant speed through gear assembly. Job is loaded on the belt manually or automatically through automatic loader (optional). Now, blasting is done through centrifugal blast wheel mounted on top of blast cabinet. Blast media id transferred through the perforated belt to the hopper and further to the bucket elevator via screw conveyor. Media separation unit is deployed to separate dust and usable media, which is fed again to the blast wheel.
