Janki Oil Tools Jodhpur, Rajasthan

Size : 16 inch

Country of Origin : Made in India

Shape : Round

Color : Silver

Material : SS

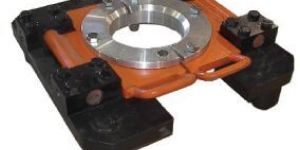

JOT Manufactured Wear Guide Assembly, helps to reduce wear in Master Bushings and Bowls during drilling operations, particularly when using a top drive.The Wear Guide Assembly mounts directly in the pin drive locations on 27-1/2" and 37-1/2" Master Bushings.Locking drive pins are optional. The expendable Wear Guide Rings are available for Pipe Size 3-1/2" to 5" and 5-1/2" to 6-5/8". The wear guide ring material is designed to minimize any wear to the drill string.

While running in or pulling out tubulars at oil rigs the joints (tool joints) are tightened or loosened with the help of manual tongs or power tongs. Dies are the principal element in the manual tongs and power tongs which carry out the job of gripping the tool joints, before torque application. (Rollers or chain are also used for gripping of tubulars while using pipe spinners) Janki Oil Tools Jodhpur manufactures tong dies out of best quality alloy steel. The dies are case hardened to a desired depth, while leaving the inner portion (core) ductile. The hardened surface is highly resistant to wear and exhibits quality gripping of tool joints. The inner ductile core absorbs the shock of sudden impact and heavy torque. Teeth edges are slightly rounded off to eliminate the teeth bite on drill pipe. The combined effect is efficient operation in the long run. Janki made these tong dies meet OEM specifications.

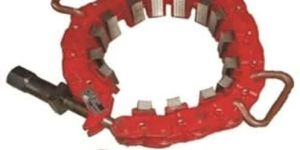

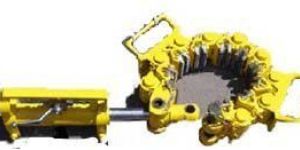

JOT manufacture Safety Clamps are also available in Hydraulic model, which is installed easier and faster without using a nut or wrench. The Hydraulic Safety Clamp operates by a foot or hand actuated Air Hydraulic pump that is assembled with Safety Clamp. The Hydraulic safety clamps are not designed to hold or hoist the string weight – use in conjunction with slips, the end user determines the clamping torque necessary to prevent marking/damaging tubular.

Material : Alloy Steel

Color : Red

Country of Origin : Made in India

Material : Alloy Steel

Safety Clamps are also available in Hydraulic model, which is installed easier and faster without using a nut or wrench. The Hydraulic Safety Clamp operates by a foot or hand actuated Air Hydraulic pump that is assembled with Safety Clamp. The Hydraulic safety clamps are not designed to hold or hoist the string weight – use in conjunction with slips, the end user determines the clamping torque necessary to prevent markingdamaging tubular.

JOT manufactures Rotary Slips or Drill Pipe Slips to handle tubular size 2-3/8"to 7" to be used in API Insert Bowl No 3 havingan API taper of 4 inch per feet on the diameter. Having various gripping length i.e. Short, Medium & Long, havingelastromer gripes on handles. Suitable to 100 Tons to 250 Tons Load capacity.JOT manufactures Rotary Slips in wedged shape and designed in three body segments that are hinged together, forminga near circle around the Drill Pipe, to provide maximum handling capacity, high strength with minimum weight to ease thehandling. The JOT design provides for full distribution of load throughout the length of the slips which helps in preventingdamage of Drill Pipes. The Inserts are changed at Rig sites in a very short time by simply removing the lockingarrangement and retainers. Rotary Slips are also available with flexible handles (on demand).

Rotary Slip to be used in API Insert Bowl No 3 having an API taper of 4 inch per feet on the diameter. Having various gripping length i.e. Short, Medium & Long, having elastromer gripes on handles. Suitable to 100 Tons to 250 Tons Load capacity.

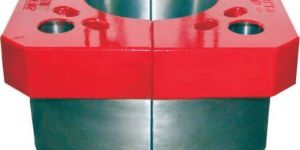

Master Bushings Split type in two design, Pin Drive and Square Drive. Aailable sizes & Model : MB 27 12", MB 20 12", MB 17 12" for suitable rotary table. Master Bushings are provided itself taper of Bowl No. 3 which makes slip handling easier and distributes the load uniformly in the bushing resulting in less wear & tear and passes large diameter bits & tools.

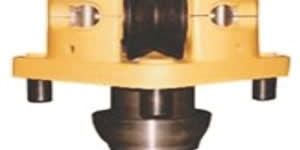

Roller Kelly Bushing Dia Pin Centre, works as connecting equipment between Rotary Table & Kelly. This unit is used for Heavy Duty Drilling Operation & high torque conditions at the time of Drilling Operations & handle Kelly sizes from 3" to 6" Square or Hexagonal.

Thickness : 30 mm

Color : Black

Country of Origin : Made in India

Shape : Round

Material : SS

Material : Alloy Steel

Country of Origin : Made in India

Bit Breakers for different bits that fits in a Rotary table for holding, unscrew or breakout the bit from drill stem, fitted with twofour handles for lifting.

Casing Pipe Slips are made out of best quality of alloy steel having an API taper of 4 inch per feet on the diameter, fitted with circular buttons and with 3 to 4 Nos of up right handles. Multi Segment design of slips ensure self centering of casings in the rotary table. Slips insert are so designed that these hold the casing pipe firmly with-out causing any damage. The advantage of multi segment design lies in the fact that by simply increasing or decreasing the number of slip segments, casing sizes from 5 inch to 30 inch OD can be handled with ease while dressing the slip with appropriate size of insert.

Material : Alloy Metal

Color : Yellow

Country of Origin : Made in India

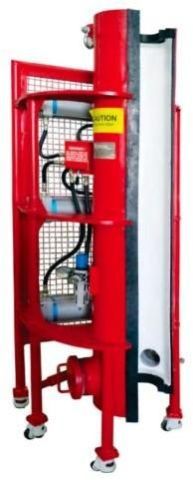

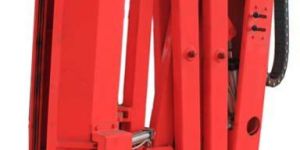

JOT manufactures Hydraulic and Pneumatic operated Mud Buckets; size 6 Ft long suitable for 2-7/8" to 5-7/8 & 2-7/8" to 6-5/8" tubular that replace the manually operated Mud Bucket. Bucket opening & closing operated by Hydraulic or Pneumatic, also provided self locking system for safety at the time of operation. The extension arm enables extension and retraction of bucket between parked position and the well centre through Hydraulic or Pneumatic operation. When the mud has been drained from the bucket, with the help of operating lever the bucket clamps off and the extension arm retracts the bucket in parked position. Hydraulic/Air operated Mud Bucket is an innovative mud bucket, designed for 100% drilling fluid recovery, it improves Drilling operations safely by preventing slick floors that eliminates the chances of slipping accidents on Rig Floors and also reduces crew clean-up time and cuts wash-water disposal volumes. JOT manufactured Mud Buckets are designed to increase safety, to improve working environment and better retention of expensive drilling fluids results in significant cost savings.

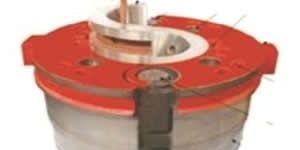

JOT manufactures Master Bushing Pin Drive Solid Body suitable for 27½"and 20½" API Rotary Table, it is equipped withstandard Bowl No. 3 and optional Bowl No. 1 & 2, to accommodate tubular from 2-3/8" to 13-3/8" with the help Insert Bowls,having a maximum Handling capacity of 500 Tons string load. Torque Rating: 27459 Nm at 300 RPM.The JOT-MB is incorporated with Bowl lock assembly that lock the Bowls, MB have locking type drive hole bushes system to lock the Kelly Bushing and Power Slip Lifter. The Pin Drive Master Bushing allows the Kelly Bushing to fit on the top of the master bushing and makes possible to use extended Split Bowls while the Kelly Bushing is in operation. Master Bushing Accessories:is supplied along with the following :-   1. Lifting Sling: Two hooks type for Master Bushing & Two hooks       chain type for Bowl for lifting purpose.   2. Bit Breaker Adapter Plate: To accommodate different sizes of      Bit Breakers for Makeup –Breakup of Bits.   3. Insert Bowls: API Insert Bowl 1, 2 & 3 to handle tubular.     These Master Bushing are provided with locks to secure the bowls        into the bushings.

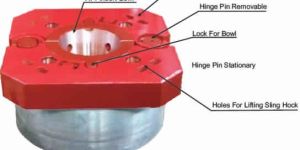

        Master Bushing 37-1/2" Hinge type Pin Drive (Square Drive) for 37-1/2" rotary table is developed for off-shore & On shore drilling operations. Suitable for Oil well Rotary Table. JOT Master Bushing37-1/2" is capable to handle 2-3/8" through 13-3/8 inch tubular. drill pipe, drill collars, tubing and casing to handle load upto 500 tons. JOTMB with a hinged design to can be removed from the rotary table to pass large diameter bit and pipe connections directly through the Rotary table, TheMaster Bushing is equipped with insert bowl No.1, 2 & 3 JOTMB is Square type to fit into the rotary table directly & Eccentric Locking assembly is provided to lock the bowls into the bushing. Master Bushing 37-1/2" Hinge type Pin Drive (Inner latch Drive) for 37-1/2" rotary table is developed for off-shore & On shore drilling operations. Suitable for EMSCO Rotary Table.     MASTER BUSHING ACCESSORIES :Lifting Slings - is equipped with a four hook with chain for lifting purpose.

Master Bushing Rotary table for offshore & onshore drilling operation to provide rotational force to drill string. It is equipped with standard Bowl No. 3 & optional. The JOT-MB is incorporated with Bowl lock assembly that lock the Bowls. It is designed in hinged type that can be removed easily from Rotary Table, facilitate to pass large Diameter Bits and Tubular directly through Rotary Table.

Country of Origin : Made in India

Color : Yellow

Application : Make or Break Pipes

Material : Cast Steel

Country of Origin : Made in India

Type : Pin Type and Box Type

Country of Origin : Made in India
