Peening Machine Dealers in Jodhpur

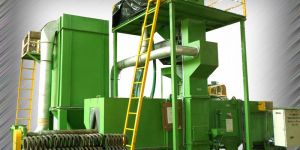

We offer Standard Shot Peening Machine which comprises of a special blast wheel unit developed for Peening purpose that throw shots on component to be peened. Our Standard Shot Peening Machine is sturdy and provides long functional life. We are a well known Manufacturer, Exporter and Supplier of Standard Shot Peening Machine in Rajasthan (India). Customers can avail it from us at reasonable prices. Standard Shot Peening Machine  is used to clean rust on  aeroplanes.Details : The direction, quantity, velocity and size of the shots can be controlled by various accessories Shots of higher hardness (having hardness 2 HRC above the hardness of component) is used

• Voltage: 220V
• Automatic Grade: Automatic
• Power: 3-6kw
• Driven Type: Electric
• Warranty: 1year
• Material: Metal

This machine is especially suitable for automotive, aerospace industries for shot Peening of components such as big gears, gear shafts , crank shafts, axles etc. The Shot peening intensity of 0.7mm on A Almen Strips are attained in 3 minute cycle. Entire Cabinet & Hanger is manufactured with Mn Steel to protect front wear & abrasion & thus gives a long life to the machine. The machine is suitable for a hanger drum of Size 400mmx1200mm. Four such Mn hangers are provided on an Indexing Hanger Module of 1500mm. One Hanger is at loading and unloading station while the hanger opposite to loading unloading station is the Shot Peening station. Balance two stations are idle & Air Wash Station. The Machine is provided with 3 no. Blast Wheel Strategically placed to cover the defined hanger size of 1200 mm length and 400 mm dia. Each blast wheel is powered by 15 H.P. motor and fires Ten Tons Shots per hour per wheel. All the Blast Wheels are provided with Variable A.C. Drive to control the Shot velocity while Peening. The Hanger rotation is also provided with variable A.C. drive to control rotation of the hanger. Matching Shot Recovery system is provided with Screw Conveyor, Bucket Elevator, Rotary Screen Separator, and Vibratory Classifier with Sensors to give feedback of precise working of each application. Machine is equipped with Magna valve to control the shot flow rate. The machine has an intelligent PLC controlling system where the Shot flow rate of each Blast Wheel is permitted in a given band width. Alarms are generated if shot flow rate is less or more than the pre-set limits. The Shot Peening Machine is programmed for recipe. Just select the recipe No. and all set parameters like BW Speed, Hanger rpm Peening Time will be automatically selected by the PLC. A touch Screen user friendly HMI is provided with the machine to display various parameters and operation being run on the machine.

• Certification: CE Certified
• Voltage: 220V
• Automatic Grade: Automatic
• Warranty: 1year
• Weigt: 100-1000kg
• Material: Metal

MEC 7-axis Robotic Shot peening machine is designed to peen bucket root & profile blade for steam turbine. To generate the controlled compressive stress to the surface and to enhance the surface properties, increase fatigue strength, enhance lubricity by creating small pores, increase life of components and prevent galling, ferreting, cracking & corrosion. Machine is suitable for peening job of maximum size upto 1500mm. Standard: 6-axis fanuc robotic gun manipulation Door mounted 3 turntables. Turntable drive synchronized as 7th axis of robot. 3 Jobs can be peened simultaneously Very high production machine Quick clamping/de-clamping pneumatic fixtures Vibratory sieve classifier unit for size classification Spiral type separator for shape classification. Quick change & accurately positioned 4 peening nozzles Colored touch screen HMI & Siemens PLC panel Mechanical grit recovery system Easy part fixture change over Closed loop air pressure regulator Shot flow control magna valve – 4 nos Dual pressure chamber for continuous peening Optional: Automatic shot peening media adder Rotary lance drive 2nd door with turntable as 8th axis. Custom part holding fixtures

• Country of Origin: Made in India
• Voltage: 280 V
• Usage/Application: Industrial
• Power Source: Electric
• Frequency: 60 Hz
• Phase: Three Phase
• No of Door: Single Door

• Voltage: 220V
• Automatic Grade: Automatic
• Power: 1-3kw
• Driven Type: Electric
• Speciality: Rust resistance
• Phase: Three Phase
• Brand Name: Aerowheel Surface Finishing

• Certification: CE Certified
• Voltage: 220V/380V
• Warranty: 1 Year
• Type: Automatic
• Power: 7.5 Kw
• After-sales Service Provided: Spare Parts

Features : We offer a wide range of Shot Peening Machines that are of high-quality standards and can be used in various areas including Military and commercial aircraft, Automobile transmissions, Helicopters, Rock bits, and Oil field equipment. Our Shot Peening machines remove the Tensile Residual Stress caused by various bending and heat treatment procedures.  This leads to an increased life span of parts while working at their maximum load capacities. Our machines are capable of improving the lifespan of Landing gears, gearwheels, gear shafts, turbine blades of aircraft, valve springs, suspension springs, connecting rods, and many others. Our Team has vast experience in handling orders and providing customizations so that you can be satisfied.  Once you place an order with Metablast you will experience pure satisfaction.

This machine, is continuously operating type, in which Rods are fed through diabola into machine. The rotating rods are shot peened to required intensity and come out from outlet portion. All shot peening parameters are monitoredin the machine to achieve desired results. Machine is equipped with Shot Classifier, Shot Velocity Controller, Shot Quantity Controller, Shot Direction Controller etc.

MEC CNC bead peening machine is designed for effective peening on aero engine component (Blade Airfoils). To generate the controlled compressive stress to the surface and to enhance the surface properties, increase fatigue strength by creating small pores, increase life of components and prevent galling, ferreting, cracking & corrosion.The system has capacity to peen upto 48" length of blade.

Shot peening is a cold mechanical process or technique to improve the fatigue strength of substance by air blasting with small spherical balls. Small dimples are formed on the surface of the peening part by the striking of tiny spherical balls.

Airless Shot Peening Machine The operator has to place the coil springs over the adjustable leaner rollers on which it rotates and moves forward. The springs enter in the cabinet where a pair of wheels shot peen the coil springs.

𝐒𝐮𝐫𝐟𝐚𝐜𝐞 𝐈𝐧𝐭𝐞𝐫𝐧𝐚𝐭𝐢𝐨𝐧𝐚𝐥 offers a comprehensive range of 𝐒𝐇𝐎𝐓 𝐏𝐄𝐄𝐍𝐈𝐍𝐆 𝐌𝐀𝐂𝐇𝐈𝐍𝐄 specially designed & built using high-grade materials and high-tech machinery following international standards.

Shot peening machine It is mainly useful for high production output of cleaning of components hard and ferrous and non-ferrous components.

MECShot designed, manufactured, installed & commissioned a Robotic Shot Peening Machine for Turbine Blades. A Shot Peening Cabinet, with a acoustical enclosure and 6 Axis Industrial Robot for shot peening of Turbine Blades. The machine is fully programmable.

Shot Peening Machine MEC automatic glass bead peening machine is designed to peen API threads of drilling components as per MIL-S-13165 standard. To provide two axes shot peening operation for the generation of controlled compressive stress and to improve the galling resistance of the internal & external threads roots on the pipes at both ends. Machine is suitable for peening job of maximum size 12 mtrs [L] &12" Dia     SYSTEM FEATURES & BENEFITS Standard: Pneumatic operated front door for easy loading Motorized roller arrangement for job rotating 2 Controlled speed gun manipulation for OD & ID peening Quick change OD & ID peening pressure nozzles Large work envelope in cabinet High production machine Offline vibratory sieve classifier unit for size classification Offline spiral type separator for shape classification Gravity feed grit recovery system Easy part pixture change over Work car movement for extended length of job High volume pressure chamber for long duration peening   Optional: Automatic shot peening media adder Rotary lance drive. Shot flow control magna valve Custom part holding fixtures
