Spray Gun Dealers in Jodhpur

• Material: Aluminium
• Application: THERMAL SPRAY COATING
• Weight: 2-4kg
• Brand Name: BALAJI UDYOG

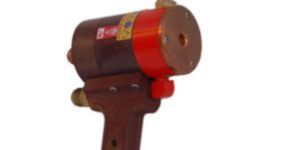

We are instrumental in bringing to clients superior quality Plasma ARC Spray Guns that are known for their optimum quality and excellent performance. Customers can be eased with the affordable rates of the Plasma ARC Spray Gun. We are highly acclaimed as prominent Plasma Arc Spray Gun, Plasma Arc Spraying Gun, Plasma Spray Gun Manufacturer, Exporter and Supplier in India. About Plasma ARC Spray Gun : Plasma is an electrically conductive gas containing charged particlesWhen atoms of a gas are excited to high energy levels, the atoms loose hold of some of their electrons and become ionized producing a plasma containing electrically charged particles - ions and electronsHigh frequency arc is ignited between an anode (nozzle) and a cathode (electrode) Process gases (generally mixtures of Argon, Nitrogen, Hydrogen and Helium) flowing between them is ionized to become a plume of hot plasma gas that exceed the temperature of 6,600 oC to 16,600 oC (12,000 oF to 30,000 oF) When the coating substrate to produce a strongly adherent coatingThe work piece remains cool because the plasma is localized at the gun Plasma Spray is perhaps the most flexible of all of the thermal spray processes as it can develop sufficient energy to melt any material, the number of coating materials that can be used in the plasma spray process is almost unlimited

• Type: Flame Spray Gun
• Material: Mild Steel
• Application: Car, Spraying
• Color: Silver
• Automatic Grade: Manaul
• Power: Gas
• Feature: Corrosion Resistance, Durable
• Working Pressure: Medium

thermal spraying is a group of processes wherein a feedstock material is heated and propelled asindividual particles or droplets onto a surface. The thermal spray gun generates the necessary heat byusing combustible gases or an electric arc. as the materials are heated, they are changed to a plastic ormolten state and are confined and accelerated by a compressed gas stream to the substrate. the particlesstrike the substrate, flatten, and form thin platelets (splats) that conform and adhere to the irregularities of the prepared substrate and to each other. as the sprayed particles impinge upon the surface, they cool andbuild up, splat by splat, into a laminar structure forming the thermal spray coating. figure 2-1 illustrates atypical coating cross section of the laminar structure of oxides and inclusions. the coating that is formedis not homogenous and typically contains a certain degree of porosity, and, in the case of sprayed metals,the coating will contain oxides of the metal. feedstock material may be any substance that can be melted,including metals, metallic compounds, cements, oxides, glasses, and polymers. feedstock materials canbe sprayed as powders, wires, or rods. the bond between the substrate and the coating may bemechanical, chemical, or metallurgical or a combination of these. the properties of the applied coatingare dependent on the feedstock material, the thermal spray process and application parameters, andposttreatment of the applied coating

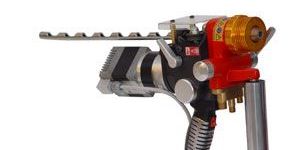

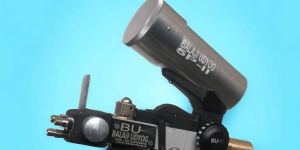

In the Flame spray process, the raw material in the form of a single wire, cord or powder, is melted in an oxygen-fuel gas flame. This molten material is atomized by a cone of compressed air and propelled towards the workpiece.

• Brand Name: BU
• Body Material: Plastic
• Color: Black
• Nozzle Size: 2 mm

• Material: Mild Steel
• Certification: CE Certified
• Application: Spraying
• Weight: 2-4kg
• Feature: Corrosion Resistance, Durable

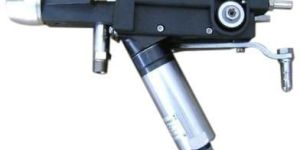

• Item Code: KU-ARC
• Port Of Dispatch: Thar Dry Port
• Packaging Details: As Required
• Payment Terms: L/C (Letter of Credit)/T/T (Bank Transfer)
• Features: Compact design, Trouble-free operation, Less power consumption

We are Instrumental in Bringing to Clients Superior Quality Plasma Arc Spray Guns that are Known for Their Optimum Quality and Excellent Performance. Customers Can Be Eased with the Affordable Rates of the Plasma Arc Spray Gun. We are Highly Acclaimed as Prominent Plasma Arc Spray Gun Manufacturer, Exporter and Supplier.

9MBM Plasma Spray Gun Overview :-  High powder capability - optimum performance at levels upto 88Kw. High heat output capabilities - Plasma gas temperature upto 16000 Degree Centrigrade High Plasma gas velocity - in access of 3050 m/s. High particle velocity - upto 610 m/s.

• Type: Spray Gun
• Application: Machinery Items
• Color: As per customer requirement
• Feature: Easy To Hold, High Performance, Premium Quality
• Automatic Grade: Manaul
• Power: Gas
• Country of Origin: India

Our offers: Arc Spray Gun(Air Gun)AD. Arc Spray Gun(Electric Gun)DC. Arc Spray Gun(Electric Gun)AC. Power Source.

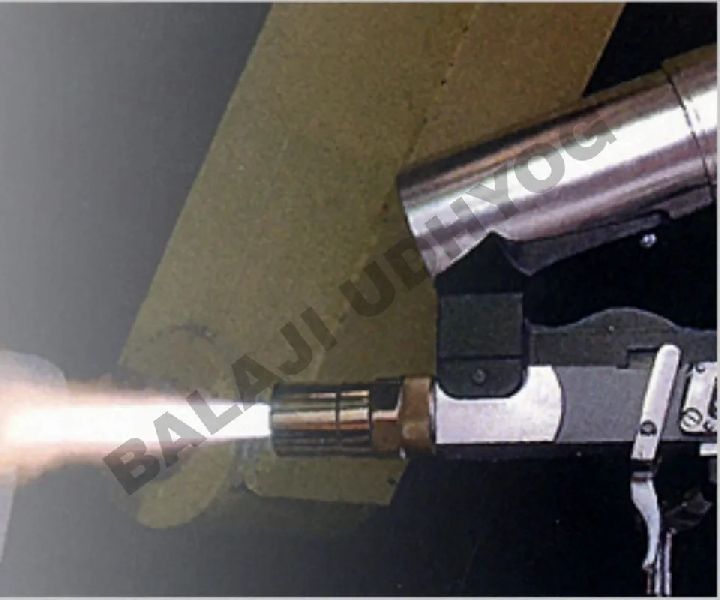

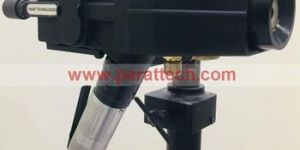

In the Arc Spray process, the raw material in the form of a pair of metallic wires is melted by means of an electric arc. The molten material is atomised by compressed air and propelled towards the workpiece. This gun is the result of our extrenuous R&D Activities which we continually endeavor upon.   The combination of the proven, rugged drive mechanism with the high volume air flow capability, together with a new improved nozzle design, truly makes this gun a state-of-the-art arc spray gun. DC Servo Motor Wire Drive. Simplified maintenance. Quick Disconnect Wire Conduits. Integrated Arc Jets.

• Warranty: 1 Year
• Color: BLACK
• Weight: 3.6 kg
• Coating: THERMAL SPRAY
• After-sales Service Provided: Overseas third-party support available
• Port: ANY PORT
• Supply Ability: 200 Piece/Pieces per Month
• Lead Time: 1 DAY
• Condition: New

We are offering thermal spray gun. In the arc spray process pair of electrically conductive wires are melted by means of an electric arc. The molten material is atomised by compressed air and propelled towards the substrate surface. The impacting molten particles on the substrate rapidly solidify to form a coating. Electric arc spray coatings are normally denser and stronger than their equivalent combustion spray coatings. Low running costs, high spray rates and efficiency make it a good tool for spraying large areas and high production rates. Electric arc spray systems are offered that feed wire by either an air or electrical motor. Electric arc spraying has the advantage of not requiring the use of oxygen andor a combustible gas.

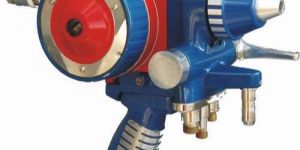

Metallizing Spray Gun. Coating material in the form of single wire, cord or powder is melted in an Oxy-fuel gas flame and molten material is atomized by compressed air and accelerates towards specially prepared substrate to form dense strongly adherent more. We suggest metalizing gun as per customer need.

• Type: Coating Spray Gun
• Condition: New
• Brand Name: METAL COAT
• Supply Ability: 50 Unit/Units per Month
• Packaging Details: Our gun is bubble wrapped and then securely placed in an iron box to protect it while shipping
• Warranty: Unavailable
• Port: Mumbai port

Wire Flame Spray Gun, Shot Blasting Machine, PORTABLE GRIT BLASTING MACHINE

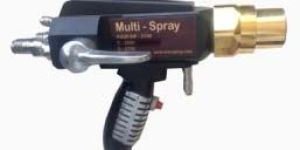

HVOF Thermal Spray Gun, Vacuum Blasting Machine, plasma spray system
