Ribbon Blender Dealers in Kanpur

• Weight: 100-1000kg
• Feature: Durable, Low Maintenance
• Voltage: 220V
• Warranty: 1year
• Surface: Polished

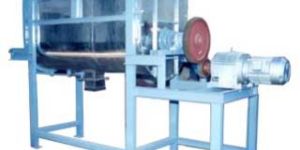

This machine is provided with the arrangement of specially designed twisted Blades to perform best results of power mix within a 'U' Shaped design through. All the mixing ingredients are dropped in the mixer as per their sequence of addition and after mixing the whole batch is dropped either mechanized gate or manual openable gate.    Features:  Convenient to install and operate  Low maintenance  Available in varied specifications

This machine is provided with the arrangement of specially designed twisted Blades to perform best results of power mix within a 'U' Shaped design through. All the mixing ingredients are dropped from the top of the mixer inlet as per their sequence of addition and after mixing the whole batch is dropped though the bottom side either mechanized gate or manual openable gate. Gained 19 years of experience in the domain, we are engaged in providing advanced Ribbon Blender. This blender is used for blending various non-abrasive materials and is highly demanded in cosmetic, food, chemical and plastics industries. The provided blender is manufactured at our advanced manufacturing unit under the stern supervision of our highly skilled team of professionals by making use of quality tested components and pioneering technology. This Ribbon Blender is offered in several specifications to meet the application needs of our clients. Type 1 : Prod : 300 kg per batch/10 min Power : 10 HP motor, Gearbox Type 2 : Prod : 500 kg per batch/10 min Power : 15 HP motor, Gearbox   Features : Energy efficiency Robust construction High performance Longer service life

Axiom Ribbon Blenders produce a superior uniform and consistent mix complemented by robust construction. Mixing is accomplished using the Axiom Double Helical-Ribbon Agitator, with the original reverse-spiral design, delivering uniform, high capacity blending at low power cost. These are based on proven agitator construction that helps in providing a triple mixing action ensuring fast and efficient blending. MATERIAL OF CONSTRUCTION M.S. SS 304/316

• Application: Mixing
• Condition: New
• Automatic Grade: Semi Automatic
• Warranty: 1year
• Driven: Electric
• Sizes: 50 Kg to 2000 Kg (6 Sizes)

  Introduction   Shri Krishna Ribbon Blender is a horizontal shaft ribbon type mixer for different types of powders. The machine works on the principle of fine blending or mixing of materials by the impact of anti-directional ribbons.   Working   The materials to be thoroughly mixed are put inside the blender through the opening present on the top portion. This unit comprises of two types of ribbons. The outer ribbon moves the materials in one direction while the inner ribbon moves the material in the opposite direction. These ribbons move at high speed in sideways and circular direction. This ensures mixing of the materials in a very short amount of time. The materials move from the center to the sides of the ‘U’ tank and from the sides to the center thereby ensuring homogeneous mixing. Once the materials are thoroughly mixed, the final product is discharged either through central opening or from the side bottom opening.   This unit is used in cases where small amount of chemical is required to be thoroughly mixed with large volume of powdered material.   The discharge height is adjusted in a way that material handling time is nil and discharge the operation is dust free.   Application   Shri Krishna Ribbon Blender is the perfect machinery fit for fine powder mixing of spices, cocoa, seasonings, Dyes and pigments, cattle and poultry feed, Insecticides and Pesticides, Chemical Industry, Pharmaceutical Industry and many more.   Construction   Shri Krishna Ribbon Blender is made from best quality raw materials at our site. The main body of the blender is fabricated from thick M.S. plates and is electrically welded. The unit is provided with one main overflow spout on the side and one discharge outlet on the bottom. The body is fitted with a horizontal shaft having M.S. spiders over which the ribbons are fitted on both sides. The shaft revolves on self-aligning bearings. The driving is provided through the spur gear arrangement. The speed reduction is provided in two stages firstly from the motor to counter shaft by ‘V’ belt pulleys and the other from counter shaft to blender by spur gear. The body is mounted on angle iron frame. The main shaft runs on Heavy Duty Ball or Roller Bearings.   Features   Less time consuming Wear Resistance Corrosion Resistance Robust Construction Easy to handle Low Maintenance Adequate discharge clearance provided Low Power Consumption Functioning stops as soon as the cover is opened ensuring safety Dust Free Operation

• Brand Name: SINGHASINI

We are offering singhasini ribbon blenders are excellent blendes for homogenous mixing of powders and are fabricated from m.s sheet formed in a ‘u ‘shaped trough. The main shaft consists of helical ribbons designed for better homogeneous blending. This is run by gear box of worm wheel type, driven by electrical motor with chain & sprocket arrangement or by geared motor. The main shaft is supported on a pair of heavy duty rollar/ball bearings, housed in a dust proof casing.

• Brand Name: Mrida
• Application: Industrial
• Material: STEEL/ SS-304
• Driven Type: Gear
• Warranty: 1 Year Manufacturing
• Voltage: 420V
• Capacity: Upto 3000kg per Batch
• Shape: U
• Mixer Type: Blender
• Phase: 3
• Speed: 30-60
• Orientation: Horizontal

• Type: Ribbon Blender
• Weight: 100-1000kg, 1000-2000kg, 2000-3000kg
• Color: Black, Blue, Light Pink, Orange, Red, White
• Voltage: 110V, 220V, 380V, 440V
• Condition: New, Used
• Application: Blending, Industrial Use
• Automatic Grade: Manual, Semi Automatic
• Power: 1Kw, 500W, 750W
• Driven Type: Electric, Hydraulic, Pneumatic
• Feature: Durable, High Performance, Low Maintenance, Stable Performance
• Warranty: 1year, 2years

• Brand Name: SINGHASINI

Introduction: SINGHASINI RIBBON BLENDER are self contained, compact, dust tight blenders designed for fast mixing of powders. They are used in leading processing plants for mixing materials such as chemicals, foods, drugs, medicines, cosmetics, plastics, synthetics, dyes, fertilizers, insecticides, animal feeds, and many other products. Wherever light to medium mixing is required, there is a Singhasini Ribbon Blender which is ideal for the job. Principle of Operation: Materials with varying densities can be mixed thoroughly in a remarkable short time. Perfect distribution of even smallest quantities added is effected and final product homogeneity is assured. In addition to mixing, shearing action in the interface provides mild kneading. Designed in such a manner that outer ribbon conveys from end towards center, where as inner conveys from center towards end. Rugged Construction: Fabricated out of heavy steel, or any specified material of construction. Design aspects planned for maximum efficiency in leak proof construction. It has fabricated ‘U’ trough having well aligned and balanced shaft which carries ribbons over it. The shaft running in UNI Block Bearing housing with heavy duty self aligning BallRoller Bearings fitted in dust proof housing, gland packing compact unit with built in drive arrangementgear box as specified and supporting legs. Blenders are available from few liters to few thousand liters, tailor made designs are also available.

Ribbon BlenderDouble spiral random mixing with provisions for liquid spray injection suitable for all types of detergents.Size: 250 kgs / batch, 500 kgs / batch, 750 kgs / batch, 1000 kgs / batch.

By keeping a complete track of the latest market developments, we are engaged in offering Ribbon Blender to the clients. It offers a triple mixing action for a highly efficient blending. It is highly acknowledged for its hassle-free functioning, robust structure, and long working life. It is easy to install and demands a negligible maintenance. We offer it to numerous industries for mixing applications. It is completely in sync with the set international standards and norms. Details : The dimensions and configuration of the ribbons are carefully balanced to provide a movement of material within the container that avoids dead spots and gives rapid product discharge. It comprises of a U-shaped horizontal trough and a specially designed Double Helical Ribbon Agitator rotating within.

A ribbon blender consists of a U-shaped horizontal trough containing a double helical ribbon agitator that rotates within. The agitator's shaft is positioned in the centre of the trough and has welded spokes on which the helical ribbons (also known as spirals) are welded. Since the ribbon agitator consists of a set of inner and outer helical ribbons, it is referred to as a “double" helical ribbon agitator. The materials to be blended are loaded into the blender, typically filling it to between 40 and 70 percent of the total volume of the container. This is generally up to the level of the outer ribbon’s tip. Working Principle : During the blending operation, the outer ribbons of the agitator move the material from the ends to the center while the inner ribbons move the material from the center to ends. Radial movement is achieved because of the rotational motion of the ribbons. The difference in the peripheral speeds of the outer and inner ribbons results in axial movement of the material along the horizontal axis of the blender. As a result of the radial and the counter-current axial movement, homogenous blending is achieved in short time. Blending is generally achieved within 15 to 20 minutes of start-up with a 90 to 95 percent or better homogeneity. The particle size and its bulk density have the strongest influence on the mixing efficiency of the ribbon blender. Ingredients with similar particle size and bulk densities tend to mix faster as compared to ingredients with variation in these attributes. ***Product can be customized with a spray system which will ensure uniform mixing of liquid compound to the product. Application : Suitable for material mixing of pharmacy, food, Pan Masala industry, pesticide, chemical industry, plastic, ceramic, paint, putty, mortar and etc.

• Size: 25
• Type: U type
• Model Number: RM 001
• Brand Name: MJT
• Material: Stainless steel

25 kg to 1000 kg per batch capacity
