Singhasini Dry Chem Vishnupuri, Kanpur, Uttar Pradesh

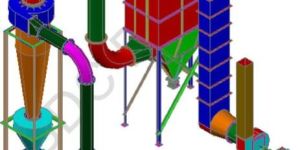

We are offering ultarfine pulverizers. singhasini ultra fine pulverisers are impact type, high speed, air swept, swing hammer type, multipurpose grinding mills capable of grinding soft to medium hard minerals & chemicals up to the hardness of 2.5 – 3.0 moh’s. The main mill is supplied with automatic feeder, high efficiency cyclone air separator along with surge drum & air lock valve for better collection efficiency, reverse jet pulse air bag filter dust collector along with automatic cleaning system for bags & air lock valve for better efficiency & a special type of exhaust air centrifugal blower. The material of construction of internal parts of pulveriser main mill, cyclone air separator, bag filter dust collector & exhaust air blower varies as per individual requirement. The ultra fine pulveriser is supplied with digital (automatic) feed controller for maximum optimum feeding. ultra fine grinding is achieved by compression, shear, abrasion, attrition and impact of hammers beaters on the materials against the replaceable serrated striking plates. The strong suction blower sucks the pulverized product and the air stream inside the mill carries the result product. In between the fan and the grinding chamber (having beaters hammers) is the whizzer classifier consisting of blades with tips tapered to conform the contour of whizzer classifier cone. Counter current is set up at the periphery indicated by arrows; it rejects the coarse material back to the grinding chamber for re-grinding. Clamping the whizzer clamp at a suitable position can control fineness. The entire wearing parts consisting of grinding chamber, whizzer classifier and blower are lined with replaceable lining plates.

Brand Name : SINGHASINI

This type of conveyor is used for conveying mineral crushed lumps, herbs, spices,  granules, etc. Singhasini offer troughed Belt conveyor having capacity 1 to 50 Tons per hour.

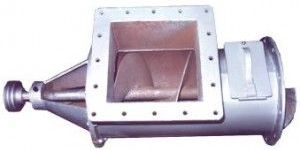

SINGHASINI Screw Feeders are used at the bottom of Bin’s , Silo’s or Feed Hopper’s to feed material at a controlled rate into a Grinding or to introduce material into positive or negative conveying systems . A Screw Feeder consists of a screw which turns at a given RPM in close clearance to it’s casing . The casing may be circular or  ‘U’ trough  . Material of construction is M.S. / SS316 / SS304 or any other as per the nature of product Screw Feeders are tailor made equipment’s and sizes depend on individual requirement, should you require any information please feel free to get in touch with us.

SINGHASINI Screw Elevators are widely used in all industries for handling of bulk solids . For an efficient operation the design has to be matched for the specific duty and characteristics of the bulk material to be handled . Particular care is required with infeed arrangements for optimum performance . All our elevators are individually designed and manufactured to secure the best results for each application. STANDARD SPECIFICATION : Inclination upto 90° can be accomodated. Gravity feed options are available.      OPTIONAL  EXTRAS : Clean out doors. Alternative material of construction and finish. Drive arrangement to suit individual requirements. Split casings for easy cleaning. Chute of hopper style inlets. Mobile or fixed units. Dust extraction hoods. Jacketed construction suitable for steam , oil or water. Screw Elevators are tailor made and sizes depend on individual requirement, should you require any information please feel free to get in touch with us.

We are offering singhasini screw conveyors are self contained, compact, dust tight conveyors designed for fast and convenient conveying of powders. They are used in leading processing plants for conveying dry powder grain size materials. principle of operation: materials that are powder granular in nature can be conveyed in a remarkable short time. In addition to conveying, mild mixing also takes place. Designed in such a manner that the flights of the screw convey the material from one end to the other. rugged construction: fabricated out of heavy steel, or any specified material of construction. Design aspects planned for maximum efficiency in leak proof construction. It has fabricated ‘u’ trough having well aligned and balanced shaft that carries screw flights over it. The shaft is supported on bearing housings & gunmetal hanger bearings. The conveyor is with built in drive arrangement gearbox as specified and supporting legs. The structure can be designed in such a manner so as to give a degree to the conveyor – this is done when the material is to be conveyed to a certain height.

We offer rotary dryer operated at almost atmospheric pressure consists of a m.s.cylindrical shell, ranging in length from four to ten times its diameter, into which the wet charge is fed continuously at one end and is discharged at the other, the movement of the material being due usually to the combined effect of inclination of the shell to the horizontal and the action of internal lifting flights during the rotation of the shell. The latter is usually provided with machined girth rings supported on suitable designed bearings. Rotation of the shell is secured by the action of suitable gearing. Hot air produced from hot air generator (direct or indirect ) is injected into the dryer to achieve the required dryness of the material . The discharge end of the rotary dryer consists of sealing arrangement , cyclone and dust collector.

SINGHASINI Bag Filters use the well proven air pulse jet cleaning system . The Filter casing has tubular filter sleeves, supported on wire cage . Dirty gas is cleaned by dust particles clinging / stopping on the filter media surface . Clean gas flows on through the filter sleeve and out from the top of filter mounting tube sheet . These Bag filters when used can arrest particles down to 1 micron in size with fairly good collection efficiency . The Tubular Filter Sleeves are neatly grouped in row of multiple elements . While the filters remain on service , through an auto time sequencing system they are back washed by a strong pulse of compressed air which shakes loose the accumulated dirt particles . The dust falls to the collection hopper and is out through Air Lock Valve. We also supply special Bag Filters to handle potentially explosive materials by incorporating Explosion relief valves and using special Anti-Static Filter Media and mounting accessories . For continuous duty only compressed Air / Gas is required besides few Watts control power .

Brand Name : SINGHASINI

SINGHASINI Reactors are extensively used by many Chemical Process Industries Viz. Pulp & Paper, Food, Polymerization, Coagulation & Flocculation, Pharmaceuticals, Paint and Breweries etc . Design of Reactor depends on host of features such as R.P.M., Size of Tank, Physical Properties of Fluid, Presence of Baffles and Heat of Reaction etc. Reactor / Agitator / Mixer have wide application in Heat Transfer. Mass Transfer and Dispersion equipment’s. Types of Impellers used are Marine type Propeller, Pitched Blade Turbine, Curved Blade Turbine, Anchor Impeller, Helical Screw Impeller and Flat Blade Turbine . Wide applications warrant the use of various material of construction such as M.S., SS304 / SS316x, Rubber lined, PVC lined etc. Stuffing box and Double Mechanical Seals with Siphon assembly are provided as per requirement . Reaction Vessels / Agitators / Mixers are tailor made equipments and sizes depend on individual requirement, should you require any information please feel free to get in touch with us.

We are offering impact pulverizers. singhasini manufacturer of impact pulverisers are high speed, air swept, swing hammer type, multipurpose grinding mills capable of grinding soft to medium hard minerals & chemicals up to the hardness of 3.5 � 4.0 moh�s such as minerals, bentonite, clays, limestone, neeru, dolomite, coal, bauxite, barytes, gypsum, china clay, soap stone, calcite, pyrophillite, mehandi, spices etc. The main mill is equipped with a hopper below which is the star-feeder actuated by pawl & ratchet mechanism. The fine grinding is achieved by compression, shear, abrasion, attrition and impact of hammers beaters on the materials against the replaceable serrated striking plates. The strong suction blower sucks the pulverized product and the air stream inside the mill carries the result product. In between the fan and the grinding chamber (having beaters hammers) is the whizzer classifier consisting of blades with tips tapered to conform the contour of whizzer classifier cone. Counter current is set up at the periphery indicated by arrows; it rejects the coarse material back to the grinding chamber for re-grinding. Clamping the whizzer clamp at a suitable position can control fineness. The entire wearing parts consisting of grinding chamber, whizzer classifier and blower are lined with replaceable lining plates. star features: �lower power consumption. �fineness control. �automatic feeder. �low operation & maintenance cost. �high grinding efficiency. �whizzer classifier. �open circuit grinding. �trap iron pocket. �high efficiency cyclone separator. �tubular air bag filter. �continuous silica separator. �high reduction ratio. �heavy duty construction. �sixty year of experience.

Brand Name : SINGHASINI

SINGHASINI welcomes  your company to our Metal Fabrication and Assembly Facility. Our Machining, Sheet metal Fabrication and Assembly facility consist of advance equipment, highly motivated and experienced personnel which have been with our company for many years. We have been in business over 40 years. Our 20k sq. ft expandable facility consist of Metal Fabrication Production ,  Mechanical Test and Quality Control . We are capable of doing Turnkey to your specification and have a full fledged design check service facility.   The parts we fabricate are being used in Mineral and Chemical Process Industry. We have an extensive background with handling all type of materials ferrous,  nonferrous, exotic metals and casting. We have experience in the fabrication of stainless steel parts and weldments for high pressure and high vacuum systems. Additionally our staff will interface directly with your engineering personnel to improve quality and reduce the cost of the production and proto-type parts.

We offer metal recovery from dross. singhasini metal sepration from dross system: singhasini metal sepration pulveriser’s are impact type, high speed, air swept, swing hammer type, multipurpose grinding mills capable of grinding & separating heavier metal particles lumps from the feed dross straight from the ginding chamber on continuous basis through a special type of metal separation attachment supplied with the machine. The fine metal particles which get air borne along with the ash dross are separated by the cyclone separator and further by an external vibrating sifter screen. The main mill is supplied with manual feeder, heavy duty high efficiency cyclone air separator & tubular type open dust collector. The material of construction of internal parts of pulveriser main mill, cyclone air separator & dust collector varies as per individual requirement. The pulveriser is supplied with digital (automatic) feed controller for maximum feeding.

We are offering double drive pulverizers grinding upto 30 microns. singhasini double drive pulverisers are impact type, high speed, air swept, swing hammer type, multipurpose grinding mills having separate drive for the centrifugal blower of the pulveriser, capable of grinding soft to medium hard minerals & chemicals up to the hardness of 5.0 moh’s to achieve particle size up to 700800 mesh or 1820 microns. The main mill of the pulveriser is driven by a separate motor and the centrifugal blower with a separate motor in order to have better control over the particle size of the end product. The pulveriser main mill is supplied with automatic feeder, static classifier along with an air lock valve, high efficiency cyclone air separator along with surge drum & air lock valve for better collection efficiency, open type tubular dust collector bag filter for manual cleaning of bags. The material of construction of internal parts of pulveriser main mill, cyclone air separator, bag filter dust collector & exhaust air blower varies as per individual requirement. The double drive pulveriser is supplied with a static classifier & digital (automatic) feed controller for maximum optimum feeding. super fine grinding is achieved by compression, shear, abrasion, attrition and impact of hammers beaters on the materials against the replaceable serrated striking plates. The separately driven strong suction blower sucks the pulverized product and the air stream inside the mill carries the result product. In between the fan and the grinding chamber (having beaters hammers) is the whizzer classifier consisting of blades with tips tapered to conform the contour of whizzer classifier cone. Counter current is set up at the periphery indicated by arrows; it rejects the coarse material back to the grinding chamber for re-grinding. Clamping the whizzer clamp at a suitable position can control fineness. The entire wearing parts consisting of grinding chamber, whizzer classifier and blower.

SINGHASINI offers Digital (Automatic) Feed Controller suitable for operating Pulverisers automatically & to achieve maximum feed rate. It is seen that all the Pulverisers have problems regarding armature burning of Heavy & Expensive Motor due to uncontrolled feed / overloading in the machine & consequently all the Pulverisers are generally run at a lower ampere load resulting in less production. Further, due to operator / labor negligence, the machine often runs idle or at a much lower ampere. SINGHASINI Digital (Automatic) Feed Controller solves all the above problems. The Controller feeds the material into the Pulveriser based upon the ampere load of the main motor, cuts the feed if the machine runs on overload and increases the feed if the machine runs on under load condition. Further, if due to any reason the machine is being run at a lower ampere than given, the signal goes to the Hooter. SINGHASINI Offers Controllers in two sizes: Digital (Automatic) Feed Controller model Autofeed-1, Suitable for main motors up to 60 H.P. Digital (Automatic) Feed Controller model Autofeed-2, Suitable for main motors of 75 to 100 H.P.

SINGHASINI Conical Mixer consists of a partly filled container rotating about a horizontal axis. Suitable for blending lighter dry, free flowing powders, during blending a small quantity of liquid may also be sprayed into the mix. Internal baffles may also be provided. Suitable for blending of Chemicals, foods, drugs, medicines, cosmetics, plastics, dyes, fertilizers, insecticides, animal feeds & many other products.
It is a batch type of operation and a tailor made machine. Conical Mixers are tailor made mills and sizes depend on individual requirement, should you require any information please feel free to get in touch with us.

This type of conveyor is used for conveying lumps at higher inclination. We also offer inclined and portable belt conveyors. This is comparatively a slow speed conveyor.

we are offering centrifugal blower. fan duty - for handling air, hot flue gas, dust, fibrous material and corrosive gases. material of construction - carbon steel , stainless steel , aluminium , rubber lined , epoxy painted , chlorinated rubber painted . construction - corrosion and acid resistant fans, wear protected , explosion protected, gas tight fans, poisonous and risky gas fans. bearings - ball bearings, roller bearings, oil lubricated bearings, grease lubricated bearings, water cooled bearings. shaft seals - metal asbestos seal, labirinth seals, packed stuffing box, stuffing box with intermediate pressure relief chamber. housing - steel fabricated welded construction braced with steel flats and angles. split casing can be provided for large sizes. inspection door and drain plug can be provided. impeller - impeller can be made in light , medium and heavy construction class i , ii and iii. steel or cast iron hub will be welded, bolted or riveted. impeller will be statically and dynamically balanced . shaft shaft are of en - 8 ss316 ss304 properly sized to keep away from critical speed. bearing life - bearings are designed for long life . this life can be attained when properly lubricated, kept clean, tensioning belts correctly and keeping impeller clean and balanced. smaller v pulleys and improper belt tensions reduces the life considerably. proper care and lubrication increases the life beyond this. vibrations - vibration isolators and flexible connections at inlet and outlet can minimize transmission of vibration and noise to building structure and ducts.

We are offering belt conveyors. Singhasini offer different type of belt conveyors which are as follows : a) troughing belt conveyor b) cleated belt conveyor a) troughing belt conveyor: this type of conveyor is used for conveying mineral crushed lumps, herbs, spices, granules, etc. Singhasini offer troughed belt conveyor having capacity 1 to 50 tons per hour. troughing belt conveyor b) cleated belt conveyor: this type of conveyor is used for conveying lumps at higher inclination. We also offer inclined and portable belt conveyors. This is comparatively a slow speed conveyor. incline belt conveyor idler set : singhasini offer the following idler set along with the belt conveyors: a. Three roll 20 to 30 degree troughing carrying idler set. b. Impact idler set with rubble lining to detachable rubber ring. c. Self aligning type idler set. impact idler set with rubble lining to detachable rubber ring self aligning type idler set schematic diagram of incline belt conveyor for feeding a bin feed hopper exported to russia typical layout arrangement of multiple belt conveyors done for ms united phosphorus limited jhagadia plant, gujrat for handling rock phosphate.

Belt Conveyor is designed to boost productivity of a unit. Belt Conveyor smoothly conveys mineral crushed lumps, herbs, spices, granules with speed of 1 to 50 tons per hour. Belt Conveyor is easy to install and promises long lasting performance. Highlights Easy to install Conveys products smoothly Durable Easy to maintain

We are offering roller mill. introduction & working principle: singhasini 3 5 – roller mill with integral separator provide an automatic comparatively dust free complete system for medium to fine grinding and classification of minerals ores. the grinding operation in singhasini 3 5 roller mill is performed on the principle of attrition and compression, which results due to the centrifugal force generated from the suspended rollers running inside a stationary bull ring. the mineral to be pulverized enters the grinding chamber through an automatic feeder and falls onto the mill floor whereby it is scooped up by steel ploughs into the nip space between the rollers and the bull ring where grinding takes place. a constant quantity of air is circulated through the mill and system. The air from centrifugal blower enters the mill through a series of tangential ports round the base of grinding chamber and sweeps the fine and medium fine mineral to the classifier above the grinding chamber leaving no ground material in the chamber and allowing the rollers to work efficiently crushing the coarse mineral. the classifier separates the pulverized mineral and coarser particles return back to the grinding chamber for further size reduction. Fine mineral is carried by air to the cyclone air separator where air and ground material are separated and collected. The clean air is returned to the blower for close circuit grinding operation. for providing dustless operation, the mill is operated under negative pressure and is equipped with dust collection system where surplus air in the circuit is vented and fine dust is collected in the dust collector bags. description: the following are the main parts of the roller mill: 1. Grinding chamber. 2. Classifier. 3. Cyclone air separator & tank. 4. Centrifugal blower. 5. Dust collector and connecting pipes. 6. Automatic feeder.

We are offering Double Drive Pulverizer that has grinding capacity up to 30 microns. Our Double Drive Pulverizer is impact type, high speed, air swept, swing hammer type, multipurpose grinding mill having separate drive for the centrifugal blower of the pulveriser. Double Drive Pulverizer is capable of grinding soft to medium hard minerals & chemicals up to the hardness of 5.0 MOH̢۪s to achieve particle size up to 700800 mesh or 1820 microns. The main mill of the Double Drive Pulverizer is driven by a separate motor and the centrifugal blower with a separate motor in order to have better control over the particle size of the end product. The Double Drive Pulverizer is supplied with automatic feeder, static classifier along with an air lock valve, high efficiency cyclone air separator along with surge drum & air lock valve for better collection efficiency, open type tubular dust collector bag filter for manual cleaning of bags. The material of construction of internal parts of Double Drive Pulverizer, cyclone air separator, bag filter dust collector & exhaust air blower varies as per individual requirement. The double drive pulveriser is supplied with a static classifier & digital (automatic) feed controller for maximum optimum feeding. Function Super fine grinding is achieved by compression, shear, abrasion, attrition, and impact of hammers beaters on the materials against the replaceable serrated striking plates. The separately driven strong suction blower sucks the pulverized product and the air stream inside the mill carries the result product. In between the fan and the grinding chamber (having beaters hammers) is the whizzer classifier consisting of blades with tips tapered to conform the contour of whizzer classifier cone. Counter current is set up at the periphery indicated by arrows; it rejects the coarse material back to the grinding chamber for re-grinding. Clamping the whizzer clamp at a suitable position can control fineness. The entire wearing parts consisting of grinding chamber, whizzer classifier and blower.
