SYNO ENGINEERS Panki, Kanpur, Uttar Pradesh

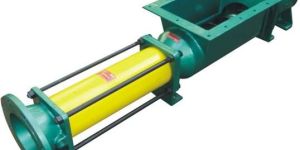

We are offering wide throat pumps. Syno pump possesses an ideal pumping principal for handling substances of extreme consistency.to gain full advantage of its versatility for such duties this pumping technique enables efficient & easy pumping of non-newtonian or plastic-viscous fluids. to achieve this function the pump is fitted with alloy steel stainless steel. Auger cum coupling rod which pushes viscous substances.into the pumping element. For corrosive and hygienic application product retaining pockets are completely eliminated, avoiding bacteriological and chemical contamination. Moc available in wide range. • capacity : upto 150 m3hr • temperature : upto 180 degrees cel • pressure : upto 24 bar • viscosity : upto 1 milion cp fluids handled: asbestos slurry, butter, cake mix, chocolate mix, chyawanprash, cellular-foam, light weight concrete, clay slurry, explosive slurry, fruit or vegetable mash, printers ink paste, putty, starch slurry, yoghurt and other material regarded "unpumpable".

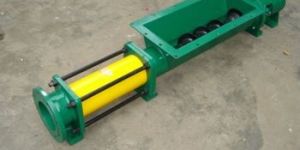

Pumping highly viscous, solids laden, non-Newtonian fluids are a difficult and complex process. At Syno, we have the knowledge and expertise to help you. The Wide Throat "W" Series has been designed to handle highly viscous materials, such as sludges, slurries, thick non-flowing pastes and de-watered sludge cake which ensures easy and efficient handling of high-viscosity fluids with viscosities up to 1,00,000cP. The design of the "W" Series is such that many different applications can be handled. This transfer pump consists of an enlarged rectangular inlet with a screw conveyor to assist the product into the pumping element. The hopper type suction inlet allows gravity flow of extreme viscous materials on to the augur cum coupling rod which pushes the substance into the pumping cavity. For the many difficult and varied applications encountered, the pumps are run at a relatively slow speed, therefore the pump will handle shear sensitive products with minimal product damage, abrasive solids in suspension and highly viscous materials. This pump offers higher level of performance than standard open throat style pumps.   Features and Benefits Provides a process efficient method of handling sludges with high solids content Bridge Breaker Available for High-Solids & Low flowable Fluids Large viscosity range Good pumping performance even against high pressure (max. 6 or 12 bar) Designed to run at relatively slow speeds to minimize damage to shear sensitive products High operational reliability Optimum service life even with difficult media Good pumping performance even with abrasive and fibrous materials in the media Various hopper sizes available Easy to dismantle and clean Interchangeable components Typical Applications Bakery     Brewery     Ceramics Chemical     Construction     Cosmetics Dairy     Dyestuff     Edible Oil Food Processing     Malt & Cocoa Mining     Meat Processing     Paper & Pulp Paint & Varnish     Sewage Treatment     Soap & Detergent Sugar     Starch

Pressure : Upto 24 Bar

Pressure : High Pressure

Usage : Water

Brand Name : SYNO ENGINEERS

Theory : Other

Brand Name : SYNO ENGINEERS

Application : STARCH SLURRY,MOLASSES,PRINTERS INK PASTE, PUTTY,OIL, VISCOSE,

Power : Electric

Pressure : High Pressure

Structure : Screw Pump

Theory : Other

Pressure : High Pressure

Rated Power : Electric

We take pleasure to introduce ourselves as one of the oldest and prestigious manufacturer of Single Screw Pumps/Progressive Cavity Pumps and Retrofit Spare Parts in India since 1975 serving industries like Waste Water, Grouting, Pulp & Paper, Food, Sugar & Distillery, Pharmaceuticals, Oil, Power, Fertilizer and Chemical Industries etc.

Type : Slurry Pump

Certification : ISO 9001:2008

Application : EXPLOSIVE SLURRY

Voltage : 440V

Condition : New

Theory : Screw Pump

Pressure : High Pressure

Structure : Single Stage Pump

Warrenty : 1yr

Country of Origin : India

Brand Name : SYNO ENGINEERS

Power : Electric

Structure : Screw Pump

Application : FRUIT OR VEGETABLE MASH,STARCH SLURRY,PRINTERS INK PASTETARCH SLURRY

Pressure : High Pressure

 We maintain our leadership by constantly upgrading the technology as well as expanding the product range. We believe in efficiency by precision in construction and manufacturing and so we are continuously improving and developing technology that delivers better value for money by incorporating features that reduces the life cycle cost of the equipment, by slashing maintenance, time & effort, increasing component life, reducing power consumption etc.

Application : PUMP HOUSING

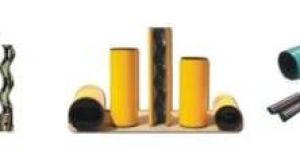

We are offering pump spare parts based on the 30 years experience in manufacturing the progressive cavity pumps and components, syno knows the criticalities of the dimensions required for your pump to functions smoothly without any downtime. Further endorsed by the customers, it was found that the retrofit spare parts manufactured by us function even better than that of original pump manufacturers. Syno parts are produced to iso 9001:2000 using high quality materials, heat treatment processes and coatings. Strict quality procedures ensures the control of accurate manufacturing tolerances, resulting in dimensionally interchangeable parts. The process gives you increased abrasion and corrosion resistance to ensure every replacement part lasts longer, yet still offering you an economical product.

 Syno pumps are known among worldwide users seeking intelligent solutions, products of the highest possible quality and reliable service. Our products, used in varying areas, are consistently superior in design. Using the best quality materials available, we provide our users with fast, flawless service to ensure that all pump systems and pump types operate in the safest, most economical & possible manner.

Type : Progressive Cavity Pumps

Certification : ISO 9001:2015 Certified

Application : Mobile Pumps

Voltage : 415 V

Power : Electric

Pressure : High Pressure

Structure : Screw Pump

Temperature : 1-80 Deg C

Working Pressure : 24 Kg/cm2 (max)

Viscosity Range : 1-50000 Cp, 50000-100000 Cp

Country of Origin : India

Structure : Screw Pump

Pressure : High Pressure

Power : Electric

Application : Printers Ink, Paste, Putty, Starch Slurry, Asbestos Slurry

Pressure : High Pressure

Structure : Screw Pump

Theory : Other

Application : Other

Fuel : Other

Power : Electric

Structure : Screw Pump

Pressure : High Pressure

Application : MOLASSES,SLURRY, SLUDGE

Fuel : Other

Power : Electric

Application : OIL, VISCOSE,YEAST,SUGAR,MAGMA MOLASSES,GLUE PAINT

Brand Name : SYNO ENGINEERS

Country of Origin : Uttar Pradesh, India

Application : OIL, VISCOSE,YEAST,SUGAR,MAGMA MOLASSES,GLUE PAINT

Rated Power : Electric

Brand Name : SYNO PUMPS

Fuel : Other

Structure : Screw Pump

Application : AGRICULTURE INDUSTRY

Power : Electric

Structure : Screw Pump

Application : Fruit Processing, Hotels, Hospitals, ice Cream, Pharmaceuticals,Winery

Brand Name : SYNO ENGINEERS

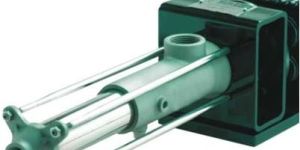

We are offering metering pump syno ‘dc’ pumps designed for use where accurate, low flow applications demanding high accuracies for either intermittent or continuous dosing, the compact ‘dc’ pumps have high tolerance to aggressive chemicals and the renowned reliability of syno . The repeatability accuracy has less than ± 1% fluctuation. The pump is self priming, and the gentle non pulsating pumping action helps maintain product integrity with even the most difficult materials. The range of suitable substances includes viscous and slurry products, solids in suspension and airliquidsolids mixtures. These versatile pumps have output directly proportional to speed. 1. capacity : 10 lph to 500 lph 2. temperature : upto 180 degrees cel 3. pressure : upto 24 bar 4. viscosity : upto 1 milion cp fluids handled: focculant & chemicals, waste water treatment, pulp & paper, pharmaceutical, cosmetics, mining, food, etc.

'S' Series is ideal for handling slurries, viscous, shear sensitive or two or tri phase mixtures or when applications require, significant suction lift capabilities. These pumps are used for a wide variety of pumping and transfer duties. The design of Pump is ideally suited for both low to high flow applications and also allows for the development of multi-stage pumps that increase the pressure handling capabilities. These Pumps are found tough rugged industrial applications handling anything from abrasive slurries, aggressive or reactive chemicals, to viscous liquids, oils, or suspensions and aqueous solutions at elevated temperatures. They are known for their flawless performance, efficiency & trouble-free operation along with long service life features. The Standard "S"Series Pump is of Cast Iron construction with liquid touchable parts of alloy steel / stainless steel, depending on the fluids to be handled. Shaft Sealing is ensured by Gland Packing & Mechanical Seal (optional). These pumps are available at highly affordable rates in various sizes and capacity.     Features and Benefits Easy to install and works efficiently Low maintenance hence Inexpensive to run User Friendly Can be installed vertically or horizontally Quickly ready for operation Wide range of flows and pressures Wide range of viscosities and specific gravities High tolerance of entrained air and gases High tolerance of contamination Extremely rugged and reliable design Interchangeable components Typical Applications Bakery Brewery / Winery Ceramics Chemical Construction Cosmetics Dairy Dyestuff Edible Oil Food Processing Malt & Cocoa Mining Meat Processing Paper & Pulp Paint & Varnish Sewage Treatment Soap & Detergent Sugar & Honey Starch Slurries ETP & STP Sludge Slurry Emulsion Molasses (All Grades) Printing Ink Solvents Industrial Oil Yeast Fertilize Chemicals        Hydrated lime slurry Sludge Milk curds, sauces, fruit juices Industrial chemicals Coating clays, gypsum and silicate Agricultural slurries

Pressure : upto 24 Bar

Application : Black Liquor, Ceramic Slurry,Chemical Slurries, Printing Ink,Sugar

Power : Electric

Brand Name : SYNO ENGINEERS

Application : Molasses , magma, Glue Paint

Structure : Screw Pump

We are offering industrial pump. ‘s’ series pumps are used for a wide variety of pumping and transfer duties. They are found in tough rugged industrial applications handling anything from abrasive slurries, aggressive or reactive chemicals, to viscous liquids, oils, or suspensions and aqueous solutions at elevated temperatures. These pumps consists torsion free metal bonded stator for increased stator life, higher efficiency and per stage pressure. Simple cost iron constructions with internal rotating parts of alloy steel stainless steel depending on the fluids to be handled. Shaft sealing ensured by gland packing with mechanical seal optional. 1. capacity : upto 200 m3hr 2. temperature : upto 180 degrees cel 3. pressure : upto 24 bar 4. viscosity : upto 1 milion cp fluids handled: acidic & alkaline slurry, acrylic emulsion, black liquor, ceramic slurry , chemical slurries, dyestuff, effluent, emulsion, explosive slurry, glue paint, magma, molasses(all grades), oil petroleum jelly, printing ink, solvents, sodium silicate, sulphited sugar juice, vegetable oil, viscose yeast etc.

Brand Name : SYNO ENGINEERS

Theory : Other

Structure : Screw Pump

Pressure : High Pressure

Application : Other

Power : Electric

Syno 'F' Series is perfect for food pumps and pumping systems for hygienic manufacturing industries including the food, beverage, biotech and pharmaceutical sectors. Food products such as dairy, baked goods, cereals, beverages and confectionary demand pumps that meet today's hygiene standards and are able to handle products with care. With these pump, you can easily handle a wide range of viscous fluids and solid ingredients with next to no product damage. These pumps are typically manufactured from stainless steel or other food grade materials, to ensure the food is being handled in a way that is safe for human consumption. Depending on the viscosity of the liquid being transferred and whether the product is shear sensitive, differing pump technologies may be used for a food grade pump. We offer models specifically designed to handle viscous, delicate or temperature-sensitive ingredients and never compromise on the critical aspect of hygiene. Syno Food Pumps have the lowest product damage rates in the industry and are the pump of choice for food processors around the world.     Features and Benefits Meet all requirements demanded to be applied in the food industry. Strong built using highest quality food grade materials. Safe, durable, economic and reliable. Easy to maintain, dismantle and clean Insensitive to solids in the fluid Providing superior hygienic performance Pulsation free pumping & Easy transfer of solids Gentle transfer from suction to discharge side - no product degradation Interchangeable components Typical Applications Dairy Products     Sugars & Starches Wines / Brewery / Liquor / Soft Drinks     Bakery Edible Oil     Malt & Cocoa, etc. Meat, Fish & Animal Foods     Fruits & Vegetables Personal Care / Cosmetics     Baked Goods Beverages     Sauces / Glucose / Jam / Purees Chocolate Mix     Fruit Pulp Beer     Minced Meat Curd / Yoghurt     Sugar Syrup Honey     Medical Formulations Yeast     Molasses

Pressure : Upto 24 Bar

Structure : Screw Pump

Pressure : High Pressure

Power : Electric
