Palhan Engineering Industries Kapurthala, Punjab

PALHAN provides a complete solution for production, right from grinding the biomass wood to manufacturing the best quality pellets. The use of biomass energy over the fossil fuels leads to reduction in the carbon emission in the environment. Our planet earth is also protected from being affected by the hazards of global warming by the use of renewable sources of energy Several raw materials are used to conversion of biomass into useful forms of pellets which can be used to generate heat. The variety of raw materials include...

We are main supplier and exporter of this product.

Material : Metal / Coil

Brand Name : palhan engg industries

We are main supplier and exporter of this product.

Condition : New

We are offering ring die. ring die are pellet mill spares parts

We offer Grinding Pulverizers which is a novel concept of hammer and anvil/liner designed for high productivity. A rotor is provided in the grinding chamber with special steel hammers rotating against a semi-circular anvil with specially designed scissor edge and the powder is allowed to pass through a sieve. Our Grinding Pulverizers can grind any material such as chillies, turmeric, masala powder, wet and dry rice, wheat, maize, pulses, coffee, pepper and other such materials. These Grinding Pulverizers are recommended for use in homes, bakeries, hotels and small business. By cleaning the grinding chamber thoroughly after every use, it avoids mixing of different materials and hence quick change over of materials is possible.

We are main supplier of this product.

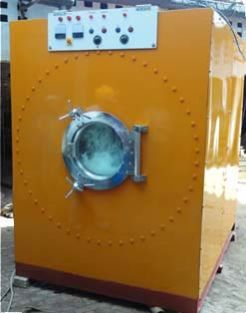

We bring forth premium quality Heavy Duty Washing Machine to the clients. Heavy Duty Washing Machine is available in capacity 25kg, 50kg, 75kg, and100kg. Our Heavy Duty Washing Machine is provided with stainless chamber to wash filter clothes. Our Heavy Duty Washing Machine takes 30 minutes to extract oil from the Cloths. These clothes are dried up while using hot oil 120 degree (app. 600-700 grams extract oil from one cloth). Our Heavy Duty Washing Machine is provided with motors and panel board.

We are main supplier of this product.

Model Number : PEIHM500

Brand Name : PALHAN

Supply Ability : 5 Set/Sets per Month

Warranty : 6 MONTH

Condition : New

Type : hammer mill

Weight : 1500 kg

After-Sales Service Provided : Engineers available to service machinery overseas

Warranty : 6 MONTH WARRANTY

Capacity : 20TPD to 500TPD

Condition : New

We introduce precisely engineered Pellet Die Plates in the market. These Pellet Die Plates are extensively used for making different size of rice bran pellet. We offer Pellet Die Plate at highly competitive price in suitable packaging to ensure complete client satisfaction. These Pellet Die Plates are fully tempered quenched in oil properly, and are manufactured from high grade material such as mild steel.

We are offering Vibrator Sieves to the clients. These Vibrator Sieves consist of crumbler and screener. Product coming out of crumbler is either in pellets or crumbs form. These are required to be screened to remove fines and overs. Single deck screeners are used to remove fines only while double deck screeners are used to remove both fine and overs. The unbroken or the overs are returned to crumbler and fines return to pelleting line for repelleting. These Vibrator Sieves have simple design, and are highly efficient and durable.A screener should have following features : It should remove the desired percentage of fines from product. Screens should not clog frequently. Changing of screens of desired mesh should be easy and quickly.

Palhan Engineering Industries is a trusted Manufacturer, Exporter and Supplier of Gunny Bag Cleaning Machines. Gunny Bag Cleaning Machine removes the dust out the remaining rice bran approx. 300-500 gm per bag. Gunny Bag Cleaning Machine, offered by us, is capable of cleaning 100-150 bags in one lot in 5-10 minutes. Electric motor installed in this Gunny Bag Cleaning Machine requires 5 hp electricity to operate.

We present a quality range of Biomass Pellet Mills in the market. Our Biomass Pellet Mills are based on low pressure fixed flat die type binderless extrusion technology. These Biomass Pellet Mills are rotary machines in vertical construction where the fixed & moving flat die provides stability during operation. Three support vertical shafts are used to transmit power to pelletizing rollers, and depending upon the size of the unit, the numbers of rollers are decided. Our Biomass Pellet Mill is designed to produce fuel pellet from 2-25 mm diameter by extrusion. Conditioned ground material is fed to pellet press by gravity feed. Roller run on a slow speed, press the material in die holes, and extrudes the material. Length of pellet can be adjusted by knife provided below the die. Pellets so formed are cooled on cooling conveyor, and are sent for storage. Most of the biodegradable materials like ground nut shell, wood waste, bagas, straw, grass etc can be pelletized. The quality and output of pellet mill is dependent on so many parameters such as quality of grinding, conditioning, formulation of feed (percentage of oil, protein, fiber etc.), and configuration of die.

we are offering Bio Mass Pellet Plant. Mash Feed Basic Process Animal feed consists of different ingredients to make a balanced diet in terms of proteins, carbohydrates, fats, vitamins, minerals and medicines etc. In manufacturing of feed in mash form, there are few ingredients like DRB, Rice Polish etc which are already available in powder form, while some of these like Grains, Fish, GNE, Soya etc. are available in solid form and has to be converted to granular form to particle size suitable for the animal. For this purpose grinding of these ingredients is carried out with the help of Grinder or Hammer Mill.     After converting all the ingredients in the powder form, these have to mix in right proportions to get the homogenous feed. Mixers are employed for this purpose. So there are two basic operations of grinding and mixing in feed manufacturing of feed in mash form. The intake hopper of the grinder and top of mixer are usually at some height between 5 to 8 ft (Depending upon the size of machine) from floor level and material have to be lifted at this level manually. For auto lifting of feed from floor level to the top of machine Screw Conveyors are employed. For vertical lifting of material more than 8-9 ft. from floor level Bucket elevators are best suited     Basic Pellet Feed Process PRE - CLEANING  The first step in pelleting is conveying of ingredients from bulk silos or godown to the batching bins. It is essential to remove oversize foreign materials and iron trash etc. which otherwise can affect functioning of slide gates, gravity screw feeder in batching or down stream. Pre-cleaning machines generally include rotary sieve, jute remover, magnetic catchers etc. In automatic plants, it is desired that system is designed to give continuous efficient cleaning at maximum flow of ingredients. BATCHING  In modern plants, automatic weighing of different materials as per formulation to make one batch is called batching or proportioning. In this any no. of silos of suitable capacity as per total capacity of plant, are incorporated and are having gravity or screw feeders for controlled discharging of material into weigh bin under neath it. Generally two set of bin or silos are installed - one for major ingredients, second for minor ingredients. The discharge of both weighing bin come into common surge for further processing. Bin vibrator or shaking devices are installed on some or all of bins to make the material flow incase of jamming of bin. The weighing is done through an electronic controller working on PLC or micro processor based, which can be operated through a computer. The computer control and record all the detail of a batch- over or under weighing of ingredients from set point, reporting on each batch, shift, day ,weak, month basis. The generally desired features of a batching system are: It should give accurate weighing within specified time to meet output of plant. Though it should be highly reliable and work automatically, it should have manual control also in case of auto failure. GRINDING After batching, next step is to reduce the material to the required degree of fineness to have maximum surface area for exposure to heat and moisture to accomplish gelatinization in conditioners. In pelleting process grinding and pelleting are two major energy consuming operations. If we can perform fine grinding with minimum of energy, it will not only cut grinding cost but also save on energy required in pelleting. MIXING  Efficient mixing of micro ingredients in whole batch is significant in making quality feed. The designed features of a good mixing system are: It should perform mixing to achieve minimum coefficient of variation in minimum time. Mixer discharging mechanism should aim at no leakage of gates with minimum residue in drum to avoid carryover to next batch. CONDITIONING  Conditioning is done to add heat and moisture in mixed feed to achieve gelatinization and making the product more pliable for pelleting. An ideal conditioning system should meet the following: It should raise the temperature and moisture of product by direct or indirect heating. It should give desired retention time in conditioners. PELLETING  After conditioning the product is passed through a die in pellet mill with the help of rollers and powdery material is converted into pellets. The quality and output of pellet mill. is dependent on so many parameters, like: Quality of grinding, conditioning. Formulation of feed: - (percentage of oil, protein, fiber etc.) Die configuration: - Deciding working on product in pelleting. COOLING  Hot pellets coming out of pellet mill are required to be cooled immediately to remove moisture and heat. Generally counter flow cooler are used for the purpose. The desired feature of an efficient cooler are: It should be capable to remove the unwanted heat and moisture from pellets to improve its shelf life. The cooling should be uniform from all the sides. CRUMBLING  Crumbling is a process in which pellet after cooling is broken into small pieces to make it suitable for small chicks. If not required it can be bye-passed and product escapes from side of crumbling rolls. A well designed crumbler should have following features: Should give uniform size of crumbs at the both ends of crumbling rolls. Should break the material without making much fines. Should have mechanism for equal gap adjustment on both sides. SCREENING  Product coming out of crumbler is either in pellets (if crumbler bye passed) or crumbs form. These are required to be screened to remove fines and overs. Single deck screeners are used to remove fines only while double deck screeners are used to remove both fine and overs.. The unbroken or the overs are returned to crumbler and fines return to pelleting line for repelleting. A screener should have following features: It should remove the desired percentage of fines from product. Screens should not clog frequently. Changing of screens of desired mesh should be easy and quickly.
