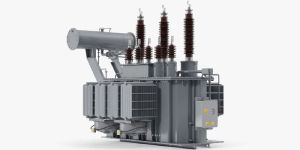

Power Transformers Dealers in Kochi

A transformer is an electrical device that transfers energy between two or more circuits through electromagnetic induction. A varying current in the transformer's primary winding creates a varying magnetic flux in the core and a varying magnetic field impinging on the secondary winding. This varying magnetic field at the secondary induces a varying electromotive force (emf) or voltage in the secondary winding. Making use of Faraday's Law in conjunction with high magnetic permeability core properties, transformers can thus be designed to efficiently change AC voltages from one voltage level to another within power networks.

• Type: Automatic
• Certification: ISI Certified
• Usage: Industrial Use
• Working Frequency: 60hz
• Output Type: AC Single Phase
• Tensile Strength: 100-125Mpa
• Cooling System: Air Cooling

In AC circuits, for measuring large voltages a specially constructed accurate ratio Potential Transformers are used. Their function is to reduce the supply Voltage to a value small enough to be easily measured with standard low range AC instruments of moderate size and capacity. The advantages of using Potential Transformers for range extension of AC meters are many fold. » The instrument is isolated from line voltages hence it can be grounded. » It is possible to achieve standardisation of instruments and meters at secondary ratings of 110V. » Several instruments can be connected from a single transformer. » The power connected in measuring circuits is low. Potential Transformers of dual purpose Metering & Protection are also commonly used. An additional secondary winding is provided which is connected in open delta so that in the event of an earthfault on any of the phases, appropriate voltage is developed across the open delta terminals which is then used to actuate a tripping mechanism. Resin Cast Potential Transformers are dry type transformers the active part of which is completely embedded in quartz loaded Epoxy Resin by using vacuum moulding technique. After moulding the resin is hardened by polymerisation. The main insulation between Primary and Secondary & Earth is obtained by this epoxy resin. These transformers are of compact design with high mechanical and electrical properties. These are non-hygroscopic and hence give very good insulation properties even in given humid conditions. Details required on placement of orders: – Ratio : This is the Ratio of the primary voltage to the rated secondary voltage. The Primary Voltage can be either 11KV i.e. Connected between the lines or 11KV/ when connected between the lines and earth. The primary voltage also varies depending on the connection i.e 110V or 110V/ root 3 voltage. Burden : This is the load connected across the secondary winding expressed in VA depending on the number of meters connected and distance of the meters from the Potential transformer. Class of Accuracy : The choice of accuracy class depends on the duty to which the Potential Transformer is put to use. The measuring PT maintains the Ratio and phase angle error over the operating range of 80-120% of Primary Voltage. The protection PTs are used in protection system for operating differential protection relays and maintain accuracy for 5% of the rated voltage given by the voltage factor.

Dry Type Cast Resin Transformer, Dry Type Transformer

Kel is one among the largest, most vibrant, and productive public sector undertaking, and is fully owned by the government of kerala. They provide medium power transformers at very reasonable prices.

Power Transformers, Distribution Transformer, Hydraulic gates, hoists

Transformer Parts, Transformer Component, Power Transformers

Power Transformers

Power Transformers, Distribution Transformers, Transformer Oil

grease separator, Sump Pumps, Geared Motors, Submersible pumps, Pumps
