PEP Charles Limpens Pvt. Ltd. Malur, Kolar, Karnataka

DESCRIPTIONThe Pen-type Visual Fault Locator is visible red laser source for finding breaks and tight bends in optical fi­ bers.The VFL generates red laser and the visible red laser that escaping from optical fibers makes testing and finding breaks in LANs, verifying con­ tinuity, checking the validity of patch cables or looking for cracked fiber in splice cases, bad connectors, tight bends in fiber cable FEATURES- Easy to use- Fast response, no warm up- Continuous and pulsed-light- 20 MW for Max output power- Standard AAA alkaline batteries- Rugged and weatherproof design- 2.5mm universal connector- 1.25mm can be optional

PARAMETER- Standard fiber counts: 4f to 12f- Specially designed for fiber to the home- Used as termination box also.- Quick and easy access- Perfectly water proof- Cable entry port-2 to 4- Suitable for cable size upto-8mm

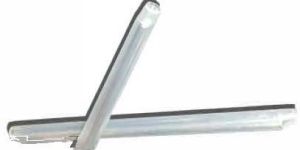

- Sleeves are available for individual fiber as well as ribbon configuration – Outer tube made of polyethylene- Inner tube made of polyolefin copolymer- Strength member is made of stainless steel or Ceramic/quartz.

Small form-factor pluggable (SFP) is a specification for a new generation of optical modular transceivers. The devices are designed for use with small form factor (SFF) connectors, and offer high speed and physical compactness. It interfaces a network device motherboard (for a switch, router, media converter or similar device) to a fiber optic or copper networking cable. Because SFP modules can be optical or fiber optic networks can be upgraded and maintained more conveniently than has been the case with traditional soldered—in modules. Rather than replacing an entire circuit board containing several soldered-in modules, a single module can be removed and replaced for repair or upgrading. This can result in a substantial cost savings, both in maintenance and in upgrading efforts. SFP SERIES Data Rates: 155M, 622M, 1.25G, 2.5GTransmission: Distances: 500m, 20km, 40km, 80km, 120kmIndustrial (-40~45 °C) versions available BIDI SFP SERIES Data Rates: 155M, 1.25G, 2.5GTransmission: Distances: 3km, 20km, 40km, 80km, 120kmSL/LC Interfaces CWDM SFP SERIES Data Rates: 1.25G, 2.5GTransmission: Distances: 40km, 60km, 80km, 120kmWavelengths: 1470nm, 1490nm, 1510nm, 1530nm, 1550nm, 1570nm, 1590nm, 1610nm 40GBASE OSFP+FEATURfSLaserClass 1Electrical interface compliant to SFP+ MSA Optical Interface compliant to IEEE802 3ae 12C Management InterfaceLow Power Consumption SR 300m, LR 10km, ER 40km, ZR 80km APPLICATIONSRack to RackData CenterHigh-speed Storage Area NetworkSwitch and RouterWireless Repeater 40GBASE QSFP+FEATURESHot PluggableAggregate Bandwidth of upto 40GIEEE 802.3ba CompliantQSFP+ MSA CompliantOperating Temperarure: 0-70″CSingle 3.3V Power SupplySR4 up to 150 meters, LR4 up to 10km

General Description This Optical Fiber Converter is a kind of quick Ethernet Media Converter with the function of photo electricity switch over between 1OBASE-TX or 1OOBASE-TX and 1OOBASE-FX. It can extend the conventional 1OM Ether­ net or 1QOM Quick Ethernet to 120KM via the quick Ethernet Fi­ber-optical Line. The stable and reli­able switch power supply module en­ables long-term operation and makes it convenient to replace the power supply. Full-duplex and half-duplex optional. The configura­tion of DTE and MPR functions makes it convenient to connect the similar products. FeaturesInner power or external power optional Media converter module could be used with rack mountPower supply AC 220V or DC 48V Dual fiber module or single fiber module optionalAuto identify MDI/MDIXFull/half duplex and transmit velocity can be adjustedExtend fiber-optic distance up to 120km with single-mode fiber

Power Supply : AC:165-260V50Hz, DC:.75

PLC SPLITTER & COUPLER 1. BARE FIBRE PLC SPLITTER SPECIFICATIONS1*2,1*4,1*8,1*16,1*32,1*64 (with / without connectors)2*2,2*4,2*8,2*16,2*32,2*64 (with / without connectors) 2. CASSETTE-TYPE PLC COUPLER/ABS BOX PLC SPLITTER SPECIFICATIONS1*2,1*4,1*8,1*16,1*32,1*64 (with / without connectors)2*2,2*4,2*8,2*16,2*32,2*64 (with / without connectors) 3. TRAY-TYPE PLC COUPLER SPECIFICATIONSGY-PLC-1*8(16,32) connector ( FC/PC, FC/APC, SC/PC, SC/APC, LC, ST etc ) and corresponding adapterGY-PLC-2*8(16,32) connector ( FC/PC, FC/APC, SC/PC, SC/APC, LC, ST etc ) and corresponding adapter PRODUCT SIZE• Width 305/310/320mm x depth 180mm x thickness 25mm (Applied to a maximum of 16 channels)• Width 305/310/320mm x depth 180mm x thickness 50mm (Applied to a maximum of 32 channels)

APPLICATION- Horizontal Distribution & Backbone- Cabling- 4/16 Mbps Token Ring (IEEE 802.5)- 10/100/1000 BASET (IEEE 802.3)- 155 Mbps ATM- 100Mbps TP-PMD- ISDN, ADS
