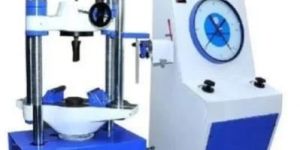

Analogue Universal Testing Machine Dealers in Kolhapur

• Application: Testing
• Power: Electric
• Condition: New
• Size: Standard
• Shape: Vertical
• Speed: Up to 30000 RPM
• ACCURACY: 0.5%

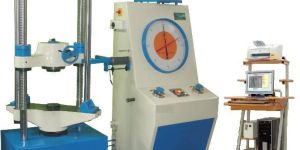

MTMS Make Analog Cum Computerised Universal Testing Machine is designed for testing metals and other materials under tension, compression bending, transverse and shear loads. Hardness test on metals can also be conducted.Principal of Operation : Operation of the machines is by hydraulic transmission of load from the test specimen to a separately housed load indicator. The hydraulic system is ideal since it replaces transmission of load through levers and knife edges, which are prone to wear and damage due to shock on rupture of test pieces. Load is applied by a hydrostatically lubricated ram. Main cylinder pressure is transmitted to the cylinder of the pendulum dynamometer system housed in the control panel. The cylinder of the dynamometer is also of self-lubricating design. The load transmitted to the cylinder of the dynamometer is transferred through a lever system to a pendulum. Displacement of the pendulum actuates the rack and pinion mechanism which operates the load indicator pointer and the autographic recorder. The deflection of the pendulum represent the absolute load applied on the test specimen. Return movement of the pendulum is effectively damped to absorb energy in the event of sudden breakage of a specimen.Electronic Control Panel : The electronic control panel is built using 8085 microprocessor which incorporates state of the art technology with following features : Front panel membrane type key board for test setup. 7 seg digital display of load displacement / extension. Printer port interface Serial port for communication with Pc. Optional add-on facility for electronic extensometers & electronic load pacer Storage of important parameters such as peak load, displacement at peak load & maximum displacement alter test. Period selection to take care of initial slippage Serial Communication & Software Package On Pc : The MTMS-UTME series control panel can be hooked to any PC using RS-232 communication port. offers different exhaustive application. Window based software packages on PC to enable the user to effectively evaluate different parameters.The features include : User friendly main menu with pop up menus prompt messages and help windows. Extensive graphics on screen for curve plotting, magnification and zooming. Evaluation of wide range of user selectable parameters such as young's modulus. yield stress. proof stress etc. Advanced file handling for data storage. Printout option for reports. data and graph etc. Optional software package for statistical evaluation. Custom built application software to suit customer requirements

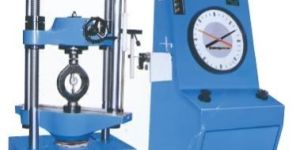

• Brand Name: ARUN MAKE
• Size: 10 ton TO 200 ton
• Model Number: AI-UTN

Arun universal testing machine is designed for testing materials and other materials under tension, compression bending, transverse and shear loads. Aii arun universal testing machines are closely controlled for sensitivity, accuracy and calibration during every stage of manufacture. Every machine is then calibrated over each of its measuring ranges in accordance with the procedure laid down in bs : 1610 : part 1 :1992 and is 1828 : (part 1) : 1991. Arun universal testing machines comply with grade "a" of bs : 1610 : part 1:1992 and class 1 of is 1828 : (part1) : 1991 an accuracy of + 1.0% is guaranteed from 20% from 20% of the load range selected to full load. Features : • loading accuracy as high as± 1% • straining at variable speeds to suit a wide range of materials. • continuous roll autographic recorder supplied as standard to enable study of the behavior of materials • motor driven threaded columns for quick effortless adjustment of lower cross-head-to facilitate rapid fixing of test specimen. • high reading accuracy due to large size and design of dial. • wide range of standard and special accessories, including load stabilizer. • easy change from plain to threaded and screwed specimens. • large effective clearance between columns enables testing of standards specimens as well as structures. • simple controls for easy of operation. • robust staining frame of an extremely rigid construction. • safe operation ensured be means of safety devices. • fully enclosed and protected pendulum.

• Application: Industrial
• Capacity: 100 kN
• Material: Mild Steel
• Display Type: Digital
• Operating Mode: Semi-Automatic
• Frequency: 50 hz
• Accuracy: 99%
