Features  Simultaneous indication of unbalance g/oz  D.C. braking at end of cycle.  Data feeding through numeric keys.  Facility for static balancing and fine mode.  Quick lock nut for faster action.  Horizontal spindle simulates actual case.  Self calibration programme.  Optimisation Programme.  Error code indication.  Programme for Alluminium alloys Rims.

Features : Very wide testing range from soft metal like lead up to hardest metals like hardened steel. Small indentation to allow testing of precision finished parts. Motorised loading and unloading. Suitable for thin sheet metals since test loads are very small. Built - in projection screw to get accurate results. Auto Instruments & Engineers Vickers Hardness Tester is a simple & accurate means to produce and measuring the diamond indentation.These testers are suitable for measuring the hardness of precision metallic parts with wide testing range-from soft to hard, and their accurate results are widely acclaimed. These testers strictly conform to IS: 1754 - 1986 Construction :The robust machine frame is designed to accommodate the high precision loading system and an optical projection screen. Specimen is placed on a testing table. The test cycle is fully automatic. The accurate load is applied on a diamond penetrator by means of automatically. The objective is indexed with the test piece and the diamond indentation is projected on the measuring screen. The diagonals of the indentation are measured by means of the micrometer screw of the projection screen

Torsion Testing Machine is designed for conducting torsion and twist on various metal wires, tubes, sheet materials. Torque measurement is by pendulum dyanometer system. Torque ranges can be adjusted by auto torque selector. Torque can be applied to I specimen by geared motor through gear box. Autographic recorder gives the relation between torque and angle of twist. The accuracy of torque indication is ± of the true torque.

Rockwell, Rockwell superficial& Rockwell cum Brinell test consists offorcing an indentor (Diamond or Ball) into the surface of a test piece in two steps i.e. first with preliminary test force and thereafter with additional test force and then measuring depth of indentation after removal of additional test force (Remaining preliminary test force active) for measurement of hardness value. RASNE series machines are suitable for Rockwell, Rockwell superficial& Rockwell cum Brinell tests. These are motorized digital Hardness testers having LCD display for easy hardness measurement. The results are displayed in 0.1 Rockwell unit for more accurate measurement. OPERATION : Various parameters of test can be set on front panel by operation of key board and observing LCD display Viz high/low limits, dwell time, auto/manual start, printer selection, scale selection etc. All set data can be verified edited by pressing SCL key one after another. Machine operation is very simple. The normal mode is a bar followed by "SET" indication. Raise elevating screw slowly through bar indication till "SET" position which will show "PRESS START" indication. Now press "START" button. Loading/unloading cycle will be completed and hardness is shown on LCD display with high/Good/Low indication. Lower down elevating screw. Panel will show normal mode for next test. Also when required 'AUTO START' set 'AUTO START' on front panel by operation of key board & observing LCD Display then raise elevating screw slowly through bar indication till "SET" position then it will starts loading/unloading cycle automatically & hardness is shown on LCD Display with High/Good/Low indication.

Fully Computerised (PC based) Micro Hardness Tester. Direct and accurate measurement of micro hardness number using" State of the art" image processing technology. Wide testing range: From soft metal such as lead up to hardest, like hardened steel. High accuracy and repeatability of measurement at all loads. Small size of indentation makes it a non destructive testing on finised components. Load slection by external knob. Motorised loading and unloading cycle. Small loads allow testing of thin sheet metals. Advanced Window 98 Based Software: Latest GUI features with user friendly software. On line indentation setting and focusing on PC monitor. Advanced Image Processing: Algorithms implemented for precise calculations of hardness numbers with various ootions to cover all ranges of specimens. Batch File Processing: Option for datal storage and reports generation for case depth analysis etc.

Features : Loading accuracy as high as ±1 %  Straining rate to cover a wide range of materials.  Motorised loading and unloading. High reading accuracy due to large size and design diel. Simple control to facilitate ease of operation.  Fully enclosed and protected load measuring system.  Wide range of standard and special accessories including load stabilizer.  Robust straining frame.  High reading accuracy due to large size and design diel.  Motorised UP/DOWN movement of lower crosshead to enable easy and rapid fixing of test specimen.  Application :Universal Testing Machine is designed to perform Tensile, Compression, Bending and shear tests on metal & Other materials both in the form of test pieces and as finished products. Principle of operation :The test specimen is subjected to load with hydraulic system and is measured precisely with pendulum dynamometer. Load is applied by a hydrostatically lubricated ram.The oil pressure in the main cylinder is transmitted to the cylinder of the pendulum dynamometer housed in the control panel, the dynamometer piston exerts a force proportionate to the hydraulic pessure.This force is transferred through a leverage system to a pendulum. Displacement of pendulum actuates the rack and pinion mechanism which operates the load indicating pointer. Return movement of pendulum is effec- tively damped to absorb energy in the event of sudden breakage of specimen.Machine comprises ofthe following: Strainung Unit : This consists of a hydraulic cylinder & piston mounted on a robust base. The loading frame consists of an upper crosshead, middle crosshead and lower table. The upper crosshead and lower table is connected by means of two plain hard chrome plated columns. The middle cross head is fitted on two hard chrome plated threaded columns. A reduction gear motor drives the chain and sprockets fixed at the bottom of the threaded columns for height adjust- men!. The cylinder and ram is individually lapped to eliminate friction.Axial loading of the system is ensured by provision of a ball seating under the lowertable. An elongation scale with least count of 1 mm is provided for measurement of deformation on various samples. Tensile test is conducted by gripping the test specimen between the upper and middle crosshead.Compression, Transverse, Bending and Shear tests are conducted between the Shear tests are conducted between the middle crosshead and the lower table.  Control Panel : The control panel consists of the hydraulic system .complete with drive motor, oil sump, pendulum dynamometer and the load indicating system. Hydraulic System : The power pack has a directly driven pump which generates a maximum pressure of 200 kgf/cm2. he hydraulic pump producs a continuous non- pulsating oil flow. Hence the load application is very smooth. Oil filter, oil stranier, air breather, oil level indicator and drain plug is provided in the power pack. A pressure compensated flow to the main cylinder. This maintains constant rate of piston movement andhence straining rate is kept constant. This valve is hand operated and gives infinitely variable oil flow to obtain different rates of straining. Pendulum Dynamometer : The oil pressure in the main cylinder actuates the special dynamometer system. Pressurised oil in the loading cylinder pushes up the measuring piston proportionately and deflects the pendulum. The piston is constantly rotated to eliminate friction. The system has effective damping arrangement to ensure smooth return of pendulum aftersudden breakage of test piece. This unit permits selection of favourable hydraulic ratios producing relatively small frictional forces. Load Indicating System : This system consists of a large dial and a pointer. Displacement of pendulum actuates the rack and pinion mechanism, which operates the load indicating .pointer. The pointer moves over a large dial indicating the load. A dummy pointer is provided toregister the maximum load reached during the test. Window type dial is provided for easy and clear changing of load range. Load / Elongation Recording System : A continuous roll ( A strip chart) type load-elongation recorder is provided for plotting load-elongation graph. Horizontal movement of the rack produces load ordinate of the diagram and drum rotation to elonga-tion ordinate, in the ratio of either 1:5 or 1:10. Electronic Universal Testing Machine : Construction : AI make electronic Universal Testing machines comprise of a) Loading Unit b) Measuring Control Panel a) Loading Unit : This is similar to standard loading unit of analogue type universal testing machin. In addition to standard features of regular loading unit, a ROTARY ENCODER is attached to the hydraulic ram to get accurate displacement of the ram. b) Measuring Control Panel : This includes,

The Pendulum Impact Tester Model - It30 is designed for conducting Izod & Charpy test The test methods confirm to BS-131:PART 4 - 1972 (Amended 15 Aug - 1993) & BSEN : 10045 - 2 : 1993.The Pendulum is mounted on antifriction bearings. It has two starting positions, the upper one for charpy and the lower one for Izod testing On release, the pendulum swings down to break the speciment and the energy absorved indoing so is measured as the differnece between the height of drop before rupture & height of raise after rupyture of the test specimen and is read from the maximum pointer on the dial scale.The Pendulum is mounted on antifriction bearings. It has two starting positions, the upper one for charpy and the lower one for Izod testing On release, the pendulum swings down to break the speciment and the energy absorved indoing so is measured as the differnece between the height of drop before rupture & height of raise after rupyture of the test specimen and is read from the maximum pointer on the dial scale. Controls of Pendulum :The Pendulum supported in the starting positions is by a self resetting latch. The release mechanism is operated by lever The pendulum release latch is operated only when this lever isoperated. Sirikers & Supports :There are two strikers & one combined support availabel for fitting into the Pendulum & on to the base of the machine for Izod, Charpy test. Changing from one striker to another is achived simply by fixing the new striker into its positions. Optional Accessoris : Caliper gauge for checking V notch for Izod Charpy as per BS : 131 : PART 1,2,3. Depth notch gauge including V&U notch, angle & radius. Self centering tong. V-notch miling cutter. U-notch miling cutter. Charpy Test :The Charpy test piece rests on alloy steel supports anvils. Fitted on the base of the machine rigidly held in position by allen screws. End stopper is provided for quickly & accurately loading the test piece centrally between the supports. Izod Test :The Izod test piece is clamped vertically in Izod support anvils, fitted on the base of the machine. The support is provided with a achined vertical groove to suit the test piece size. The front clamp piece & allen screw enable clamping of the test piece in correct height with the help of Izod setting gauge supplied.

Construction : Loading Unit  Measuring Control Panel  Digital Signal Processing Unit  Keyboard / Display Panel  Accuracy And Calibration Features : UTM-E ( µ P BASED) Large display for load and is placement.  RS - 232 Corn port for Computer interface  Centronic Parallel port for printer / plotter interface  Result Include :     Load vs Displacement     Max Load     Max. Displacement.     UTS Value     Proof Stress (with extensometer )  Accuracy And Calibration Features : UTM-E(PC BASED) Window based software  Extensive Graphic Support  RDBMS based file handling  Variety of software packages  Print format of customer's choice.  Result includes Load vs Displacement curve, max load, Young's Modulus, 0.1% or 0.2% Proof test (with extensometer) etc. Special Accessories :These include load stabilizer, Brinell Test Attachment, bend test attachment, shear test Attachment and a wide range accessories offered on request at an additional cost. Installation :It is recommended that machines be erected on a foundation. Details of foundation can be given on request.

Large display for load and is placement. RS - 232 Corn port for Computer interface Centronic Parallel port for printer plotter interface Result Include : Load vs Displacement Max Load Max. Displacement. UTS Value Proof Stress (with extensometer ) Accuracy And Calibration

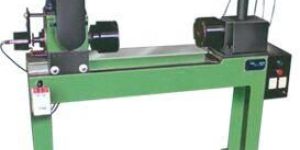

FEATURES :  Torsion Testing Machine is designed for conducting torsion and twist on various metal wires, tubes, sheet materials.       Torque measurement is by torque transducer system.  Torque can be applied to specimen by geared motor through gear box. Autographic recorder gives the relation       between torque and angle of twist.  The accuracy of torque indication is ± 1 % of the true torque. The electronic control panel is built using 8085 microprocessor which incorporates state of the art technology with following featur- Front panel membrane type key board for test setup.  7 seg digital display of load displace menU extension.  Printer port interface.  Serial port for communication with PC.  Storage of important parameters such as peak load & maximum displacement after test.  Preload selection to take care of initial slippage.  Optional real time graph & PC softwares.  Machines upto 25000 Nm. Capacity will be available on sepcial enquiry.  AIE reserves the rights of change in adobe specification due to constant improvements in design.

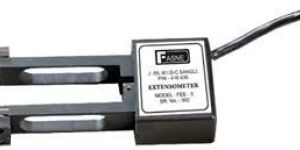

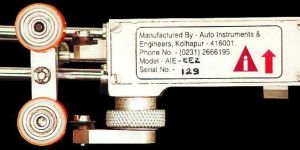

AlE Offers Auto Instruments & Engineers make Electronic Extensometer AIE-EE2 to measure material extension with a Resolution of 1- Micron. Strain Gauge type Extensometer is to be used up to Elastic Limit to Determine Important Parameters Like 0.1 %, 0.2% Proof Stress & Young's Modulus, proof stress from 0.1 % to 1 % Selectable. Specifications :Gauge length 25 mm to 50 mm Maximum extension 2 mm Resolution 1 micron Specimen dia 0.5 to 30mm Specimen thickness up to 30 mm Specimen width up to 30 mm   Description :Serial port (RS-l31) communication is available with Windows based operating software Wide range of data entry for easy test setup Unit interchangeability for input and results as per standard. Extensive graphics, curve / tracing Results printing formats Output parameters include U. T. S. young's modulus, % elongation, yield stress, proff stress selectable from O. 1 %       to 1 % (when extensometer is used)Online graph facility Time graph also available.Batch testing facility. Prodf stress lines can be seen on monitor.Reductions in area.

Serial port (RS-l31) communication is available with Windows based operating software Wide range of data entry for easy test setup Unit interchangeability for input and results as per standard. Extensive graphics, curve tracing Results printing formats Output parameters include U. T. S. young's modulus, % elongation, yield stress, proff stress selectable from O. 1 % to 1 % (when extensometer is used) Online graph facility Time graph also available. Batch testing facility. Prodf stress lines can be seen on monitor. Reductions in area.

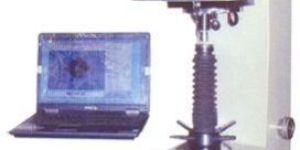

Features : Fully Computerised (PC Based) Vickers Hardness Machine. Direct and accurate measurement of Vickers Handness Number using. " State of Art " image processing technology.  High accuracy and repeatability of measurement at all loads. Faster measurement yielding to higher productivity.  Motorised loading and unloading cycle.  Small loads allow testing thin sheet metals.  'Wide testing range' : from soft metal such as lead up to medium hardened steels. Small size of indentation makes it a non-destructive testing on finished components.  Advanced Window 95 / NT based software. Latest G U I Features : Online indentation setting and focusing on. PC monitor.  User-friendly software with all help file and Window Features.  Advance image processing : Algorithms implemented for precise calculation of hardness numbers with various     options to cover all ranges of specimen. PC requirements : Can be connected to Laptop or Desktop PC. Easy to carry anywhere and handy for use with easy setup.  Minimum Pentium-II with 64 Mb RAM.  Windows 98 Operating System. (PC not included in standard scope of supply.)  One USB 2.0 and one Rs232 (serial) interface (9 pin) is required and it is recommended for Laptop to use external.  USB to serial converter for Rs 232 interface. Batch file Processing : Option for data / storage and reports generation. Statistical Evaluation : Software for calculating standard deviation, mode medium, histogram etc.

Compression Testing Machine (Electrically Operated) - Four Pillar type It is an electric cum hand operated for compression tests on concrete specimens up to 20cm dia and 30 cm in height. The machine meets the essential requirements of various Indian, British & American standards for compression tests. Loading Unit :The hydraulic jack of 2000 kN capacity is fixed to base. The upper plate has got a self aligning action and is attached to a screw which passes through the cross head and can be raised for lowered for initial clearance adjustment. The lower plate rests on the jack ram and is positioned with the help of a centering pin. Loading is accomplished by the upward movement of the lower plate. Pumping Unit :The motorized pumping unit which is housed in an elegant console is of double plunger type and is driven by 3 phase 440 volts 50 cycles electric motor. The pumping unit is separate unit connected to the jack by means of a steel connecting tube. A junction box is suitably fixed to connect the motor to the mains through a push button starter. The pumping unit is fitted with gauges. A maximum pointer is provided to facilitate taking of the reading after failure of the specimen. The pressure gauges are fixed on the pumping unit at an angle for easy readability. The machine is fitted with a hand wheel control which enables the rate of application of load to be varied. The machine is also equipped with facilities for hand pumping in case of power failure. The electric pumping unit is fixed with a micro-switch off the motor automatically as the load on the machine approaches the rated capacity. Relays are also incorporated in the pumping unit so that in the case of break-down of power supply, the motor will stop and would not-re-start unless starting switch is operated.

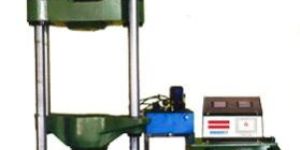

Machine designed with a hydraulic power pack and control circuit effortless loading, unloading operation.A dial gauge in front measure depth of ball penetration. This facilities production testing within tolerance limits by compression method.
