Capacitors Dealers in Kolhapur

HT Power CapacitorsPasayadan Eelectricals Products are based on modern design technique and high quality standards. Flexibility of these products to supply and install as per customer requirements. Applied Standards : The capacitors are designed, manufactured and tested to meet the provisions of the IS 13585 for LT, 13925 for HT and latest IEC publication. Confirmance to other standards is also available on requirement. Operating Conditions : Installation : Indoor/Outdoor Ambient Temp : -10°C to +60'C Temp Category : 50°C For H. T. Capacitors : Rated Voltage - 12 KV AC (Capacitors for other voltages are also avarable) Rated KVAR - Upto 800 KVAR Rated Frequency - 50 Hz / 60 Hz  Phase & Connection - Single / Three Phase with Internally Star / Delta Connection. Insulation Level - 28 KV / 75 KV   Design & Construction : The Pasayadan Eelectricals Capacitors comprise specially processed Mix dielectric / PP film, High purity grade Aluminum Foil & filled with Non - PCB synthetic Insulating Agent which has proved non - toxic and environmentally compatible. The Capacitor is normally designed suitable for mounting in vertical position with Bushing on the top. The Bushings shall be of Epoxy / Ceramic / Porcelain  The Capacitor container is made of CRCA sheet with all joints welded. Electrical Performance : Last Voltage and Harmonics. Capacitor are designed to carry Continuously 1.3 times of rated current caused by over voltage Harmonics. The following tests are carried out on every Capacitor according to the stipulations of the standard to ensure Service ability. Dielectric Strength Capacitance (output) Insulation Resistance Capacitor Losses Sealing.

Features Uses Imported Base Zinc Alloy Metallised Polypropylene film with heavy edge as main dielectric.�Self healing� property ensures long life of the Capacitor.Low energy consumption i.e. Watt LossFire Retardant Resin Encapsulation for better safety.Suitable for Banking.Weather proof Powder coating.Oil filled model made with high purity non-toxic oil, which keeps Capacitor cool and thereby ensures long life.

• Power: 11 KV or 33 KV

Pole mounted capacitor banks are fixed at 11 KV or 33 KV distributed network feeder. Mounting structure is made in Welded galvanised M.S angle where H.V.Capacitors, capacitor switch, other accessories are mounted on a single pole or specifications received from the customer.

High Voltage Capacitor, low voltage capacitor

Capacitor Bank, app capacitors, capacitor switch, mpp capacitors

shunt capacitor, Transmission Line Tower, substation capacitor

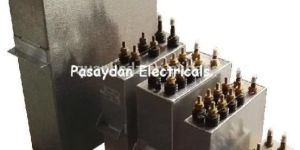

Shreem water cooled Capacitors are especially designed for inductive heat generating plants operating at frequencies as per the furnace design. These capacitors are designed to comply with the specific requirements of each customer.

Ht Capacitor, lt capacitor

Ht Capacitors, Apfc Panels, Control Panel Boards, Electrical Panel

Capacitor Bank, Ht Panel, Relay Panel, Outdoor VCB Panel, Indoor VCB Panel

MKP Capacitors

Capacitor, Cables

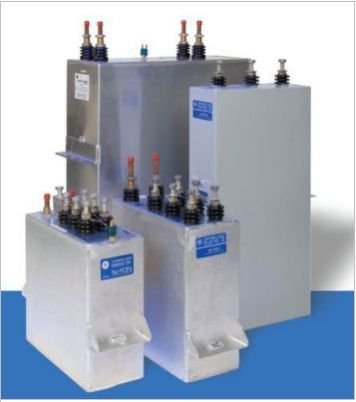

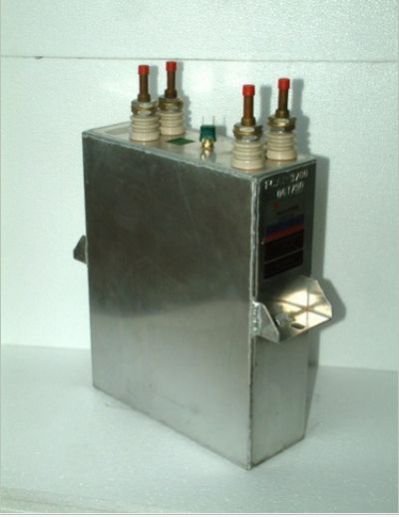

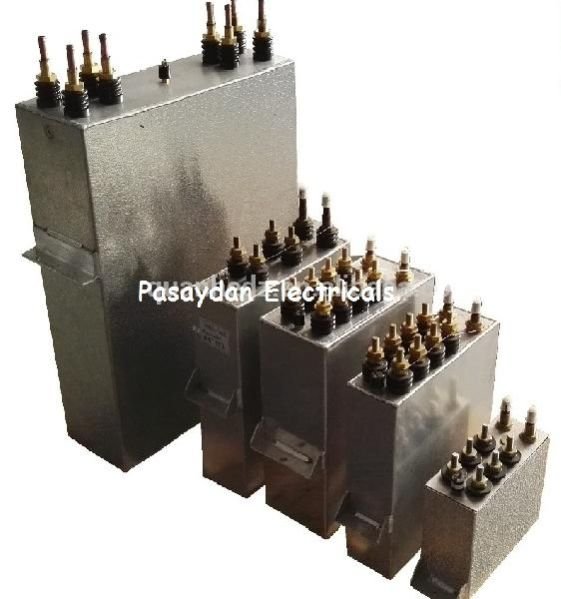

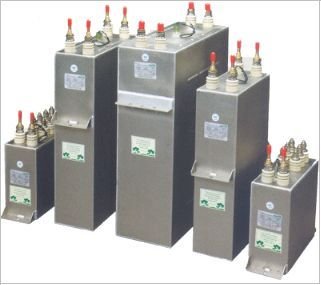

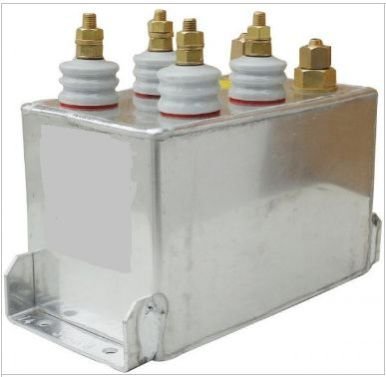

Water Cooled Capacitor

water cooled capacitors, Medium Voltage Series Reactors

water cooled capacitors, Panels With Series Reactors, pole mounted

Power Capacitors, Active Components, Sensors, Energy Meter, Super Capacitor

lv capacitor, hv Capacitor, Reactors

Capacitor, Electronic Components, pcb soldering machine, Resistors

AC Capacitors, cylindrical gas filled, Power Factor Controller
