Clean Fast Corporation Gokul Shirgaon, Kolhapur, Maharashtra

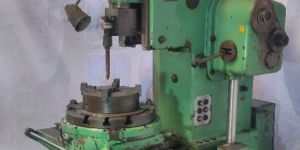

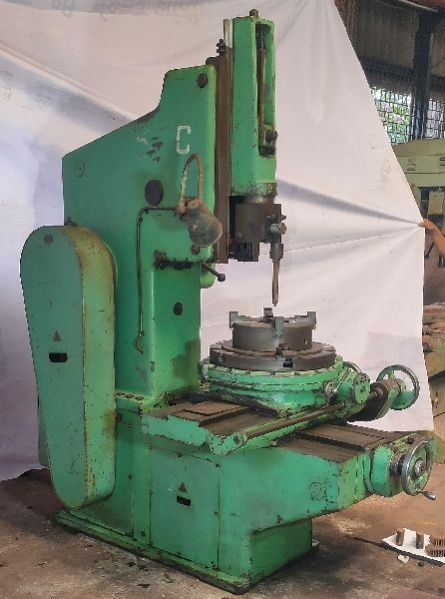

Vertical slotting machine for salestanko 7a420m mfg year         1976 table diameter            500mm slotter stroke   20…200mm motor power    3kw    & 1.1kw    380 volts strokes per minute     40…163 distance between table and slotter slides       320mm distance between slotter and column            480mm max. table movementlongitudinal 500 mm lateral  400 mm table rapid movement            longitudinal, m/min 1,8 traverse, m/min 1,8  circular, degrees/s 3,4             3,6kw machine dimensions:  height 2100  xwidth 1200 x  length 2100mm machine weight:          2200  kgapprox additional accessories            4 jaw true chuck with 4 inside & 4 outside dogs , key way slotting tools of width5,6,8,10,12,14,16,18mm             machine is electrically connected & in full working condition located at kolhapur,maharashtra,india. electrical working trial can be given, machine is russian made heavy good build quality. it has 4 speeds for stroke travel, the table can be moved on  x, y & rotational axis manually & auto feed at different speedsforward/reverse-clockwise /anticlockwise to see working videos search  stanko 7a420m kolhapur   on youtube this machine is used for slotting key ways, internal & external teeth profiles on gears , machining of custom jobs of special application   interested buyer should send only whatsapp message by sending screenshot of this listing , visiting card , buyers city ,company details.on

Country of Origin : USSR/Poland

Weight : Approx 2300kgs+

Voltage : 420V

Condition : Used

Automatic Grade : Semi Automatic, Manual, Automatic

Driven Type : Electric

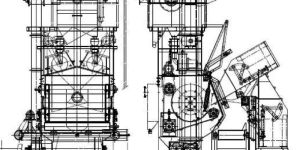

Tumble Blasters process multiple parts, ranging in size from small to medium, with a level of speed and efficiency unmatched by other types of equipment in a comparable price range. Plus they are simple to operate. The operator loads parts onto a rugged perforated belt, closes the loading door, sets the timer and pushes the start button. By tumbling parts within the blast envelope, these machines deliver consistent results automatically whether working intermittently or non-stop in a multi-shift production facility.

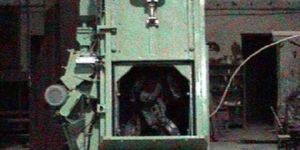

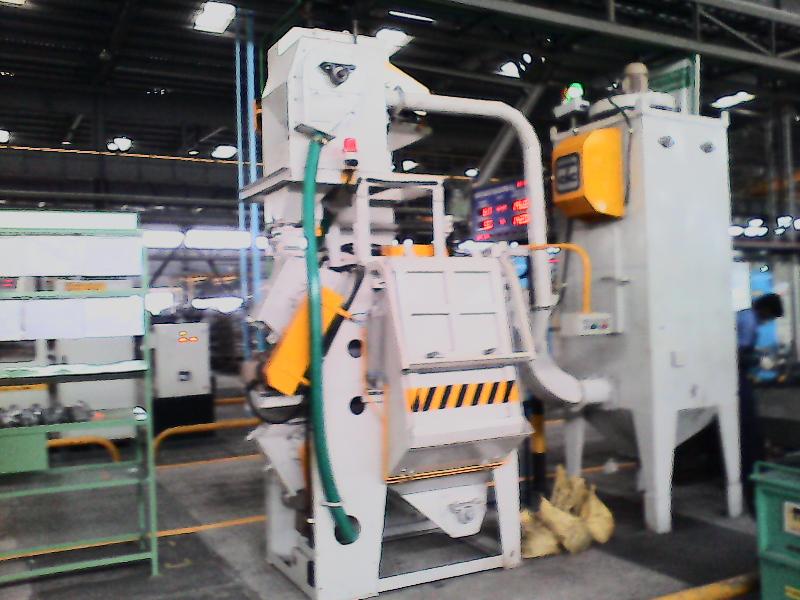

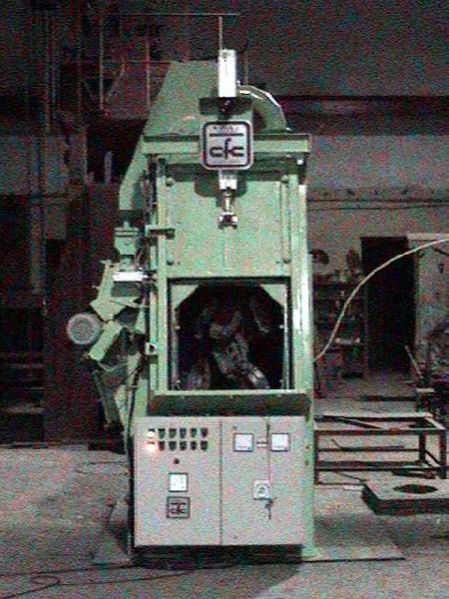

This is another small machine in CFC family. Semi automatic shot blasing machine suitable for any type of castings, forgings and fabricated components. Specially for Die cast Al casting plants, located along side of Die cast MachinesHook Capacity : 75 kg., 100kg, 150 kg. 200kgSpecial Features : Door self locking. Pneumatically operated vertical sliding. Only loading / unloading manually. (maximum wt of single component should be 15 kgs.) Rest all operation automatic with pre-set timer. Evenly cleaning operation within one pass. Very high output. Low power consumption. Low operating cost. Low maintenance cost. Low idle time.

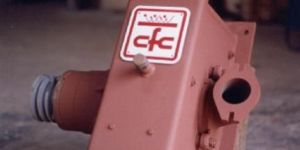

The blasting Wheel which is the heart of any shot blasting / peening machine has been so designed to generate a very high abrasive flow rate for any given HP. The number of wear parts within the wheel are as low as seven, as a result the spare part consumption & inventory are very low and this brings down the operational cost.The wheels are available in four sizes : 250 Dia, 300 Dia, 400 Dia & 500 Dia. With 4, 6 & 8 blades configuration for different applications. The insertion and removal of blades are very simple & there are fewer number of steps involved as under thereby taking the least time to replace. Remove the top cover of the wheel housing & the top liner. Unscrew the bolt. Remove the blades. Insert blades and tighten the bolts. Place the top liner & close housing cover. Details : CFC wheels are single sided wheels and are comparatively much lower in weight than a double sided wheel. Being a single sided wheel, the efficiency of these wheels are higher than a double sided wheel. CFC wheels are reversible i.e., the same wheel can be used for clockwise operation as well as for anti-clockwise operation by reversing the bare wheel. The bearings are heavy duty non greased type and require less maintenance. The wheel replacement is also very simple. No need of removal of complete wheel liners, only blade, impellor, control cage and top liner are to be removed. Thus the wheel replacement does not take more than 60 minutes under any circumstances.

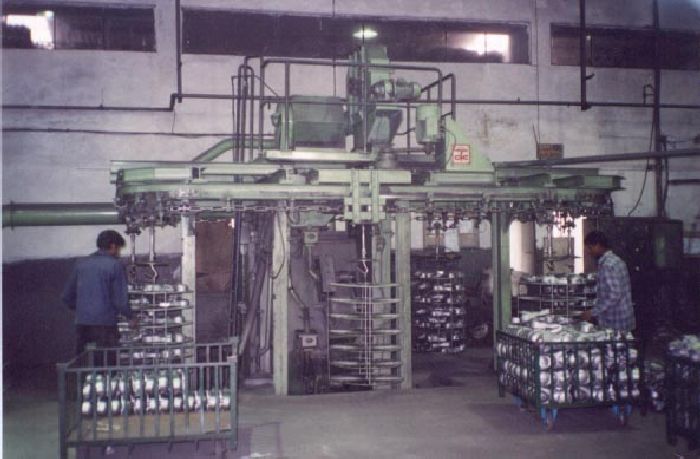

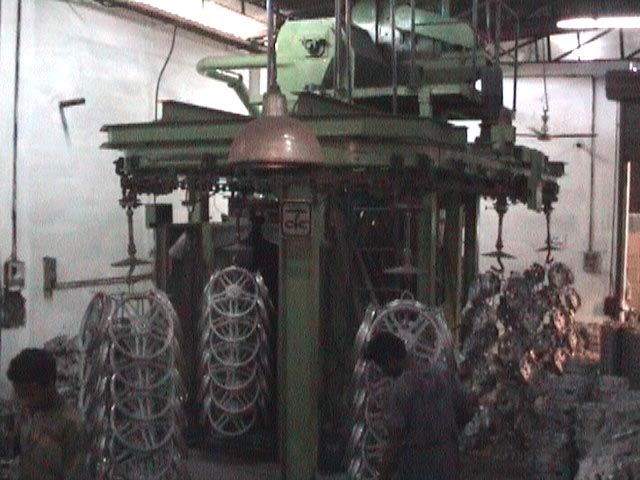

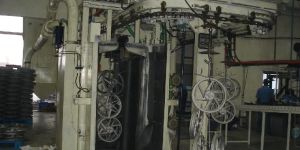

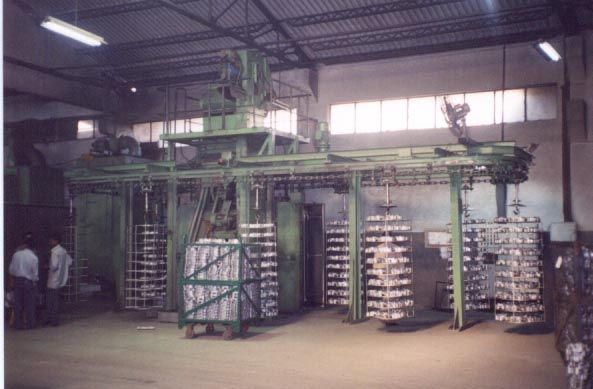

These are semi automatic shot blasting machine suitable for any type of castings, forgings and fabricated components.Hook Capacity : 200kg, 300kg, 500kg, 750kg, 1500kg, 2000kg, 3000kg & 5000kgAll models are incorporated over head monorail track : - Straight - Triangular - Circular - or oval with core knockout facilitySpecial Features : Only loading / unloading manually. Rest all operation automatic with preset timer. Evenly cleaning operation within one pass. Very high output. Low power consumption. Low operating cost. Low maintenance cost Low idle time.

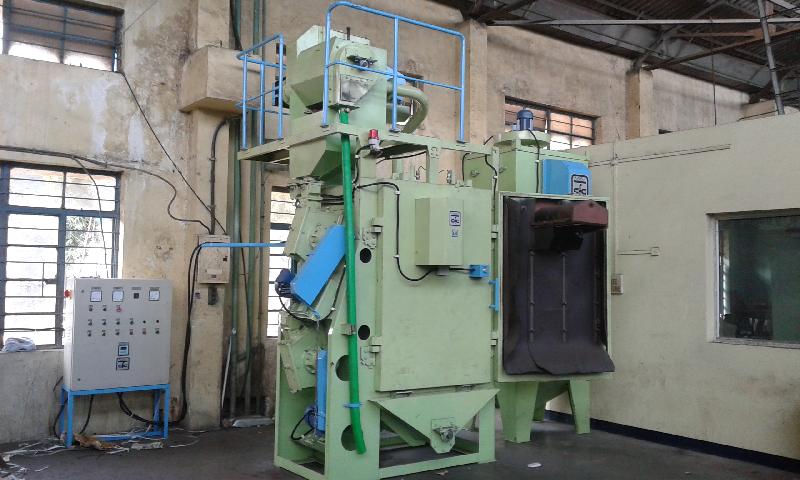

These are semi automatic shot blasting machine suitable for any type of castings, forgings and fabricated components. Hook Capacity : 100 kg, 200 kg,& 300 kg, (single/double door) Special Features : Door self locking. Only loading / unloading & door opening / closing manually. Rest all operation automatic with preset timer. Evenly cleaning operation within one pass. Very high output. Low power consumption. Low operating cost. Low maintenance cost. Low idle time.

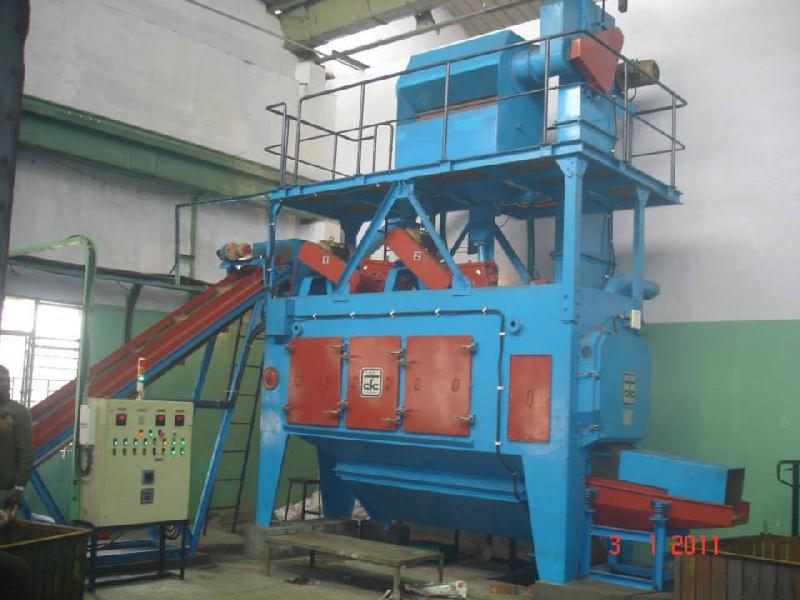

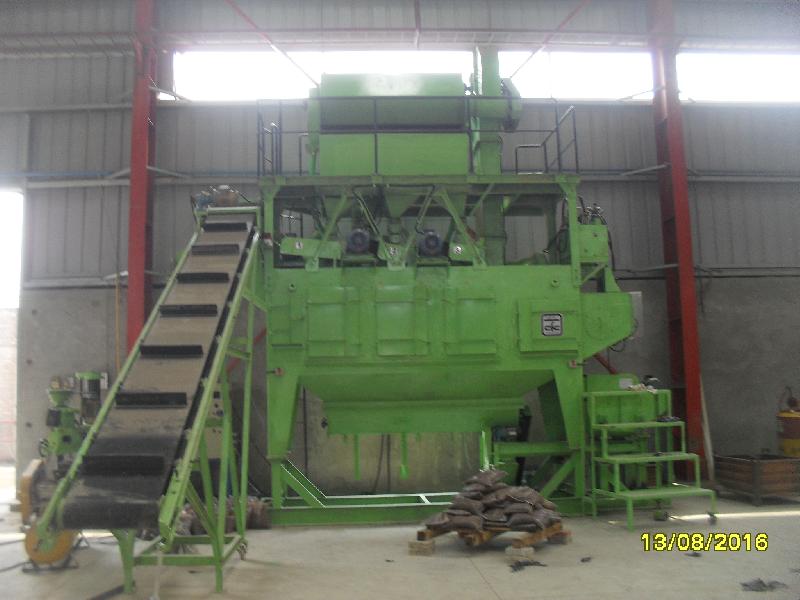

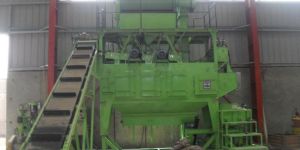

Continuous Shot Blast Machine / Shot Peening Individual Job Wt from few gram to 30kg. The machine is suitable to handle forgins & castings. It can also handle hot components up to temperature of 150 degree C. It is a continuous machine and can be used both in line and off the line. The machine can be provided with auto transfer for feed and discharge. Replaceable liners are provided in the blasting zone thus making it user friendly. Special Features : Loading / unloading manually or with Reciprocating feeder / conveyor. Rest all operation automatic with preset timer. Evenly blasting operation within one pass. Very high output. Low power consumption. Low operation cost. Low maintenance cost. Low idle time. Production flow rate can be controlled as per requirement

The first of its kind in the country with edge peening facility. The machine is equipped with auto sensing i.e., Whenever there is leaf on the conveyor the abrasive is ON Otherwise the abrasive is in OFF condition. The Leaf Spring Shot Peening Machine are so designed to give 90-100% coverage in a single pass. The machines have been designed to convey two springs in parallel. The machines are lined with hard cast material that are highly abrasive resistant.Special Features : Only loading / unloading manually. Rest all operation automatic with preset timer. Evenly peening operation within one pass with edge peening facility. Very high output. Low power consumption. Low operating cost. Low maintenance cost.

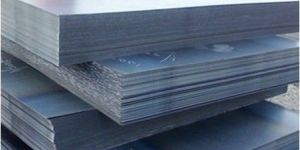

We are engaged in trading of High Manganese Steel Plates, which found main application in shot blasting machines. These are manufactured by using high grade raw material by using advanced technology. We provide these plate at reasonable prices in the industry. Corrosion resistant Wear Resistant plate thickness from 6-12mm is available

A car turntable or driveway turntable is a rotating platform designed for use for a car; they can be motorized or manually rotated No more reversing out from your premises onto a high traffic road, proceed forward-facing into busy streets, reducing the risk of accidents and giving off a more secure feeling about not having to hold up oncoming traffic that exiting the driveway in reverse can bring This is Domestic purpose we have developed Car Turntable which will rotate Car, SUV ,Sedan smoothly & easily by 180 /360 degree by 7-8 year old child. It takes around 15-20 seconds to rotate. It is self supported on ball bearings. For this model no electricity supply needed Electrical automatic with hydraulic motor &power pack. model also available Its total weight varies from 2 tons to 3 tons according to table diameter. We manufacture Car Turn Table as per your requirement to suit your site & car length.

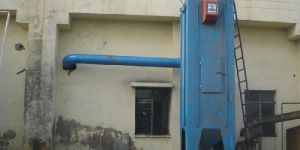

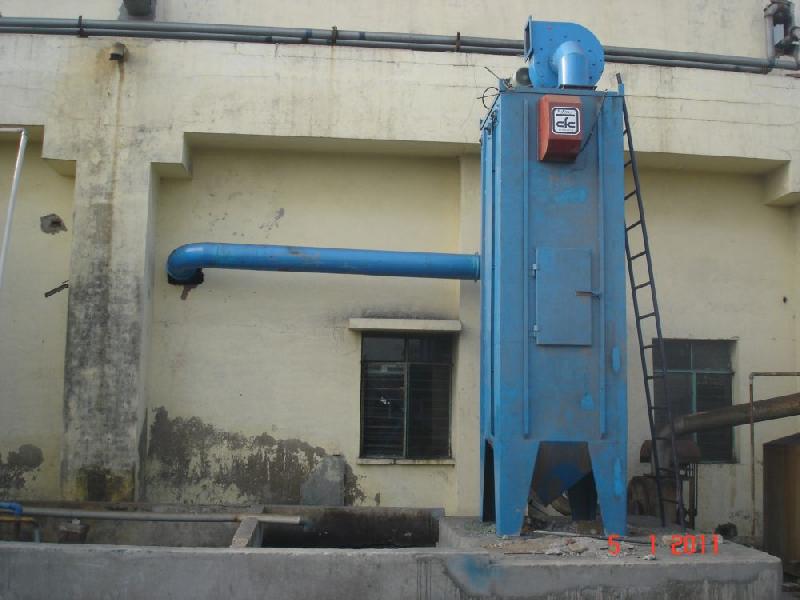

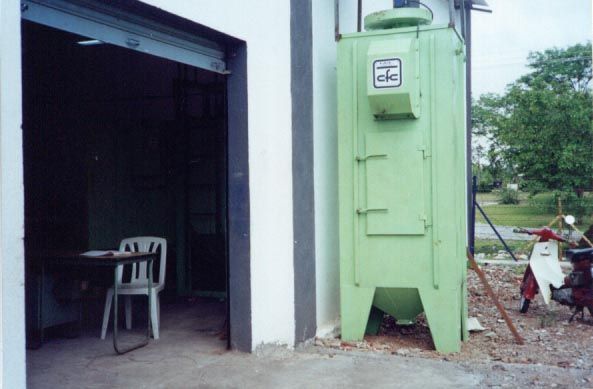

Dust particulate is captured within the shaker dust collector; as particle velocity decreases, the heavier fractions fall directly to the hopper while the fines are drawn against the inside surfaces of the bags. The filtered air expelled from the shaker dust collector may be recirculated within the building or released outside.Details : To clean bags, simply activate the integrated electric shaker system. Shaker frequency varies according to the quantity and type of accumulated dust particulate. The simple design of the shaker dust collector means lower capital investment compared to compressed air self-cleaning units.Designed to operate intermittently and without compressed air under moderate dust load conditions, you can expect lower energy bills.No valves, no diaphragm replacement. The use of commonly available standard filter media does not limit the user to a sole source / single supplier.Polyester Filter BagsFilter fabric is specially treated to facilitate dust cake release during shakedown. Programmable Shaker Frequency PLC-controlled systems provide automated filter cleaning schedules. Quiet Operation with no diaphragm valves required to clean obstructed filter media, shaker-type dust collectors operate more quietly when in use. Primarily developed for interior installation in small shops and vocational schools, its use is perfect for medium to large size pollutants such as sawdust, grinding, buffing or sanding of different metals, powders and compo sites. Air volume capacity can vary from 500 CFM to 20,000 CFM. Apply at following application : Metal Grinding Pharmaceutical Wood Shot blast , Foundries, Forging units Paper core grinding Silo Vent Grinding, sanding or buffing applications
