Electric Control Panels Dealers in Kolhapur

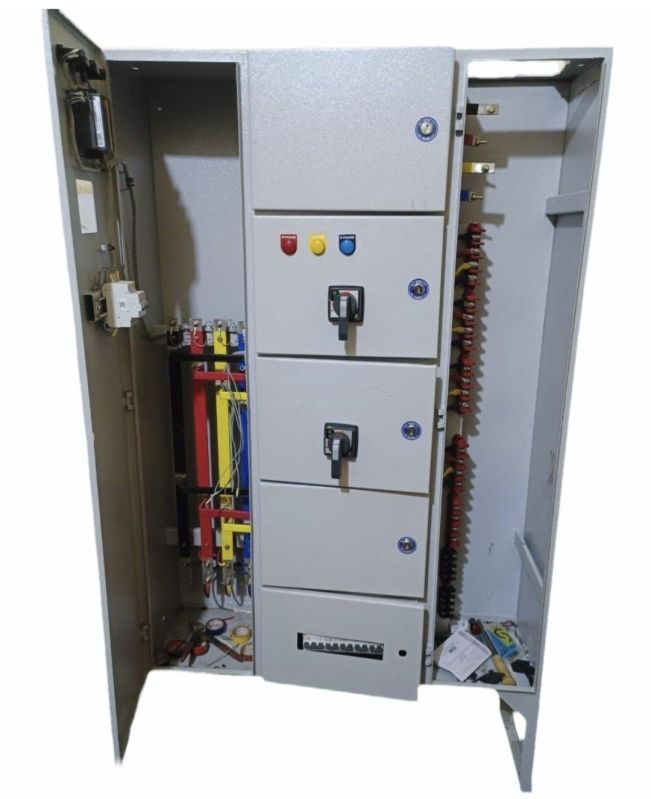

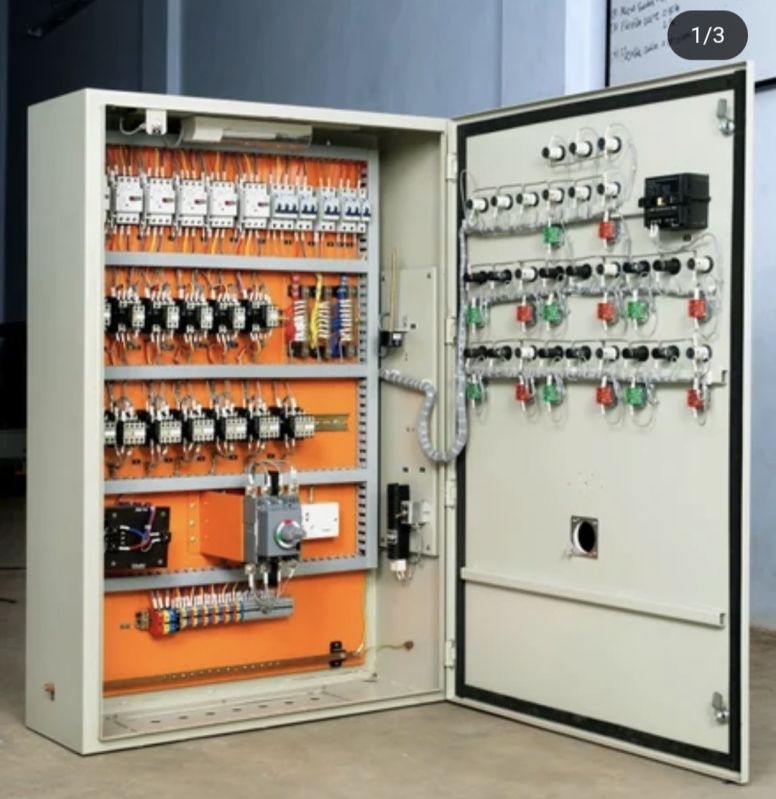

Our Electrical Control Panels are manufactured keeping the customer requirements in mind for safety and performance. We provide a premium quality product that could be used for diverse industrial application like Foundry, Paper mill, Food Industry and many more. We are the manufacturer of MCC, PCC, APFC, Starter, and PLC Automation Panel. MCC - MCC stands for Motor Control Center, as the name suggest it controls the motor unit connected to a common feeder. It has one or more cabinet that has a common power bus. MCC panel include devices like circuit breaker, fuses, starts and contractors for protection purpose. PCC - PCC stands for Power Control Center. PCC is used for distribution and control of various source used in the industry. The PCC panel consists of feeder breaker, monitoring devices, control devices etc. We manufacture PCC panels with rated current ranging from 630A to 6000A. APFC - APFC is Automatic Power Factor Control Panel. APFC panel is mainly used for the improvement of power factor.  APFC Panels can effectively and automatically manage quickly changing and scattered loads along with the retention of high Power Factor.

• Size: as per customer requirements
• Brand Name: NA
• Model Number: NA

We manufacture pcc, mcc, ac drive dc drive panels, plc & automation panels , push button box , junction boxes,crane panels etc.

• Color: White
• Shape: Round
• Raw Materials Used: HD, PP, ABS.
• Features: Heat resistant, Superior quality, High impact strength, Minimum shrinkage, Good strength
• Applications: Hospital furniture
• Finish: Chrome Finish

We present quality Plastic Collet that is manufactured from HD raw material thus ensures high durability. This Plastic Collet is known for its high tensile strength and superior finish and is mainly used in hospitality furniture, industrial furniture or various other products.

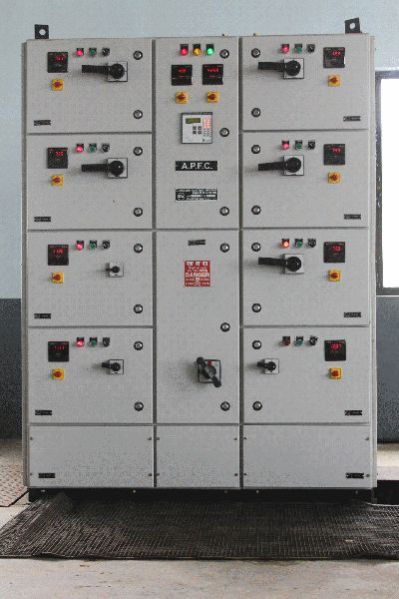

Automatic Power Factor Control Panels Pasayadan Electricals manufacture and supply capacitor switching panels in a wide range of ratings which incorporates features  which correct the PF to the best possible amplitude or as per user's needs. The control panels include all advanced technical features and also incorporate all necessary safety measures . The PF correction relay is micro-controller based instrument which measure the PF of the load from one CT.The relay has facility for setting the upper & lower limits of the PF & the user oneself can set this range by duly considering the trends  in which the load varies.The capacitor can be switched in 3 mode. One is Cyclic mode, another is First in Last out mods and yet another is First in First out mode. The user may order any one of these. However FIFO mode is more powerful because the capacitors can be divided  in unequal ratings which helps in reducing the frequency of switching. In FIFO mode, switching starts with the smallest unit thus it prevents adding or deducting a big capacitor.ich further avoids wide variation in power factor and thus reduces the frequency of switching. To add to this, the Relay has facility for setting two limits which can be widened or narrowed depending on how the load .The PF controller features : Digital PF indication with Lag / Lead Flag. Facilty for setting Lower & upper limit of PF Stage ON indicators Facilty for setting no. Of active steps Facility for setting CT ratio   Optional Features:Low PF alarm become active if the PF remains low even after all steps turn ONNo Load Compensation : Switches one Capacitor ON if transformer is at NO load. Thus maintains No load PF. Pasayadan Electricals can Survey the load and suggest a design that can improve the PF to the best possible amplitude with Capacitor rating and ratings of other components. PASAYADAN ELECTRICALS can also supply such systems upto 6.6KV with necessary control equipment and protective relaying. FILTER REACTORS FEATURES Linearity of more than 160%. No joints inside the coil. Losses not exceeding 2.7% at rated current. Value accuracy within ± 1.5%. Fully copper winding with tin plated terminals and connections. Winding kept open to atmosphere for efficient cooling. Noise level less than 60 dB Inductance phase values within ±1.2%. Tempertature rise not exceeding 60-62 c above ambient at rated current. Coils wound with multiple-conductors to reduce skin effect.

Our specialization lies in designing and developing solar panels. The solar panels that we provide are fabricated using the modern techniques. The precision-engineered solar panels of ours have a number of attributes and thus are better than any other solar panel. Consequently, we have become a renowned name as solar panel manufacturer and supplier in maharashtra (india). Besides, we also undertake epc of power projects on turnkey basis on mw scale.   Details : Range from 10w to 250w Warranty of panels is 10 years Certifications/approvals from mnre, iec 61215, iec 61730, iec 61701   Order Details : Payment terms : l/c, t/t Minimum order quantity : 10 piece/pieces Delivery time : 4 days

We are authorized dealer for HUPHEN Huphen Electromech pvt ltd established in year 1990 to provide quality solutions for customers in electrical field.It has since ,achived a position of being a leading firm in the field of current transformers ,Potential transformers and Metering cubicals Huphen Electromech are the pioneers in the production of 33 KV HT metering cubicals

We manufacture an array of Booster, Auto Transformer & Fully Automatic Auto transformer Starters For Electric Motors. These are available in market leading price and are customized to meet the various need of our huge clientele. We deliver our consignments within a set time frame.These transformer are tailor made design as per requirement  of customers. Available upto 1000kva

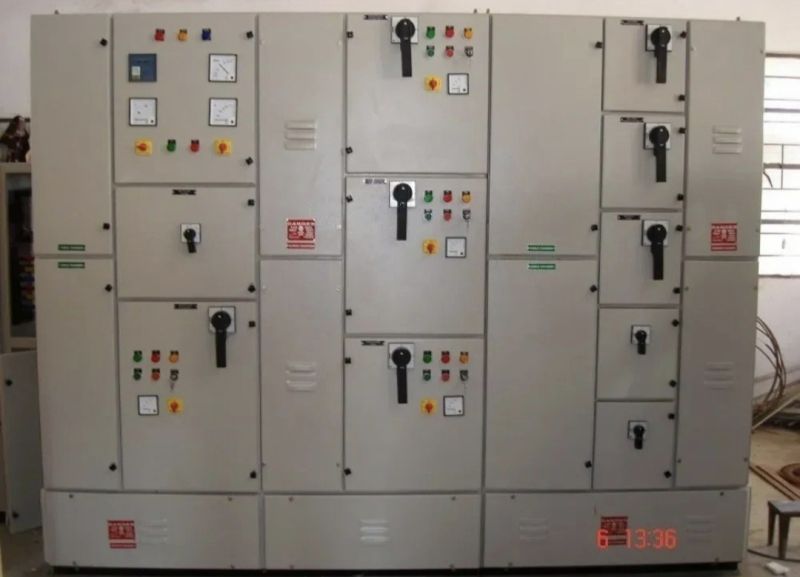

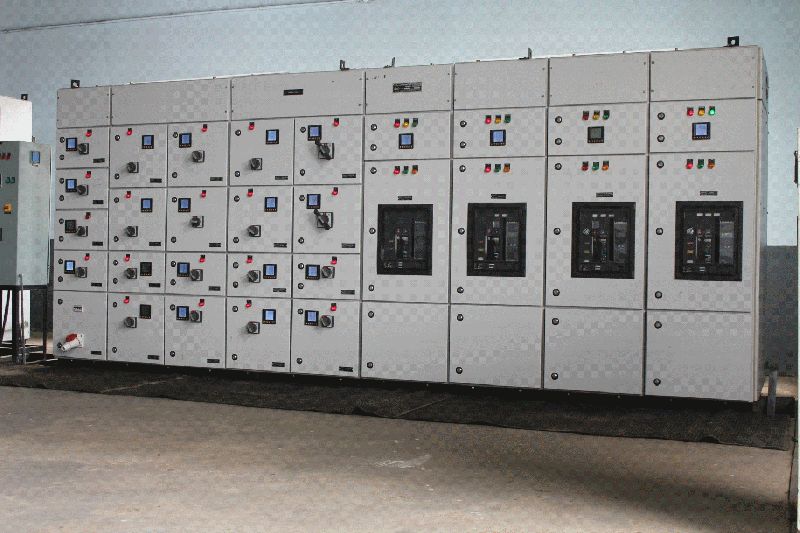

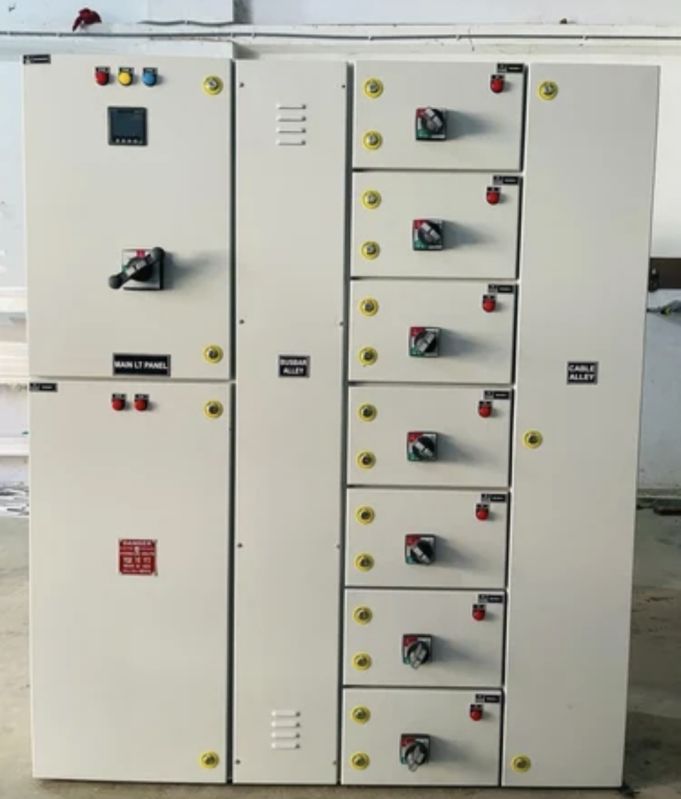

Types : Single Front with rear access for termination. Double Front are manufactured as per requirements   Largest Size Panel Executed Incomer 4000A, 65kA for 1 sec. Length 13 meter with Aluminum Busbar. We have supplied PCC Panel for 40MW Co-gen Plant to Hiranyakeshi SSK Ltd.Sankeshwar karnataka Busbar rating : 3PH, 4 pole 6000A for 65 KA We have supplied PCC Panel for 18MW Co-gen Plant to Shahu SSK Ltd. Kagal Maharastra. Busbar rating : 3PH, 4 pole 4000A for 65 KA   Construction : Main Body is made from 2mm CRC Sheet Color: Siemens Grey RAL7032 Powder Coated Base: 75 mm ISMC Color: Satin black Doors: 1.5mm. Color: Siemens Grey RAL7032 Powder Coated Mounting Plate: 1.5/2 mm thick, Color: Orange Powder Coated

• Features: Easy installation, High performance , Environment-friendly nature

Shreem has designed PF controllers by continuous Research and market survey, the products is designed in such a way that it meets the diverse customer needs. We have provided a smartest solution to switch ON and OFF the required KVAR for different type of loads PF controller is available in three different types of series for controlling different type of switching patterns and to control 4 to 16 steps. SPF-series for Single CT contactor switching SPF-T series for single CT thyristor switching SPF3-M series for 3 CT contactor switching SPF3-MT series for 3 CT thyristor switching

Electronic control panel uses latest microprocessor which incorporates state of the art technology with fo lowing features. The panel s having unique feature of two modes of operations i. e. Panel control mode & PC control mode. With pane contro mode, the mach ne can be operated from panel ( without PC) and g ves output results / graph on dot matrix printer connected to the panel. With PC control mode, load, displacement and extension data transferred to PC through RS- 232 serial port thus giving rea time disc ay and graph of se ected test on PC.   Features :• Full fledged sealed membrane keyboard with numeric keypad.• Data entry for specimen d mensions.• Push button tare facility for load & reset for displacement/extension.• Serial port for commun cation wth PC.• Built in centronics interface for dot matrix printer.• Modulus data output (optional ).• Scrolling of test result data up to breakage.• Results include load Vs Displacement Curve, Max Load/ Displacement. UTS, % Elong % reduction n Area,  Yield oad, Proof Stress.• Over oad safety through opto isolated output     Serial Communications Software.MCS-MP series control panel can be connected to any PC using RS-232 commun cat on port. MCS offers window based software on PC to enable the user to effectively evaluate different parameters. The Features include• Real time graph of selected test on PC.• User friendly software with colour graphics.• Wide Range of Data entry for easy test setup• Unit interchangeability of load in kg., T, N, kN.• Extensive graphics, Curve fitting / Zooming / Tracing.• Effective file handing for data storage, RD BMS based.• Operational instructions on HELP Screen for a I programme modules.• Automatic calculation of Proof stress and Young s Modulus with graphical representation• Automate reseal ling of graph.• Batch testing, mult graph facility and statistica anaysis with MIS reports (optional).• Load, displacement, extension, strain rate values are displayed at all times on PC screen• Load Displacement, Load V Extenssion, Stress Strain graphs available for single test run..• Results include graph, Max load Max displacement, U.T.S.,% E ongation,% Reduction In Area, proof load,  proof stress, Yield stress, Youngs Modulus, breaking load, etc. Measuring System with PC Add on cards MCS-PC.In MCS PC model, the measuring system is based on two PCB's inserted in PC motherboard slots. All the system features are same as MCS-MP with serial software.Electronic ExtensometerMCS offers Strain Gauge type electronic extensometer for the evaluation of 0.2 Proof Stress 8, Young's modulus values.Extensometer Specifications• Model MCE-2• Type Strain Gauge• Extension 2 mm• Gauge Lenth 25 / 50 mm• Maximum Dia. : 25 mm

APFC Panel, Starter Panel, Servo Voltage Stabilizer

Electric Control Panels

Our company offers the best solution for your various power related demands. Our Automatic Power Factor Control Panels assist in close monitoring power factor that helps in avoiding penalties and minimizing KVA demand. Automatic power control panels, provided by us, avoid over excitation of generators and also minimize line losses. Their capability to minimize transfer loss along with the protection of motors and switchgears makes them highly efficient. Their power to improve voltage conditions differentiates them from other variants available in market. We procure them from reliable manufacturers that use micro controller based control relay for controlling the switching of capacitor. Today, we are regarded as one of the prominent Automatic Power Control Panels Suppliers in India. Advantages Of Automatic Power Factor Panels Avoids Power Factor Penalties.Reduces KVA DemandAvoids Leading Power Factor.Avoids Over Excitation Of Generators.Minimizes Line Losses.Minimizes Transformer LossesProtects Motors, Switchgears FromImproves Voltage Conditions. High Voltage Capacitors High Voltage Power Capacitors Are Manufactured With Hazy Film, Aluminum Foil And NPCB, Non-Toxic Oil. The Extended Foil Construction With Edge Soldering & End Folding Of Electrode Foil Is Added Feature. Units Up To 200 Kvar Are Offered Giving Benefit Of Kvar To Volume Ratio And Thereby Reducing Installation Cost And Space. These Capacitors Are Used For Compensating Transmission Line Losses As Well As For Power Factor Improvement. Each Capacitor Unit Consists Of Number Of Elements In Series / Parallel Combination With Internal Fuses. Each Element Is Wound With High Quality Hazy Bopp Film As Dielectric And High Purity Aluminum Foil As Electrode. Extended Foil Construction Is Adopted To Enhance The Life Of Capacitor. Normally The Electrode Material I. E. Aluminum Foil Has Sharp Points At Slit Edge Which Causes High Stress At The Sharp Points Causing Damage To The Capacitor. To Overcome This Phenomenon The Edge Of Aluminum Foil Is Folded Such That No Sharp Points Left Over. This Folding Forms A Ring Named As ‘Corona Ring’. After This, Capacitor Is Impregnated With NON-PCB, NON-TOXIC Bio gradable, Eco Friendly Oil Under Vacuum Which Enhances Life Of Capacitor. Such Capacitors Under Go Rigorous Testing Before Painting And Dispatch To Concern Customers.

Shreem Electric - We take pleasure in introducing ourselves as a renowned manufacturer and supplier of a wide variety of electric control panels in India.

Relay Panel, Ht Panel, Capacitor Bank, Outdoor VCB Panel, Indoor VCB Panel

Electric Control Panels, Electrical Panel Installation service

Control Panel Boards, Wires / Cables Accessories, Weighing Machines
