Electronic Extensometer Dealers in Kolhapur

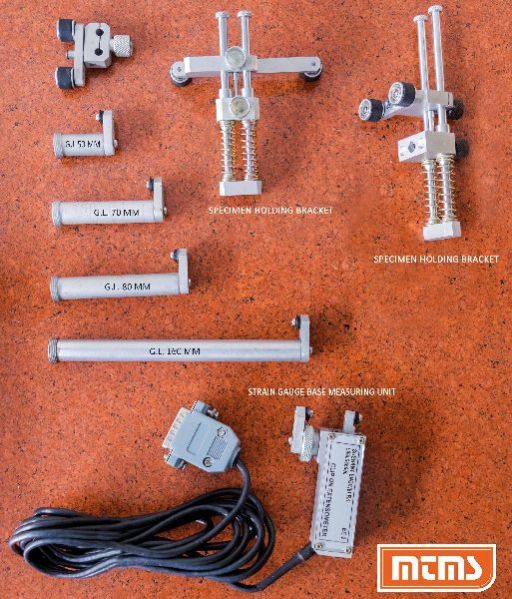

• Measuring Range (Extension): 0-2 mm, 0-5 mm, 0-10 mm
• Least Count: 0.001 mm
• Gauge Lenght (Adjustable): 25, 30, 45, 50, 25.4, 62.5, 70, 80, 160, 200, 300 mm
• Thickness or diameter of specimen: 1 to 50 mm round & flat Bars
• Excitation: ± 5 VDC
• Out Put (Approx): 20 mV full scale

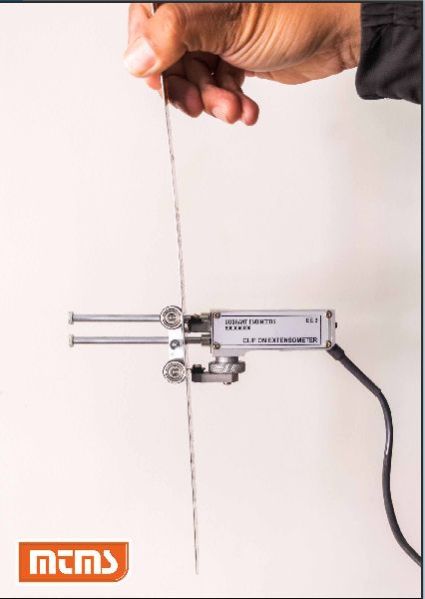

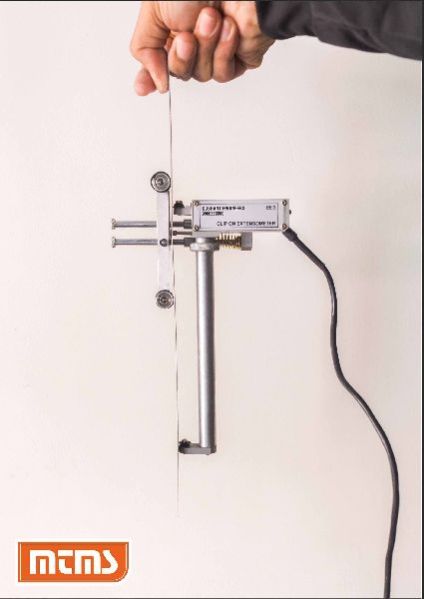

Details : The electronic exensometer, Model EE-2, EE-5, EE-10 is manufactured as per IS:12872:2011 & ISO 9513:1999, ASTME-83 in class 1 accuracy. This equipment is basically used with Universal Testing Machines and any digital Panel for tension test, It is used for measuring young's modules, proof stress or yield stress.

• Brand Name: SRI
• Material: Aluminium
• Color: Silver
• Application: Industrial Use
• Feature: Light Weight
• Width: 40-50mm
• Type: Electronic Extensometer
• Temperature Range: 10-50C
• Country of Origin: India
• Display: Digital

• Measuring Range (Extension): 0-2 mm
• Least Count: 0.001 mm
• Guage Length (Adjustable): 25, 30, 45 & 50 mm
• Thickness or diameter of specimen: 1 to 20 mm
• Excitation: + 5 VDC
• Out put (Approx): 20 mV full scale

Mechanical & Electronic Mechanical Extensometer (Model : EM-1 & EE-2)   Mechanical Extensometer (Model : EM-1)   It is essential to measure the elongation of test specimen under load, to have it's mechanical properties. FIE Extensometer Model EM-1 is intended to serve the above purpose.   So that the knife edges bite the specimen to avoid any slip. The upper edges are adjustable to provide different guages lengths for measurement. As deformation takes place the lower knife edges transfer the movement to the dial guages and the deformation of specimen is shown on dials, so that the change in length of specimen by 1/100mm, equals to one division of the graduation on dial.     Technical Data: 1) Measuring Range 0 to 3 mm 2) Least Count 1/100 mm 3) Guage Length (Adjustable) 30 to 120 mm 4) Thickness or diameter of specimen 1 to 20 mm 5) Dimensions - B x D x H 120 x 50 x 150 mm Approx. 6) Net Weight 0.3 kg Approx.   • Due to constant R & D, specifications and features are subject to change without notice.• The diamensions given above are approximate.     Electronic Mechanical Extensometer (Model:EE-2)   • The electronic exensometer, Model EE-2 is manufactured as per IS:12872:1990 & ISO 9513:1989 in class 1 accuracy.• This equipment is basically used with Universal Testing Machines for tension test, It is used for measuring young's modules, proof stress or yield stress.• EE-2 extensometer requires electronic signal conditioning PCB to interface it with UTM electronic panel.   Optional Accessories : • EE-2 with guage length 25.4, 62.5, 70 & 80 mm.• Specimen thickness or dia 4 to 40 mm & 4 to 50 mm.

AlE Offers Auto Instruments & Engineers make Electronic Extensometer AIE-EE2 to measure material extension with a Resolution of 1- Micron. Strain Gauge type Extensometer is to be used up to Elastic Limit to Determine Important Parameters Like 0.1 %, 0.2% Proof Stress & Young's Modulus, proof stress from 0.1 % to 1 % Selectable. Specifications :Gauge length 25 mm to 50 mm Maximum extension 2 mm Resolution 1 micron Specimen dia 0.5 to 30mm Specimen thickness up to 30 mm Specimen width up to 30 mm   Description :Serial port (RS-l31) communication is available with Windows based operating software Wide range of data entry for easy test setup Unit interchangeability for input and results as per standard. Extensive graphics, curve / tracing Results printing formats Output parameters include U. T. S. young's modulus, % elongation, yield stress, proff stress selectable from O. 1 %       to 1 % (when extensometer is used)Online graph facility Time graph also available.Batch testing facility. Prodf stress lines can be seen on monitor.Reductions in area.

Electronic Extensometer, Torsion Testing Machine - Mech.CS.TT
