Fairdeal Enterprises Shirol, Kolhapur, Maharashtra

Zig Zag / Wave type/ W vents Super Self-cleaning vents with more cleaning area. Compared to tapered vents, Zig Zag vents releases more amount of gases, because of its zigzag nature on the solid screen. Used in both Hot and cold shooter boxes.

Basically used to close holes from relocated vents. Available in Brass & Steel. The plug is a blind plug that closes the vent hole after a vent has been removed. Two heights (8 or10 mm) are available. Various diameters between 3 and 30 mm are available. (We can also manufacture other special order products.)

Widely use chaplets suitable for all types of castings. The two plates of different diameter optimize the behaviour of the chaplets on the surfaces of different strength. E.g. green sand- core.  The version with ringed stem and perforated plates favours chaplets fusion. Available from stock in a broad range of sizes. Available in standard, perforated, ringed and ringed and perforated versions. Available with the following anchoring system : with nail, with clip, self adhesive.

Basically used to close holes from relocated vents. Available in Brass & Steel. The plug is a blind plug that closes the vent hole after a vent has been removed. Two heights (8 or10 mm) are available. Various diameters between 3 and 30 mm are available. (We can also manufacture other special order products.)

Chaplets designed for castings where perfect pressure seal is required, such as hydraulic castings, automotive castings , pumps, boiler etc. They are made with a thin and toothed plate welded at mid stem, so it is They are made with a thin and toothed plate welded at mid stem, so it is exactly half way along the casting wall. Even the unfavourable castings temperatures, the thin plate, soil and without through hole, melts easily and seals the central part of the casting wall thus ensuring a 100% perfect seal against gas, water, vapours etc. Available in standard and perforated versions. .Available with the following anchoring system : with nail, with clip, self  adhesive.

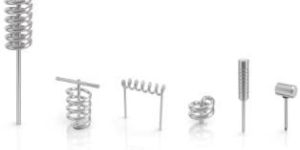

Shaped from soft iron wire with very low carbon content, the spiral coolers amalgamate perfectly with the casting. Correctly positioned at the centre of the fluid mass to be cooled they absorb part of the heat and speed up solidification, eliminating shrinking cracks and porosity during  solidification. Available in a broad range of personalized shapes and sizes to ensure perfect cooling. Suitability  shaped, they can prevent any interferences with the subsequent casting jobs.

work gloves are personal protective equipment worn during work projects that cover and protect the hands from the wrist to the fingers. Work gloves are meant to save the user's hands and fingers from unnecessary wounds such as cuts, blisters, splinters, skin punctures or heat and chemical burns.

 safety glasses are forms of protective eyewear that usually enclose or protect the area surrounding the eye in order to prevent particulates, water or chemicals from striking the eyes.

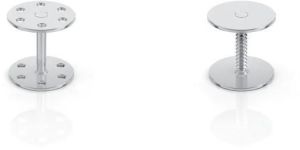

Widely-used chaplets suitable for all types of castings. The version with ringed stem and perforated plates favours chaplet fusion. Available from stock in a broad range of sizes. Available in standard, perforated, ringed and ringed and perforated versions. Available with the following anchoring systems : with nail, with clip, self-adhesive

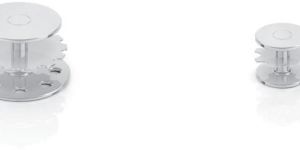

Chaplets designed for castings where perfect pressure seal is required, such as hydraulic castings, pumps, boiler etc. They are made with a thin and toothed plate welded at mid stem, so it is exactly half way along the casting wall. Even the unfavourable castings temperatures, the thin plate, soil and without through hole, melts easily and seals the central part of the casting wall , thus ensuring a 100% perfect seal against gas, water, vapours etc. Available in standard and perforated versions.  Available with the following anchoring system : with nail, with clip, self  adhesive.

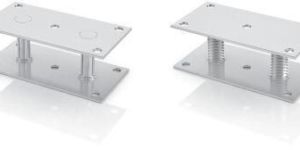

Chaplets suitable for even very high load pressures thanks to the larger supporting surface of the plates and to the uses of two stems, including of large size. The version with ringed and welded stem provide atmost load capacity . Available from stock in a broad range of sizes. Available from standard, perforated , ringed and ringed and perforated versions. Available with the following anchoring system with 2 nail, self adhesive..

Only used in Cold core shooter boxes. It is made of Polyoxymethylene branded as Delrin. Because of high dimensional accuracy, there is no variability in diameter and height. The Knurled shape of the cylindrical portion enabled this vent to securely adhere to the mold. The slit is set to .25 mm and the opening has a self-cleaning reverse taper.

Only used in Cold core shooter boxes. It is made of Polyoxymethylene branded as Delrin. Because of high dimensional accuracy, there is no variability in diameter and height. The Knurled shape of the cylindrical portion enabled this vent to securely adhere to the mold. The slit is set to .25 mm and the opening has a self-cleaning reverse taper

Also called Self-cleaning vents or slotted tapered vents. Similar to slotted Vent with extra opening area to filter the sand particles preventing the clogging of sand at the slot openings. Which helps in easy release of gases.

Steel core vents can withstand higher temperatures. Hence giving better wear resistance "Also called profile vents. Majorly used with hot core shooter machines mainly used on flat and profiled surfaces. Very easy to remove and clean from core box.

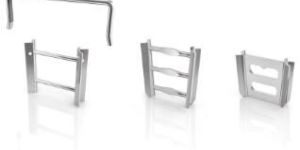

Design specifically for each single engine, they ensure full compliance with dimensions, distance and angles. All the surfaces of the core . Strengthening device  are without corner and sharp surfaces so as not to damage the paint. The use of an additional tie rod prevents core opening and any chance of the core strengthening device coming out. We place at your disposal 40 years of our experience, to design your core strengthening device starting with a 3 D model, a resin cast or the core itself.

Vemek  cramped core strengthening devices allow perfect positioning. The housing does not depend on the force applied by the operator. The side fins made like a “cramp” univocally determine the height of the core strengthening device, preventing it from dropping too much. The cramps also prevent the core strengthening devices from moving or coming out during casting, contrasting inevitable core expansion during casting flow. All the surfaces of the core strengthening devices are without corners and sharp surfaces so as not to damage the paint. We place at your disposal 40 years of our experience, to design your core strengthening device starting with a 3 D model, a resin cast or the core itself.

We are the leading manufacturers, exporters and supplier of this products.

Type : Safety Nose Mask

Material : Cotton

Application : Safety Mask

Color : Yellow

Feature : Reusable

rope length : 6imch

Rope Thickness : 2.5-3mm

Brand Name : TechnoMet Enterprises

Properties : Safety

Designed specifically for each single engine, they ensure full compliance with dimensions distance and angles. All the surfaces of the core strengthening device are without corners and sharp surfaces so as not to damage the paint. The use of an additional tie rod prevents core opening and any chance of the core strengthening device coming out. We place at your disposal 40 years of our experience, to design your core strengthening device starting with a 3 D model, a resin cast or the core itself.

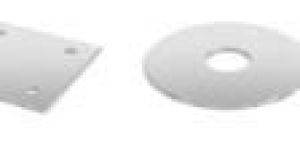

Tin- Plated Pates obtained directly from sheet metal. These are used as bases for the chaplets whenever it becomes necessary to increase height or extend basic surface area so as to prevent the collapse of the chaplet itself. The suitably perforated plates can act as filter to make the immediate filling of the casting basin easier and make any impurities float. Available from stock in a broad range of sizes with or without holes.

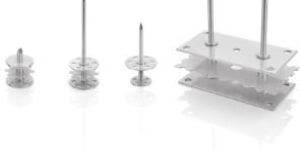

All the chaplets can be supplied with welded anchoring nail. The endless choice of nail diameters and length ensures easy and safe positioning in all conditions. Available in the following versions : with welded nail , with protruding nail ( stem extension) .

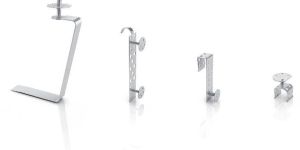

The special suitably designed and shaped clips ensure positioning and anchoring of all chaplets in any condition. These are dedicated anchoring system, purposely designed in conjunction with foundry technicians. Perfect thickness, hardness and dimension sizing ensures safe positioning and at the same time precise fusion, including of the clip.

Chaplets obtained entirely from folded sheet metal. Suitable for thin casting, where their light weight and the presence of  holes on all sides permit perfect fusion and degassing.  Available from stock in a broad range sizes. Available in the following version : Standard , Perforated, reinforced, curved, with the widened base. Available with the following  anchoring system : with nail, with clip, self – adhesive.

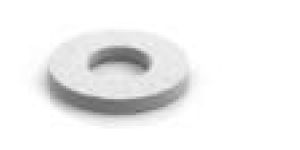

Made of ceramic materials certified as resistance to high temperatures, ceramic joints are ideal for core coupling. They prevent undesired cast iron infiltrations. Also available in previously adhesivated version in practical rolls of silicone paper. Available in various diameters with or without inner hole and in various shapes to specification.
