Furnaces Dealers in Kolhapur

We offer Electrical Non Ferrous Melting Holding Furnace. Aluminium & Other non Ferrous melting Holding Furnace Fuel- Electrical Gas Oil Best in Electrical for Aluminium Melting less than 0.5 units consumption per Kg Max temp. 1100 Deg C.

Furnaces with energy efficient with electrical and gas heating systems with plc controlling and high temperature uniformity +-1degree centigrade. High temperature 1200 degree centigrade

We have manufacture voltage fed series Inverter technology with latest and advanced technology induction furnace. Product Range :- 40KW - 1000KW

We are offering muffle furnace. Construction: • horizontal rectangular body made of thick gauge galvanized sheets powder coated with ceramic fibrewool insulation. Heating elements: made from best quality kanthal al wire covered with ceramic blankets. Temperature range: upto 930°c 1200°c control accuracy: ±1% of fsd temperature control: temperature control by electronic digital temperature controller. Size: size rating exterior dimensions 9"x 4"x 4" 1500w 15" x 22" x 23" 10" x 5" x 5" 2000w 16" x 23" x 24" 12" x 6" x 6" 3500w 17" x 24" x 25" 18"x 9"x 9" 6000w 20" x 27" x 29" also available in gmp (fully stainless steel 304 quality) model muffle furnace

Pin Type gas carburizing furnace,Controlled Atmosphere,PID Controller,Auto Data Recorder, Auto Process Controller,Capacity - 500 Kg Net,SCADA Auto Computer Controlled Recording System,Hot oil Quenching with controlled temperature and effective agitation,500 kg's Net Capacity,Oxygen Probe System,POKAYOKE's to avoid process failures,Alarming system for any malfunction of the system during the process,Additional (Safety) thermo couplescontrolleroxygen probes

• Condition: New
• Warranty: 1 Year
• Power: 100 Kw
• Frequency: 50/60 Hz
• Material Loading Capacity: 500-1500 kg
• Temperature Range: 400-1400 Degree Celsius
• Capacity: 1 Ton / hr. 10 Ton / hr.

We have numerous dealers and distributors associated with us to make our products available to buyers with ease and make timely delivery. We procure the inputs only from the trustworthy vendors present in the market. We know the importance of the raw materials and thus make sure that their quality will never be compromised.

CERAFLUX - 88 is highly exo-thermic in nature. Recommended for cleaning furnaces which are accumulated with Corundum (aluminium - oxide- Al2O3). Corundum is highly insulating in nature leads to increase in consumption of fuel in furnace and decrease the melting area of furnace. To remove the Corundum (Al2O3) layer from furnace CERAFLUX -88 is recommended. Pre-heat the furnace to Red Hot condition i.e. 750 - 7800C Sprinkle the CERAFLUX - 88 over Red-Hot aluminium oxide. Wait 5-10 minutes for completion of reaction i.e.with reaction molten Aluminium tricles out from aluminium oxide and accumulates at bottom of furnace. Put-on the furnace and heat the furnace again to speed-up the reaction. Scrap the layer with the help of M.S. scraper OR any other scrapping tool.

Temperature Controller :SANS temperature Control systems are designed for controlling the heat output of furnaces in testing of creep, stress-rupture, or hot tensile systems and others. The system is compatible with all furnace systems offered as new equipment and can be configured to operate nearly any furnace with any one of several different thermocouple types. SANS can also provide a fully computerized supervision, monitoring and data logging system for both mechanical and electronic creep machines. This creep laboratory management system is designed to monitor up to 101 individual machines or test points on a minute by minute basis. A complete laboratory status display keeps the supervisor constantly up to date with exactly what is happening at each test point. Errors and warnings are audible and visual, and are shown on the computer creen as well as recorded on a printout. Using the in-built databases of available equipment including: test point type, weights, furnaces, thermocouples and round ridged, round grooved and flat test specimens and are of twin transducer design.

Applications : The de-waxed shells are fired to burn out wax residues and pre-heat the shells for pouring.Electrical Furnaces or Gas fired or Oil fired furnaces are available for this application based on preference. Furnaces of Box design to support melt sizes of up to 100Kgs are available.The Rotary hearth furnace that support higher capacities with the same efficiency are available.Furnaces structures are of MS construction.Ceramic Fibre blocks are used for Insulation on all sides.Insulating bricks and hot-face fire bricks are used to form the Hearth.Automatic temperature and firing Control by way of Digital temperature indicator controller and suitable control panel. The rotary hearth furnace is optionally computer controlled with status display on a colour LCD screen.Temperature Accuracy : + / - 5 deg C. Max. Temp. : 1050 deg C. Power supply : 500 W, 230 V, 1 phase, A C. All the furnaces are provided with Pneumatic vertical swing - arm doors for smooth and quick operation. A foot-switch is provided to control door movement.

• Driven Type: Electric
• Automatic Grade: Automatic

We are offering aluminium melting furnace- electrical, diesel fired, fo fired, gas fired. Aluminium heat treatment furnace, dross recovery machine

Oil Fired Furnace, electrical furnace, FABRICATION, heat treatment furnace

foundry furnaces, foundry equipment, Fabrication Works, Welding Machine

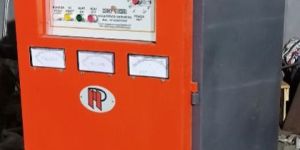

Induction Furnace

Car Bottom Furnace, Mesh Belt Furnace, Ladle Pre Heater, Drop Bottom Furnace

colour coating furnace, Ms Pipe, pipes fitting

Furnace, Automotive, Gear, Hydraulics, Lubricant Oil, automotive engine

Heat Treatment Process, Steel Casting

Industrial Furnaces

Furnace, furnace display, mould count display
