Krystal Elmec Ichalkaranji, Kolhapur, Maharashtra

Torsion Testing Machine is designed for checking Torsional porperty of varius metal wires, tubes, bars etc. Torque applied to the specimen is transfered to measuring dial through lever mechanism. Torque is measured by Pendulum Dynamometer system. Torque ranges can be adjusted by requred torque at other end of specimen. Autographic recordr gives the relation between Torque and Angle of Twist. These machines are calibrated as per latest relevent standards. Calibration is within ±1% within operating range of all models.

These machines come in two basic versions.i.e.Pure Vickers and Vickers cum Brinell. Load range for pure Vickers is from 1 kg. to 120 kg and for Vickers cum Brinell, 1 kg to 250 kg. These machines are suitable for checking Vickers or Brinell Hardness of Steel and other metals. Loads are applied with dead weights and are selectable with push buttons. Measurement of Diagonal Diameter of indentation is done with the help of built in optical system with with built-in micrometer scale. After taking the indentation on work piece , objective lens is automatically swiveled in position and indentation image appears on the focussing screen fitted in front of the machine. Loading cycle is started with Push Button in the front where-as unloading is done manually by hand lever.

Vertical Axis Balancing Machines Elettronic & Computerized versions available Useful for testing components like turbine discs, impellers, grinding wheels, etc. Optional attachments like drilling attachment are available to improve productivity.

  Vertical Axis Balancing Machine Capacity 3 kg - 300 kg  Elettronic & Computerized versions available  Useful for testing components like turbine discs, impellers, grinding wheels, etc. Optional attachments like drilling attachment are available to improve productivity     Cost effective solution for rotors without own Jornals Simple to operate Built-in "ELECTONIC" Compensation for compensating the shift between rotor axis and mounting axis. Solid reliable structure. Various measuring system options.

Loading with screw driven mechanism Equipped with latest, state of the art MICROCONTROLLER based measuring system Optional RS - 232 port for PC interface.

Torsion Testing Machine is designed for checking Torsional  porperty of varius metal wires, tubes, bars etc. Torque applied to the specimen is transfered to measuring  dial through lever mechanism. Torque is measured by  Pendulum Dynamometer system. Torque ranges can be adjusted by requred torque at other end of specimen. Autographic recordr gives the relation between Torque and Angle of Twist. These machines are calibrated as per latest relevent standards.

    Capacity 0.5 kN - 60 kN   Mechanical, Electronic & Computerized versions available   Useful for testing various materials like metals, springs, rubber, polymers, etc.   Customized holding fixtures available

    Krystal hardness Testers are designed and developed after years of experience in this field.All models are manufactured under strict quality control at all manufacturing stages.   All these models are suitable for testing hardness of Metals and alloys.   All types of shapes, i.e.Round, Flat, and other irregular shapes like castings etc. can be tested on these machines. All relevant fixtures can also be supplied.   These Testers are simple in design, easy to operate and maintain.   All Krystal make hardness testers meet relevant National and International standards like BS 819 part I & II, ASTM- E18, ASTM - E10 etc.

  Plastic Impact Testers.  Most suitable for polymers and similar materials. Calibrated as per BS standard

• Tensile Test on Metal, Synthetic Materials etc. • Compression Tests on Springs, Rubber etc. • Bending Transverse Test on Beams, Synthetic Materials etc. • Shear Test on Metals, Polymers etc.

GENERAL FEATURES OF HYDROMECHANICAL UNIVERSAL TESTING M/CS.   Universal testing machines of UTK-*** Series consist of : 1. Hydraulic Loading Unit 2. Hydraulic Control Console 3. Large Dial type Load Indicator with Dual Pointer. 4. Equipped with Auto Load Selector. 5. Equipped with Graphic Recording Attachment. 6. Very simple to operate.   HYDRAULIC LOADING UNIT: Hydraulic Loading Unit Universal testing machines of UTK-*** Series consist of : 1. Hydraulic Power Pack to develop adequate Hydraulic Pressure to be applied on the specimen under test. 2. Flow Control Valves to smoothly control the rate of loading. 3. Machine Table which moves Up and down with hydraulic ram 4. Chain and sprocket mechanism with geared motor to control movement of middle crosshead 5. Upper Crosshead connected to machine table through plane columns. 6. Main screws for adjusting and controlling position of middle crosshead.   MEASURING UNIT:   1. Hydraulic Power Pack to develop adequate Hydraulic Pressure to be applied on the specimen under test. 2. Flow Control Valves to smoothly control the rate of loading. 3. Electrical controls for Hydraulic motor and Crosshead motor. 4. Large circular Dial with pair of needle Pointers for Load display. Red dummy pointer giving Fmax.load value 5. Autograph assembly to draw an “On-Line” graph for Load Vs.Displacement.

  Most suitable for metals. Calibrated as per BS standard. Can be supplied with Motorised hammer lifting mechanism.

Horizontal Axis Balancing Machine Capacity 1 kg - 20,000 kg Electronic & Computerized versions available Max. job Diameter 500 mm to 3000 mm

    Krystal DynamicBalancing Machines are designed and developed after years of experience in this field.All models are manufactured under strict quality control at all manufacturing stages.   All these models are suitable for Balancing variety of components as well as for production balancing.   All types of components, i.e.Armatures,Crankshafts, Fans,Flywheels and all such rotating components can be balanced on these machines with properly designed balancing Fixtures.   These machines can be equipped with variety of measuring systems suitable for the application and depending on sophistication level required.   All Krystal make Balancing Machines meet relevant National and International standards like BIS,ISO etc.

• Tensile Test on Metal, Synthetic Materials etc. • Compression Tests on Springs, Rubber etc. • Bending Transverse Test on Beams, Synthetic Materials etc. • Shear Test on Metals, Polymers etc.

  Most suitable for metals. Calibrated as per BS standard. Can be supplied with Motorised hammer lifting mechanism. Built RS-232 port for PC Interface.

  Loading with screw driven mechanism Equipped with large analog dial for reading load. Autographic attachment for plotting . On line graph of Load vs Displacement

GENERAL FEATURES OF DIGITAL UNIVERSAL TESTING M/CS.   Universal testing machines of UTK-*** E series consist of : 1. Hydraulic Loading Unit 2. Hydraulic Control Console 3. Electronic Hardware Interface. 4. Configured for Variety of Tests like,Tensile,Compression Transverse,shear etc. 5. Variety of Graphs and Report printing. 6. Can be upgraded without any major Hardware change   HYDRAULIC LOADING UNIT Hydraulic Loading Unit of Universal testing machines of UTK-*** E series consist of : 1. Hydraulic Power Pack to develop adequate Hydraulic Pressure to be applied on the specimen under test. 2. Flow Control Valves to smoothly control the rate of loading. 3. Machine Table which moves Up and down with hydraulic ram 4. Chain and sprocket mechanism with geared motor to control movement of middle crosshead 5. Upper Crosshead connected to machine table through plane columns. 6. Main screws for adjusting and controlling position of middle crosshead.       MEASURING UNIT: 1. Ultra stable precision grade pressure transducer 2. Encoder for displacement measurement 3. Electronic hardware for Interfacing measuring system for with Digital display for load and displacement. 4. Built in RS 232 port for PC Interface 5. Built in parallel port for Dot - Matrix printer. 6. Can be upgraded without major hardware charge.

Tensile Test on Metal, Synthetic Materials etc. Compression Tests on Springs, Rubber etc. Bending Transverse Test on Beams, Synthetic Materials etc. Shear Test on Metals, Polymers etc.

  Loading with screw driven mechanism Equipped with latest, state of the art MICROCONTROLLER based measuring system Optional RS - 232 port for PC interface.

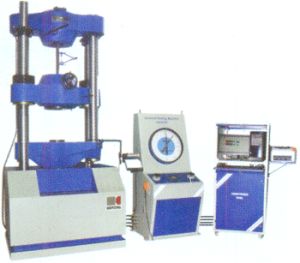

      GENERAL FEATURES OF COMPUTERISED UNIVERSAL TESTING M/CS. Universal testing machines of UTK-*** E(PC) series consist of : 1. Hydraulic Loading Unit 2. Hydraulic Control Console 3. Electronic Hardware Interface 4. Highspeed A/D Converter. 5. Windows Based Software for Displaying and Analyzing Test Results. 6. Unlimited Data Base Support (Limited by PC Hard Disk Capacity) 7. Configured for Variety of Tests like,Tensile,Compression Transverse,shear etc. 8. Can be upgraded without any major Hardware change     HYDRAULIC LOADING UNIT Hydraulic Loading Unit of Universal testing machines of UTK-*** E(PC) series consist of :   1. Hydraulic Power Pack to develop adequate Hydraulic Pressure to be applied on the specimen under test. 2. Flow Control Valves to smoothly control the rate of loading. 3. Machine Table which moves Up and down with hydraulic ram 4. Chain and sprocket mechanism with geared motor to control movement of middle crosshead 5. Upper Crosshead connected to machine table through plane columns. 6. Main screws for adjusting and controlling position of middle crosshead.

universal-testing-machine Mechanical, Electronic & Computerized versions available. Capable of tensile, compression, bend & shear tests. Windows Based Click and Go Software Package. Supports Tensile, Compression, Bending and many more Tests. Compensated for main screw clearances and frame stiffness. Extensive Database support.

Capacity : 100 kN - 2000 kN

Capacity 0.5 kN - 60 kN Mechanical, Electronic & Computerized versions available Useful for testing various materials like metals, springs, rubber, polymers, etc. Customized holding fixtures available

  Loading with screw driven mechanism Equipped with PC based measuring system with "Click and Go" type Windows based software package Can be upgraded without any major hardware change
