Shivam Industries Ichalkaranji, Kolhapur, Maharashtra

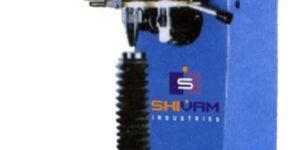

Vickers Hardness Testing Machines We manufacture and supply Vickers Hardness Testing Machine in India. Our Vickers Hardness Testing Machine is simple & accurate in design. Vickers Hardness Testing Machine is suitable for measuring the hardness of precision metallic parts with wide testing range from soft to hard & accurate results are guaranteed. Our Vickers Hardness Testing Machine strictly conforms to IS: 1754: 2002 & ISO 6507 2: 1997. Vickers Testing Machine: How It Works There is an indenter in form of a square diamond pyramid forming an angle of 136 degrees between its two opposite faces. The loads used in the Vickers Hardness Test may range from 1 to 100 kgf; these loads may be applied for approx. 10-15 seconds. Once the load is applied, the material is removed and the indentation on the material surface is measured. Precautions To Take When Using Vickers Hardness Testing Machines Careful surface preparation is a must when using these machines to ensure accurate measurements Vickers Hardness is not to be used for routine testing as the entire process is quite slow. Features Wide testing range, from soft metal such as lead, up to the hardest, like hardened steel Tiny indentation allows testing of precision finished parts Thin sheet metal is perfectly tested because applied load is very small Same hardness number is obtained on the same specimen, regardless of the load applied Motorized loading and unloading cycle Built â�� in projection screen to get accurate result MODEL SHI  VHTM 50 Construction : To accommodate the high precision loading system & an optical projection screen the machine frame is designed sturdy. Specimen is to be placed on testing table. The test cycle is fully automatic. The accurate load is applied on a diamond penetration by means of a lever & weights. The load is removed automatically after a specific lapse of time. The objective is indexed with the test piece & the diamond indentation is projected on the measuring screen. The diagonals of the indentation can be measuring by means of the micrometer screw of the projection screen.

Warranty : 1 Year

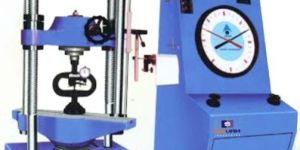

We are ranked as the finest in the list of manufactures, exporters as well as suppliers of mechanical universal testing machine in india. Our universal testing machine has following features which enables high accuracy testing – with economy, speed and versatility. Features loading accuracy as high as + 1% straining at variable speed to suite a wide range of materials continuous roll autographic recorder supplied as standard to enable study of the behavior of materials motor driven threaded columns for quick effortless adjustment of lower crosshead to facilitate rapid fixing of test specimen high reading accuracy due to large size and design of dial wide range of standard and special accessories with load stabilizer easy change from plain to threaded and screwed specimens large effective clearance between columns enables testing of standard specimens as well as structures simples controls for ease of operation robust straining frame of an extremely rigid construction safe operation ensured by means of safety devices fully enclosed and protected pendulum application our universal testing machine is designed for testing metals and other materials under tension, compression, bending, transverse and shear loads. Hardness test on metals could also be conducted. Principals of operation operation of the mechanical universal testing machine is hydraulic transmission of load from the test specimen to a separately housed load indicator. The system is ideal since it replaces transmission of load through levers and knife edges, which are prone to wear and damage due to shock on rupture of test pieces. Load is applied by a hydraulic lubricated ram. Main cylinder pressure is transmitted to the cylinder of the pendulum dynamometer system housed in the control panel. The cylinder of the dynamometer is also of self – lubricating design. The load transmitted to the cylinder of the dynamometer is transferred through a lever system to the pendulum. Displacement of the pendulum actu

Brand Name : SHIVAM INDUSTRIES

Our universal testing machine is designed for testing metals and other materials under tension, compression, bending, transverse and shear loads. Hardness test on metals could also be conducted.

Torsion Testing Machine Suppliers Torsion Testing Machine is designed for conducting torsion and twist on various metal wires, tubes, sheet and other such materials. Torque measurement is done by pendulum dynamometer system. Torque range can be adjusted by auto torque selector. Torque applied to specimen by geared motor through gear box. Autographic recorder gives the relation between torque and angle of twist. Our Torsion Testing Machine is easy to operate and quite durable. We are engaged in manufacturing and supplying of Torsion Testing Machine in India. Being one of the prominent Torsion Testing Machine Suppliers, we have established an extensive network across the country to ensure that orders are delivered on a timely basis.

Type : Computerized

Weight : 500-1000 Kg

SHIVAMs Spring Testing Machines are used for quick and accurate testing of tension and compression springs. The Spring Testing Machine comprises of two hand-chrome plated columns with fine cut single screw and hand wheel for manual loading as well as unloading arrangement. Our Spring Testing Machine uses a high precision-load cell for measurement of force. For displacement measurement, mechanical linear scale or digital vernier caliper or rotary encoder is used. Measuring system of Spring Testing Machine is based on latest microprocessor based electronics with tare facility. We manufacture and supply Spring Testing Machine across the nation. Options Digital vernier scale with 0.01 mm resolution for displacement indication ( 6 to 12 ) Rotary encoder with separate digital unit 0.1 to 0.01 mm resolution 9 / 24 pin Dot Matrix printer interface Serial interface hardware with data transfer software to computer Motorized loading operation Features Microprocessor based unit. Force measurement accuracy + 1% of indicated load or 0.5% of full load value whichever is higher. Quick and accurate measurement Interchangeable load cells Modulus data for load and displacement Optional Dot Matrix Printer interface Optional RS 232 Computer interface with window based software

Rockwell Hardness Testing Machines We are ranked among the most credible Manufacturers and Suppliers of Rockwell Hardness Testing Machine in India. All the models of Rockwell Hardness Testing Machine are suitable for testing hardness of metals & alloys of all kinds - whether hard or soft, flat, round or irregular in shape. Rockwell Hardness Testing Machine is simple in design, easy to operate, and quite sensitive. Rockwell Hardness Testing Machine is used in schools, laboratories, tool room, inspections departments, industries etc. Rockwell Hardness Testing Machines Are Used When: - there is need for high speed testing the size of the indentation is small there is no scope for human error there is need to distinguish even the slightest difference in hardness Precautions To Take When Using Rockwell Testing Machines the sample should be dry, smooth and oxide free the anvil and indenter should be well-seated and clean the surface on which the sample is placed should be absolutely flat & perpendicular to the indenter the loading speed should be standard

Voltage : 110V

Power : 1-3kw

Driven Type : Electric

Warranty : 1year

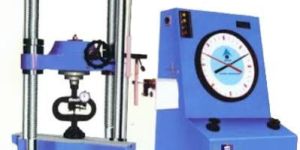

We are ranked as the finest in the list of Manufactures, Exporters as well as Suppliers of Mechanical Universal Testing Machine in India. Our Universal Testing Machine has following features which enables High Accuracy Testing with Economy, Speed and Versatility. Features Straining at variable speed to suite a wide range of materials Continuous roll autographic recorder supplied as standard to enable study of the behavior of materials Motor driven threaded columns for quick effortless adjustment of lower crosshead to facilitate rapid fixing of test specimen High reading accuracy due to large size and design of dial Wide range of standard and special accessories with load stabilizer Easy change from plain to threaded and screwed specimens Large effective clearance between columns enables testing of standard specimens as well as structures Simples controls for ease of operation Robust straining frame of an extremely rigid construction Safe operation ensured by means of safety devices Fully enclosed and protected pendulum Application Our Universal Testing Machine is designed for testing metals and other materials under tension, compression, bending, transverse and shear loads. Hardness test on metals could also be conducted. Principals of Operation Operation of the Mechanical Universal Testing Machine is hydraulic transmission of load from the test specimen to a separately housed load indicator. The system is ideal since it replaces transmission of load through levers and knife edges, which are prone to wear and damage due to shock on rupture of test pieces. Load is applied by a hydraulic lubricated ram. Main cylinder pressure is transmitted to the cylinder of the pendulum dynamometer system housed in the control panel. The cylinder of the dynamometer is also of self lubricating design. The load transmitted to the cylinder of the dynamometer is transferred through a lever system to the pendulum. Displacement of the pendulum actuates the rack and pinion mechanism which operates the load indicator pointer and the autographic recorder. The deflection of the pendulum represents the absolute load applied on the test specimen. Return movement of the pendulum is effectively damped to absorb energy in the event of sudden breakage of the specimen. Machine consists of Straining Unit This consists of a hydraulic cylinder motor with chain sprocket drive and a table coupled with the ram of the hydraulic cylinder, mounted on to a robust base. The cylinder and the ram are individually lapped to eliminate friction. The upper cross-head is rigidly fixed to the table by two straight columns. The lower cross-head is connected to two screwed columns which are driven by a motor. Axial loading of the ram is ensured by relieving the cylinder and the ram of any possible side loading by the provision of ball setting. A displacement elongation scale, with a minimum graduation of 1 mm is provided to measure the deformation of the specimen. Tension test is conducted by gripping the test specimen between the upper and lower cross heads. Compression, transverse, bending, shear and hardness tests are conducted between the lower cross head and the table. The lower cross head could be raised or lowered rapidly by operating the screwed columns, thus facilitating ease of fixing of the test specimen. Control Panel The control panel consists of a power pack complete with drive motor and an oil tank, control valves, a pendulum dynamometer, a load indicator system and an autographic recorder. Power Pack The power pack generates the maximum pressure of 200 KGF/cm. The hydraulic pump provides continuously non pulsating oil flow. Hence the load application is very smooth. Hydraulic Controls Hand operated wheels are used to control the flow to and from the hydraulic cylinder. The regulation of oil flow is infinitely variable. Incorporated in hydraulic system is a regulating valve, which maintains a practically constant rate of piston movement. Control by this valve allows extensometer readings to be taken. Load Indicator System This system consists of a large dial and a pointer. A dummy pointer is provided to register the maximum load reached during the test. Different measuring ranges can be selected by operating the range selection knob. An overload trip switch is incorporate which automatically cuts out the pump motor when the load range in use is exceeded. Pendulum Dynamometer This unit permits selection of favorable hydraulic ratios producing relatively small frictional forces. Pressurized oil in the loading cylinder pushes up the measuring piston proportionately and actuates the special dynamometer system. The piston is constantly rotated to eliminate the friction. The dynamometer system is also provided with an integral damper and ensures high reliability of operation. The load transmitted to the dynamometer is transferred through a pendulum to the load indicator. Autographic Continuous Roll Load Elongation Recorder This unit is of the Pen & Drum type and is supplied as standard. The horizontal motion of the pen produces the load ordinate of the diagram and the drum rotation produces the extension ordinates, in the ratio of either 1: 5 or 1: 10. A continuous roll of Graph Paper is stored inside the drum and is easily replaced. Accuracy and Calibration Universal Testing Machines are closely controlled for sensitivity, accuracy and calibration during every stage of production. Every machine is then calibrated over each of its measuring ranges in accordance with the procedure laid down in British Standard 1610: 1992 and IS: 1828 2005 Part 1. Universal Testing Machines comply with grade �A� of BS: 1610: 1992 and class 1 of IS: 1828: 2005 parts 1. An accuracy of + 1% is guaranteed from 20% of the load range to full load. Below 20% of the selected range, the maximum permissible error is 0.2% of the full reading.

Weight : 1-5 Ton

Voltage : 110V

Automatic Grade : Automatic

Power : 1-3kw

Warranty : 1 Year

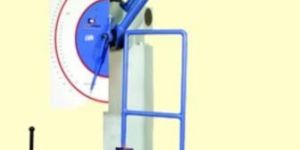

We are a reliable manufacturer and supplier of Impact Testing Machines in India. Our Impact Testing Machine is designed for conducting Izod & Charpy test. The test method conforms to BS: 131: part 4 1972 (Amended 15 Aug 1993) & BSEN: 10045 2: 1993. Working of Impact Testing Machine The Pendulum is mounted on antifriction bearings. It has two starting positions, the upper one for Charpy and the lower one for Izod testing. On release, the pendulum swings down to break the specimen and the energy absorbed in doing so is measured as the difference between the height of drop before rupture & height of raise after rupture of the test specimen; the measurement is read from the maximum pointer on the dial scale. Controls of Pendulum The Pendulum is supported in the starting position is by a self resetting latch. The release mechanism is operated by lever. The pendulum release latch moves only when this lever is operated. Strikers & Supports There are two strikers & one combined support available for fitting into the pendulum & on to the base of the machine for Izod, or Charpy test. Changing from one striker to another is achieved simply by fixing the new striker into its position. Optional Accessories In Impact Testing Machine Caliper gauge for checking V notch for Izod & Charpy as per BS: 131: Part 1, 2, 3 Depth notch gauge including V & U notch, angle & radius Self centering tong V Notch milling cutter U Notch milling cutter Charpy Test The sample to be tested is kept on support anvils that are typically made from Ally Steel. These anvils are fitted on the base of the machine. There is also an end stopper that holds the sample in a central position between the support anvils. Izod Test The Izod test piece is clamped vertically in Izod support anvils, fitted at the foot of the machine. The support is provided with a machined vertical groove to suit the test piece size. The front clamp piece & allen screw enable clamping of the test piece at correct height with the help of Izod setting gauge.

Weight : 60KG

Display Type : Digital

Automation Grade : Semi-Automatic

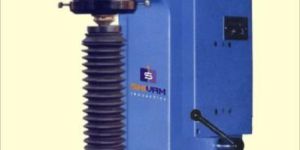

We are ranked among the most credible Manufacturers and Suppliers of Hardness Testing Machine in India. All the models of Rockwell Hardness Testing Machine are suitable for testing hardness of metals & alloys of all kinds - whether hard or soft, flat, round or irregular in shape. Rockwell Hardness Testing Machine is simple in design, easy to operate, and quite sensitive. Rockwell Hardness Testing Machine is used in schools, laboratories, tool room, inspections departments, industries etc.

Accuracy : 1 %

Hardness Scale : HV

Display Type : Optical or Digital

Type : Universal Testing Machine

Color : Grey

Condition : New

Application : Testing

Automatic Grade : Automatic, Semi Automatic

Warranty : 1 Year

We are counted among the top Manufactures and Suppliers of Erichsen Cupping Testing Machine in India. "SHI" Erichsen Cupping Testing Machine is used to carry out Erichsen Cupping test on metals. The quick clamping and manual facilitates of Erichsen Cupping Testing Machine makes the machine operations faster and trouble free.

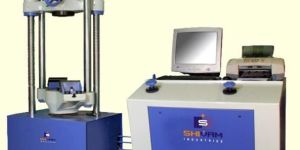

Shivam Industries manufactures and supplies Electronic Universal Testing Machine in all capacities as mentioned in the mechanical type. X-Y plotter interface and Electronic load pacer are two of the prominent yet optional accessories to Electronic Universal Testing Machine. Some of the key features of Electronic Universal Testing Machine are listed below: Features Micro processor based electronic panel Precision strain gauge type pressure transducer for load measurement Rotary encoder with rack for crosshead displacement indication with 0.1 mm resolution Digital load, displacement / extension indication RS 232 Com. Port for PC interface Data entry for specimen dimensions. Serial number, gauge length, unit selection for load etc Results includes load v/s displacement curve, maximum load, maximum displacement, U.T.S. - % elongation, youngs modulus & proof stress is extensometer used Optional Accessories X-Y plotter interface Electronic load pacer Crosshead displacement resolution of 0.01 mm Basic evaluation software Exhaustive evaluation software for proof stress calculation Any special software will be made available on request

Application : Industrial

We are into manufacturing as well as supplying of Brinell Hardness Testing Machine in India. Our Brinell Hardness Testing Machine is available in different models namely SHI B 3000 J, SHI B 3000 H and SHI B 3000 O. Brinell Hardness Testing Machine is quite appraised for ease of operation and low maintenance.

Automation Grade : Automatic

Material : Stainless Steel

Type : 6 Pillar

Color : Grey

Condition : New

Application : Testing

Automatic Grade : Automatic, Semi Automatic

Warranty : 1 Year
