Solar Structure Dealers in Kolhapur

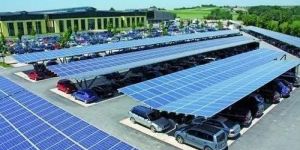

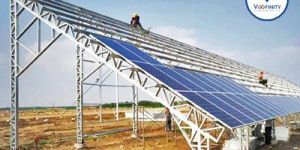

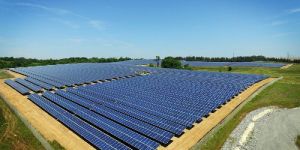

we are manufacturer of all types solar structures having 1000 mt capacity these are module mounting structures where solar panels are mounted . They support solar models from the roof. Being important structural elements, they must be manufactured exactly to specification. These structures are as important as modules. galvanized steel as per is 277; astm a 653 (80gsm - 550gsm) hr steel having min yield strength of 250mpa/350mpa with hot dip galvanized up to 100 microns as per is is 4759 applications: roof top structures ,ground mounted structures, carport structures advantages: very high strength-to-weight ratio; high strength, low cost. Significantly reduces installation time. No site drilling or cutting required.maintenance-free owing to application of proper surface finish. Cut to exact lengths with

• Material: Aluminum,Polycrystalline Silicon
• Frame Material: Aluminium
• Design Type: Modular
• Open Circuit Voltage: >40 V
• Technique: Hot Rolled
• Surface Treatment: Galvanized

We are one of the prominent Manufacturers, Suppliers and Exporters of Solar Panel Mounting Structure. Designed to perfection, Solar Panel Mounting Structure can be used for flat terrace & slanted roof. The Solar Panel Mounting Structure is easy-to-install and convenient to maintain. Customers can avail Solar Panel Mounting Structure in different specifications. In one structure, four panels can be fixed at 15, 22, or 30 degree. Panel size: 950 – 1020 (W) & 1000 – 2000 (L) & 35 – 50 (H) It can resist wind speed of 160 km/hr. Benefits of Solar Panel Mounting Structure : We Provide foundation layout so you can easily & faster do foundation work Base frame & upper Channel for fixing panels will get fixed by nut bolts and that is also with slots so you do not get any problem while doing assembly of structure. We have designed specific upper channel & bracket in that panel will get fixed by end clip & mid clip so there will be no issue of hole matching and also easy to fix panel from top side. End Clip & Mid Clip will be of S.S 304 material All M.S part will come with hot deep galvanizing. All nut, bolts & washer will be of S.S. 304 grade material. You can save lot of time and trouble free installation as we have given adjustable type components with good quality of workmanship. Our maximum component length is 1.5 mtr so you can easily store it, transport it & easily lifting up to terrace or roof.
