ADHIACON Lake Gardens, KOLKATA, West Bengal

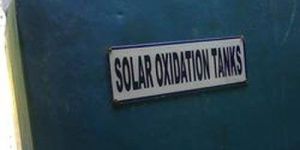

Adhiacon always strive towards utilization of nature to the benefit of living being and their effort in arsenic removal has also utilizes the solar radiation towards arsenic removal form ground water at no recurring cost. The system is effectively working as pretreatment system in Community based arsenic removal projects in West Bengal. Arsenic Removal & Mitigation Projects Arsenic contamination of ground water (drinking water) is considered to be worst environmental disaster in the 20th and 21 st Century where more than 30 million people are at risk of arsenic poisoning from drinking arsenic contaminated water all over world and specifically in Eastern India and Bangladesh. Adhiacon developed a very users friendly arsenic removal system which has been implemented in many districts in Bangladesh and West Bengal as Self Sustaining Decentralised Community based Arsenic Free Drinking Water Supply projects in schools , through self help groups and Co-operatives.

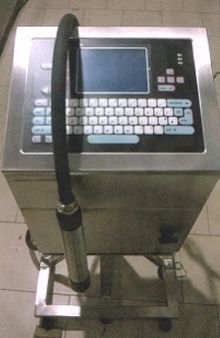

SMALL CHARACTER NON CONTACT INKJET PRINTER FOR BATCH CODING OF BOTTLE Features Print batch and lot codes seasmlessly on any type of product & packaging Highly effective in crisp, clear and permanent marking and coding requirements. Print on primary packaging like Packaged Drinking Water Bottle, Laminated Pouches, Films, Plastic, Glass, Aluminium, Paper & many more! Print on secondary packaging like Carton boxes, Corrugated Boxes, Shrink Wraps, Tertiary Boxes & many more! Print high resolution codes on irregular or curved surfaces. Colored inks for printing high-contrast details on colored packaging.

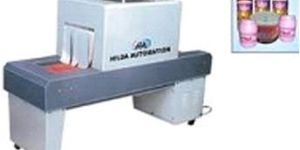

Shrink Wrapping Machines offered are based on semi automatic operations with options of manual loading and unloading work approach. These feature tunnel structure bearing M.S. powder coated finish that adds to the overall durability of the structure. Further, these specially designed shrink wrapping machines allow for quality shrinking process through even distribution of heat with the operation speed of the machine solely depending upon the operator. Features Semi automatic operation (manual loading and unloading) Tunnel structure will be of M.S. powder coated Specially designed shrink wrapping machine for quality shrinking and even distribution of heat Speed solely depends upon the operator Design & Specification is subject to change due to continuous R&D and improvements

We are involved in offering a wide range of Packaged Drinking Water Plant to our most valued clients. Our water plants are not only ideal to remove contamination such as bacteria, virus, suspended matters, harmful minerals like fluoride, arsenic & lead and excessive dissolved salts of calcium, magnesium & sodium. Further, these are also able to remove levels of volatile organic chemicals but also in accordance to the Research findings of World Health Organisation on Drinking Water for good health. We make this type of commercial plant for any water condition throughout India. Our range of Package Drinking Water Plant is widely appreciated by our clients which are situated in India and abroad. Our Project & Products are not only very much cost competitive but also designed to provide unmatched water quality which are appreciated by the renowned Public Health Engineers.

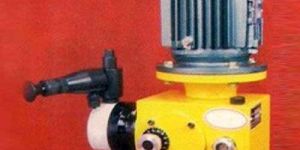

Reciprocating type Mechanically actuated diaphragm dosing pumps are driven by a 0.5 HP, 1440 RPM Squirrel Cage induction motor (415 V/3 phase/50 Hz AC power supply) having following features: • Mechanically actuated Diaphragm • High precision balls and seal rings for accuracy • Manual flow control, adjustable while running through stroke length adjustment knob • Composite PTFE Hypalon Diaphragm for long life • Worm Shaft & worm wheel driven by motor • Liquid end construction in PP ( SS 316 / PVC / TEFLON optional ) • Light weight aluminum alloy body • Less foot print • Steady state accuracy +/- 2% • Turn down ratio 10:1 • Capacities: Maximum 35 LPH (at 10 kg/cm2) to Max. 100 LPH (at 5 kg/cm2)

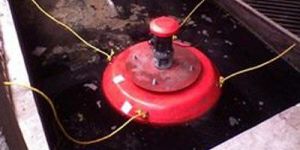

Adhiacon provides High Speed Floating Aerators for aeration of large volume of effluent and aeration lagoons where construction of Civil structures are of design constraint and uneconomic. High speed Floating Aerators having a special advantage where effluent discharge volume varies greatly and there is a possibility of effluent level difference in the aeration tank / lagoon. It could be used as Mixer as well as aerator. Improve design provide higher mixing zone, highest aeration zone & oxygen supply for aeration. Since there is no civil structure required for our high speed floating aerator, installation and commissioning takes only a few hours.

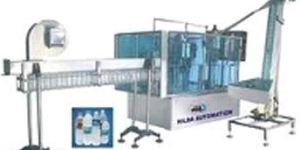

Keeping in sync with time, we are able to offer Automatic Bottle Rinsing, Filling and Capping Machine to our clients. The offered range of automatic bottle rinsing, filling and capping machines is developed utilizing high grade raw material and innovative techniques in complete adherence with the industry laid norms and standards. Moreover, the offered range of machines is suitably inspected on different characteristics to maintain its authenticity throughout the manufacturing methods. Technical Specifications Fully automatic monoblock operation for 200 ml – 2000 ml bottles Can run PET bottles with air conveyor and glass bottles with in-feed slat conveyor Maximum production speed 30/60/90/120/150 bottles/min Machine fully in S.S – 304 and all product contact parts in S.S – 316 quality Machine can be made for hot fill products or cold fill carbonated drinks UV sterilization for caps before capping operation Fitted with PLC control Elevator/Vibrator for automatic applying of caps Optional: Batch coder and shrink tunnel Design & Specification is subject to change due to continuous R&D and improvements ALSO IN RANGE OF SUPPLY- MINERAL WATER JAR FILLING MACHINES 24 BPM Bottle Filling Machine 40 BPM Bottle Filling Machine 60 BPM Bottle Filling Machine 90 BPM Bottle Filling Machine

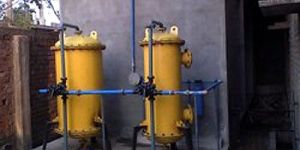

Environtex filter is the most users friendly tertiary treatment for textile dye effluent and the result of years of research in this field. Due to dynamic market condition it is very difficult to keep the quantitative and qualitative product mix constant and this affects seriously , even with the industries sincere intention , the efficiency of the effluent treatment plant as constant monitoring and immediate change in the different chemical dosing are very difficult and seldom followed in the industry. Advantages of Environtex Filter : • It does not require any chemical dosing & frequent recharging of the process. • It does not require electricity. • It is the most environment friendly filtration process especially developed for Textile Wet    Processing. • It is very users’ friendly and only maintenance required is scheduled back washing. • It reduces the BOD & COD level and takes care of the day to day variation. • It removes color and odor. • It reduces TSS ( Total Suspended Solids) • It does not affects the pH of the effluent.

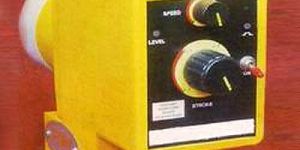

These pumps are controlled by an Electronic Circuit comprising of PCB & electronic components of proven quality for high reliability with following features: • Solenoid driven aided by Professional Pulser Circuitry. • Glandless & leakage free diaphragm pumps • Excellent proportional control with higher turn down ratio • Adjustable injection frequency ( 100 SPM) • Adjustable volume displacement via Stroke Length adjustment • Corrosion resistant GFPP Housing • Unique spacer design for prevention of Chemical entry to drive end • Teflon faced Hypalon Diaphragm for long lasting service • Liquid ends – Polypropylene ( PVC / SS316/PTFE as optional) • Very low power consumption • Less foot print and less weight • Suction lift upto 1.5 m WC • Steady state accuracy +/- 3% • Capacity: From 2 LPH (at 10 KG/CM2) to 12 LPH (at 2 kg/CM2)

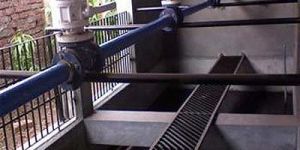

Effluent Treatment Plants & Turnkey Projects   The motto of Adhiacon is to make environment protection a desired and friendly approach from the industry. This is only possible is the pollution control systems are made users’ friendly and less capital intensive and with low running expenses. Adhiacon is constantly working in this line and have provided most cost efficient effluent treatment systems and plant for many small and medium industries in Textiles, Jute, Petroleum, Pharmaceuticals, Engineering, Dairy etc. Adhiacon takes care from designing, supply of equipment like Bar Screen, Flash Mixer, Clariflocculator, Clarifier, Dosing Pump, Jet mixing system, Aerator, Bio reactor, ENVIRONTEX Filter for BOD-COD removal & colors, Effluent Pump, Sludge pump etc and take up turn key execution of the projects.

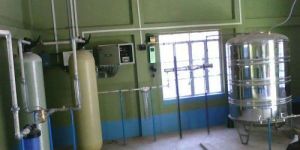

Earth surface comprises of 70% water and 30% land area. Out of this abundance of water resources only 0.78% is available to us as fresh water which can be used for drinking.It has been predicted that world will face drinking water shortage by more than 40% within this decade(2011- 2020). Supply of safe and purified drinking water will be a major area of social marketing and not only serve community towards good health but also generate considerable profit and employment in the process. This has become more significant in view of deteriorating water quality with contamination with inorganic compound of arsenic and fluoride having severe health risk on prolong drinking of contaminated water. Adhiacon is recognized for its contribution in social sector of establishing many community based income generating safe drinking water supply projects at a fraction of a cost of setting up packaged drinking water projects. Single module of such project with high return on investment (ROI) can cater the need of 5000 people and also discharge its social responsibility. Safe Drinking Water Turnkey Project – Community Packaged Drinking Water Project

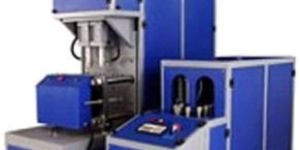

Special Features Compact design for space saving. High quality Cylinders and vales for trouble free operation. Machine Maintenance, testing and production have manual and auto mode. Genuine parts are used to enhance machine life. Philips 16 bits XAG – 49 Micro processor. Separate pressure adjustable valves are given for high pressure. Low pressure system pressure. One operator one machine. Inbuilt cooling system for Neck cooling, Mould cooling and oil cooling. One conveyor can be used for blowing machines. Technical Specifications

Neck Holding No Bottle No Rinsing No Filling and No Capping Four Stage Rinsing ( Chemical , Hot 2 Times, Final Water ) Single Stage Filling Non Contact Sensors Separate Cap Hopper Having Capacity 50 Caps Material of Contractions contact parts SS316L rest SS304 Technical Specifications Electrical Load: – 5.68 HP (4.23 KW) Cap Hopper Gerard Motor .0.25 H.P. (0.33 k.w.) 1440RPM – 440VAC Hopper Capacity 100 Caps At a time Material of contraction SS304 Programmable Logic Controls ( PLC ) Inputs = Photo Sensor Output = 230 VAC Filling Valves 1” BSP 230 VDC SS Tank 35 Ltr. For Chemical and Hot Water Proximity Switches 24VDC M18 Size (For No Bottle No FILL SYSTEM) Shrink Tunnel 4.5KW (440VAC). Conveyor 3 feet SS Roller Conveyor Material of construction SS304 Roller material SS304 Adjustable width for different size of bottle Machine size in feet Machine Only: – L = 11’ x W = 3’ x H = 5.5’ Machine With Conveyor and all accessory: – L = 11’ x W = 3’ x H = 5.5’ Design & Specification is subject to change due to continuous R&D and improvements ALSO IN RANGE OF SUPPLY- MINERAL WATER JAR FILLING MACHINES Semi Automatic Jar Filling Machine Automatic Jar Filling Machine
