Aluminium Alloy Conductors Dealers in Kolkata

• Electrical Components: Electrical Conductor

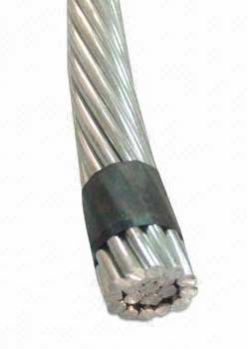

We provide All Aluminium Alloy Conductor that is popular for its high resistance from abrasion. The All Aluminium Alloy Conductor that we offer to the customers brings repeated orders for the company. Thus, we have made a remarkable stand in the market as a reliable All Aluminium Alloy Conductor Manufacturer, Exporter and Supplier. Features High strength Excellent electrical and mechanical characteristics Fine finishing Durable High resistance from corrosion Used In Overhead applications Specifications EQVT ACSR CODE WORD ACTUAL AREA (Sq mm) STRANDING & WIRE DIAMETER� CONDUCTOR OVERALL DIAMETER (Approx) (mm) MASS (Approx) (Kg. Km) RESISTANCE AT 20 degC (OhmsKm) (MAX) ULTIMATE BREAKING LOAD (Kn) NO. DIA (mm) MOLE� 15� 3� 2.50� 5.39� 40.15� 2.3040� 4.33� SQUIRREL� 22� 7� 2.00� 6.00� 60.16� 1.5410� 6.45� WEASEL� 34� 7� 2.50� 7.50� 94.00� 0.9900� 10.11� RABBIT� 55� 7� 3.15� 9.45� 149.20� 0.6210� 16.03� RACOON� 80� 7� 3.81� 11.43� 218.26� 0.4250� 23.41� DOG� 100� 7� 4.26� 12.78� 272.86� 0.3390� 29.26� DOG (UP)� 125� 19� 2.89� 14.45� 342.51� 0.2735� 36.64� COYOTE� 148� 19� 3.15� 15.75� 406.91� 0.2290� 43.50� WOLF� 173� 19� 3.40� 17.00� 474.02� 0.1969� 50.54� WOLF (UP)� 200� 19� 3.66� 18.30� 549.40� 0.1710� 58.66� PANTHER� 232� 19� 3.94� 19.70� 636.67� 0.1471� 68.05� PANTHER (UP)� 288� 37� 3.15� 22.05� 794.05� 0.1182� 84.71� PANTHER (UP)� 346� 37� 3.45� 24.15� 952.56� 0.0984� 101.58� KUNDAH� 400� 37� 3.71� 25.97� 1101.63� 0.0829� 117.40� ZEBRA� 465� 37� 4.00� 28.00� 1280.50� 0.0734� 136.38� ZEBRA (UP)� 525� 61� 3.31� 29.79� 1448.39� 0.0651� 146.03� MOOSE� 570� 61� 3.45� 31.05� 1573.71� 0.0598� 158.66� MORCULLA� 604� 61� 3.55� 31.95� 1666.00� 0.0568� 167.99� MOOSE (UP)� 642� 61� 3.66� 32.94� 1771.36� 0.0534� 178.43� MORCULLA (UP)� 695� 61� 3.81� 34.29� 1919.13� 0.0492� 193.25� BERSIMIS� 767� 61� 4.00� 36.00� 2115.54� 0.0446� 213.01.

• Material: Aluminium Alloy
• Conductor Type: Aluminium
• Thickness: 25 mm - 100 mm
• Power Source: Electric
• Rated Voltage: High Voltage
• Finishing: Polished
